The KUPO KCP-150 Swiveling Pipe C Clamp is a wide-range ratcheting jaw clamp for 28 to 78 mm tube. Its gravity-cast aluminum body carries a universal swiveling head with both a 28 mm junior receiver and a 16 mm baby stud, giving crews two mounting interfaces from one clamp.
Why It Matters
The important detail is that the two top interfaces do not share the same rating. KCP-150 is rated for 80 kg on the 28 mm receiver and 15 kg on the 16 mm stud, so it gives flexibility without hiding the load decision from the person hanging the fixture.
Key Features

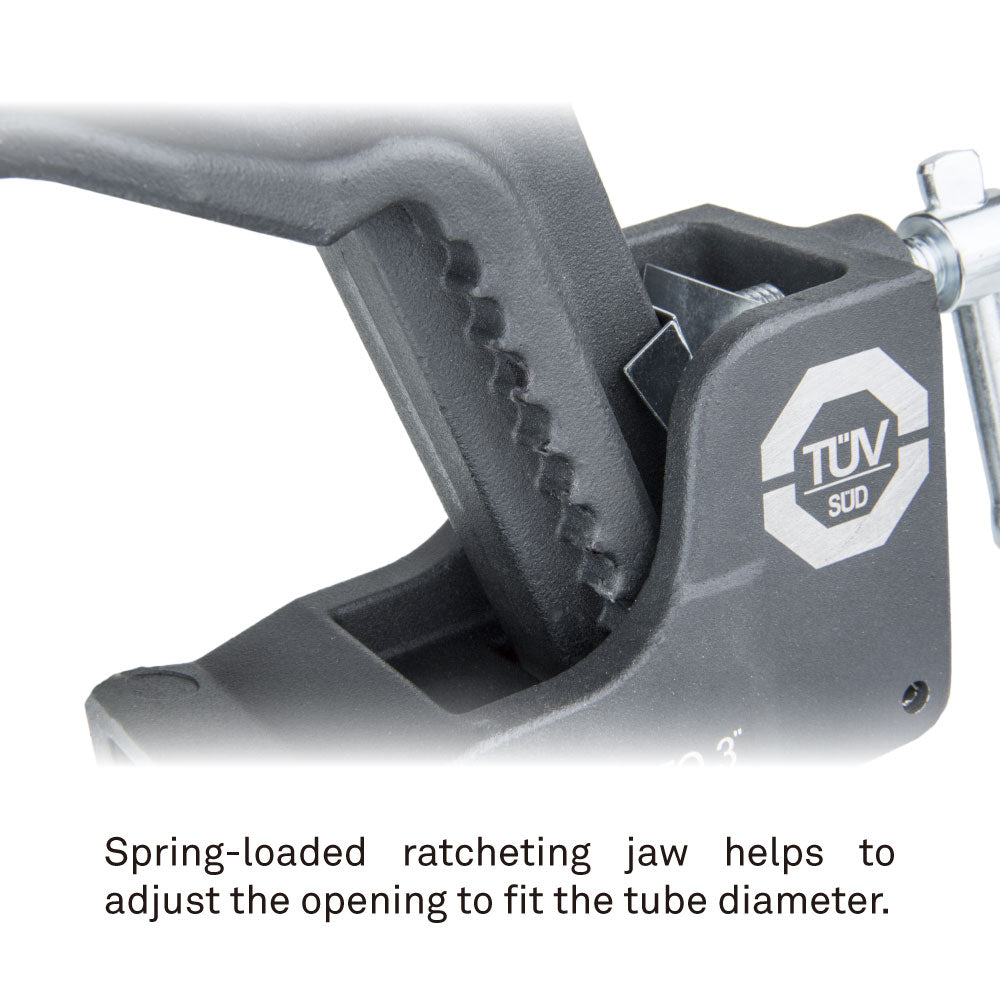

Ratcheting jaw fits a broad 28 to 78 mm tube range for mixed truss, pipe, and support environments

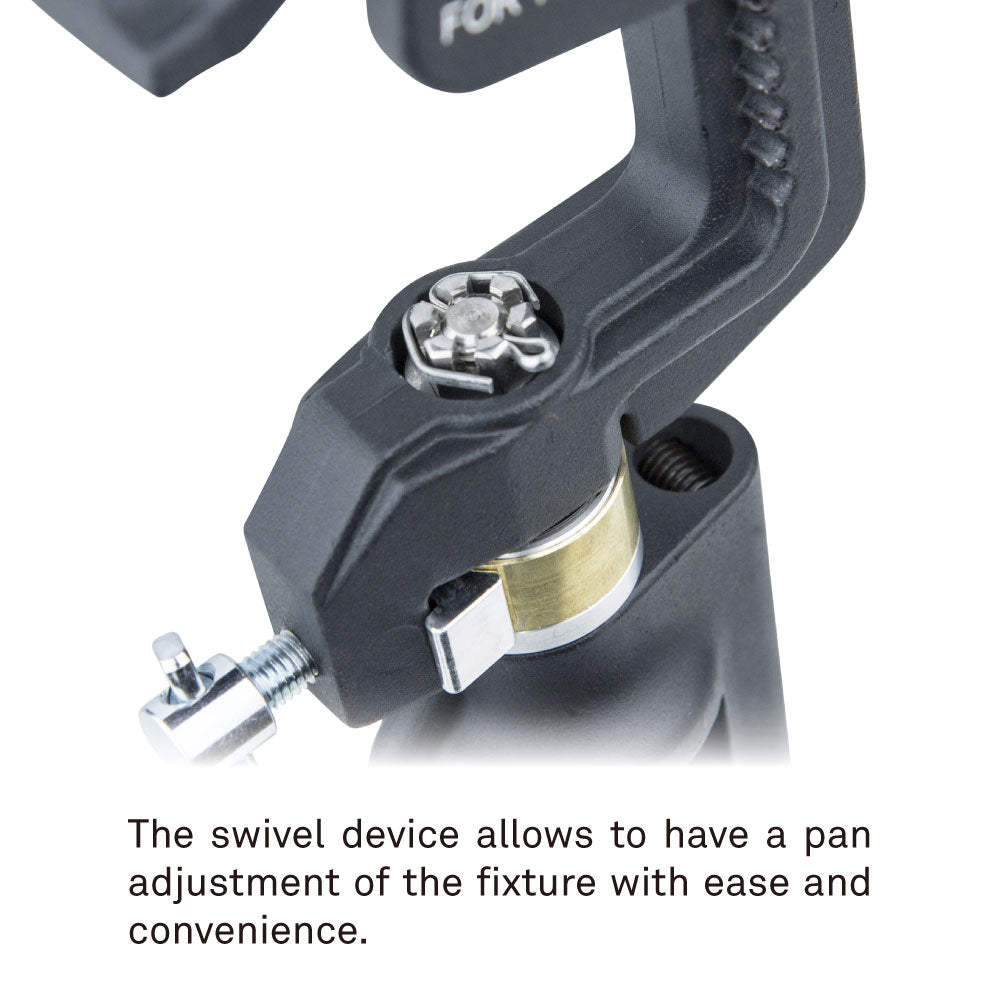

Swiveling device allows pan adjustment at the clamp for easier fixture positioning

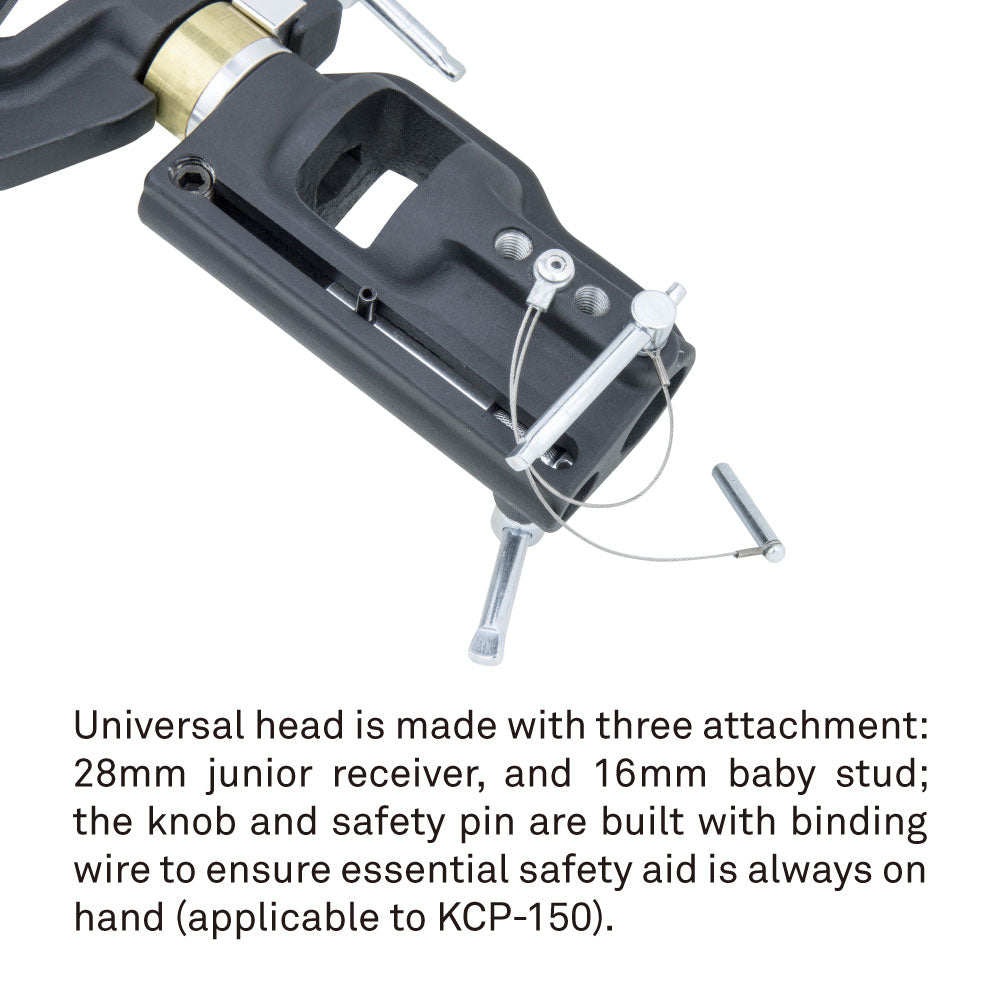

Universal head provides both 28 mm junior receiver and 16 mm baby stud mounting options
Knob and safety pin are built with binding wire so essential parts stay with the clamp

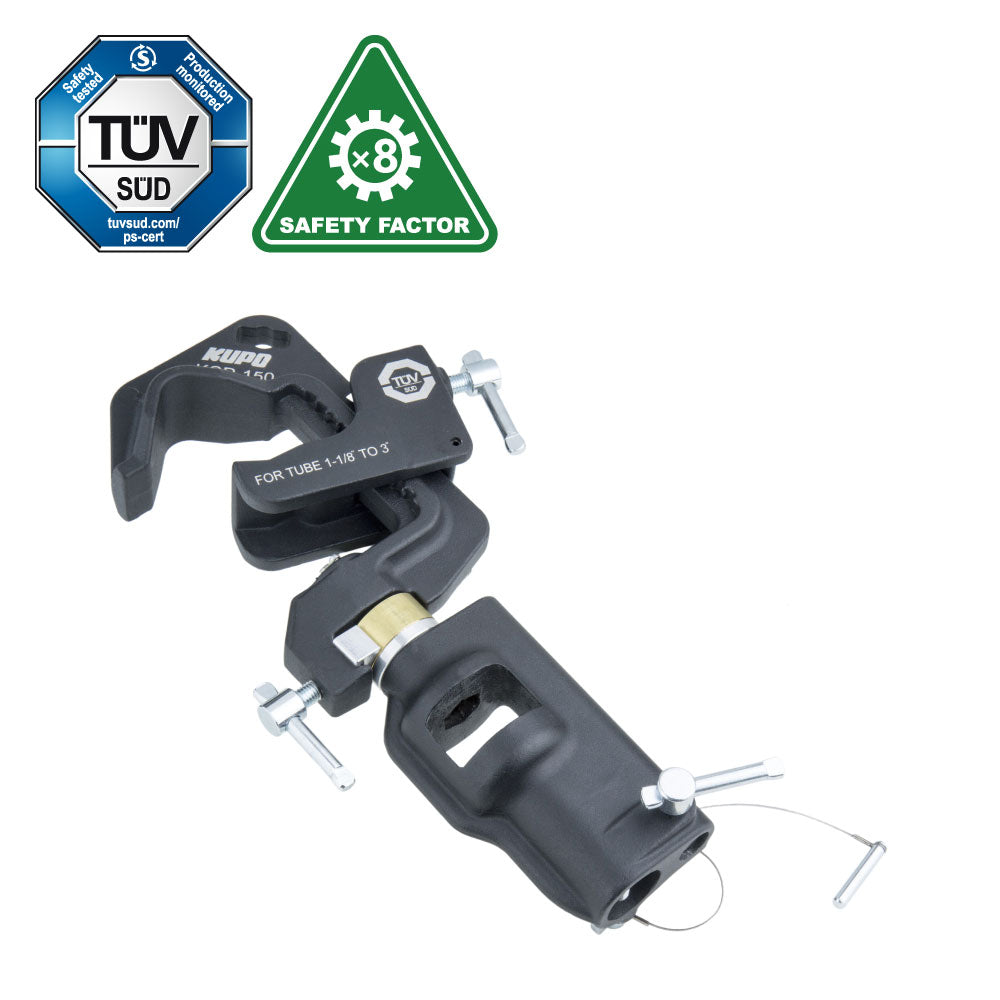

TÜV APPROVED certification is listed for working safety
Applications
Use it for studios, stages, rental packages, and venue installs where a fixture may need either junior receiver or baby stud mounting from a wide range of tube sizes.
Compatibility

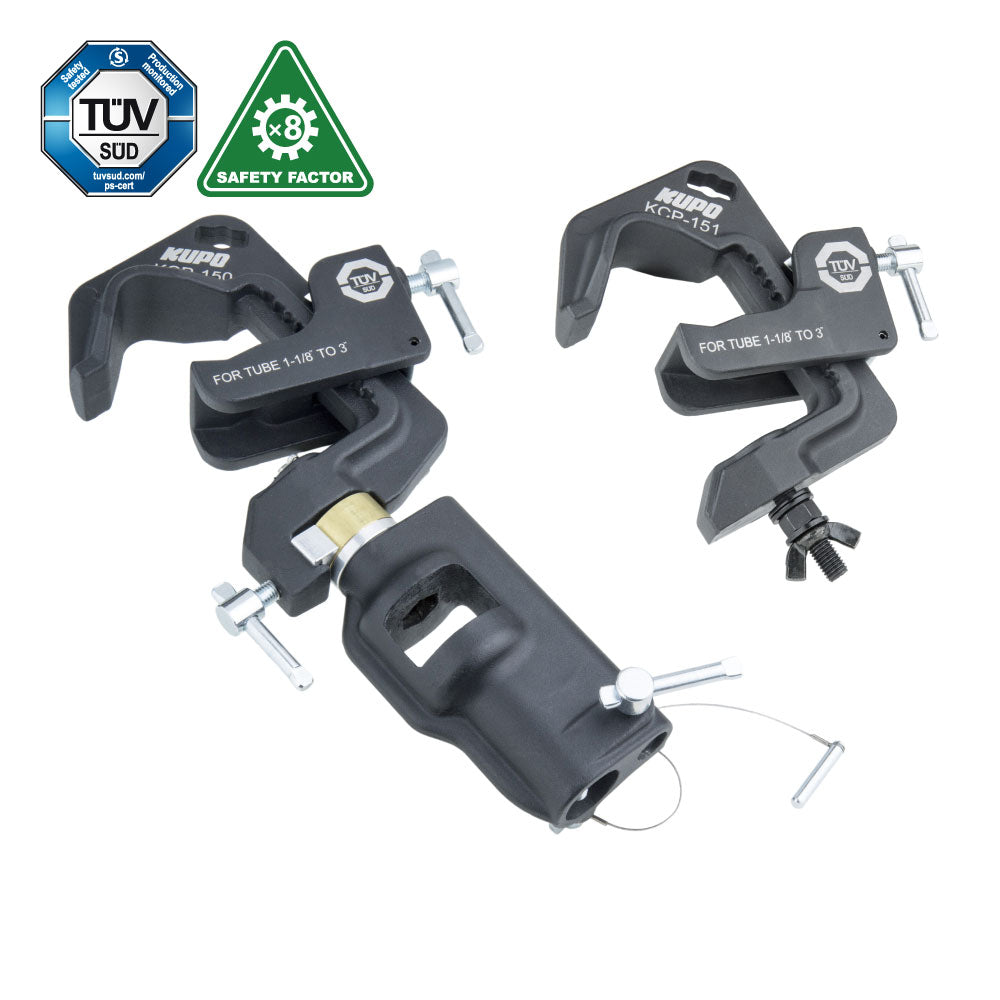

Use the correct rating for the selected interface: 80 kg on the 28 mm receiver and 15 kg on the 16 mm stud. Sister model KCP-151 uses the ratcheting jaw with an M12 bolt and nut instead.
Frequently Asked Questions
Which WLL applies when I use the baby stud?
Use the 15 kg working load limit for the 16 mm stud. The higher 80 kg rating applies to the 28 mm receiver, not both interfaces.
What tube sizes does the jaw fit?

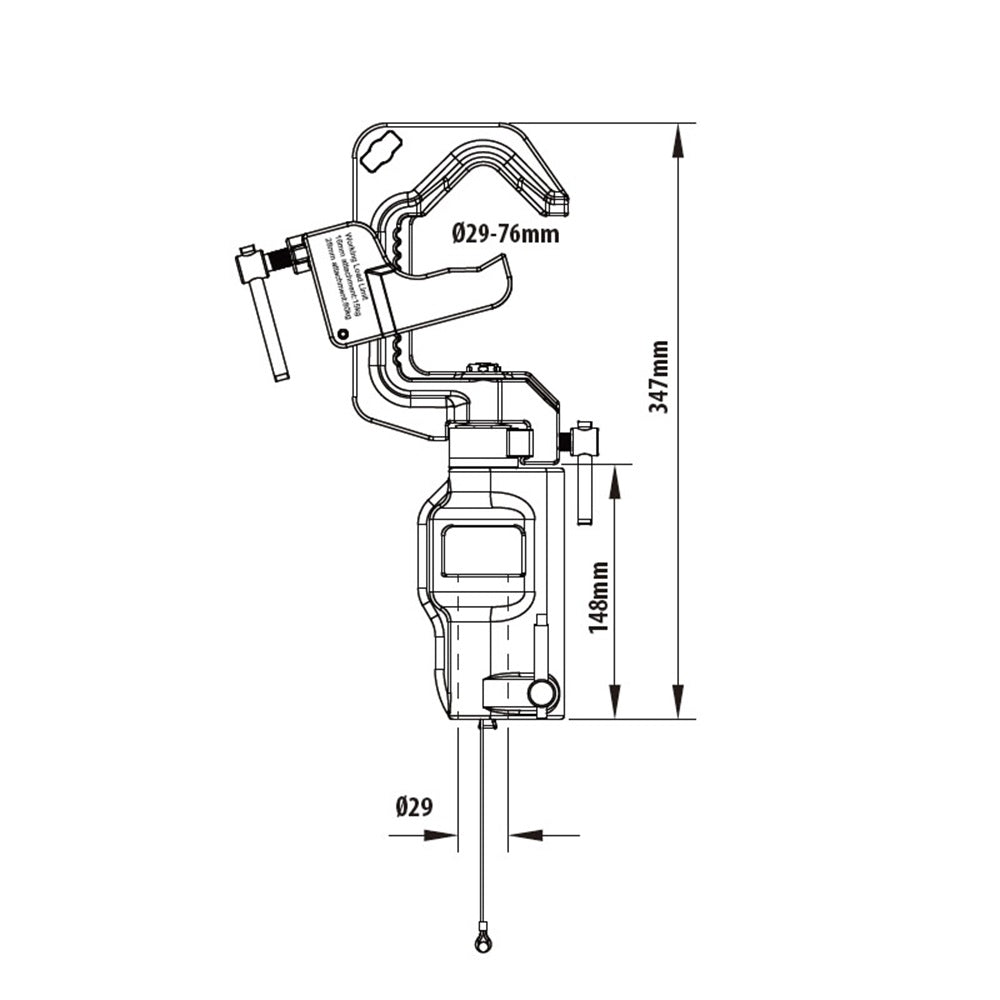

The ratcheting jaw fits 28 to 78 mm tube.
Why choose KCP-150 instead of KCP-151?
Choose KCP-150 when you need the swiveling universal head with 28 mm receiver and 16 mm stud. Choose KCP-151 when the fixture attaches with an M12 bolt and nut.
