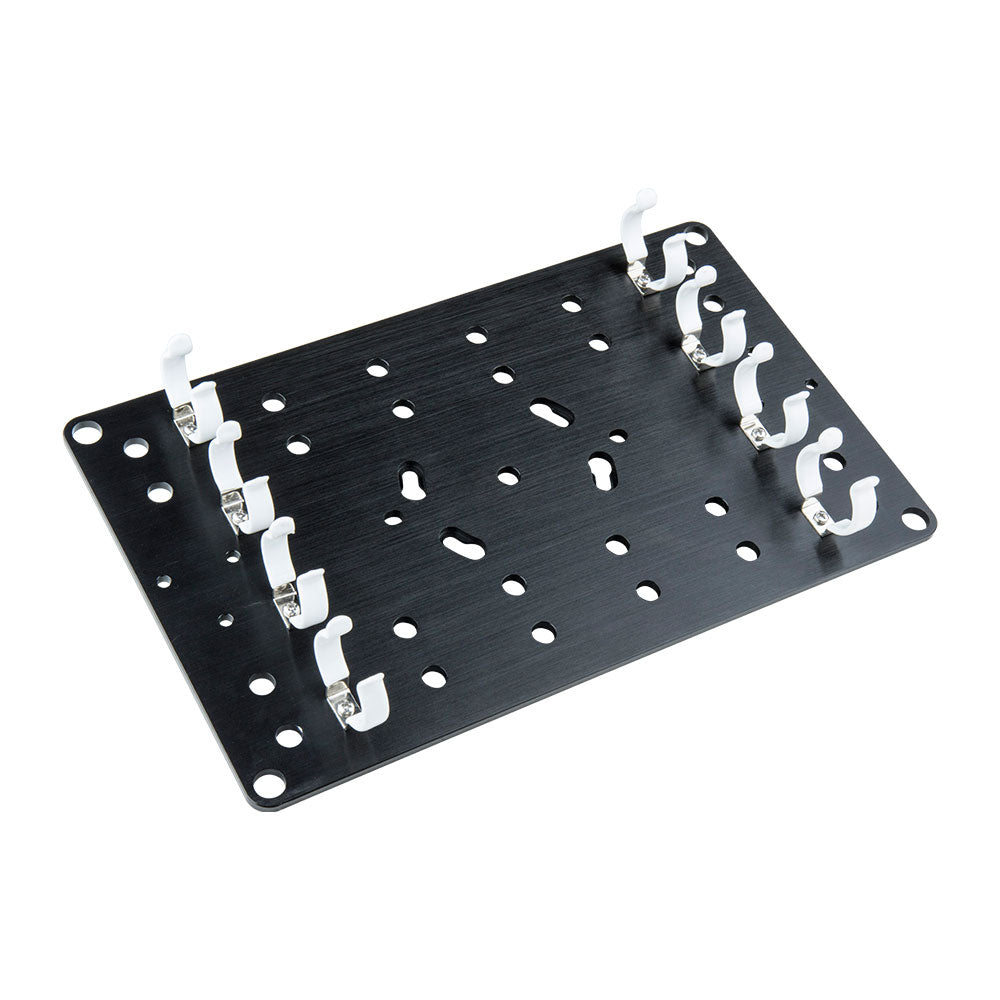

The KUPO KCP-404 is the quad-lamp twist-lock mounting plate for Kino Flo or T12 tubes. Its black anodized aluminum 330 x 202 mm plate carries four pairs of KCP-401 rubberized spring clips, turning four separate tubes into a single riggable assembly.
Why It Matters
A four-tube build needs a plate that can manage both lamp spacing and attachment choices. KCP-404 provides a larger hole grid than the dual version, including 12 pairs / 24 holes, 3/8" fastening points for cheese plates or V-lock battery mount workflows.
Key Features
Holds four Kino Flo or T12 lamps using four pairs of KCP-401 rubberized spring clips
330 x 202 mm black anodized aluminum plate gives the quad layout a shared structure
12 pairs / 24 holes, 3/8" diameter support cheese plate or V-lock battery mounting setups
Corner holes can be used for connecting and safeties in the completed rig
Applications

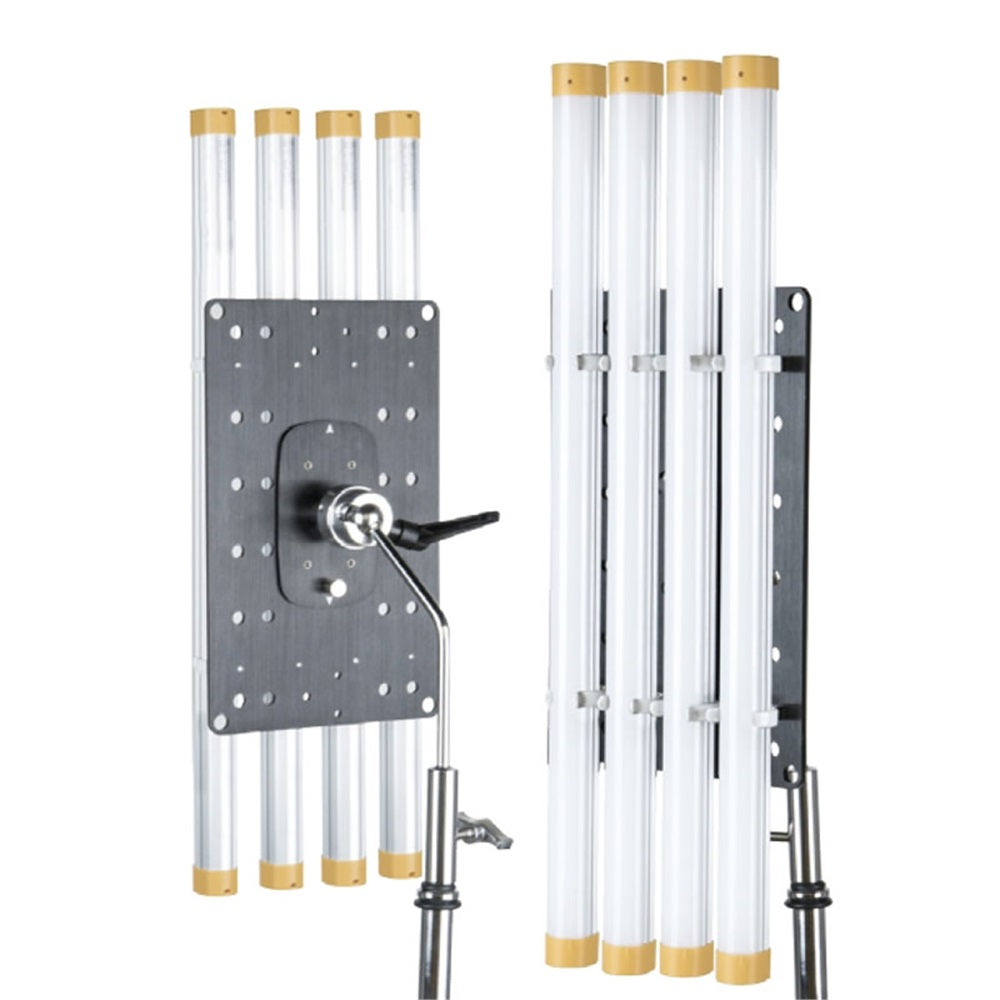

Use it for quad T12 or Kino Flo lamp builds, compact soft sources, studio effects, and custom tube arrays that need a structured mounting plate.
Compatibility
KCP-415 off-set mounting plate with baby receiver is a companion accessory but is not included. KCP-402 is the dual-lamp sister plate.
Frequently Asked Questions
How is KCP-404 different from KCP-402?
KCP-404 is the four-lamp plate at 330 x 202 mm. KCP-402 is the two-lamp plate at 330 x 100 mm.
Is KCP-415 included?
No. The specification notes that the KCP-415 off-set mounting plate with baby receiver is not included.
Why are there so many 3/8" hole pairs?
The 12 pairs / 24 holes give the plate fastening options for cheese plates, V-lock battery mount setups, connections, and safety routing.
