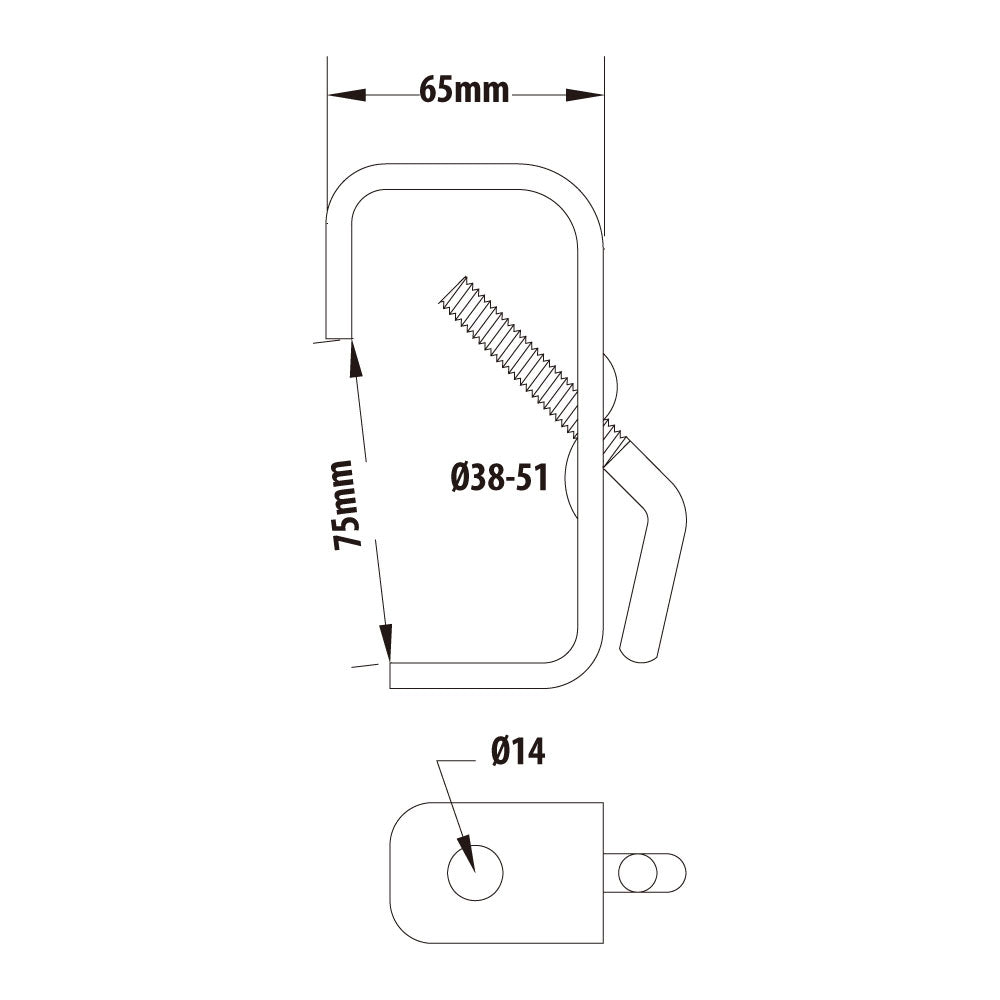

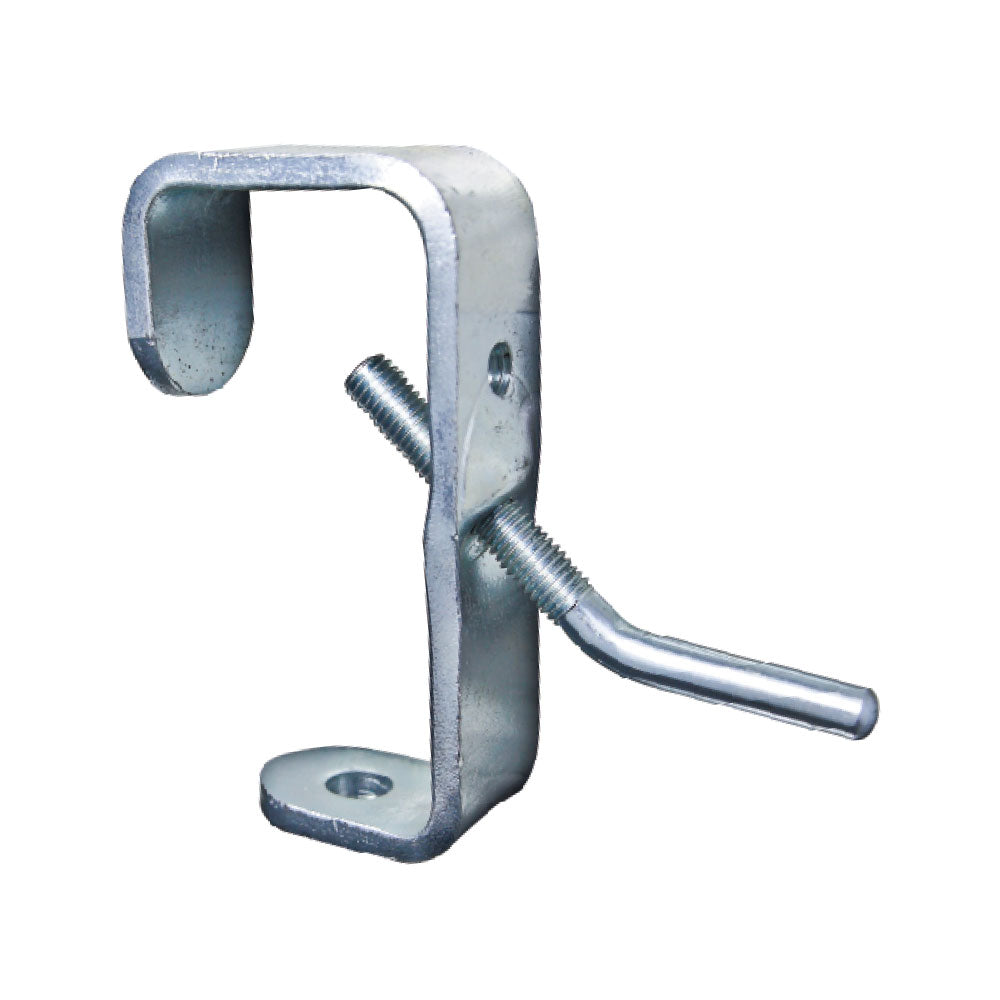

The KUPO KCP-702 is a steel stage clamp for 38 to 51 mm tube, built with a 14 mm hole at the bottom for attaching compatible hardware. It is the hole-interface model in the KCP-702 / KCP-703 / KCP-704 stage clamp family.
Why It Matters
Not every fixture wants a built-in stud. KCP-702 gives crews the same practical stage-clamp body with a 14 mm bottom hole, leaving the attachment method to the fixture or adapter while keeping the 50 kg working load limit clear.
Key Features
14 mm bottom hole supports compatible hardware that does not require a fixed stud
38 to 51 mm tube range suits common studio and theatre pipe applications
Single-handle fixing screw can tighten diagonally or directly onto the pipe
Bent handle shape helps the user apply force during installation
50 kg working load limit keeps the clamp in the light-to-medium stage clamp class
Applications
Use it for studio, theatre, photography, and lighting fixture rigging where a 14 mm hole interface is the correct attachment point.
Compatibility
Related models in the same family are KCP-703 with a 16 mm stud and KCP-704 with a 28 mm stud.
Frequently Asked Questions
Why choose KCP-702 instead of KCP-703?
Choose KCP-702 when the fixture or adapter needs a 14 mm hole interface. KCP-703 provides a fixed 16 mm stud.
What pipe size does it fit?
The clamp fits 38 to 51 mm tube.
What is the working load limit?
The specification lists a 50 kg / 110 lb working load limit.
