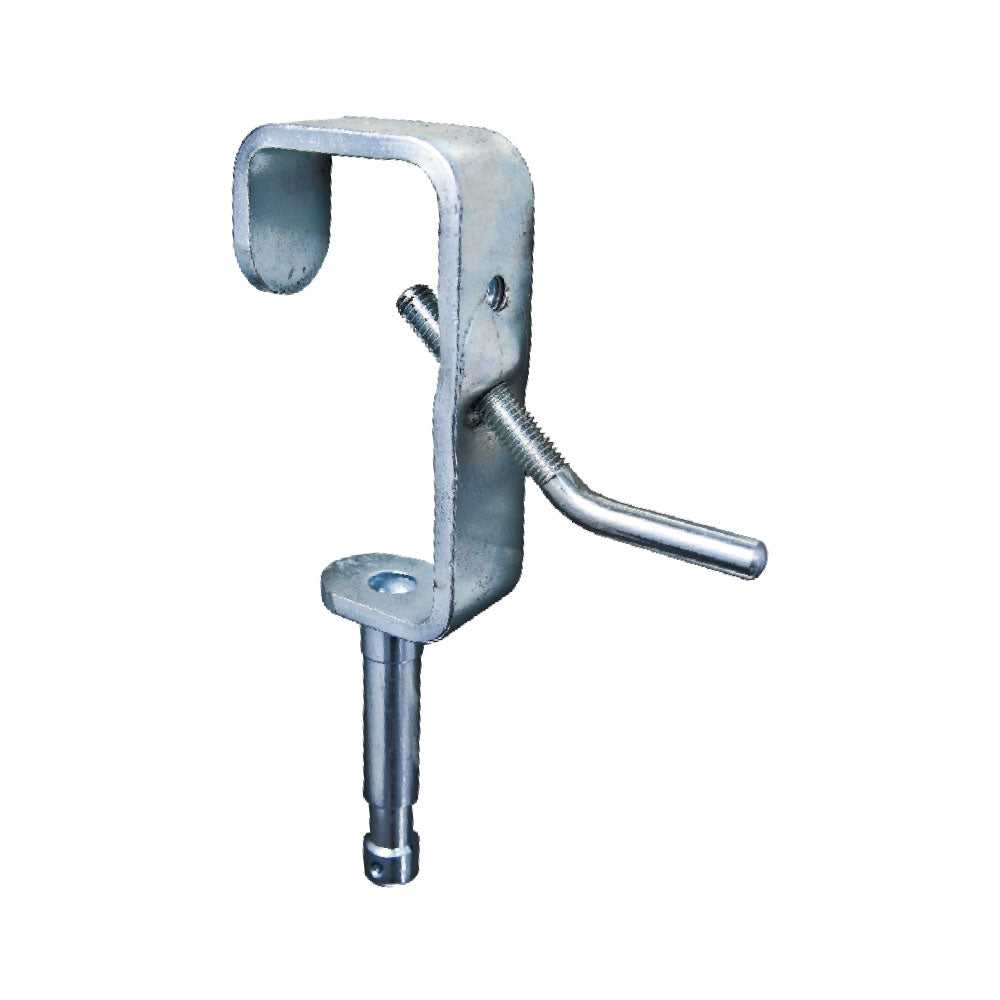

The KUPO KCP-703 is a steel stage clamp with a 16 mm stud for fixtures that mount into a baby receiver. It fits 38 to 51 mm tube and carries a 50 kg / 110 lb working load limit for small to medium lighting fixtures.
Why It Matters
A baby receiver is still one of the fastest ways to mount compact studio and stage fixtures. KCP-703 puts that 16 mm stud directly on a pipe clamp body, giving crews a direct route from theatre pipe or studio tube to baby-mounted equipment.
Key Features
16 mm stud supports fixtures and accessories with baby receiver mounting

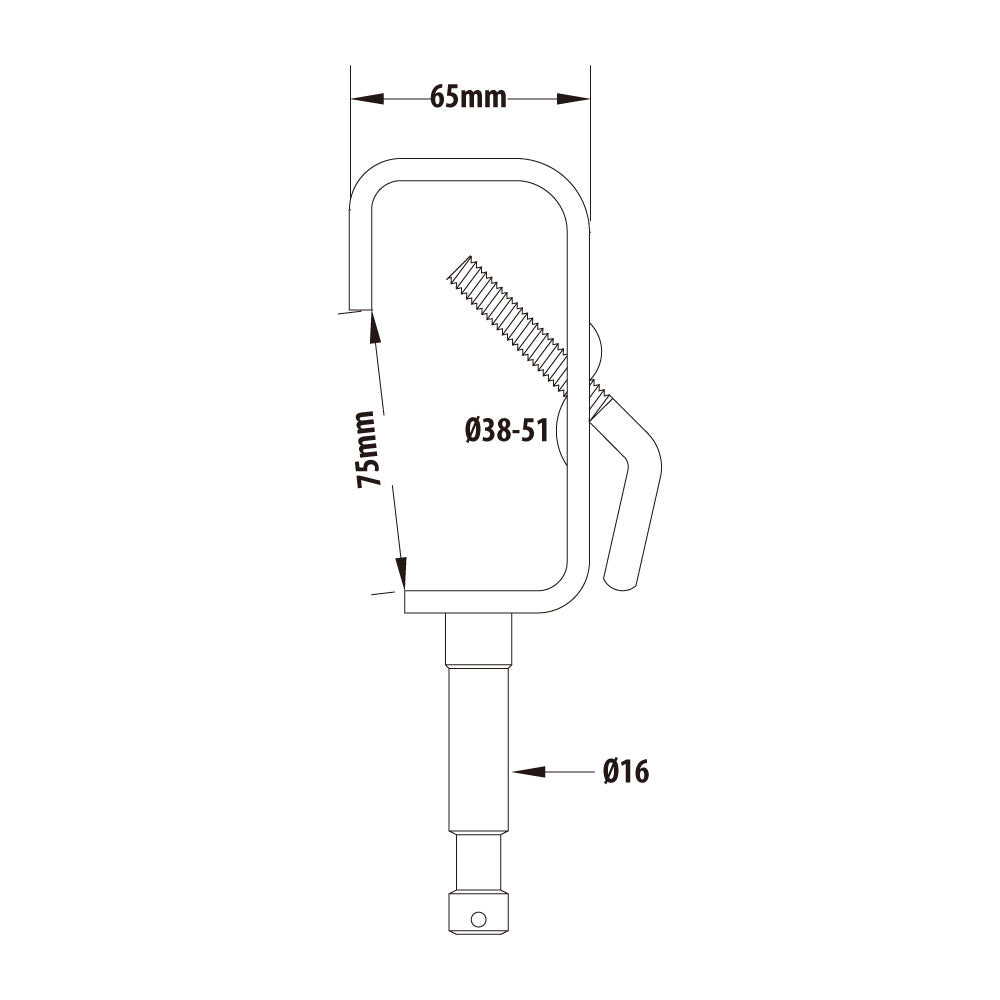

38 to 51 mm tube range fits common studio, theatre, and photography pipe
Single-handle fixing screw can engage diagonally or directly onto the pipe
Bent handle shape helps apply tightening force during installation
50 kg working load limit matches the stage clamp family rating
Applications
Use it for film, television, theatre, photography, and studio fixtures that need a 16 mm baby stud mounted from pipe.
Compatibility
KCP-702 is the 14 mm hole version, and KCP-704 is the 28 mm junior stud version in the same stage clamp family.
Frequently Asked Questions
What fixture interface does KCP-703 provide?
It provides a 16 mm baby stud for fixtures and accessories with a matching baby receiver.
Is KCP-703 rated higher than KCP-702?
No. The specification lists both within the same 50 kg / 110 lb stage clamp family rating.
When should I move up to KCP-704?
Use KCP-704 when the fixture or adapter requires a 28 mm junior stud instead of a 16 mm baby stud.
