Overview

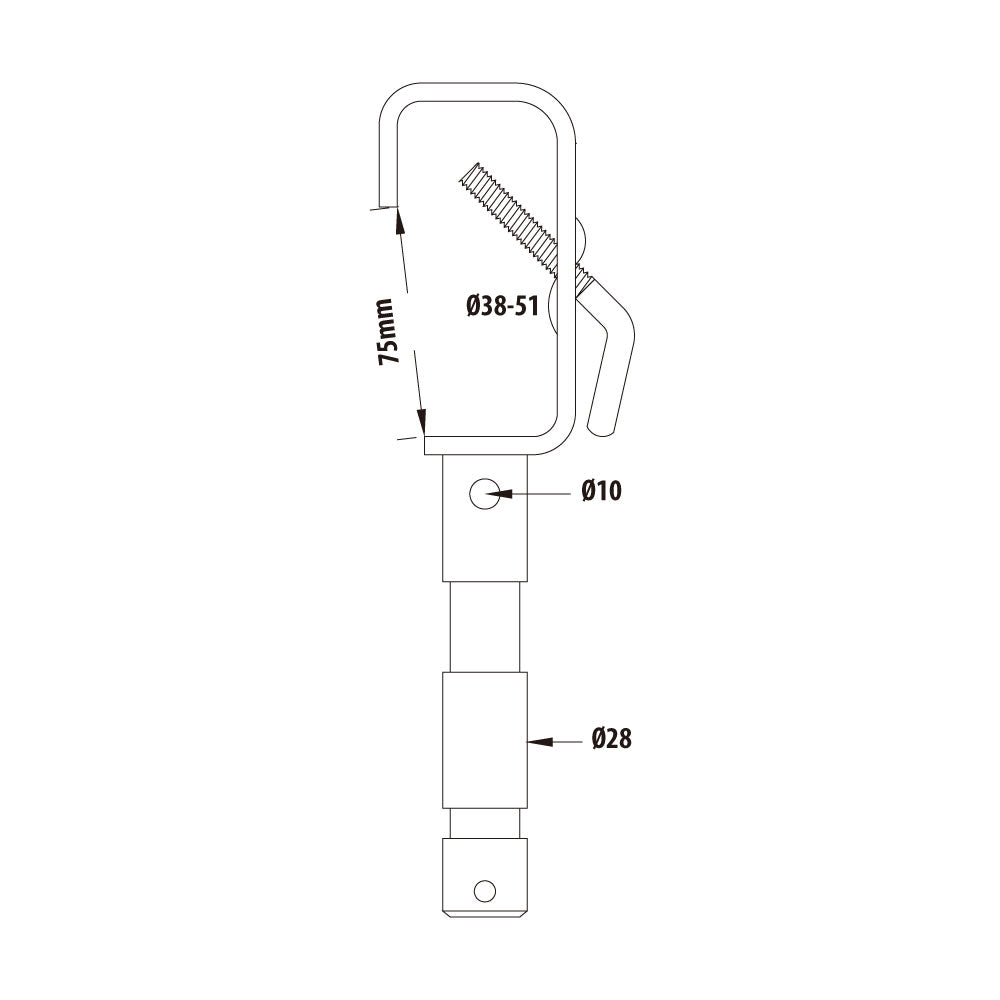

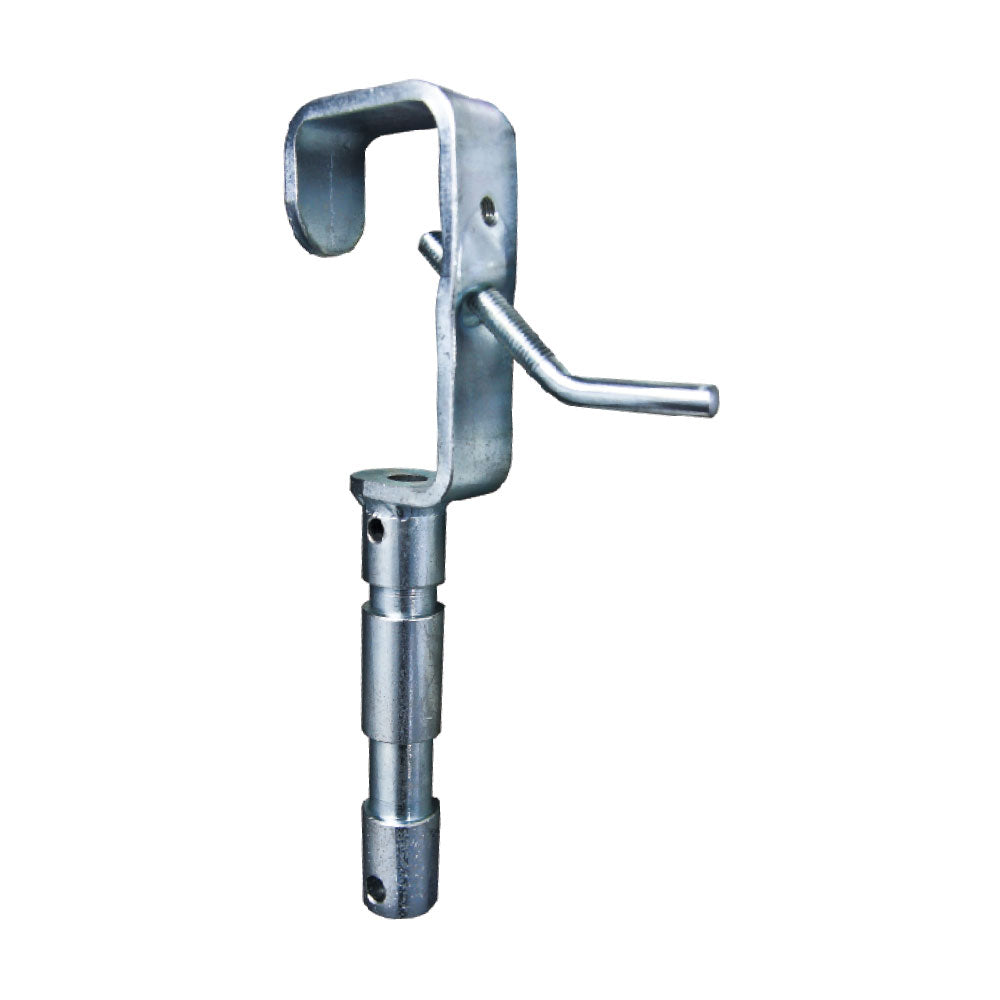

The KUPO KCP-704 is a solid steel stage clamp with a 28 mm / 1-1/8" junior stud for fixtures and accessories that use a junior receiver. It fits 38 to 51 mm outside diameter pipe and carries a 50 kg / 110 lb safe working load.

Why It Matters

KCP-704 is the junior-stud member of the 702 / 703 / 704 family. It gives larger fixtures a direct 28 mm mounting point while keeping the familiar stage-clamp body style used by the 14 mm hole and 16 mm stud versions.

Key Features

• 28 mm / 1-1/8" junior stud supports compatible junior receiver fixtures
• Solid steel clamp body fits 38 to 51 mm outside diameter pipe
• 50 kg / 110 lb safe working load keeps the rating visible for fixture selection
• Part of the stage clamp family alongside KCP-702 and KCP-703

Applications

Use it for stage, theatre, photography studio, and lighting fixture rigging where the fixture needs a 28 mm junior stud from a pipe-mounted clamp.

Compatibility

Do not confuse KCP-704 with KCP-705. KCP-704 provides a 28 mm stud, while KCP-705 provides a 28 mm junior receiver socket and has a higher 150 kg WLL.
