Overview

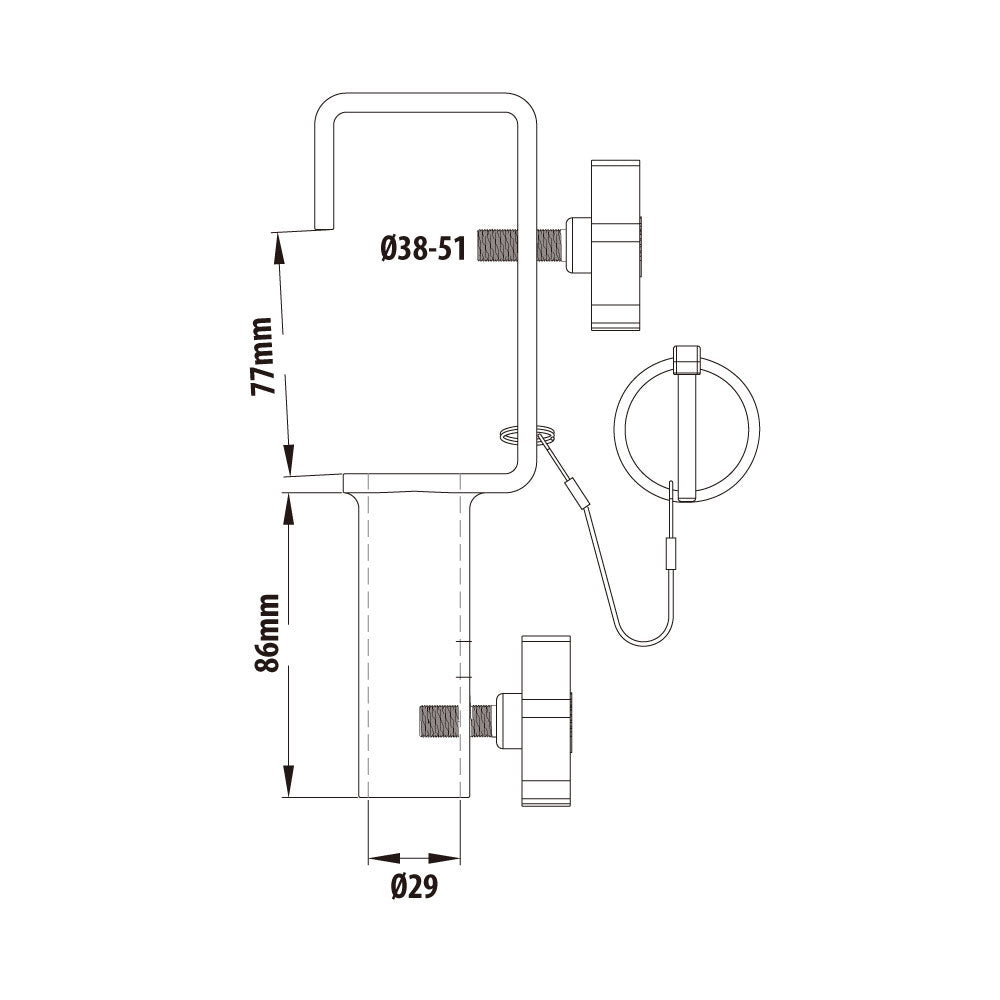

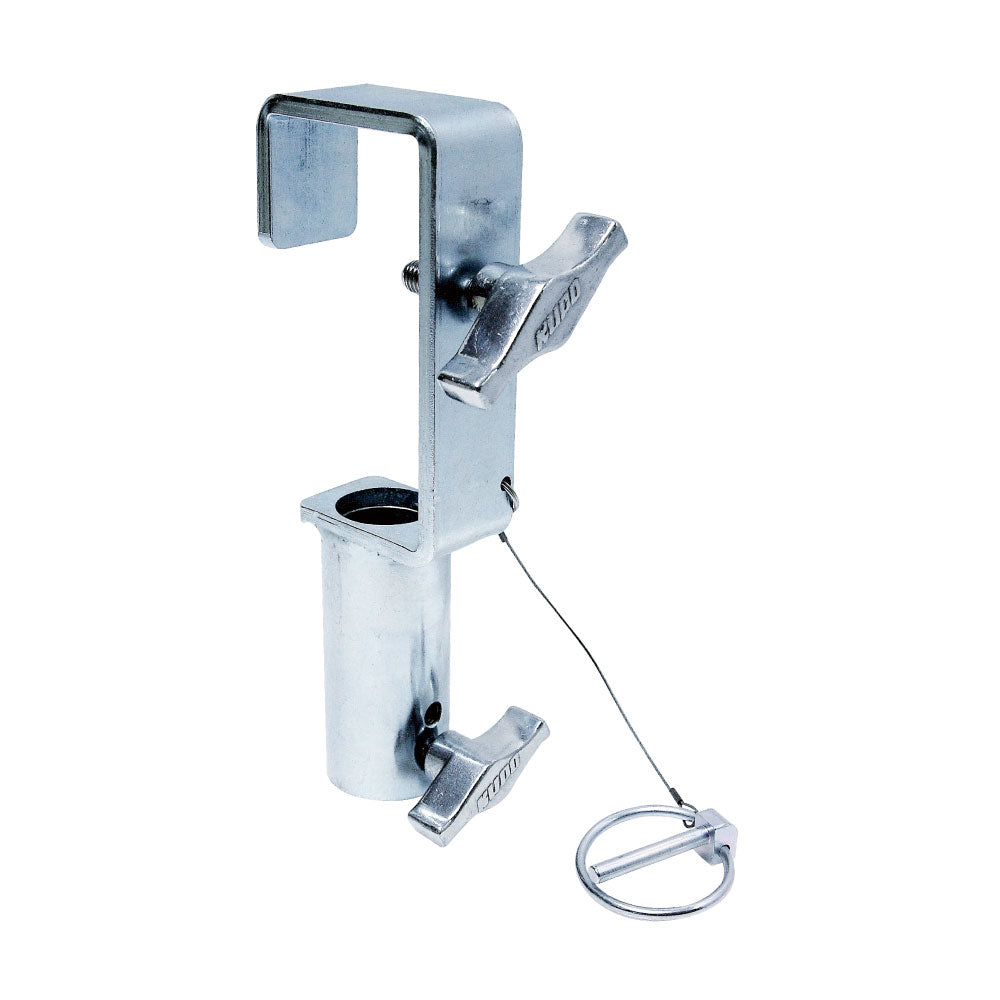

The KUPO KCP-705 is a heavy solid-steel stage clamp with an incorporated 28 mm / 1-1/8" junior receiver socket. It fits 38 to 51 mm outside diameter pipe and provides a 150 kg working load limit for heavier pipe-mounted fixture support.

Why It Matters

The key distinction is direction of the junior interface. KCP-705 receives a 28 mm spigot, rather than providing one, and the safety lock system helps keep the mounted fixture or accessory seated once it is in the socket.

Key Features

• 28 mm junior receiver socket accepts compatible junior spigots from fixtures or accessories
• 150 kg working load limit makes it the higher-capacity socket clamp in this group
• Solid steel body supports heavier studio and stage rigging needs
• Safety lock system helps secure the mounted spigot once seated in the receiver

Applications

Use it for heavier luminaires and junior-spigot accessories that need a pipe-mounted 28 mm receiver socket in studio or stage environments.

Compatibility

Fits 38 to 51 mm outside diameter pipe. KCP-704 is the related 28 mm stud model, not the same interface.
