Overview

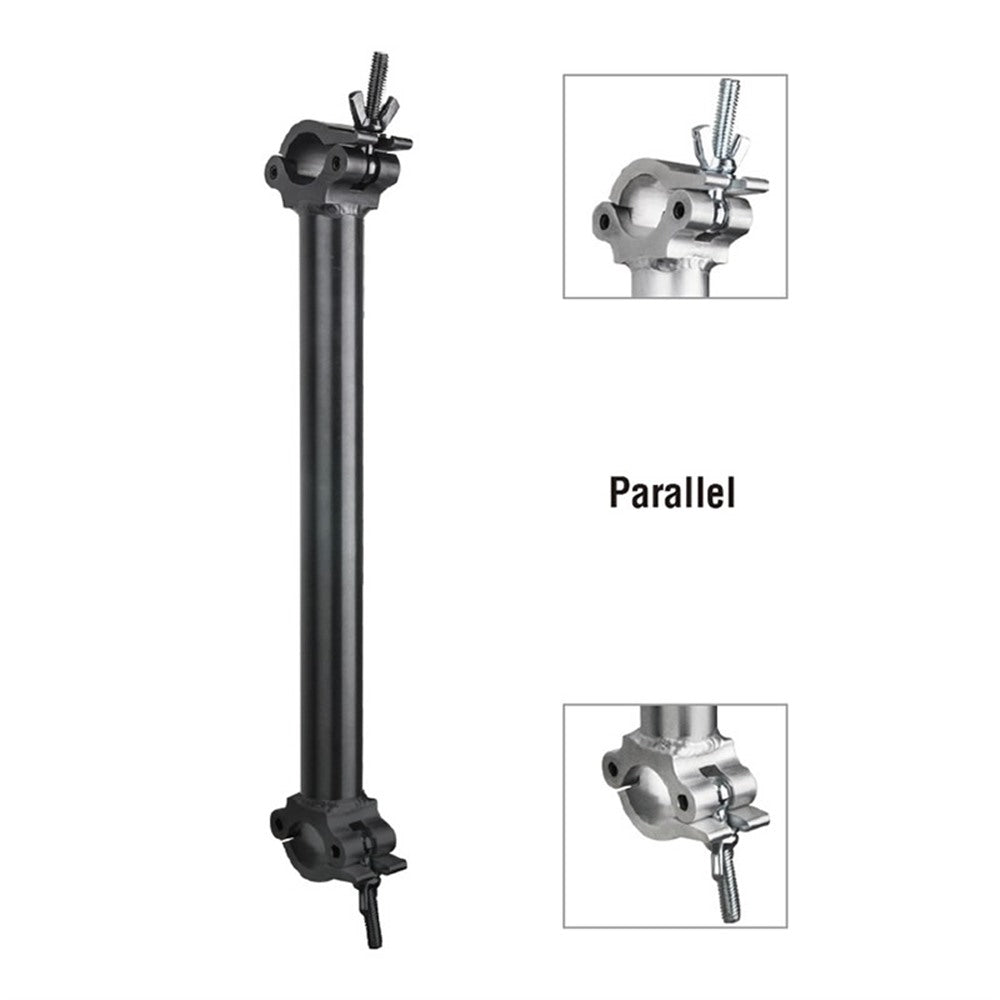

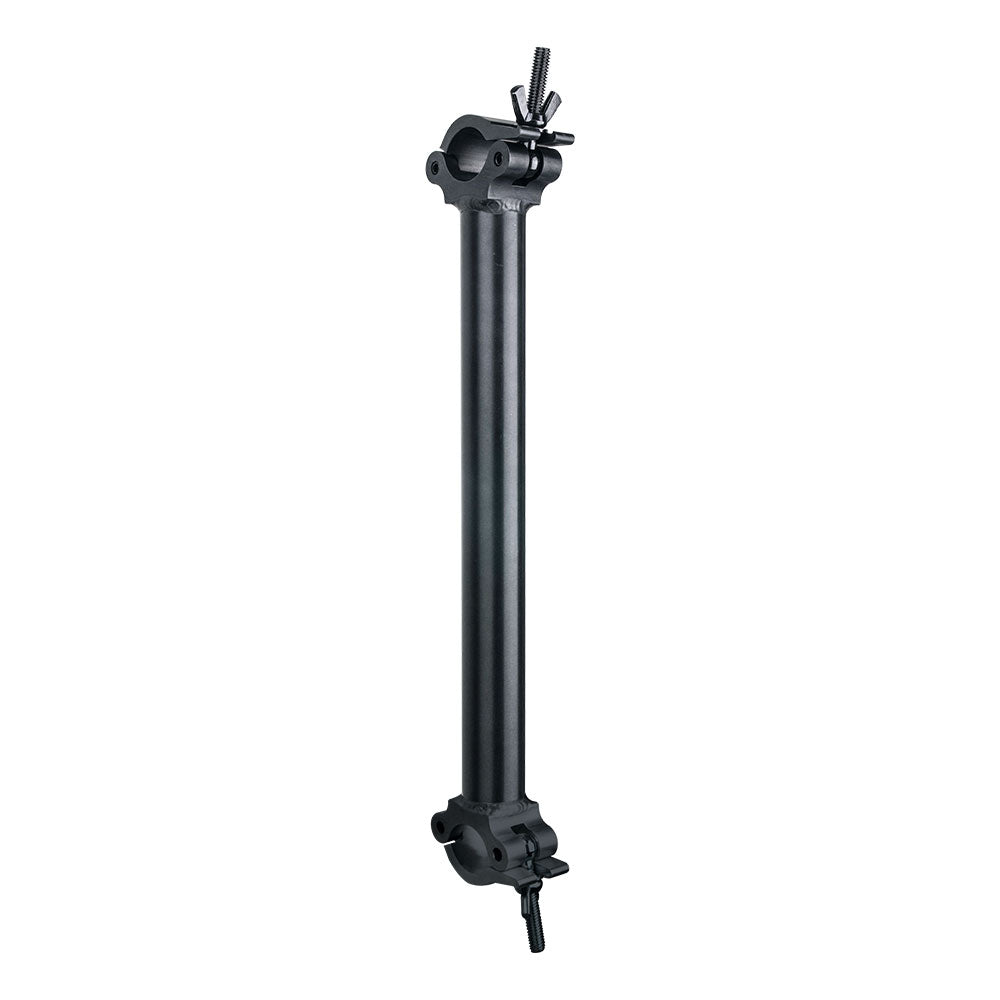

The KUPO KCP-801-DB Pipe-to-Pipe Coupler is a black 250 mm parallel coupler for connecting 48 to 51 mm tubes with a 250 mm center-to-center spacing. Two heavy-duty couplers are welded to an aluminum spacer, creating a 200 kg Working Load Limit assembly for modular pipe-grid work.
Why It Matters
Parallel tube additions are easy to make messy if every joint is built from separate parts. This coupler fixes the spacing and alignment, which helps when crews are adding a second pipe run for more lighting positions or a cleaner modular grid.
Key Features
- Parallel configuration creates same-axis pipe extension and doubled lighting positions
- 200 kg Working Load Limit supports planned modular pipe-grid and rigging extensions

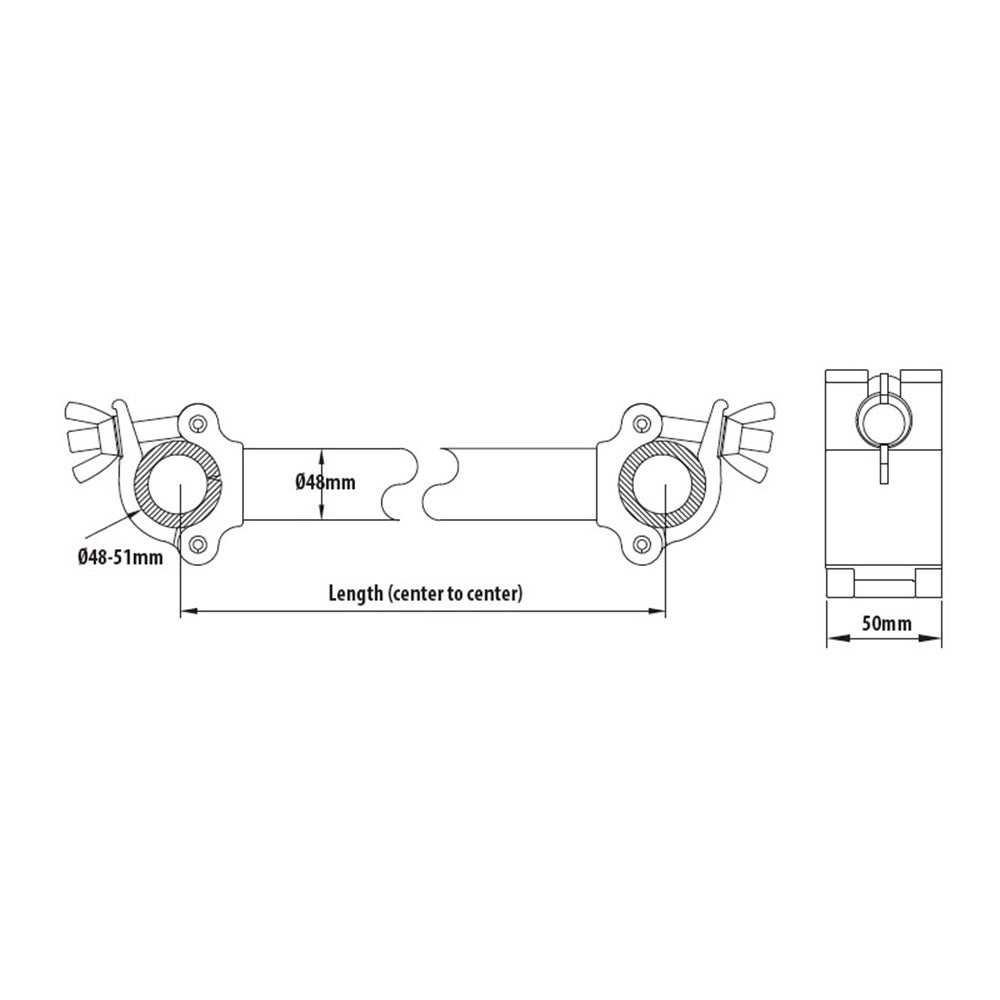

- 250 mm assembly length with 250 mm center-to-center tube spacing gives repeatable geometry
- 48 to 51 mm tube fit matches standard 2" stage pipe and truss tube
- Black powder-coated finish reduces visibility in dark rigs and camera-facing structures
Applications
Use it to add a parallel rigging pipe beside an existing tube, double lighting positions, extend modular pipe grids, and build repeatable support runs in studios, venues, and exhibition structures.
Compatibility
Fits 48 to 51 mm tube. Sister variants cover parallel and 90° cross configurations in 250 mm, 500 mm, and 1000 mm lengths, with polished and black finishes.
