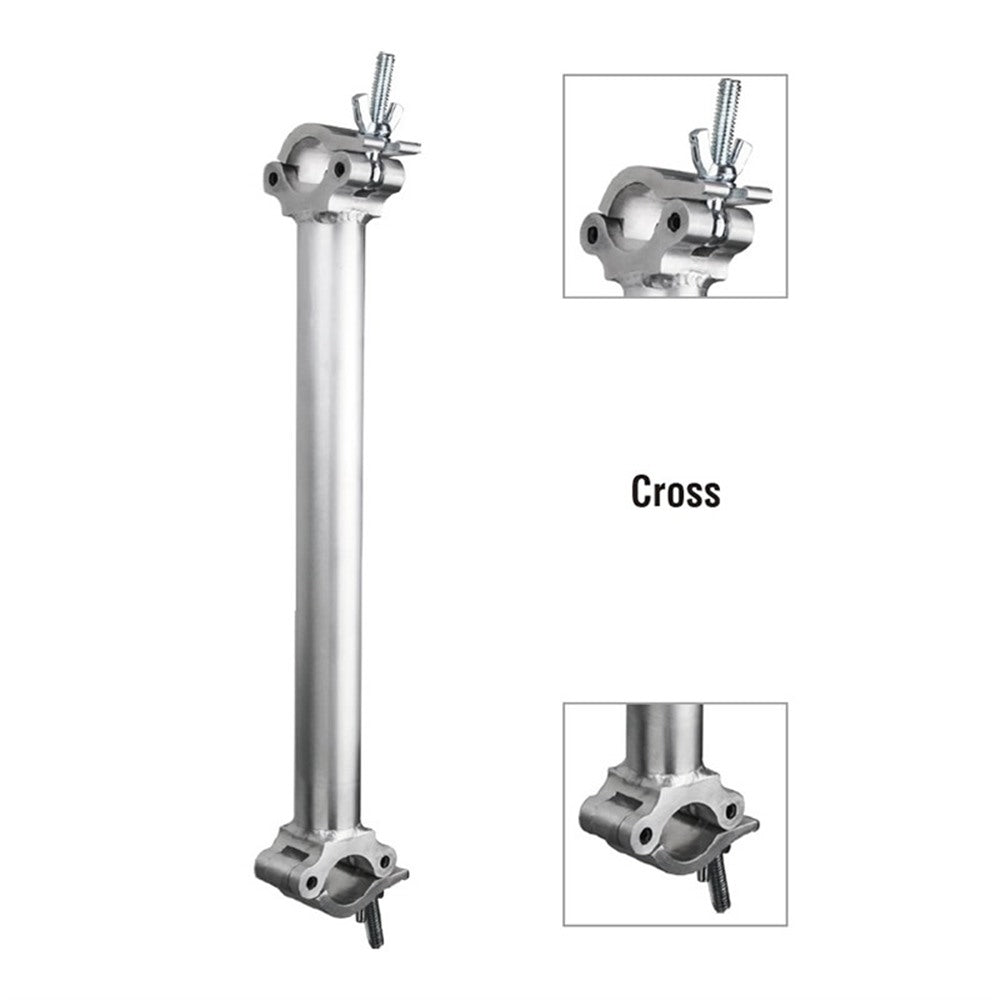

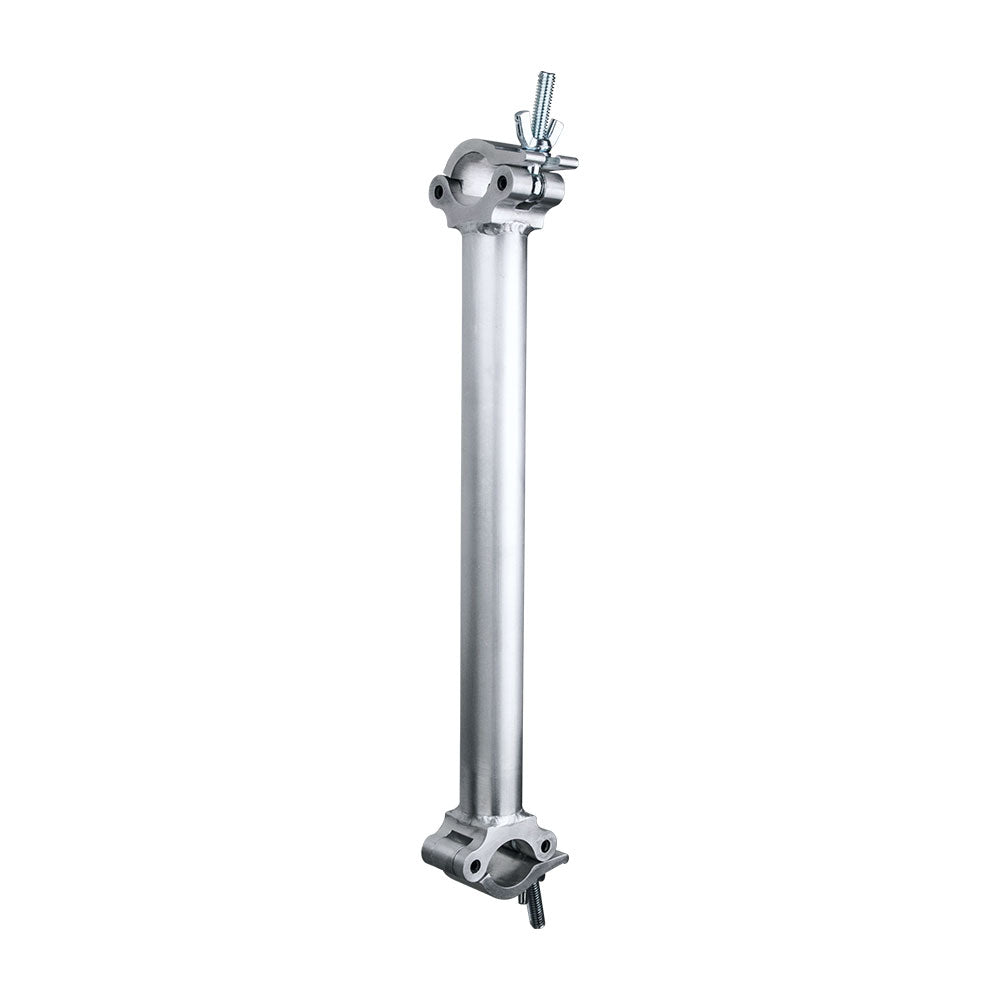

The KUPO KCP-801-XP Pipe-to-Pipe Coupler is a polished 250 mm 90° cross coupler for connecting 48 to 51 mm tubes with a 50 mm center-to-center spacing. Two heavy-duty couplers are welded to an aluminum spacer, creating a 200 kg Working Load Limit assembly for modular pipe-grid work.
Why It Matters
Cross connections need to stay square under load, especially when the added pipe becomes part of a larger brace or fixture position. This cross coupler gives crews a fixed 90° relationship instead of a hand-built crossover that can drift.
Key Features
90 °Cross configuration creates a fixed 90° tube crossover
200 kg Working Load Limit supports planned modular pipe-grid and rigging extensions

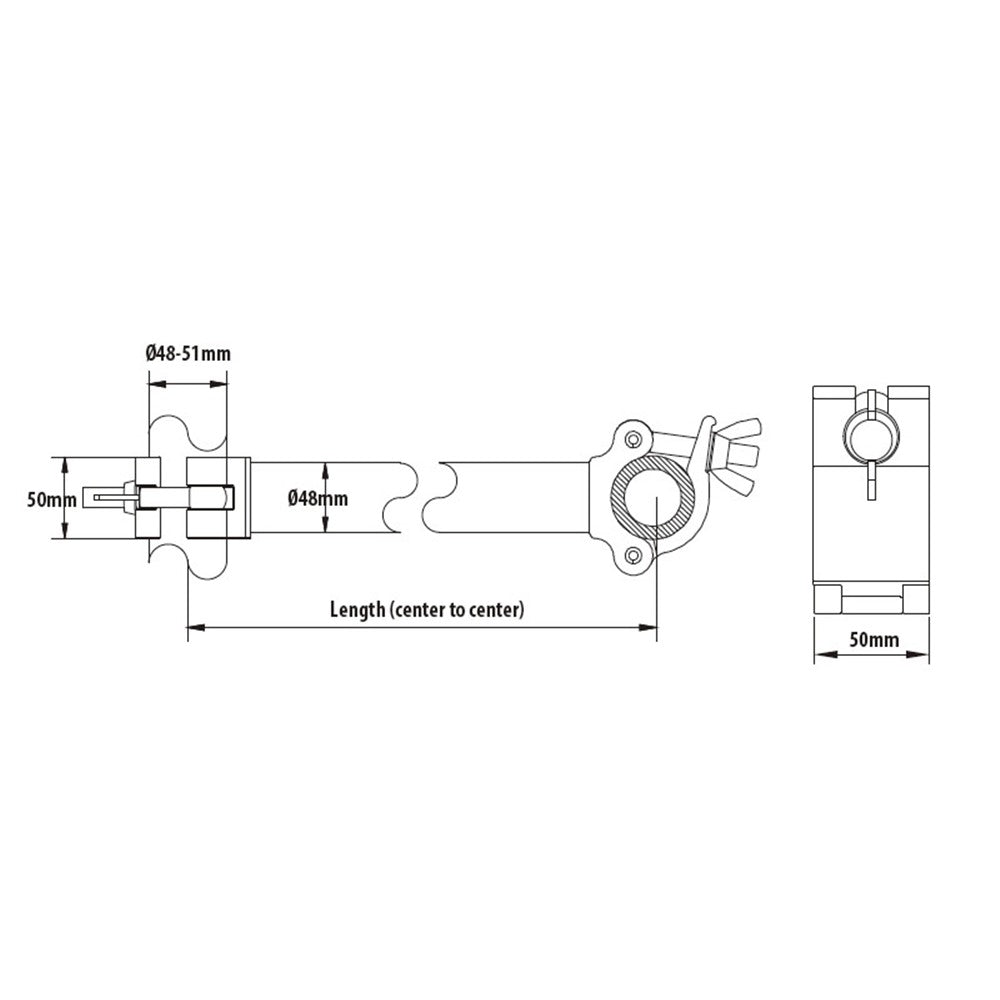

250 mm assembly length with 50 mm center-to-center tube spacing gives repeatable geometry
48 to 51 mm tube fit matches standard 2" stage pipe and truss tube
Polished finish keeps the assembly visible and clean in exposed rigging
Applications
Use it for 90° pipe crossovers, diagonal bracing, asymmetric truss layouts, modular grid intersections, and fixture positions where a perpendicular pipe needs to lock to an existing run.
Compatibility
Fits 48 to 51 mm tube. Sister variants cover parallel and 90° cross configurations in 250 mm, 500 mm, and 1000 mm lengths, with polished and black finishes.
Frequently Asked Questions
When should I choose cross instead of parallel?
Choose cross when the added tube needs to run perpendicular to the parent pipe. Choose parallel when you are adding a same-direction pipe beside it.
Does the 50 mm center spacing change with length?
No. The specification lists 50 mm center-to-center spacing for these pipe-to-pipe couplers. The length changes the assembly span, not that tube spacing.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube. Check the actual outside diameter before ordering in quantity.
