Product Description
Overview

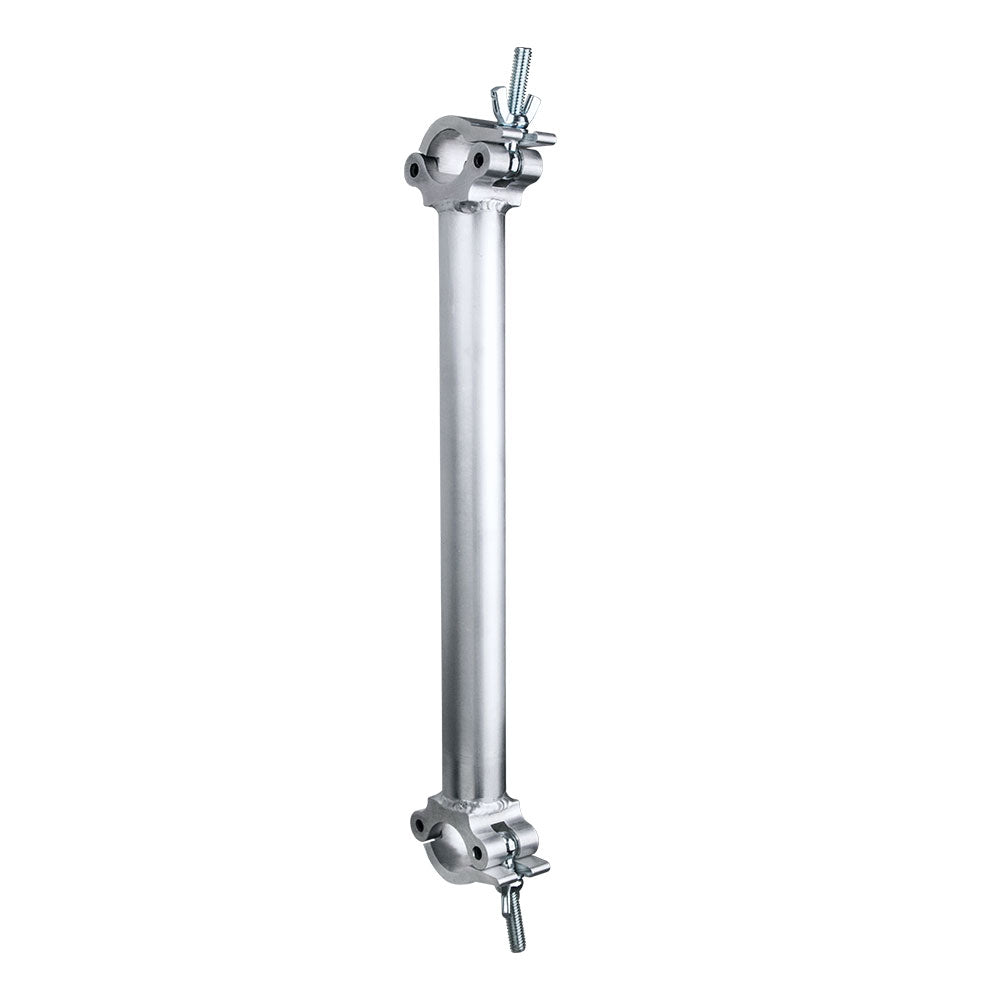

The KUPO KCP-804-DP Pipe-to-Pipe Coupler is a polished 1000 mm parallel assembly for connecting 48 to 51 mm tubes with 50 mm center-to-center spacing. Two heavy-duty couplers are welded to an aluminum spacer, creating a 200 kg Working Load Limit component for long modular pipe-grid extensions.
Why It Matters
The 1000 mm parallel version is for longer same-direction pipe additions where spacing and alignment need to stay consistent along a larger run. It lets crews add a second pipe cleanly instead of building the relationship from several separate clamp points.
Key Features
- Parallel configuration creates a long same-axis pipe extension
- 200 kg Working Load Limit supports planned modular pipe-grid and rigging extensions
- 1000 mm assembly length with 50 mm center-to-center tube spacing gives repeatable geometry
- 48 to 51 mm tube fit matches standard 2" stage pipe and truss tube
- Polished finish suits exposed polished hardware and shop inventory
Applications
Use it for long parallel pipe additions, modular grid expansion, doubled lighting positions, exhibition structures, and studio pipe runs where the second tube needs to follow the first.
Compatibility
Fits 48 to 51 mm tube. Sister variants cover parallel and 90° cross configurations in 250 mm, 500 mm, and 1000 mm lengths, with polished and black finishes.
Frequently Asked Questions
Why choose the 1000 mm parallel version?
Choose it when the second pipe must run alongside the original over a longer span. Shorter 250 mm and 500 mm versions are better when the added run is more compact.
Does the center spacing change on the 1000 mm model?
No. The specification lists 50 mm center-to-center spacing. The 1000 mm figure is the assembly length.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube. Check actual outside diameter before ordering.
