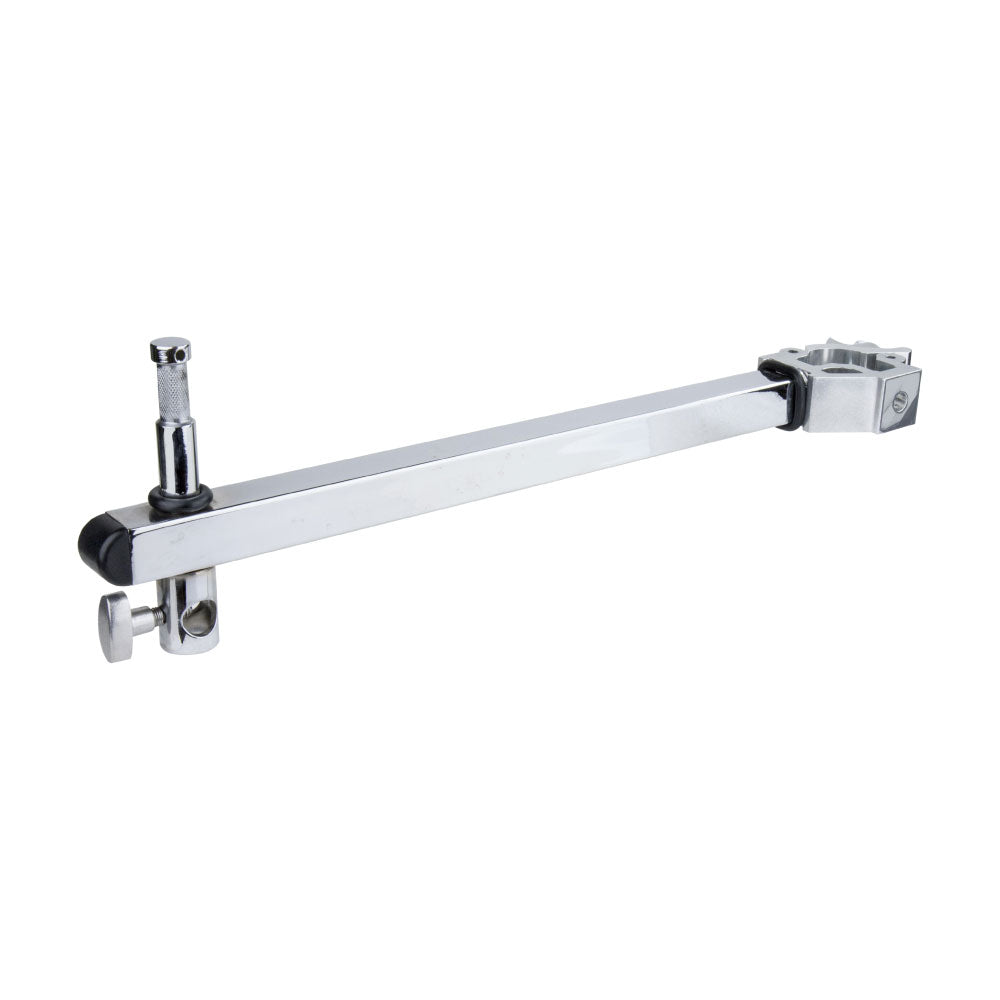

The KUPO KCP-806 Side Arm is a compact 390 mm offset arm for smaller stand tubes from 31 to 38 mm. It provides both a baby pin and baby receiver, giving crews a flexible side-mounting point on C-stand style tube sizes such as 35 mm.
Why It Matters
Many side arms are built around larger 48 to 51 mm pipe. KCP-806 fills the smaller stand-tube gap, letting a compact stand carry a light fixture from the baby pin or accept an accessory through the baby receiver without moving to a larger coupler body.
Key Features
31 to 38 mm tube range suits smaller stand risers and C-stand style tube sizes

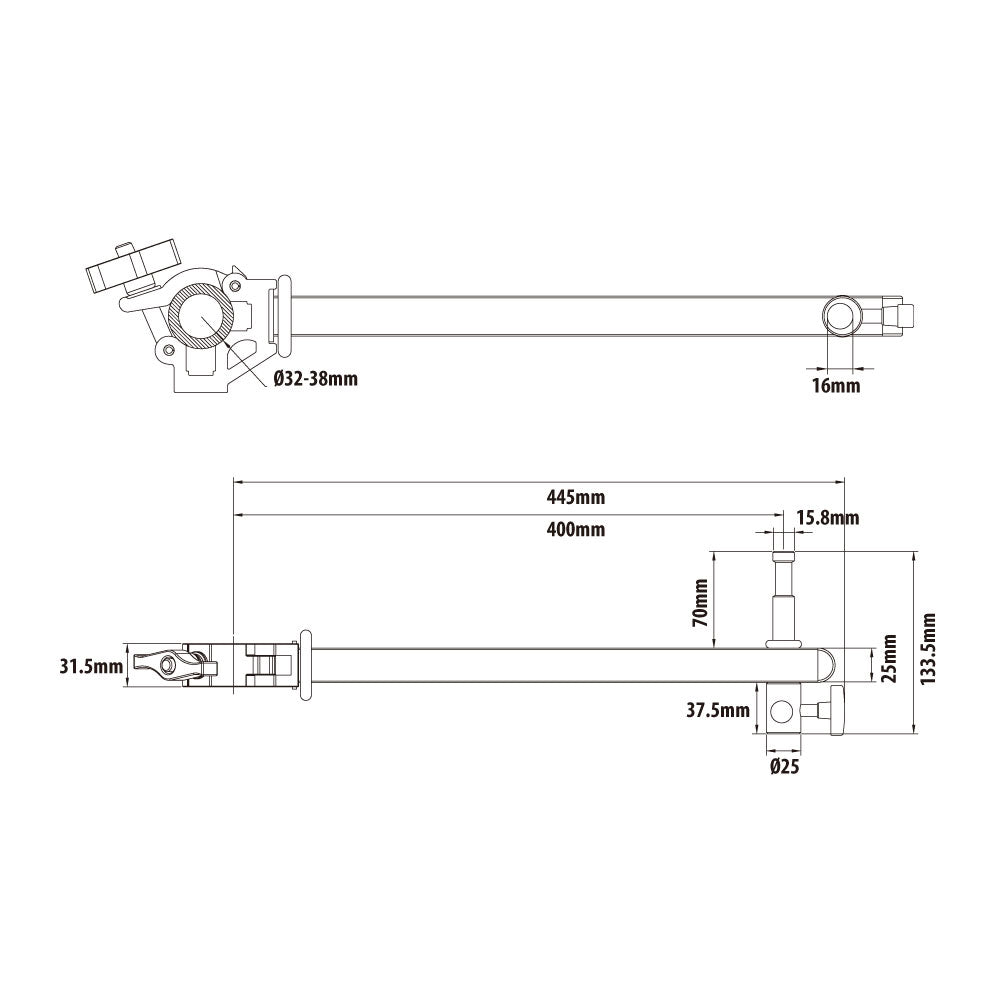

390 mm offset distance creates a useful side-mounting point at the chosen stand height
Baby pin and baby receiver on the same arm support two common grip workflows
6061-T6 aluminum alloy and alloy steel construction balances strength and handling
Applications

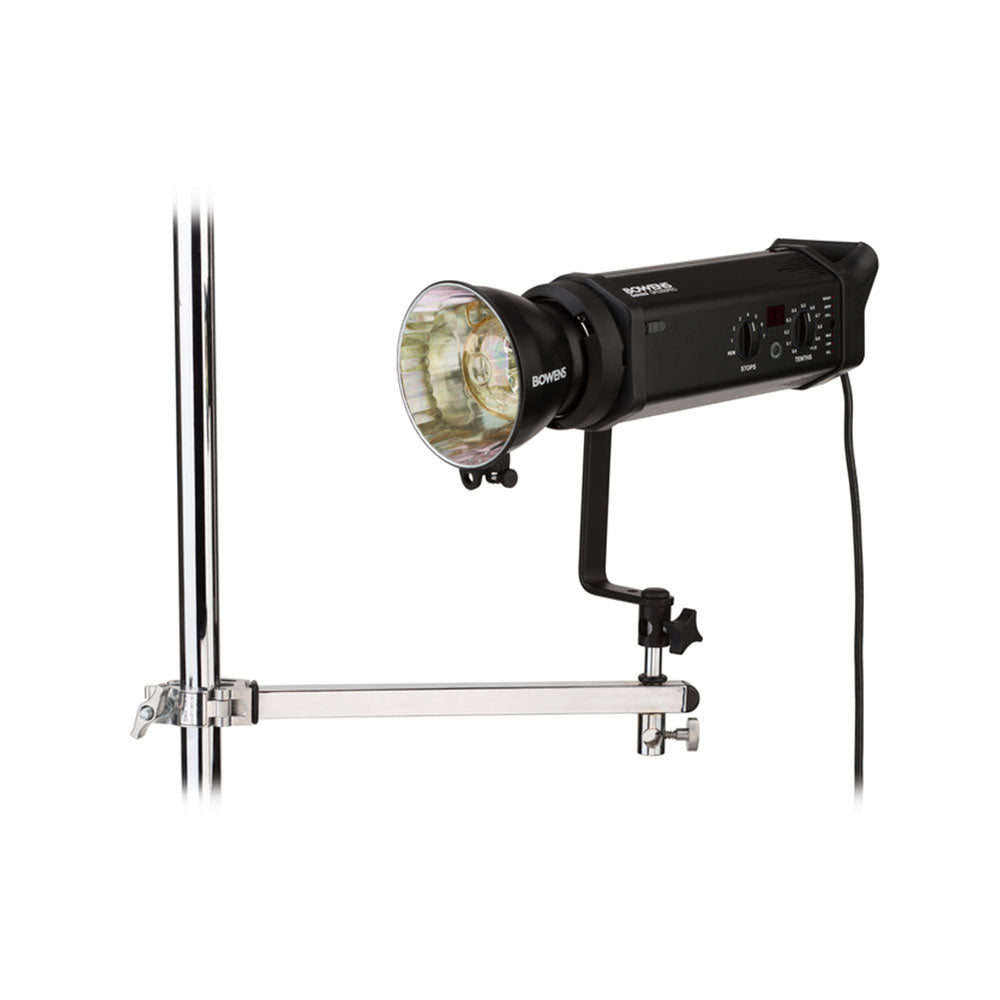

Use it for small fixtures, grip accessories, and compact stand rigs where a baby-interface side arm is needed on 31 to 38 mm tube.
Compatibility
KCP-806 is the smaller-tube side arm. KCP-808 covers larger 48 to 51 mm tube with baby pins, while KCP-809 provides a junior receiver for larger fixtures.
Frequently Asked Questions
What tube size is KCP-806 for?
It is designed for 31 to 38 mm tube, including smaller stand risers such as 35 mm C-stand style tubes.
Does it have a baby pin or a baby receiver?
It has both, so crews can mount from the baby pin or use the receiver side depending on the accessory.
Should I use this on 48 to 51 mm truss tube?
No. For larger 48 to 51 mm tube, look at KCP-808 or KCP-809 instead.
