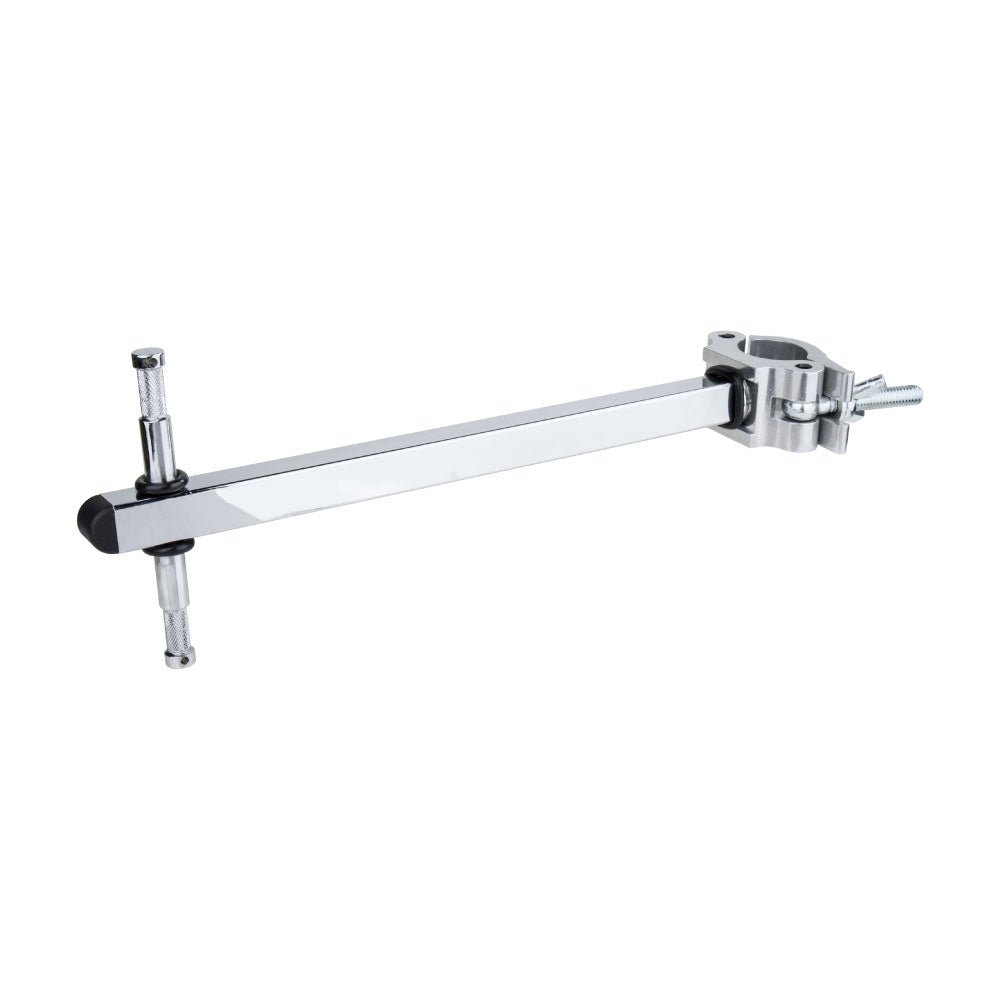

The KUPO KCP-808 Baby Side Arm mounts to 48 to 51 mm tube and provides opposing double 5/8" / 16 mm baby pins for offset fixture placement. It lets a light or accessory with a baby receiver sit at a chosen height on a stand riser, pipe, or compatible support tube.
Why It Matters
The useful detail is the offset baby interface. KCP-808 gives crews a pipe-mounted 390 mm side arm for baby receiver accessories, keeping the offset distance consistent with the side-arm family while still using the larger 48 to 51 mm tube clamp body.
Key Features
Double 16 mm baby pins provide baby receiver mounting options from the side arm
48 to 51 mm tube range suits larger stand risers, pipe, and compatible support tube
Heavy-duty clamp body lets the arm mount at the desired height on the support
390 mm offset distance gives baby receiver accessories a consistent side-mounting reach
Applications

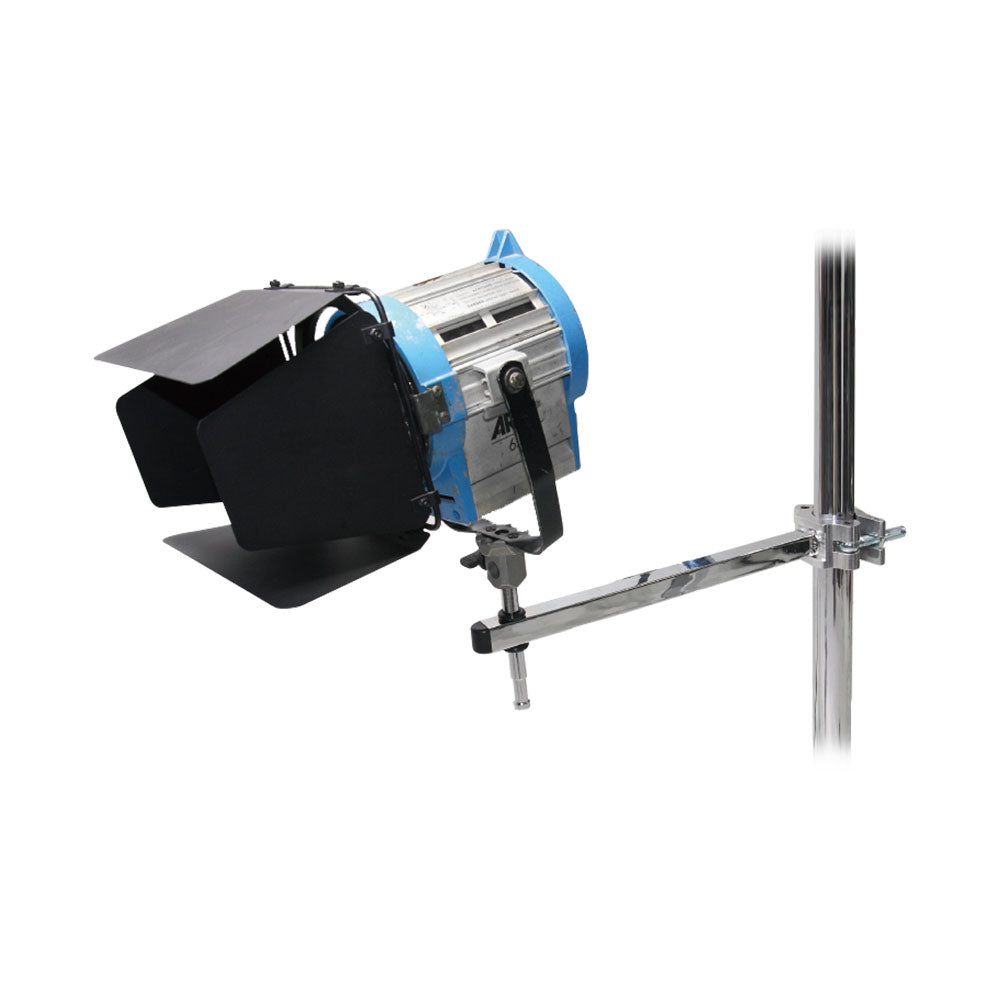

Use it for baby receiver fixtures and accessories that need an offset point on 48 to 51 mm tube in studio, theatre, and venue rigs.
Compatibility
KCP-806 is the smaller-tube baby side arm. KCP-809 is the junior receiver sister model for larger fixtures. Use 390 mm as the specified offset length.
Frequently Asked Questions
What is the offset distance of KCP-808?
The corrected offset distance is 390 mm, matching the updated side-arm family specification.
What interface does it provide?
It provides opposing double 16 mm baby pins for fixtures or accessories with baby receivers.
What tube size does it clamp to?
It is for 48 to 51 mm tube.
