Overview

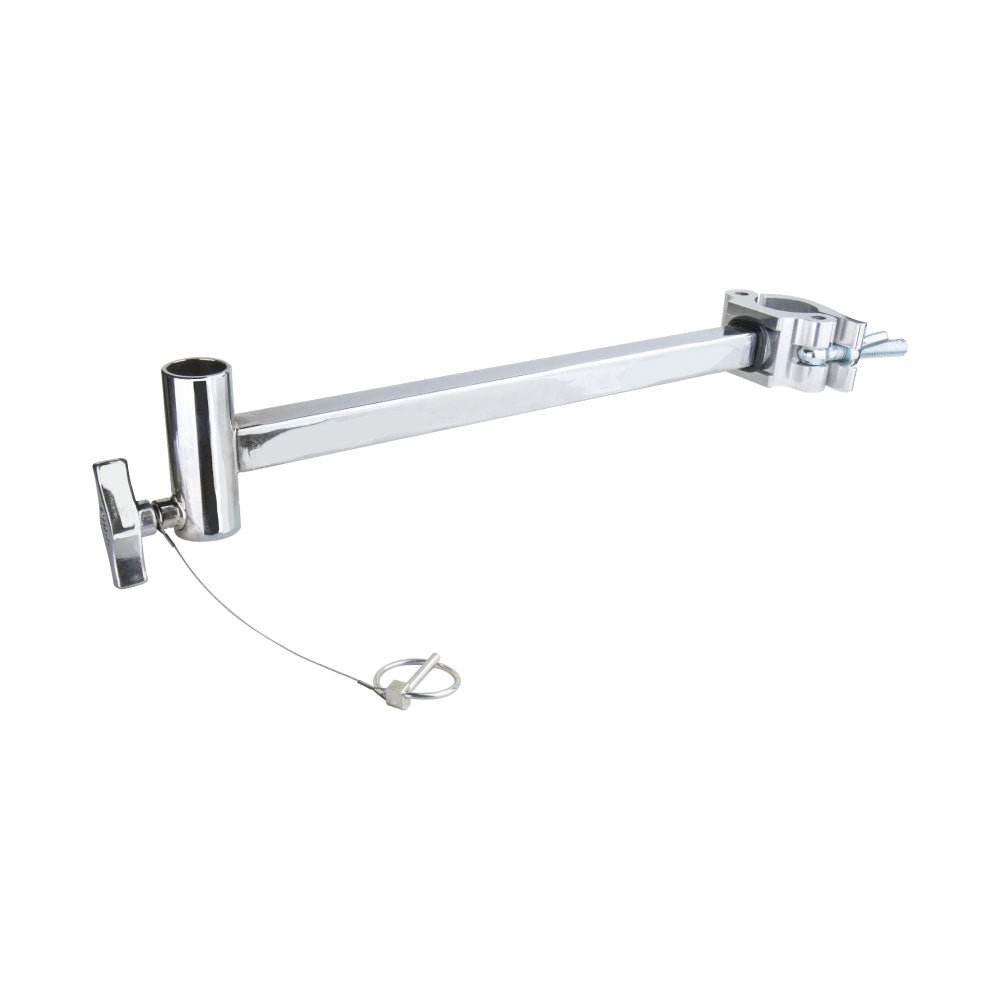

The KUPO KCP-809 Junior Side Arm is a heavy-duty side-arm coupler with a 28 mm junior receiver for offsetting larger fixtures from a stand or pipe. It fits 48 to 51 mm tube and provides a corrected 390 mm offset distance.

Why It Matters

Larger fixtures need a receiver that feels like part of the rig, not an afterthought. KCP-809 gives junior-spigot fixtures an offset mounting point, with a safety linchpin attached to the receiver interface so the seated fixture has a defined retention step.

Key Features

• 28 mm junior receiver supports larger fixtures and accessories with junior spigots
• 390 mm offset distance creates a practical side-mounting position for larger fixtures
• 48 to 51 mm tube range fits larger stand tubes and pipe supports
• Attached safety linchpin gives the junior receiver interface an added retention detail

Applications

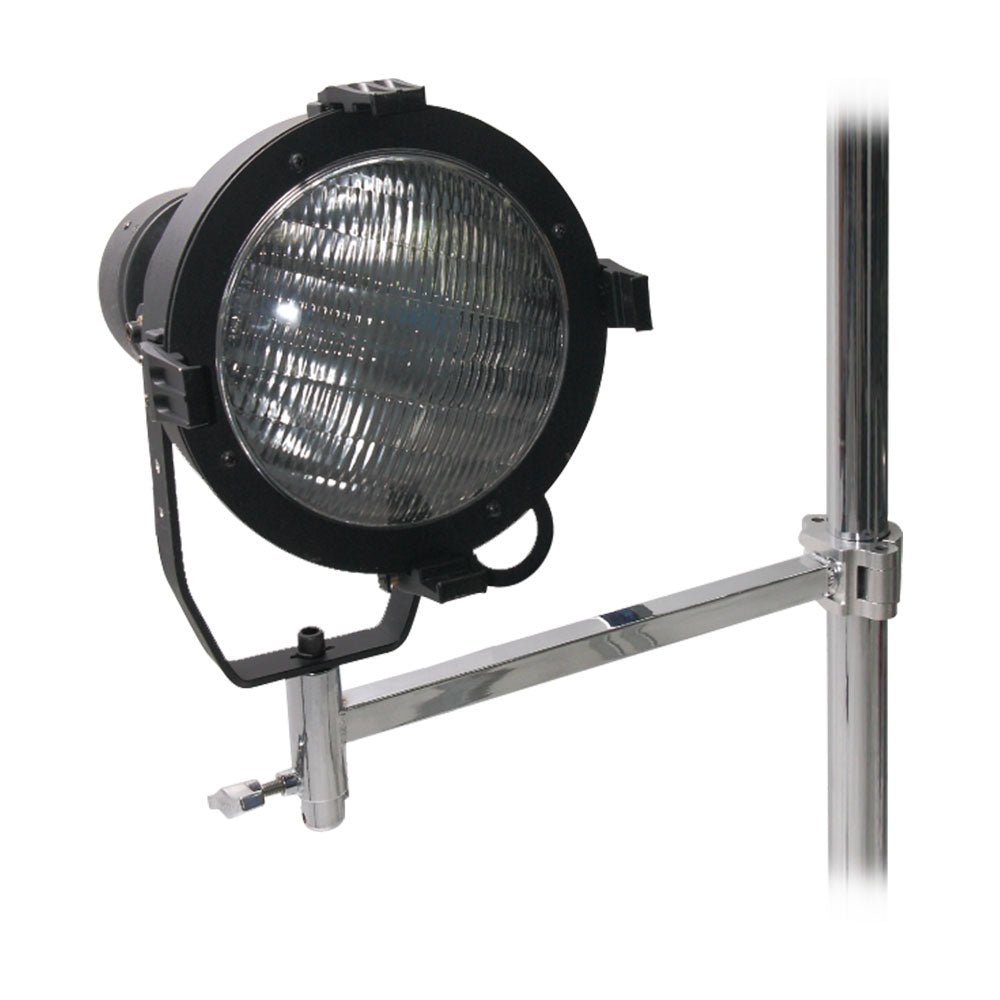

Use it for larger lights, boom arms, and junior-spigot accessories that need to be mounted over or under a stand position from a side arm.

Compatibility

KCP-809 is the junior receiver sister to KCP-808. KCP-806 is the smaller-tube member of the same side-arm family.
