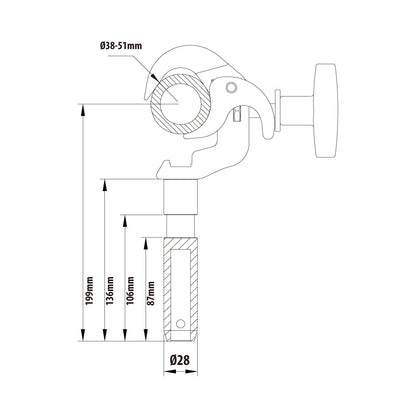

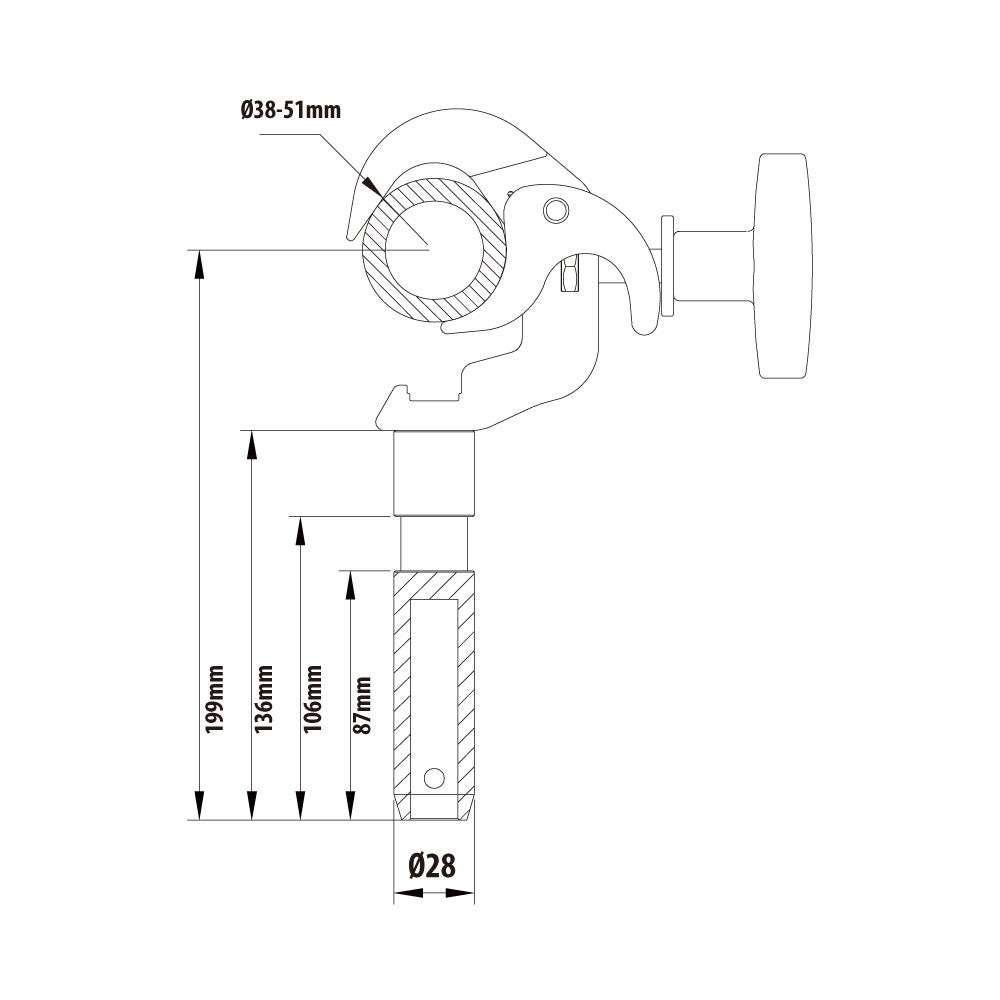

The KUPO KCP-814 Arch 28 mm Spigot Coupler is a low-profile professional coupler for 38 to 51 mm tube. It provides a 28 mm junior spigot for fixtures or accessories with a junior receiver and carries a 100 kg / 220 lb working load limit.
Why It Matters
A low-profile coupler is easier to live with in tight pipe and installation spaces. KCP-814 keeps the body compact while giving junior receiver gear a direct 28 mm spigot output, with a solid T-handle that can be operated comfortably by hand.
Key Features
28 mm junior spigot mounts compatible junior receiver fixtures from 38 to 51 mm tube
100 kg / 220 lb WLL supports professional installation use within the rated system
Low-profile arch body helps the coupler fit into tighter pipe positions
Solid T-handle gives a comfortable bare-hand grip during setup
Applications
Use it for studio, stage, venue, and installation rigs where a junior receiver fixture needs a 28 mm spigot from a pipe coupler.
Compatibility
KCP-816 is the related 16 mm baby stud version. Use KCP-814 when the mounted accessory requires a 28 mm junior spigot.
Frequently Asked Questions
What does KCP-814 mount?
It provides a 28 mm junior spigot, so it is for fixtures or accessories with a compatible junior receiver.
What tube range does it fit?
It fits 38 to 51 mm tube.
How is it different from KCP-816?
KCP-814 has a 28 mm junior spigot. KCP-816 is the 16 mm baby stud version.
