Product Description
Overview

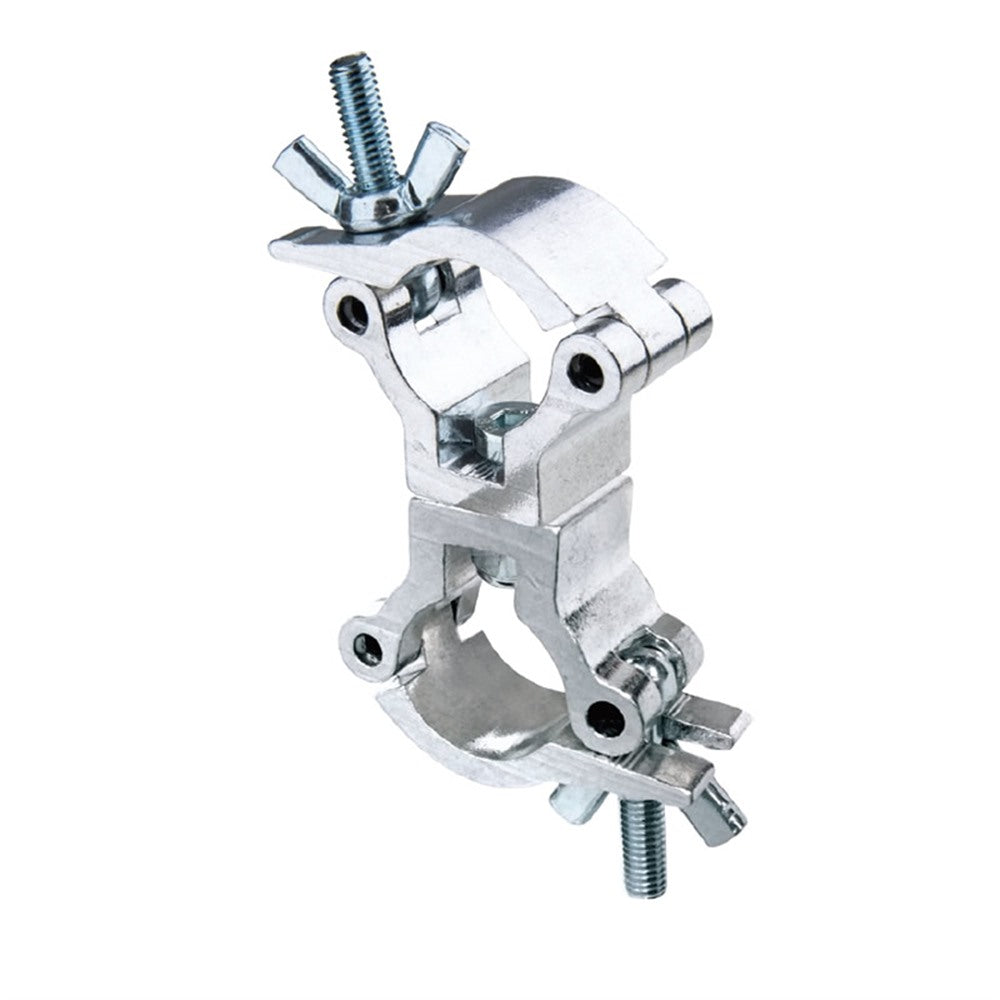

The KUPO KCP-815 Mini Swivel Coupler 25 is a silver small-tube coupler for 23 to 25.4 mm outside . Machined from 6061-T6 extruded aluminum alloy, it gives retail, museum, exhibition, scenic, and architectural installers a compact swivel rigging option for tube smaller than standard 2" hardware.
Why It Matters
The 25 mm swivel version fills the awkward gap between tiny display tube and standard truss hardware. It lets two small tubes meet at a useful angle without forcing the joint or oversizing the coupler.
Key Features
- 23 to 25.4 mm feasible tube size matches common 25 mm small-tube structures
- 100 kg Working Load Limit gives a defined rating for lightweight rigging tasks
- two heads connected by swivel pivot provides the specific connection style for this variant
- 6061-T6 extruded aluminum alloy keeps the coupler light and corrosion resistant
- Polished aluminum finish keeps exposed display rigging clean and easy to identify
Applications
Use it for angled retail frames, museum mounts, exhibition structures, compact scenic braces, and small lighting tube where the connection needs rotation.
Compatibility
Fits 23 to 25.4 mm outside . It belongs to KUPOs mini coupler system covering 20 mm through 40 mm small-tube sizes.
Frequently Asked Questions
When do I need the swivel 25 version?
Use it when the two tubes meet at an angle or the display frame needs diagonal support. A fixed coupler is cleaner only when the tubes align squarely.
Is the tube size based on nominal size or actual outside diameter?
Use actual outside diameter. This SKU is specified for 23 to 25.4 mm tube.
Why pick silver?
Silver works well for exposed display hardware, shop inventory visibility, and clean industrial-looking structures.
