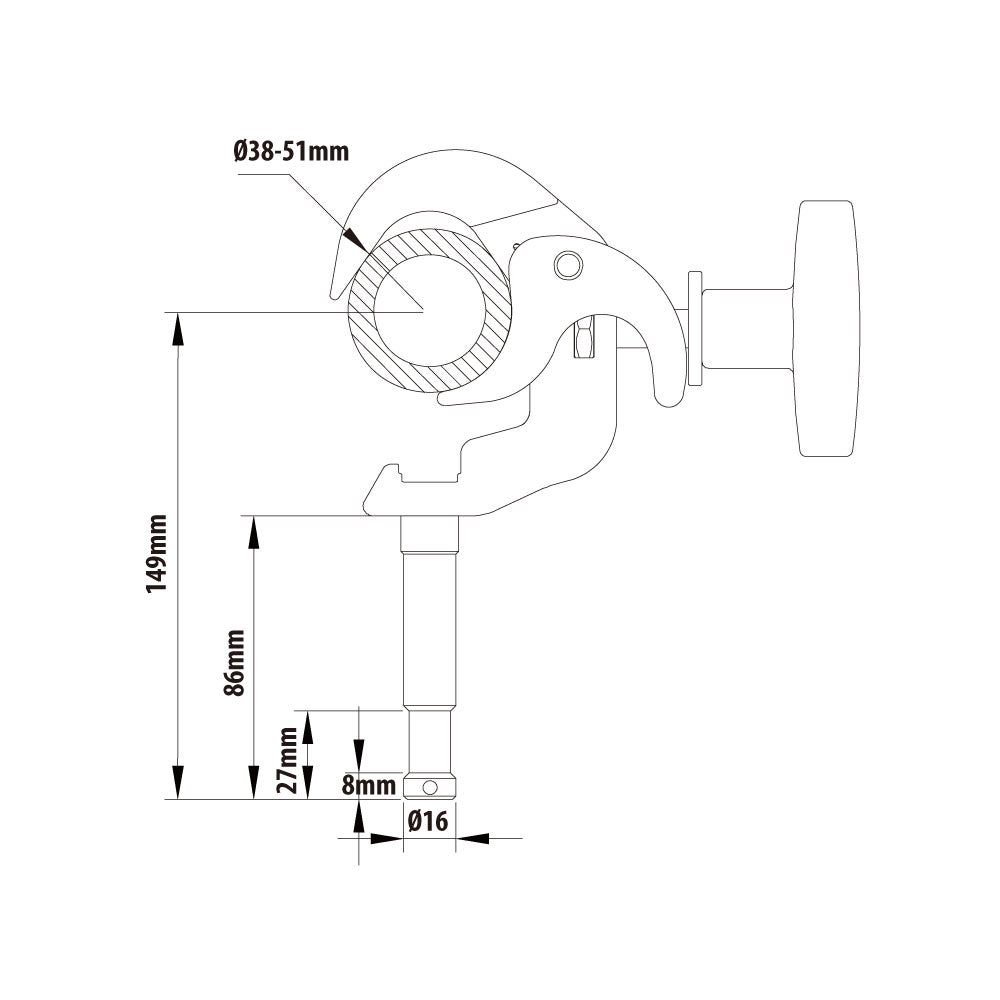

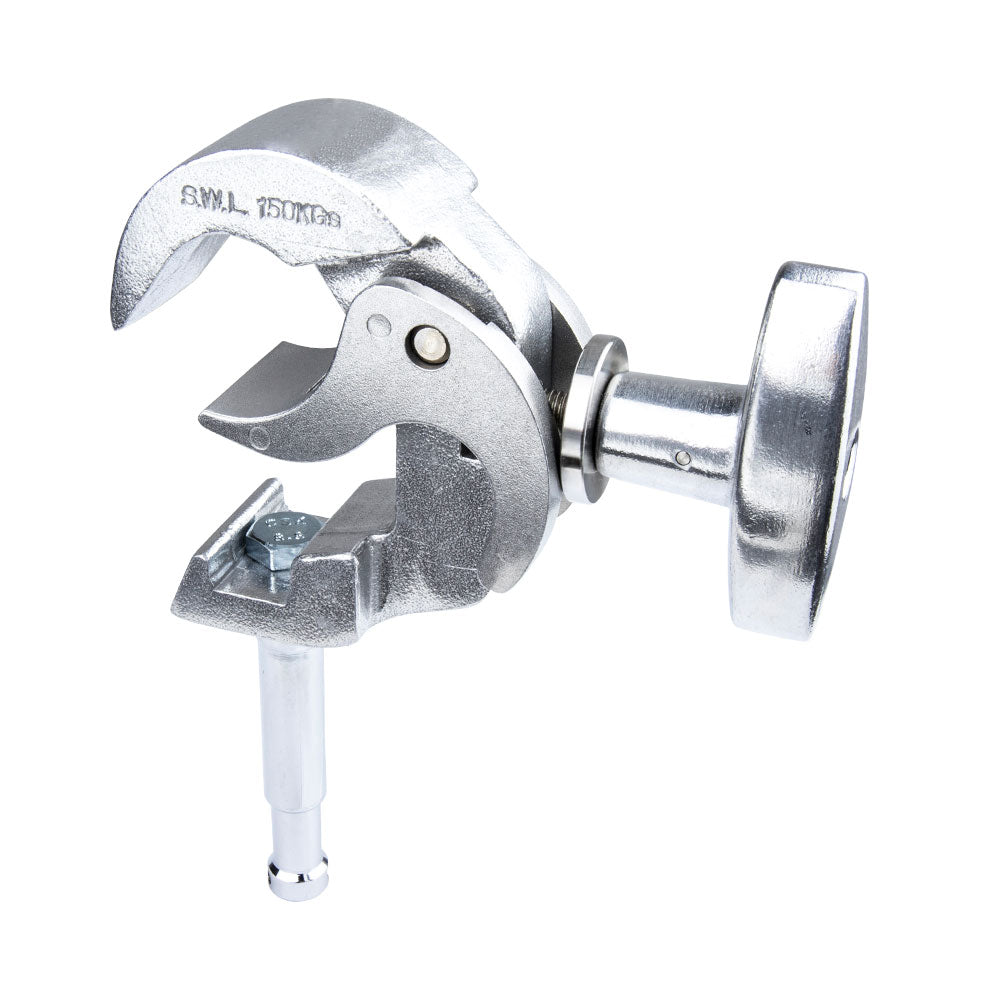

The KUPO KCP-816 Arch 16 mm Stud Coupler is the baby-stud member of the low-profile arch coupler family. It fits 38 to 51 mm tube, provides a 16 mm stud for baby receiver fixtures, and carries a 100 kg / 220 lb working load limit.
Why It Matters
When a fixture needs a baby receiver interface from pipe, using the right stud size keeps the rig simple. KCP-816 gives smaller lighting fixtures and accessories a direct 16 mm stud output while keeping the same low-profile arch body approach as the junior version.
Key Features
16 mm baby stud supports fixtures and accessories with baby receiver mounting
38 to 51 mm tube range covers common studio and installation pipe sizes
100 kg / 220 lb WLL keeps the coupler suitable for professional use within rated limits
Solid T-handle supports comfortable hand tightening during setup
Applications
Use it for baby receiver fixtures and accessories in studio, stage, and installation environments where a low-profile pipe coupler is preferred.
Compatibility
KCP-814 is the 28 mm junior spigot sister model. This KCP-816 listing follows the 16 mm specification despite one title wording conflict.
Frequently Asked Questions
Is KCP-816 the 16 mm or 28 mm version?
KCP-816 is the 16 mm baby stud version. KCP-814 is the 28 mm junior spigot version.
What tube size does it fit?
It fits 38 to 51 mm tube.
What kind of fixture should use it?
Use it with fixtures or accessories that have a 16 mm baby receiver and fall within the rated setup limits.
