Overview

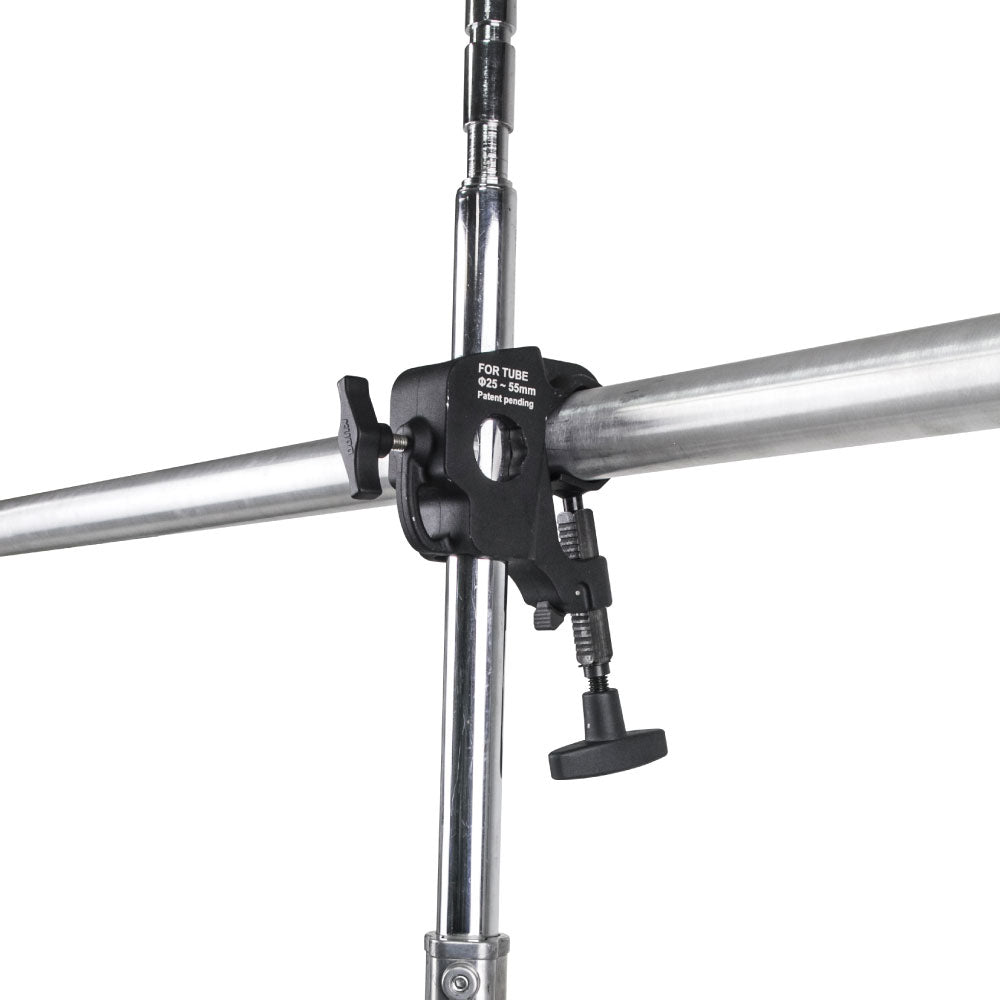

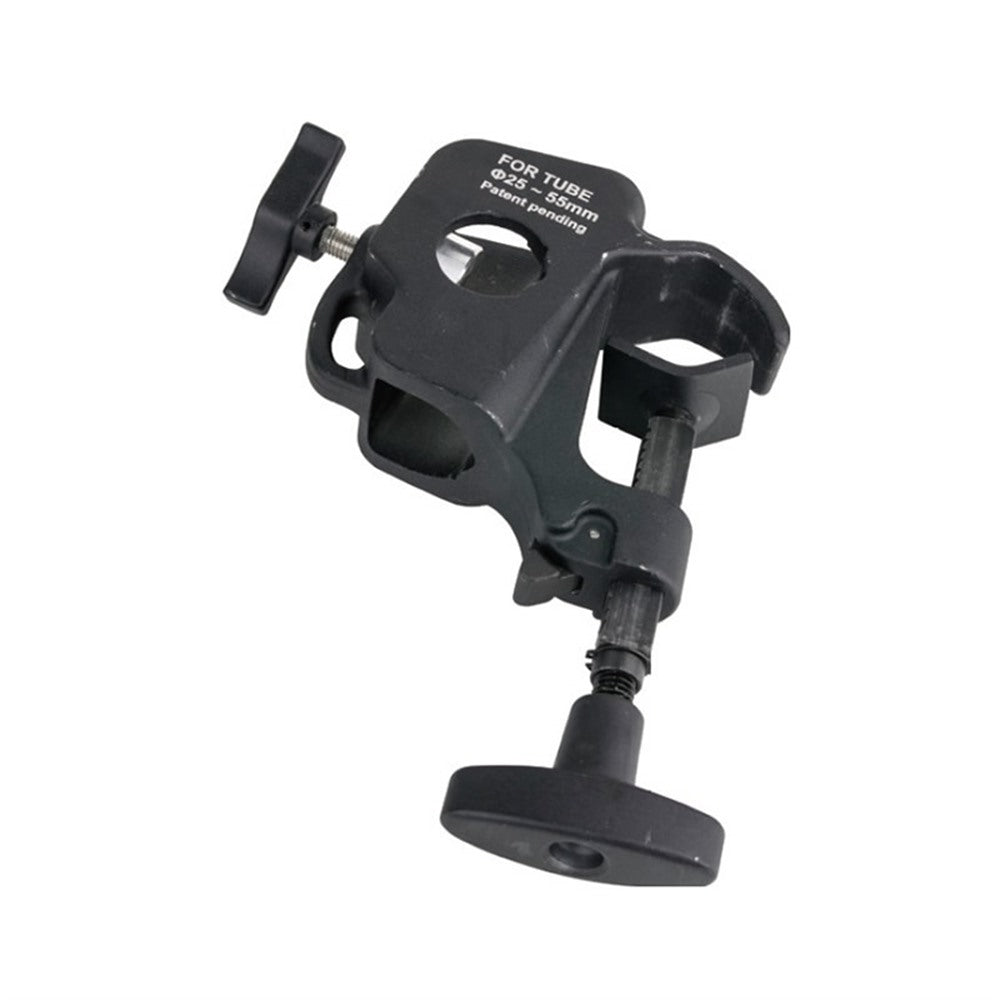

The KUPO KCP-817 Quick Action Pipe Clamp is a heavy-duty gravity-cast pipe clamp for 25 to 55 mm pipe. Its push-and-lock quick action device speeds tightening and loosening, while the 28 mm / 1-1/8" stud supports fixtures or gear with a matching receiver.

Why It Matters

Fast clamps earn their keep when the operator is working overhead or changing positions often. KCP-817 combines quick lock handling with clear tube limits for the telescopic column, 35 mm in vertical orientation and 30 mm in horizontal orientation, so the setup boundaries stay visible.

Key Features

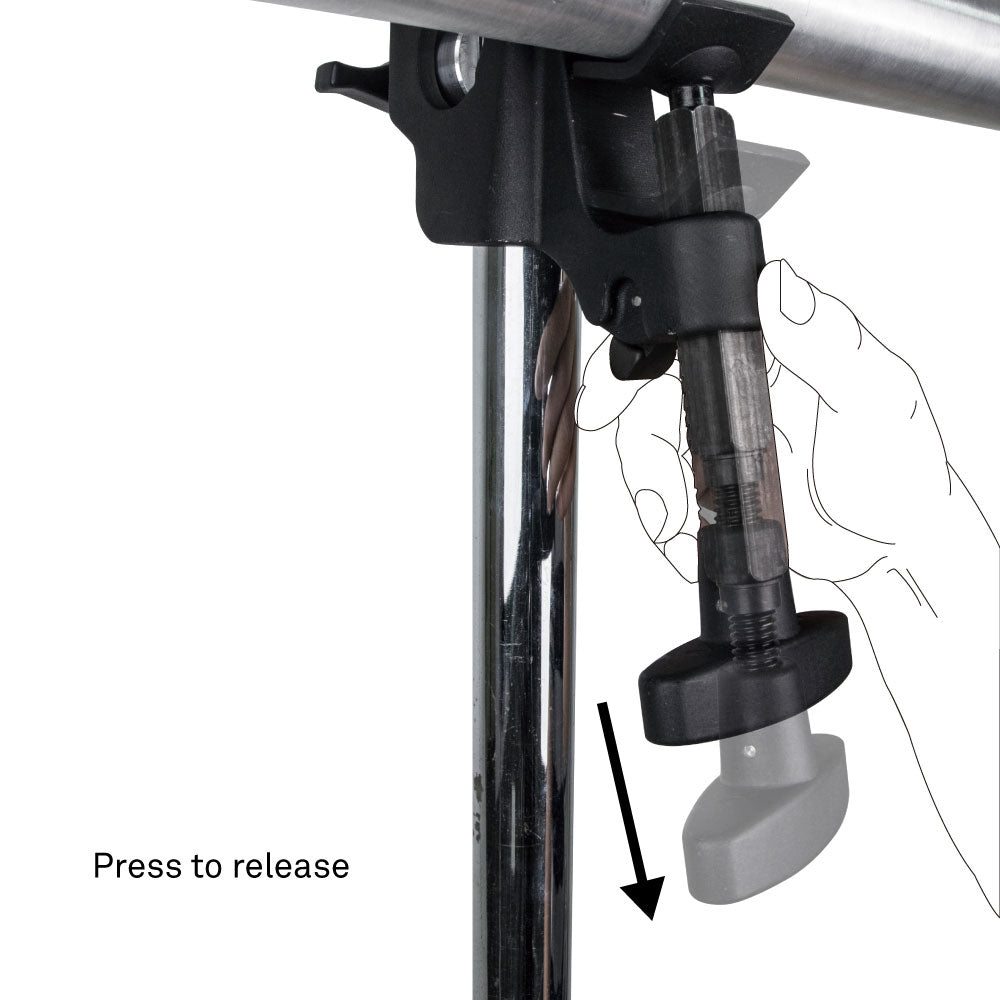

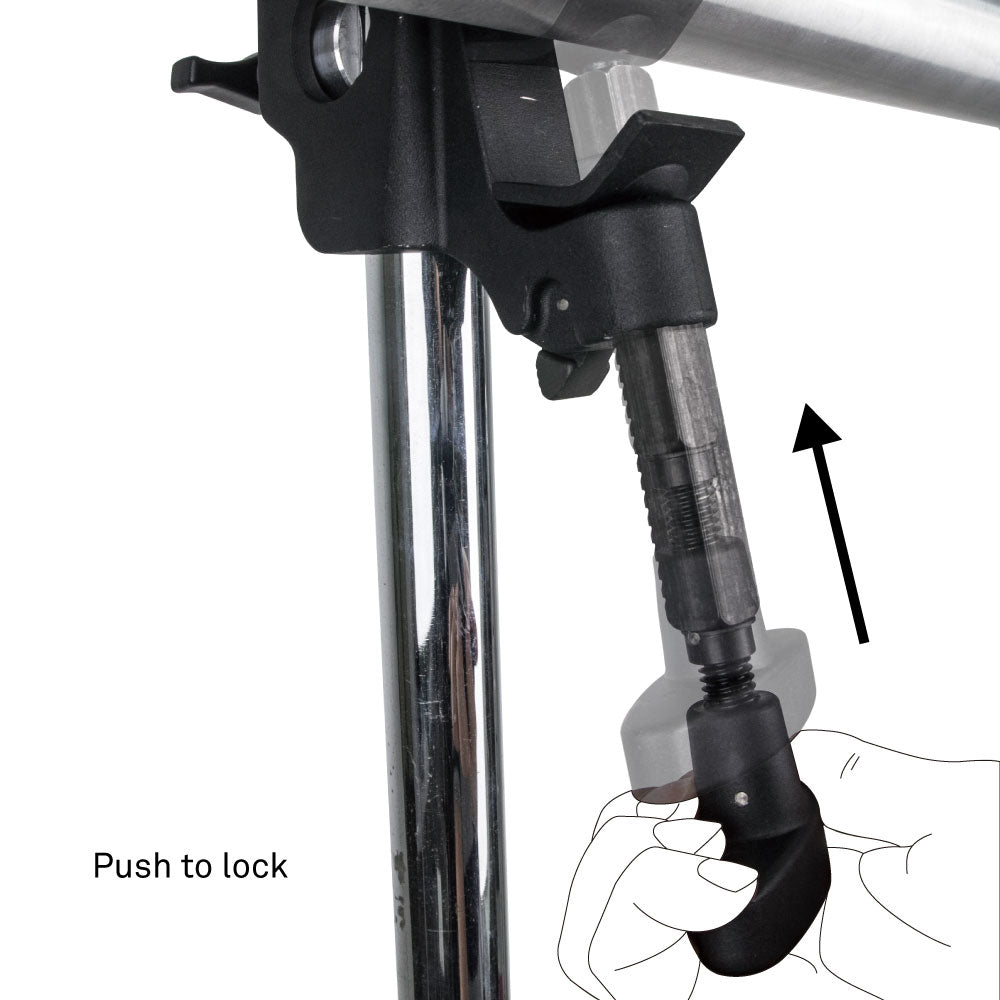

• Push-and-lock quick action device speeds clamp tightening and release
• 25 to 55 mm tube range gives the clamp broad pipe compatibility
• 28 mm / 1-1/8" stud can lock directly into compatible receivers
• 50 kg load capacity suits controlled fixture suspension within the rated setup
• Telescopic column tube limit is 35 mm vertical or 30 mm horizontal, depending on orientation

Applications

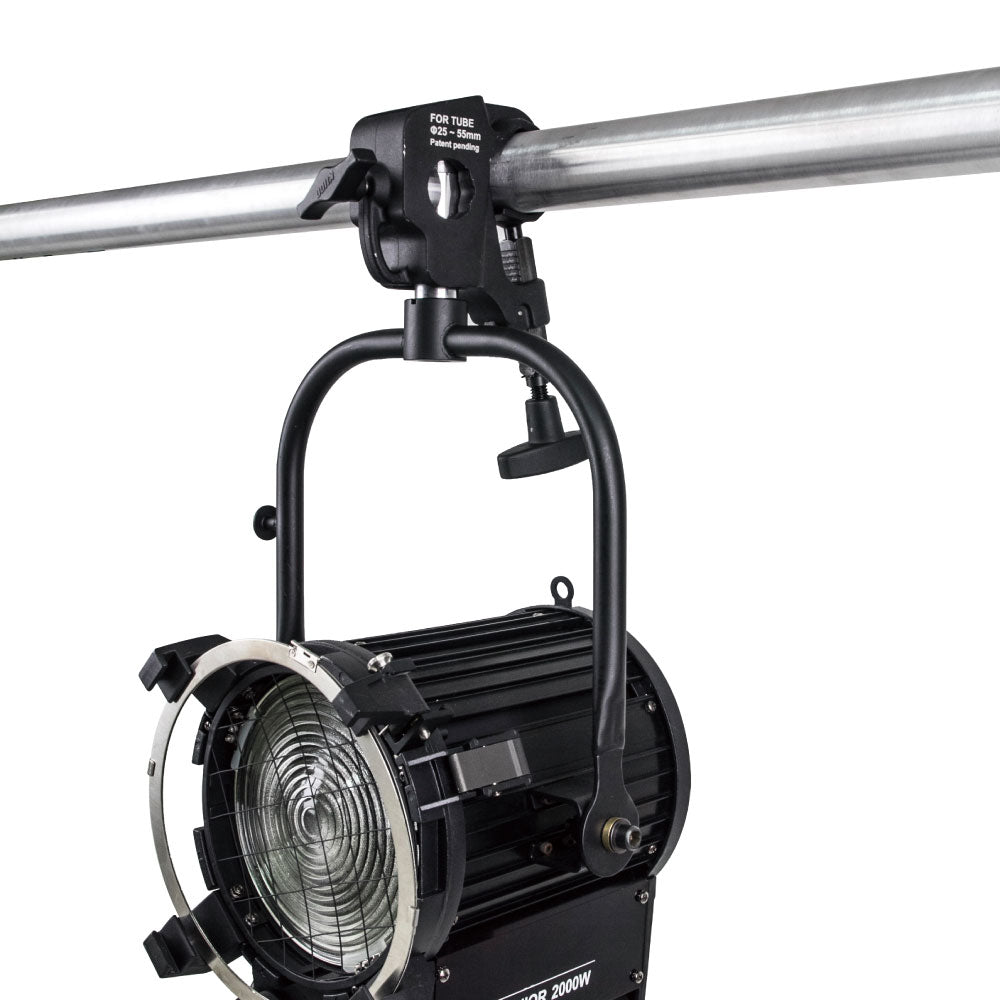

Use it for fast fixture suspension from overhead pipe and adjustable side-arm setups where quick positioning matters.

Compatibility

Observe the telescopic column limits: pipe up to 35 mm in vertical orientation or 30 mm in horizontal orientation. The main clamp tube range is 25 to 55 mm.
