Overview

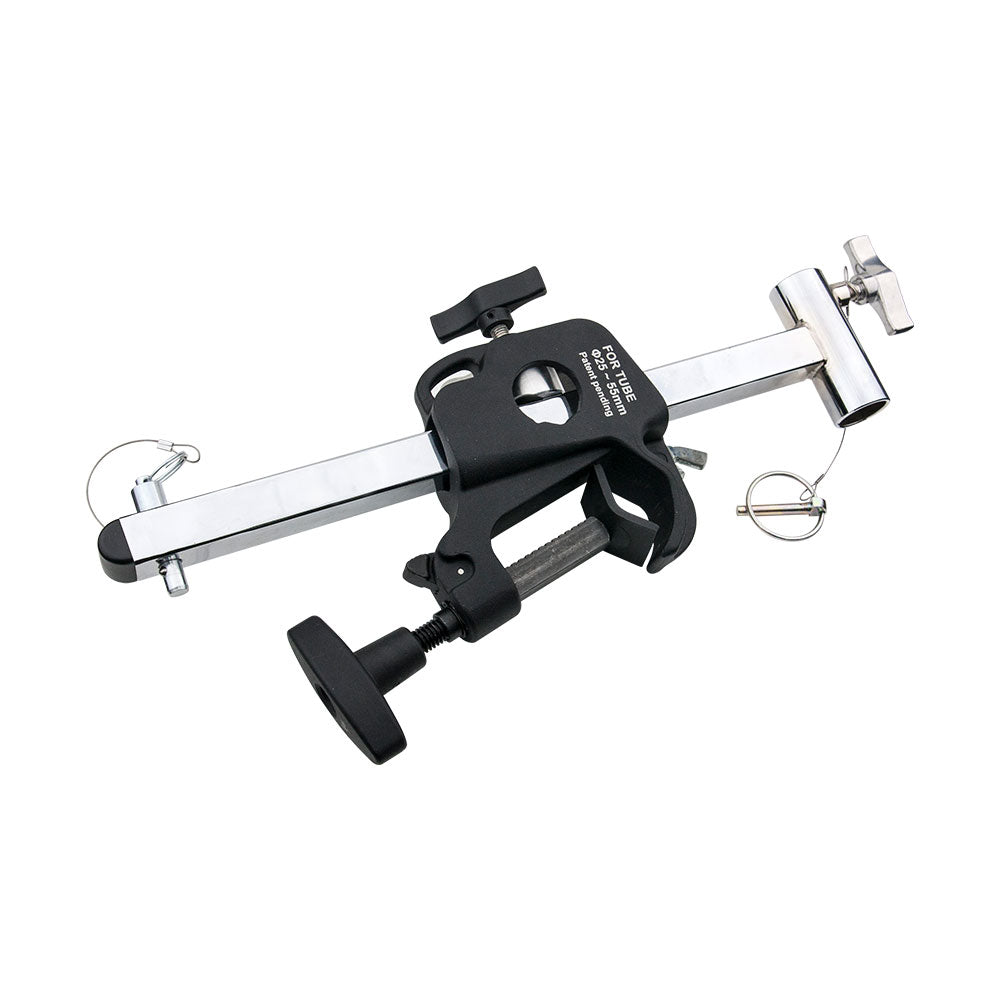

The KUPO KCP-819 Adjustable Junior Side Arm offsets a boom arm or larger fixture from a heavy-duty stand. It uses a quick release coupler for 25 to 50 mm tube and provides twin 28 mm junior receivers along a 410 mm arm length.

Why It Matters

Junior fixtures create more leverage than baby-mounted accessories, so the receiver and safety details matter. KCP-819 gives the larger fixture a pair of junior receiver positions, while the backward safety pin provides additional security if the offset arm is accidentally loosened.

Key Features

• Twin 28 mm junior receivers support larger fixtures or boom arms with junior spigots
• 410 mm offset length gives more reach than the KCP-818 baby version
• Quick action locking device allows fast positioning on 25 to 50 mm tube

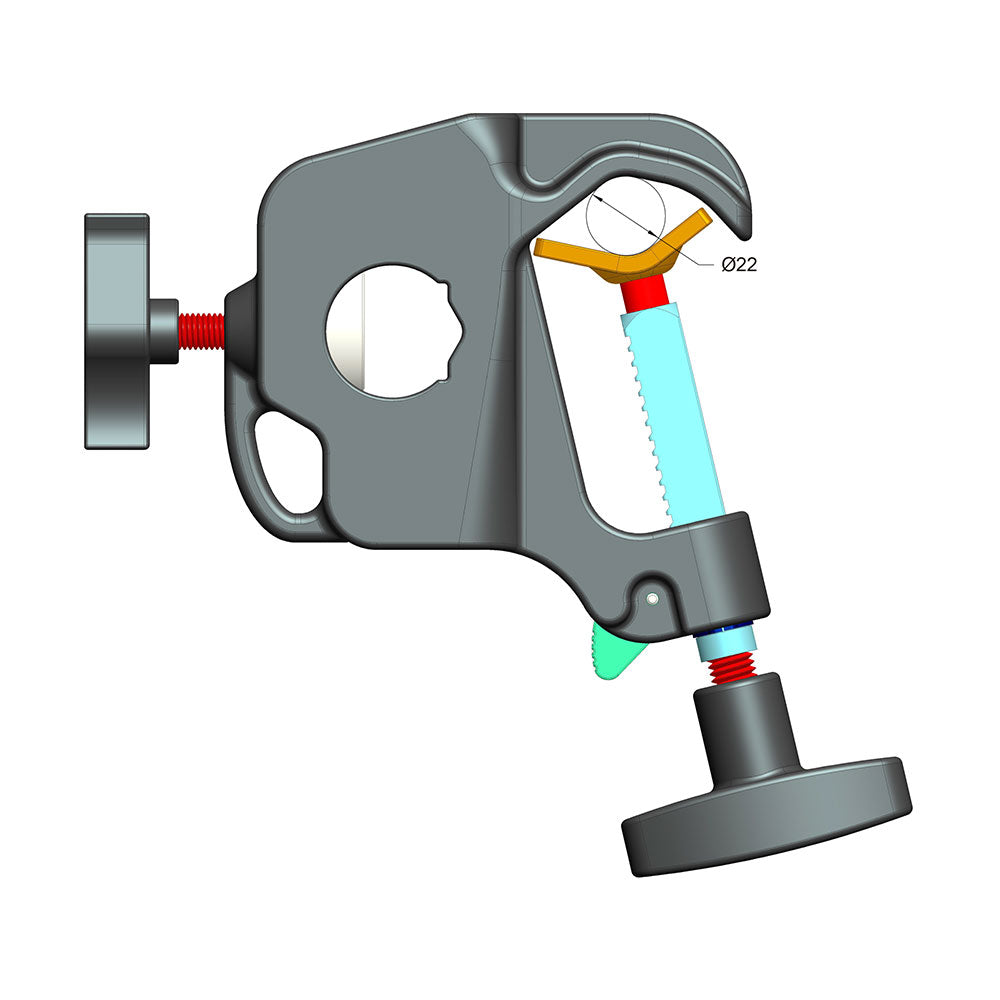

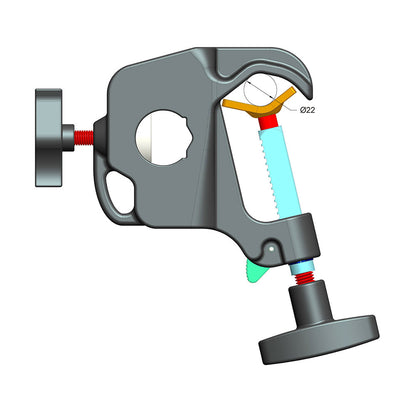

• Backward safety pin device adds security if the arm is accidentally loosened
• 2.10 kg body weight keeps the adjustable arm substantial for heavy-duty stand work

Applications

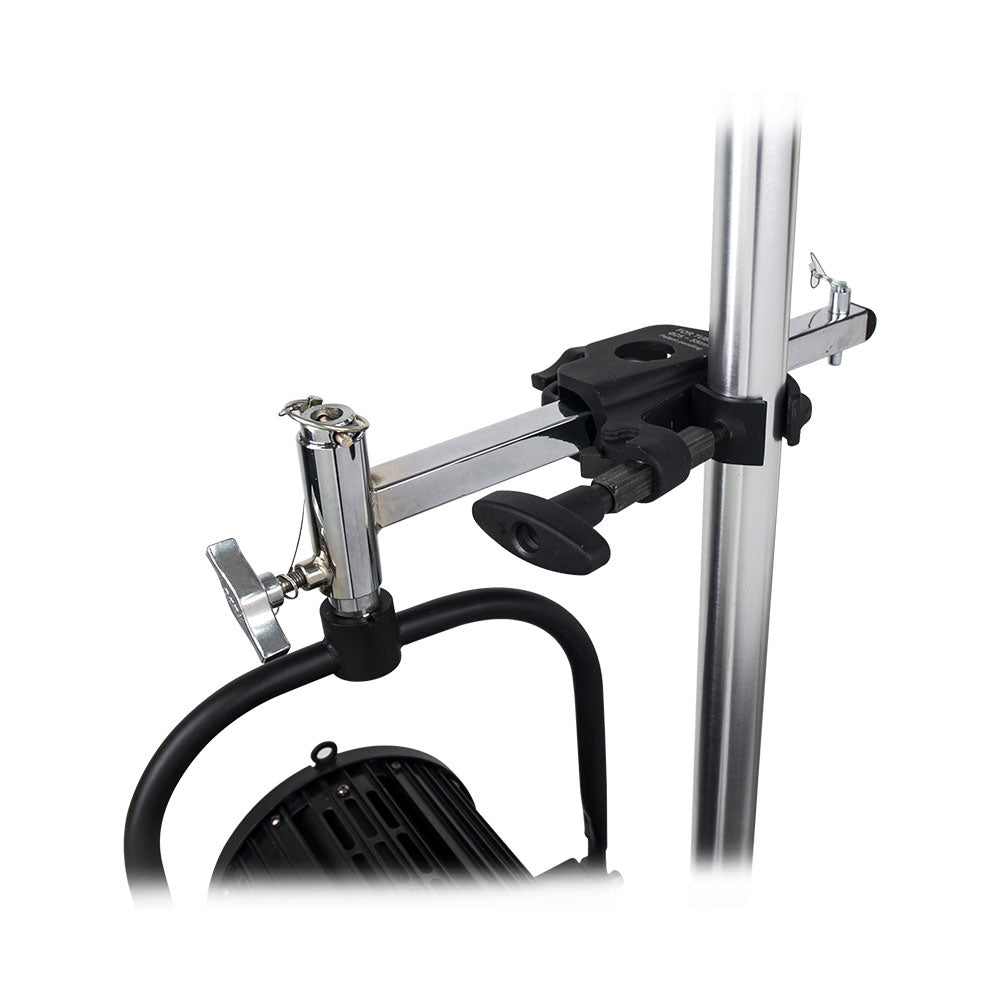

Use it for larger lighting fixtures, boom arms, and junior-spigot accessories that need adjustable offset support from a stand or tube.

Compatibility

KCP-818 is the baby-pin sister model. Use KCP-819 when the load requires a 28 mm junior receiver interface.
