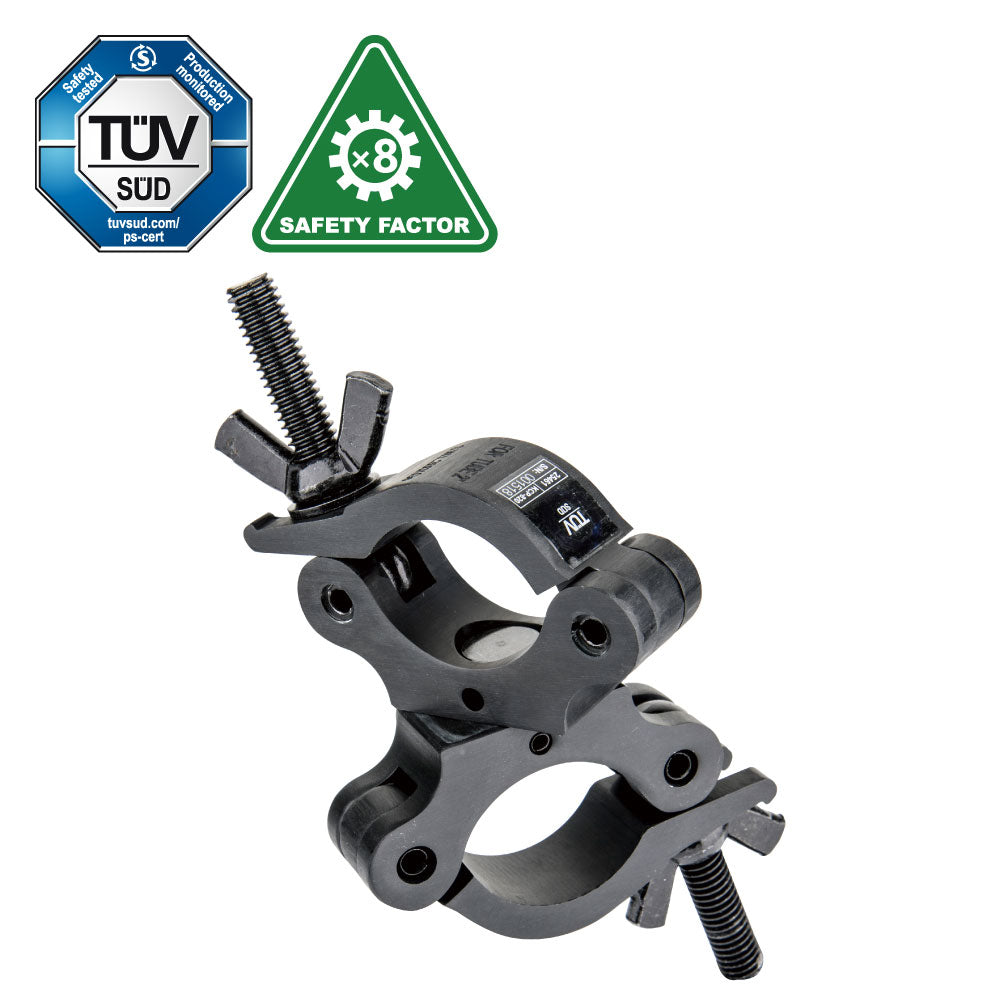

The KUPO KCP-820B Slim Type Swivel Coupler is a black 30 mm wide 360° swivel coupler for 48 to 51 mm tube. It carries a 180 kg Working Load Limit in a tighter footprint than the standard KCP-832 style, making off-angle pipe joins easier in crowded truss bays.
Why It Matters
Slim matters when the truss bay is already crowded. This coupler keeps 360° adjustment for off-angle tube joins, but trims the profile so it can sit back-to-back with other hardware.
Key Features
30 mm slim profile fits crowded truss and back-to-back rigging positions
360° swivel function supports off-angle pipe joins
180 kg Working Load Limit gives the compact swivel a clear rating
48 to 51 mm fit covers common 2" stage pipe and truss tube at both ends
Black finish keeps the coupler low visibility
Additional Technical Notes

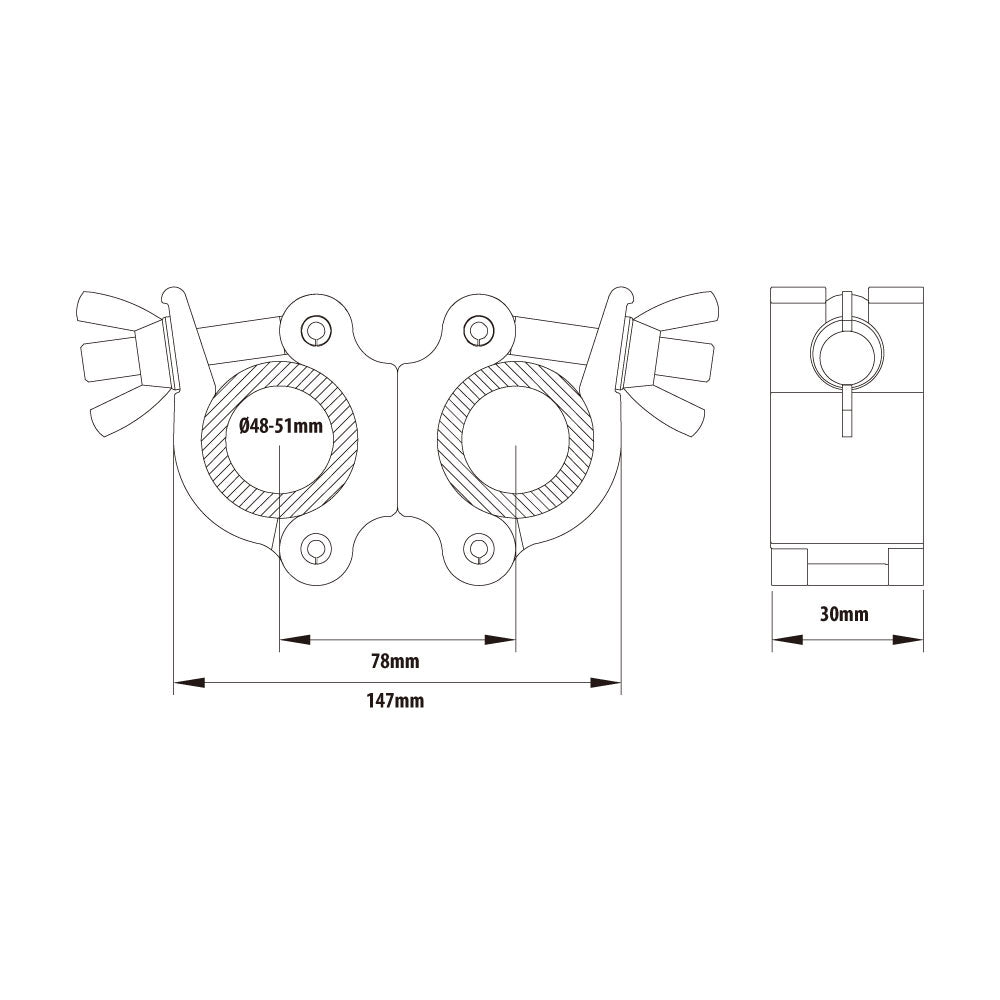

Dimensions: 78 mm x 147 mm
Applications
Use it for off-angle pipe joins, crowded truss configurations, back-to-back coupler layouts, compact grid intersections, and rigging points where a standard-width swivel is too bulky.
Compatibility
Fits 48 to 51 mm tube at both ends and provides 360° swivel adjustment.
Frequently Asked Questions
Why use a slim swivel coupler?
Use it when you need off-angle tube alignment but do not have room for a standard-width swivel coupler. The 30 mm profile is the point.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube.
Why choose black?
Black is best for low-visibility stage, broadcast, and camera-facing rigs.
