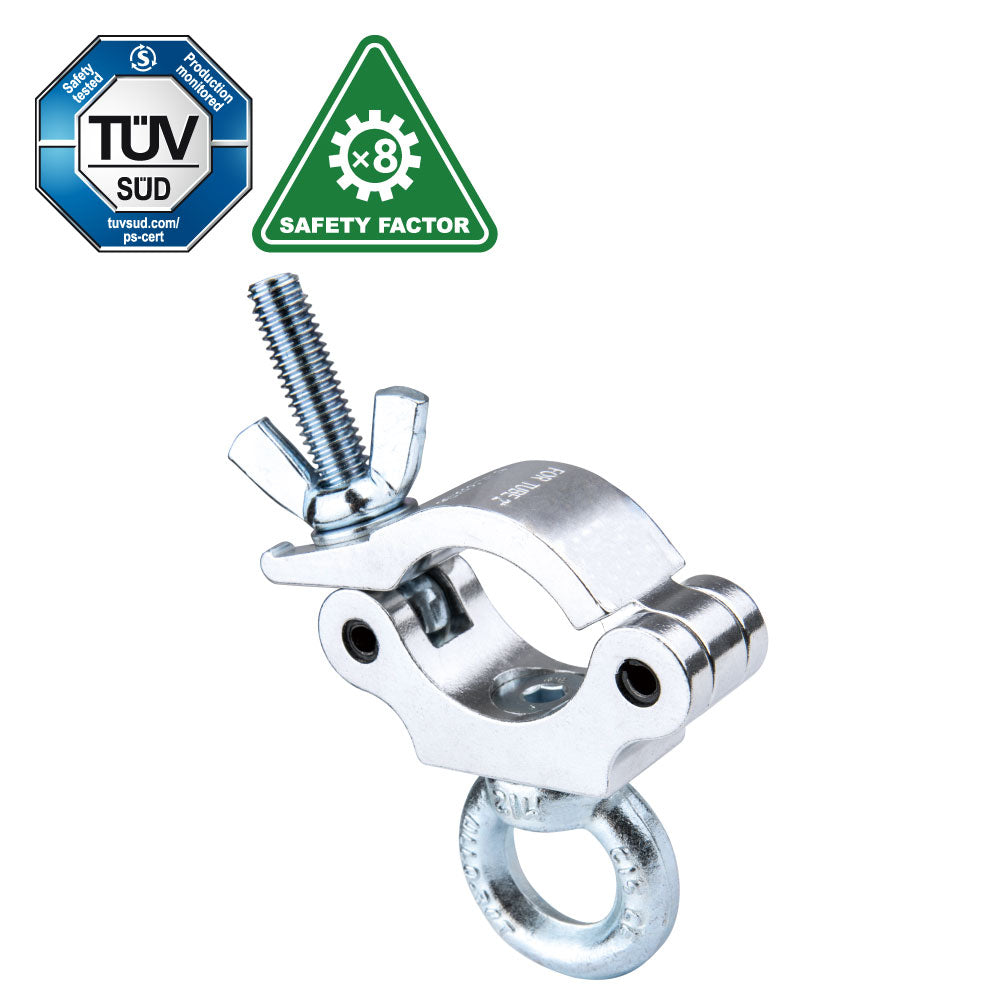

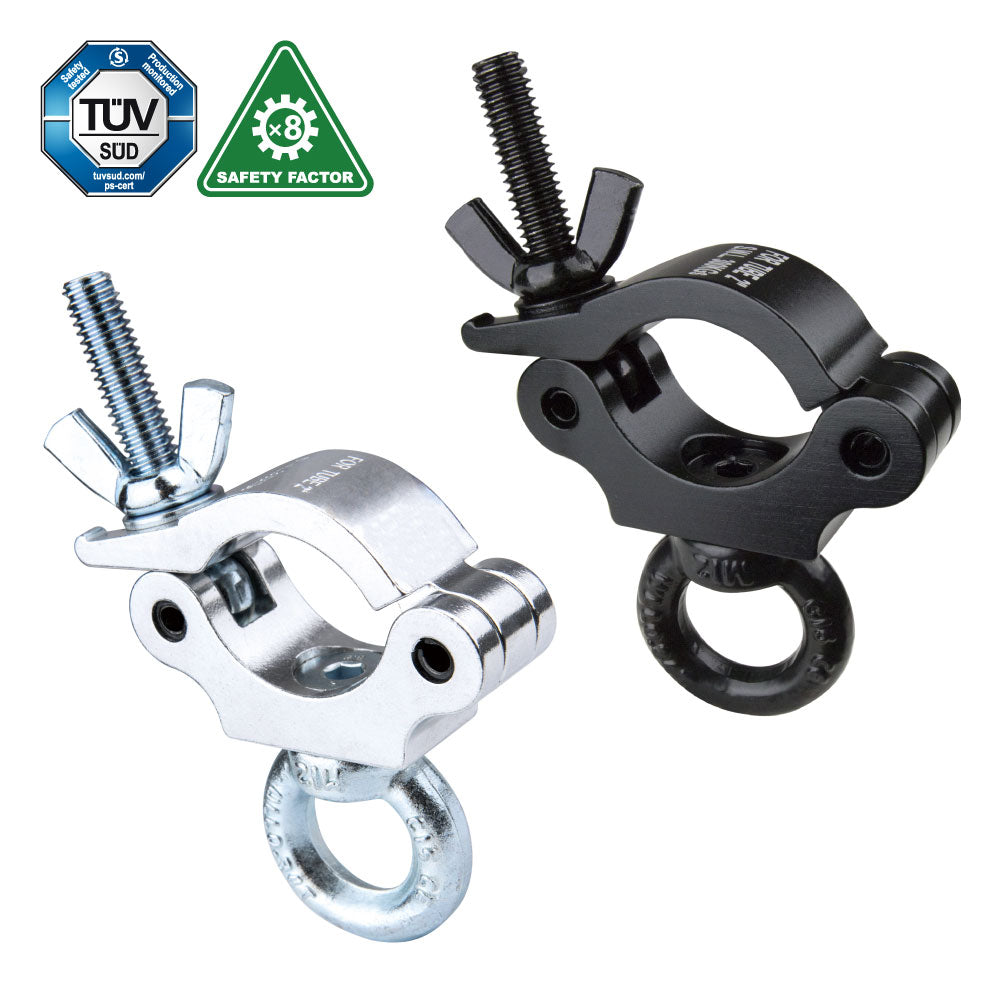

The KUPO KCP-823 Slim Type Eye Ring Opening Coupler is a polished 30 mm wide eye ring coupler for 48 to 51 mm tube. It provides a load-rated M12 eye ring with 30 mm opening and a 230 kg Working Load Limit, giving riggers a compact anchor point for cramped overhead work.
Why It Matters
A rated eye point is most useful when it fits where the rest of the rig already is. The slim body gives riggers a 230 kg anchor point without consuming the width of a bulkier coupler.
Key Features
30 mm slim profile creates a compact anchor point in cramped rigging environments
M12 eye ring with 30 mm opening accepts compatible shackles and safety hardware
230 kg Working Load Limit supports properly planned anchor applications
48 to 51 mm tube fit matches common 2" truss and stage pipe
6061-T6 aluminum extrusion body with steel eye ring balances low weight and load rating
Additional Technical Notes

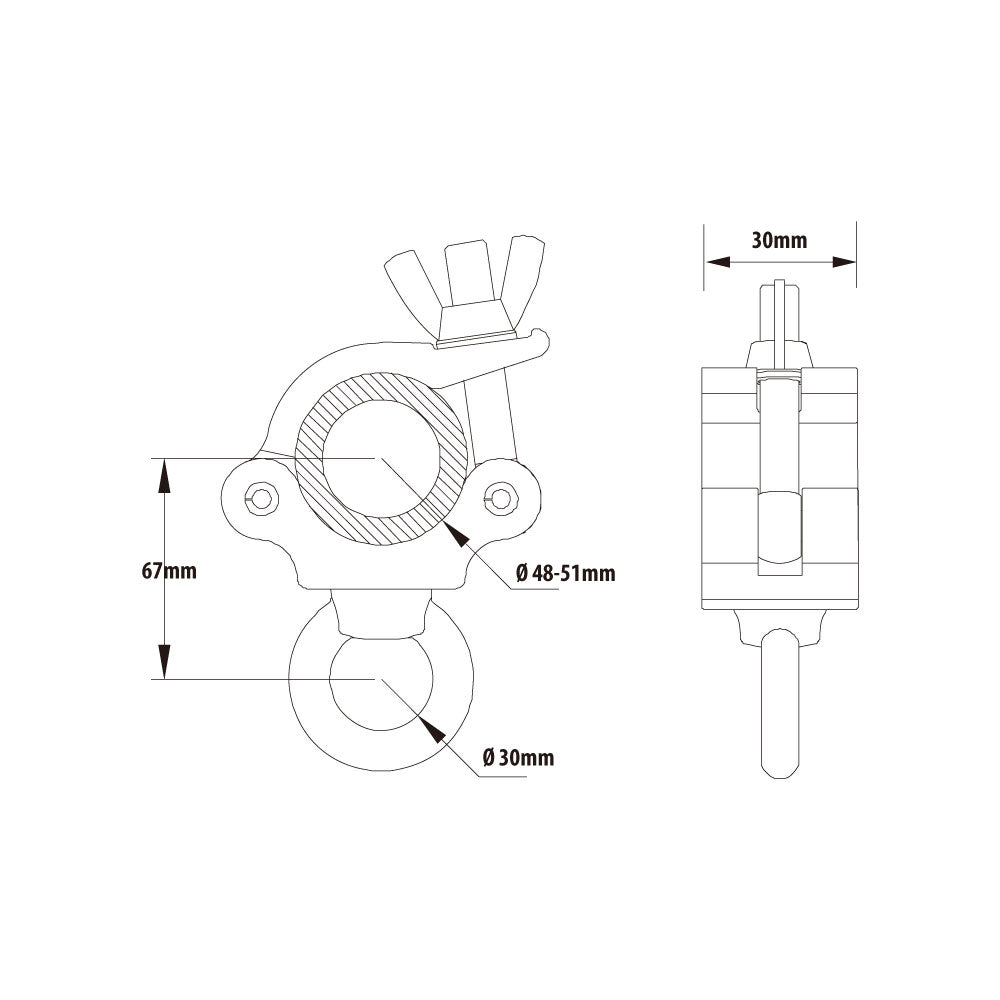

Dimensions: 67 mm x 30 mm
Applications
Use it for compact anchor points, safety cable locations, secondary suspension, tight truss bays, and pipe-mounted rigging points where a wider eye coupler would crowd the hardware.
Compatibility
Fits 48 to 51 mm tube and provides an M12 eye ring with 30 mm opening.
Frequently Asked Questions
What is the eye ring used for?
It creates a compact rated anchor point for compatible shackles, safety cables, or secondary suspension hardware on 48 to 51 mm tube.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube.
Why choose polished?
Polished is easy to identify in inventory and suits exposed rigging where low visibility is not required.
