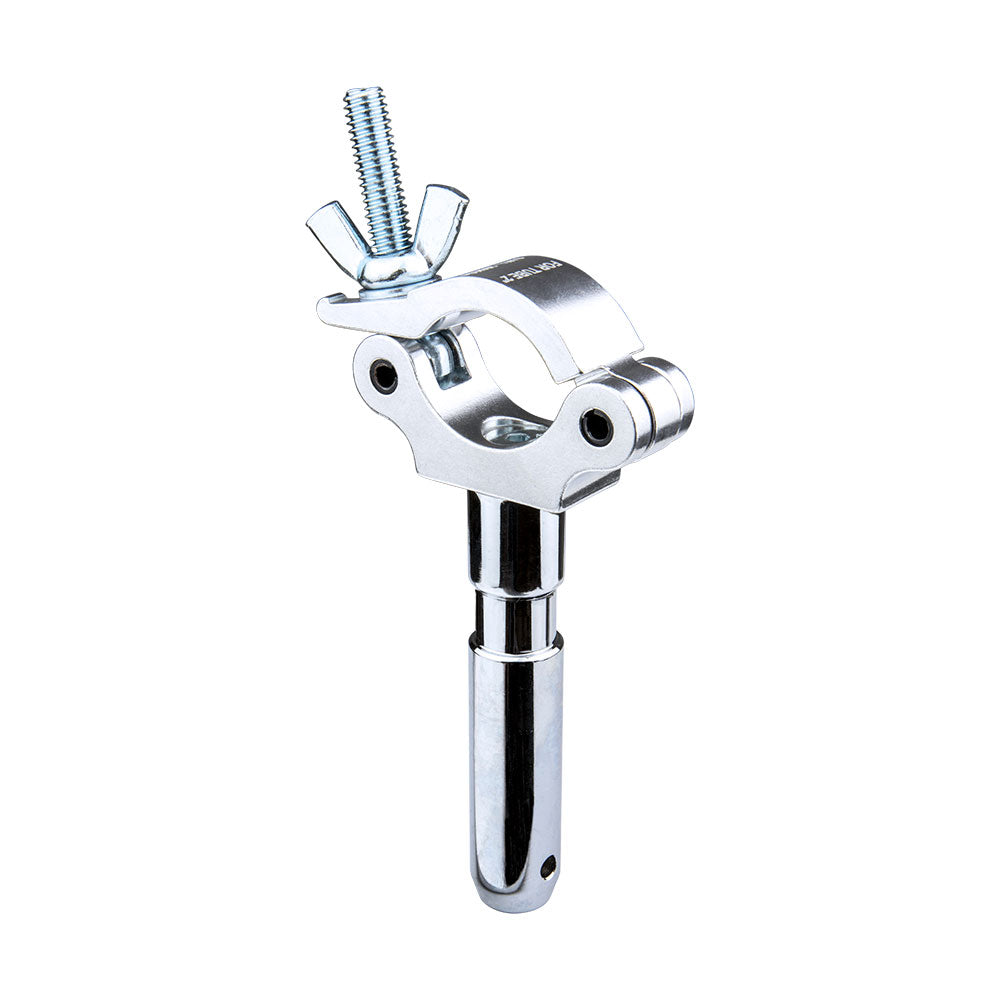

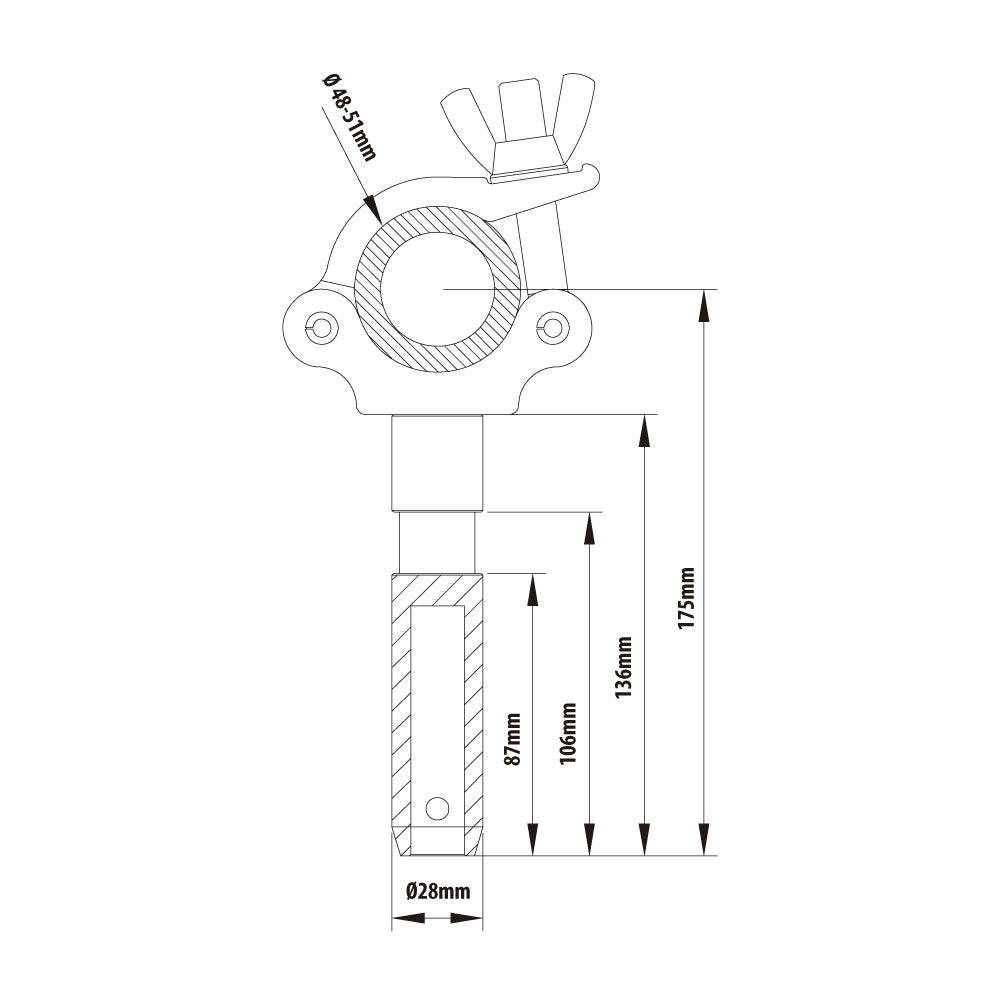

The KUPO KCP-824 Slim Type 28 mm Spigot Coupler is a narrow half coupler for 48 to 51 mm tube. It provides a 28 mm / 1-1/8" spigot for junior receiver fixtures and carries a 200 kg / 440 lb working load limit.
Why It Matters
Between truss webs, clamp width can be the deciding factor. KCP-824 keeps the body slim for tight placement while still providing the junior spigot output needed by larger receiver-style fixtures and adapters.
Key Features
Slim half-coupler body fits more easily between truss webs and crowded pipe positions
28 mm / 1-1/8" spigot supports compatible junior receiver fixtures
6061-T6 high-tensile aluminum construction provides strength with controlled weight
Broken-teeth eyebolt end helps prevent the butterfly knob from falling off during handling
200 kg / 440 lb WLL supports substantial loads within the rated rigging system
Applications
Use it for truss and pipe rigs where a narrow 48 to 51 mm coupler needs to provide a 28 mm junior spigot mounting point.
Compatibility
KCP-826 is the 16 mm stud sister model. Choose KCP-824 when the fixture or adapter requires a 28 mm junior receiver interface.
Frequently Asked Questions
Why use a slim type coupler?
The narrow body helps when the clamp has to fit between truss webs or other crowded rigging details.
What output does KCP-824 provide?
It provides a 28 mm / 1-1/8" spigot for fixtures or adapters with a junior receiver.
How is it different from KCP-826?
KCP-824 has a 28 mm spigot and 200 kg WLL. KCP-826 has a 16 mm stud and 100 kg WLL.
