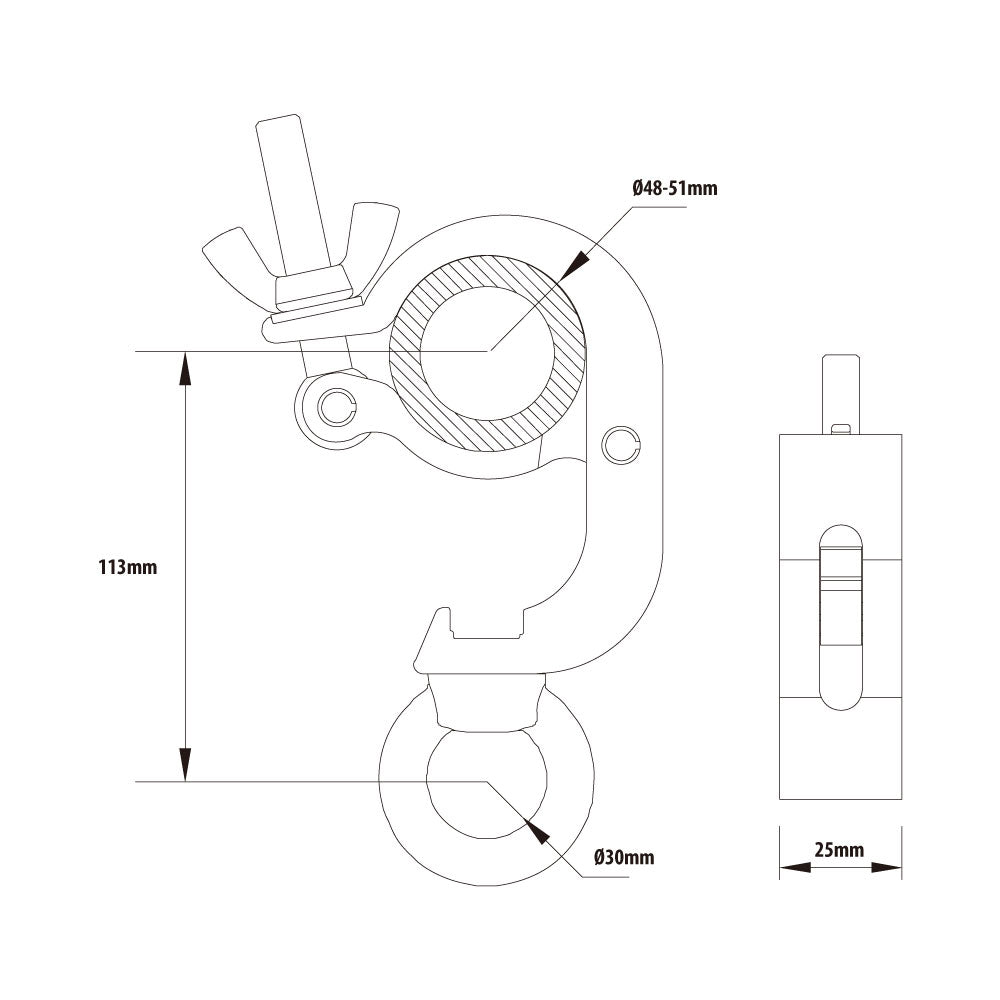

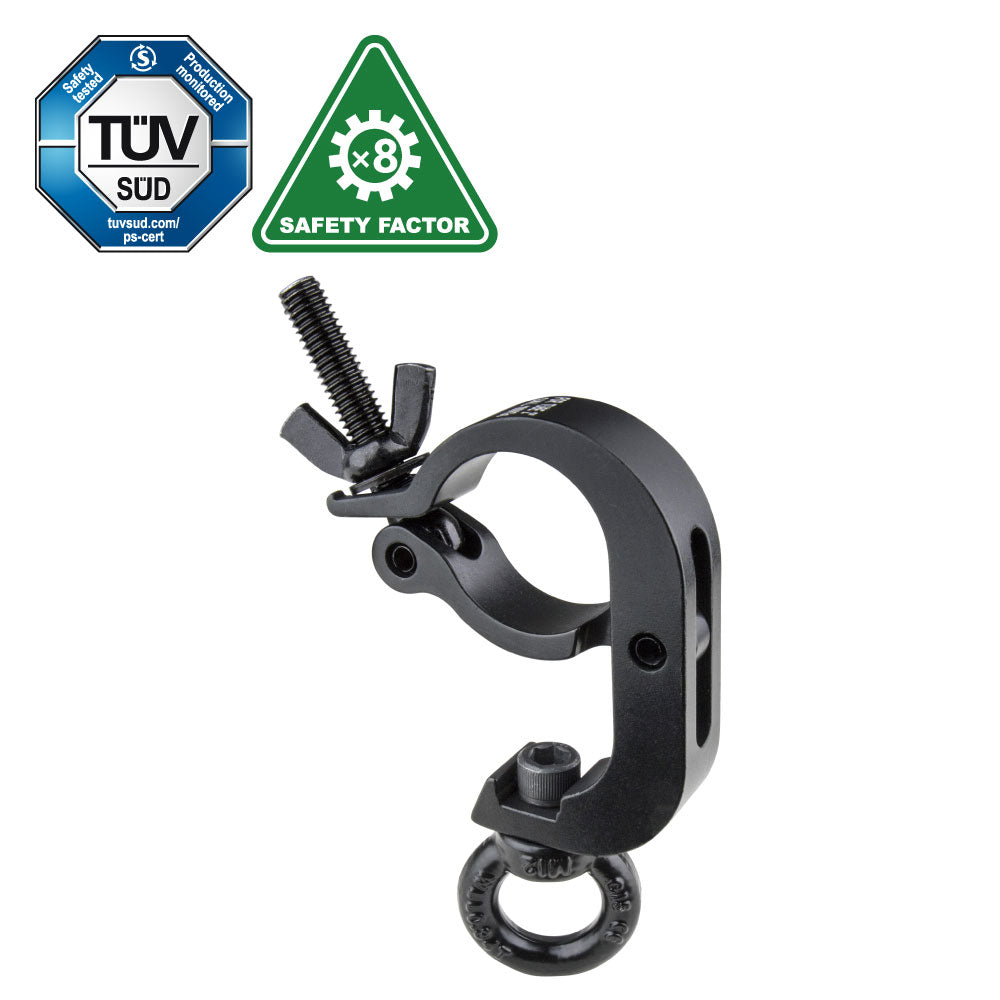

The KUPO KCP-825B Slim Handcuff Eye Ring Opening Coupler combines the 25 mm slim handcuff profile with an integrated 30 mm eye ring for 48 to 51 mm tube. Built from 6061-T6 high tensile aluminum extrusion, it uses a triggering close mechanism, captive wing nut, and TÜV APPROVED 100 kg Working Load Limit.
Why It Matters
The handcuff mechanism is about speed and control overhead. Add the eye ring and it becomes a compact way to create a quick-deploy secondary suspension or safety-bond point on standard 2" tube.
Key Features
25 mm slim handcuff profile fits tight truss bays and dense fixture hangs
Integrated 30 mm eye ring creates a built-in point for bonds, shackles, or secondary lines
Triggering close mechanism speeds overhead placement on 48 to 51 mm tube
Captive wing nut keeps the fastener attached during rigging work
TÜV APPROVED 100 kg Working Load Limit gives the compact assembly a defined rating
Additional Technical Notes
Mounting Detail: Captive wing nut + trigger close with integrated eye ring
Applications
Use it for safety bonds, shackles, secondary suspension lines, dense truss bays, close fixture spacing, and quick-deploy attachment points on standard 2" tube.
Compatibility
Fits 48 to 51 mm tube and belongs to the Slim Handcuff Coupler family. T-handle variants are available separately.
Frequently Asked Questions
How is the eye ring version different from the standard handcuff?
It adds a built-in 30 mm eye ring to the slim handcuff body, so the clamp becomes a quick-deploy tie-off or secondary suspension point.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube.
Why choose black?
Black is best for low-visibility stage, broadcast, and camera-facing rigs.
