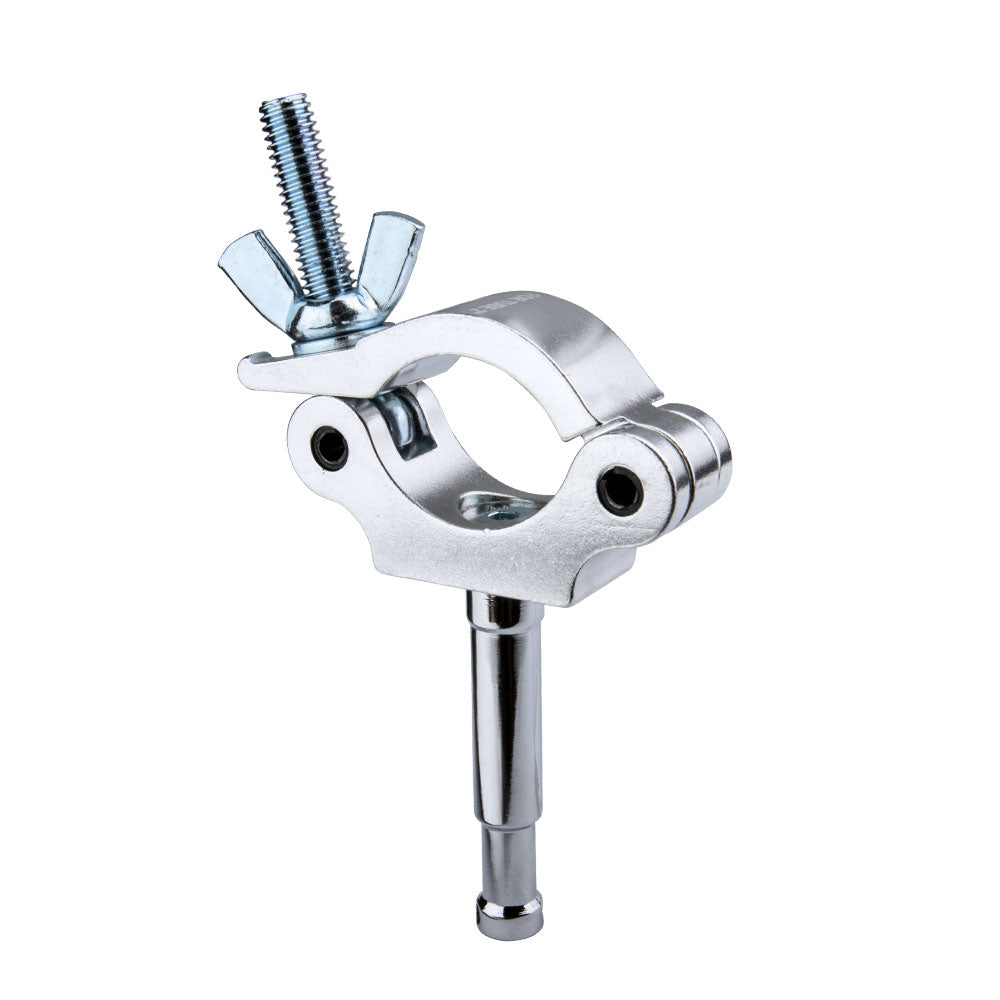

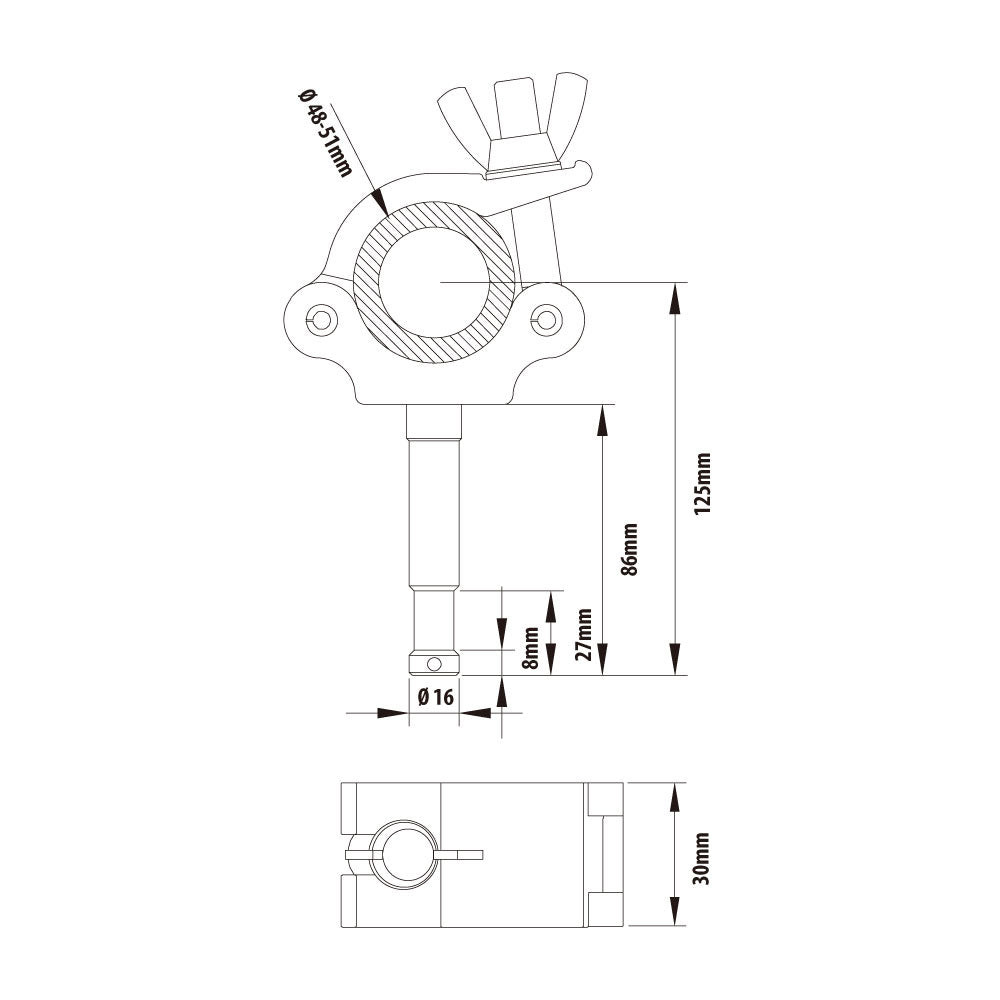

The KUPO KCP-826 Slim Type 16 mm Stud Coupler is a narrow half coupler for 48 to 51 mm tube. It provides a 16 mm / 5/8" baby stud for lightweight luminaires and carries a 100 kg / 220 lb working load limit.
Why It Matters
Small fixtures often need the same tight truss access as larger ones. KCP-826 gives baby receiver gear a narrow coupler body for crowded pipe or truss positions, with a captive-style knob detail that helps keep the wing hardware from disappearing during setup.
Key Features
16 mm / 5/8" stud supports lightweight fixtures with baby receiver mounting
Slim half-coupler body helps placement between truss webs and tight pipe layouts
6061-T6 high-tensile aluminum extrusion gives the coupler a strong but compact body
Broken-teeth eyebolt end helps retain the butterfly knob during handling
100 kg / 220 lb WLL suits baby-stud class loads within the rated setup
Applications
Use it for lightweight luminaires and grip accessories that need a 16 mm baby stud from 48 to 51 mm truss or pipe.
Compatibility
KCP-824 is the 28 mm spigot sister model with a higher WLL. Choose KCP-826 when the mounted item uses a baby receiver.
Frequently Asked Questions
What fixtures should use KCP-826?
Use it for lightweight fixtures or accessories with a 16 mm baby receiver.
What tube range does it fit?
It fits 48 to 51 mm tube.
Why is KCP-824 rated higher?
KCP-824 is the 28 mm spigot version and is listed at 200 kg. KCP-826 is the 16 mm stud version and is listed at 100 kg.
