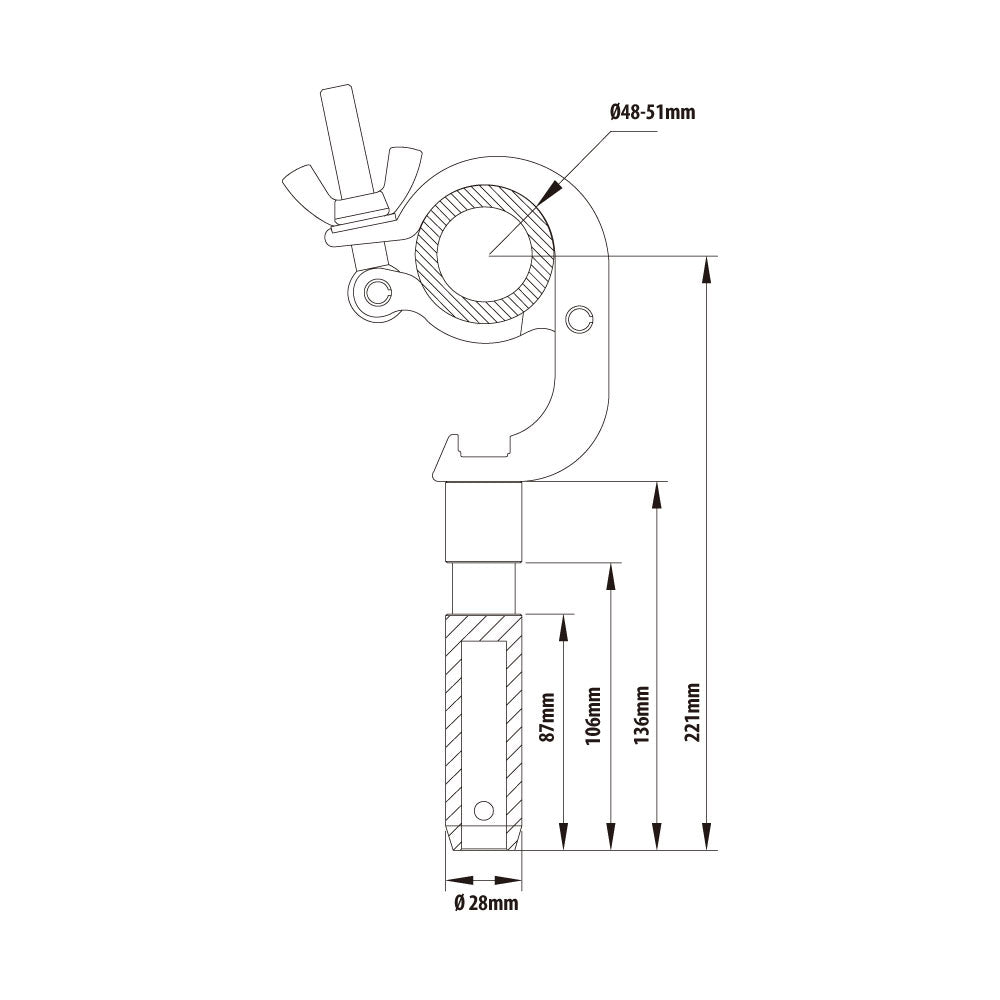

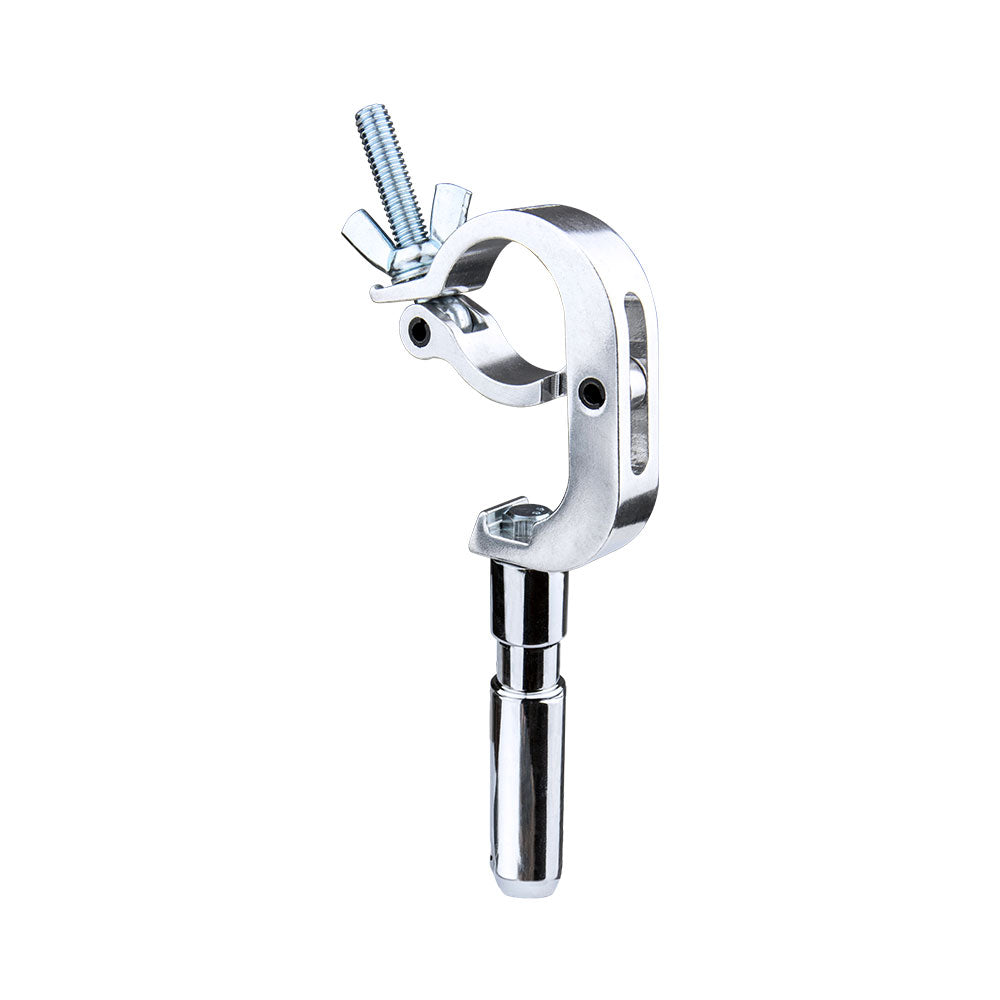

The KUPO KCP-827 Slim Handcuff 28 mm Spigot Coupler is a one-hand truss coupler for 48 to 51 mm pipe or truss tube. Made from 6061-T6 high-strength aluminum extrusion, it provides a 28 mm male head and carries a 100 kg working load limit.
Why It Matters
The handcuff format is about handling speed. KCP-827 lets the hook catch the truss with one hand, which is useful when the installer is also controlling a fixture or support, while the curved inner wall helps protect the truss surface.
Key Features
One-hand handcuff design helps the hook fix quickly onto 48 to 51 mm truss or pipe
28 mm male head provides a junior-style interface for compatible receivers
Curved inner wall helps avoid damage to the truss surface
830 g weight keeps the coupler manageable for repeated rigging
100 kg WLL supports rated use with suitable fixtures and support hardware
Applications
Use it for one-hand truss attachment where a 28 mm male head is needed for fixture, support, or additional truss support arrangements.
Compatibility
KCP-829 is the 16 mm male head sister model. The 28 mm base connector can be used with a large tripod to form an additional truss support arrangement as described for this accessory.
Frequently Asked Questions
What is the advantage of the handcuff design?
It lets the coupler hook onto truss with one hand, making placement faster when the other hand is managing the fixture or support.
What interface does KCP-827 provide?
It provides a 28 mm male head / spigot for compatible junior receiver equipment.
How is it different from KCP-829?
KCP-827 has a 28 mm male head. KCP-829 has a 16 mm baby stud.
