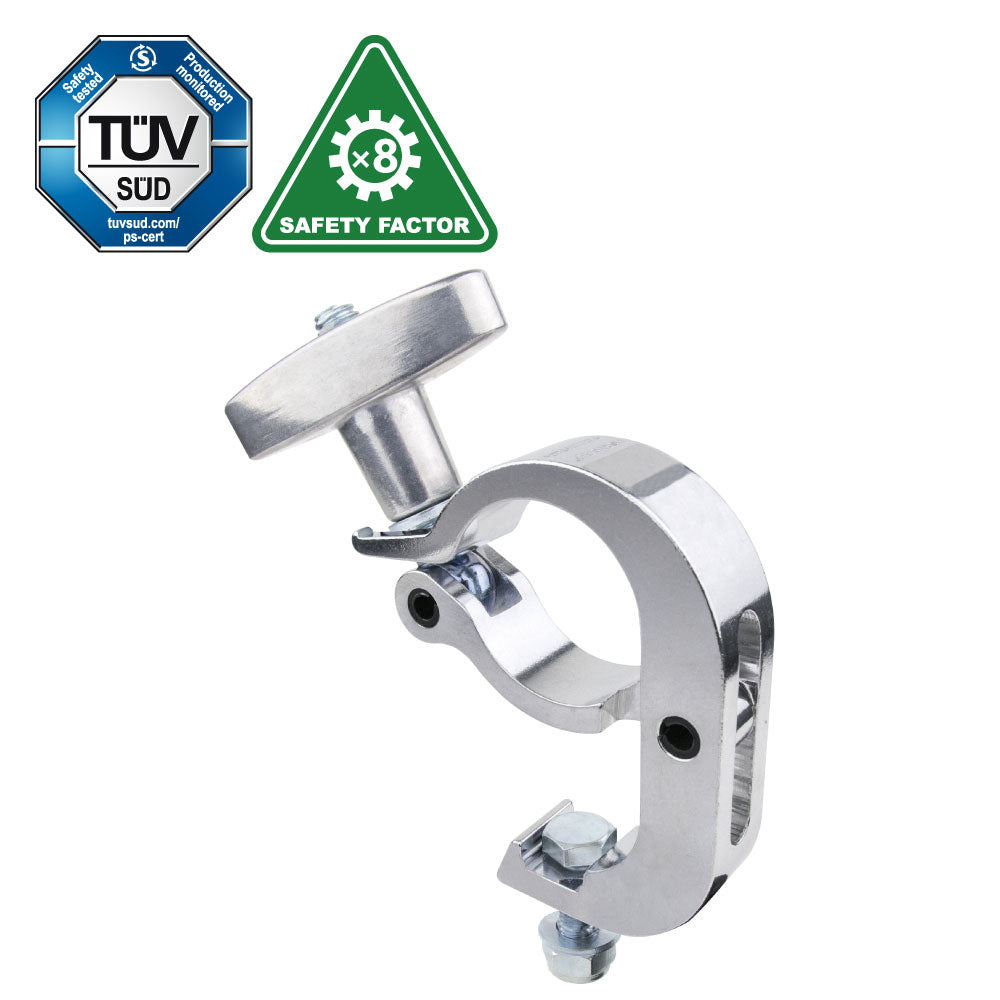

The KUPO KCP-828-T T-Handle Slim Handcuff Coupler is a polished 25 mm wide coupler for 48 to 51 mm tube. Built from 6061-T6 high tensile aluminum extrusion, it uses a triggering close mechanism, solid T-handle, M10 x 38 mm bolt, and TÜV APPROVED 100 kg Working Load Limit for dense truss layouts.
Why It Matters
The T-handle version is for crews who want bare-hand torque without reaching for a wrench. It keeps the narrow handcuff profile for crowded truss, but makes repeated fixture hangs faster during short load-in windows.
Key Features
25 mm slim profile fits tight truss bays and close fixture spacing
Triggering close mechanism speeds placement around 48 to 51 mm tube
Solid T-handle allows tool-free hand tightening for fast turnaround rigging
M10 x 38 mm bolt and 6061-T6 aluminum body keep the compact clamp structurally serious
TÜV APPROVED 100 kg Working Load Limit in Polished finish
Additional Technical Notes

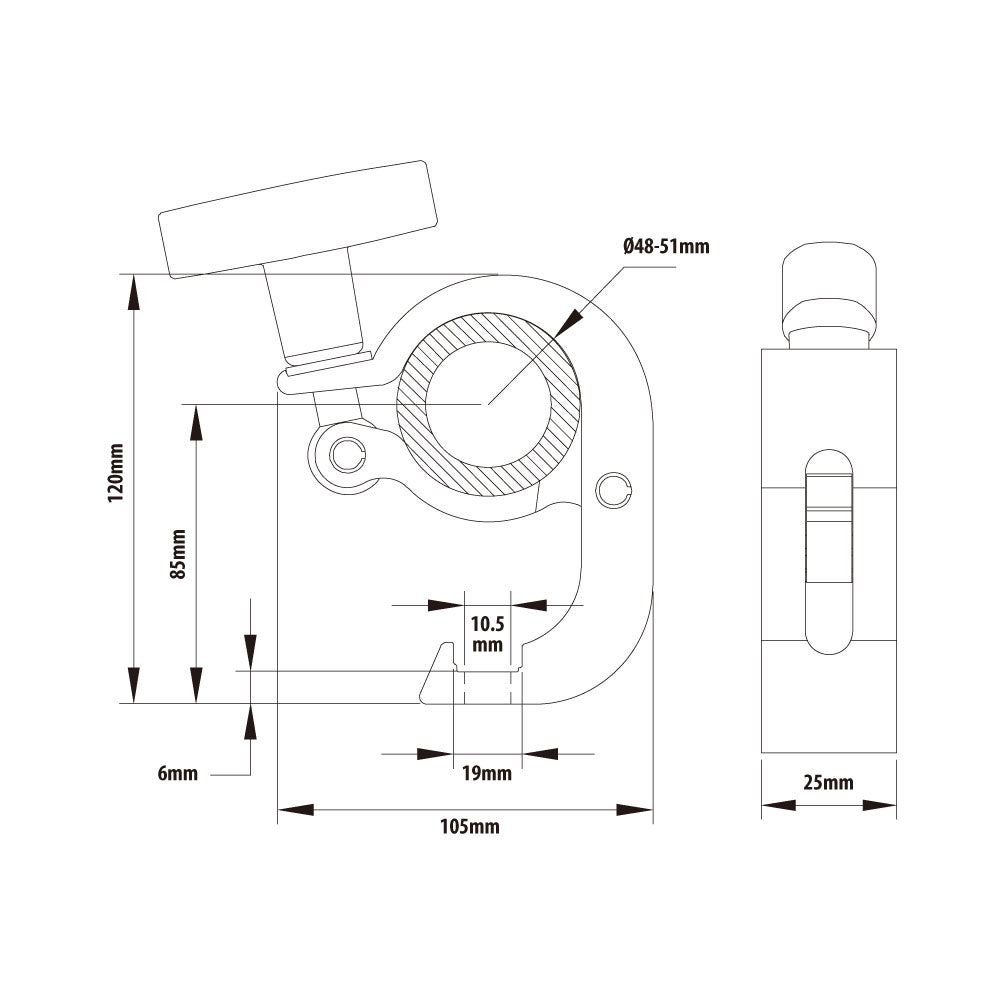

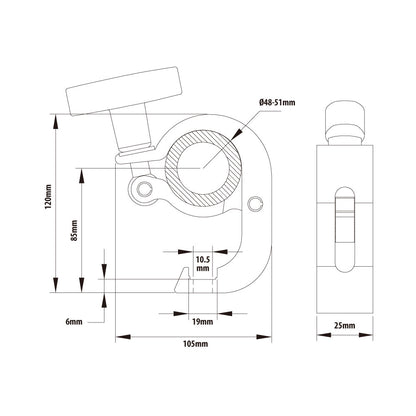

Dimensions: 105 mm x 120 mm body, 85 mm jaw, 6 mm slot, 19 mm wide jaw, 10.5 mm thick
Mounting Detail: Solid T-handle, captive design, and triggering close mechanism
Applications
Use it for close-packed fixture hangs, compact truss bays, rental packages, touring rigs, studio grids, and overhead positions where a narrow fast-closing coupler is easier than a standard-width clamp.
Compatibility

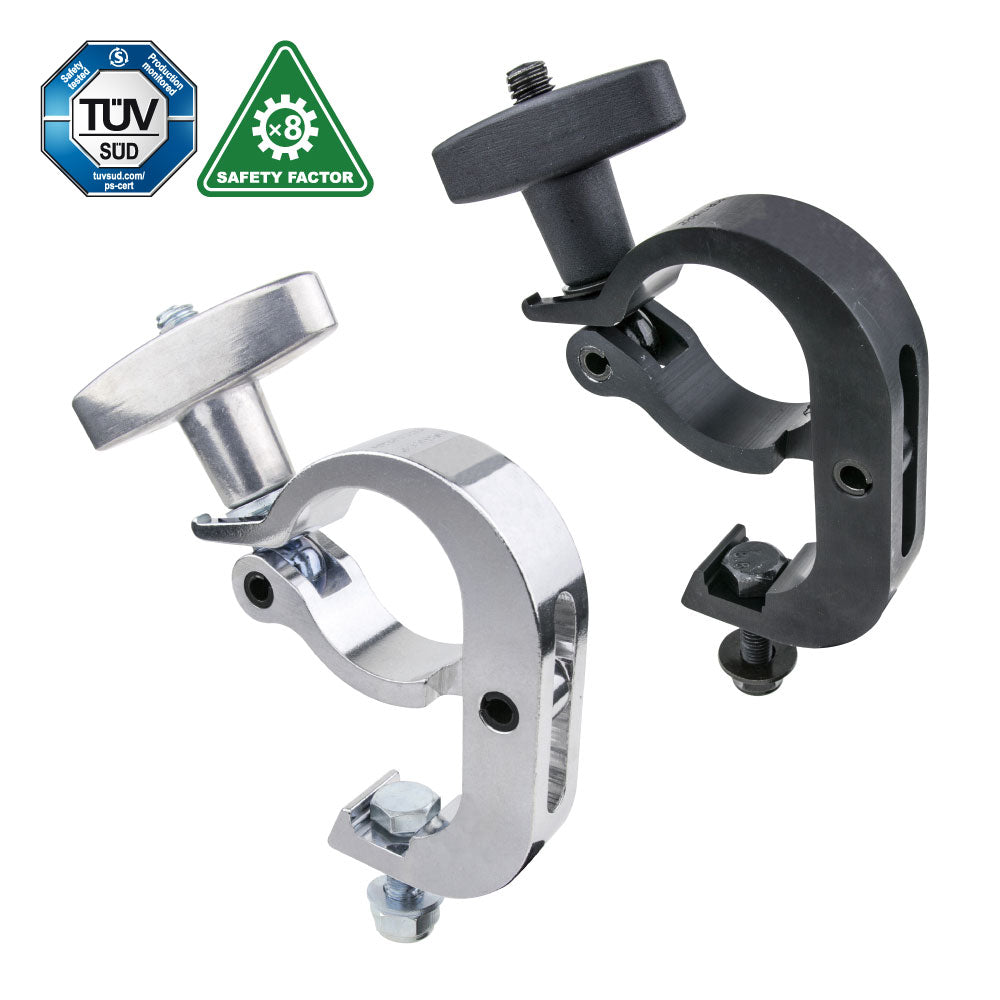

Fits 48 to 51 mm tube. T-handle versions support bare-hand tightening; wing-nut versions keep the lower-profile captive nut arrangement.
Frequently Asked Questions
When should I choose the T-handle version?
Choose the T-handle version when the clamp is opened and tightened repeatedly by hand. It is faster when tools are inconvenient or the load-in window is short.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube.
What makes it a handcuff coupler?
The triggering close mechanism lets the coupler close quickly around the tube, which is helpful when working overhead or in tight truss bays.
