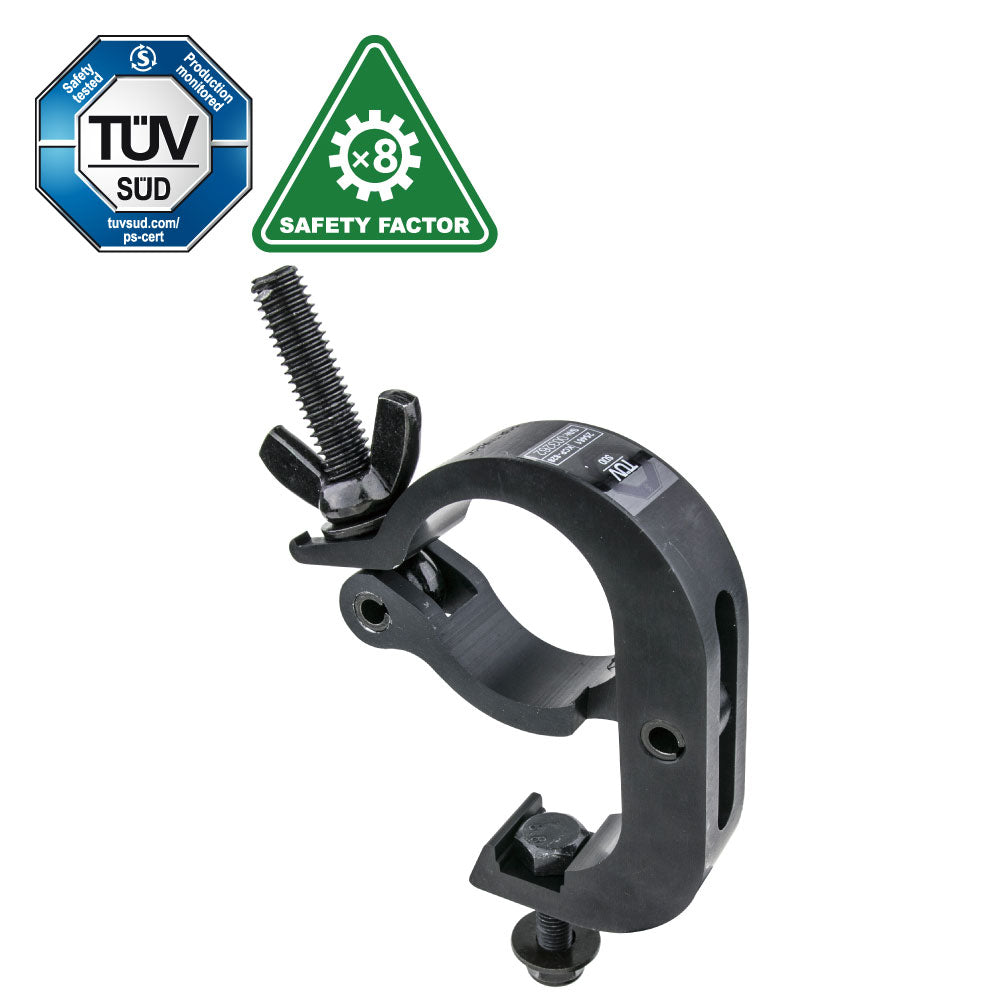

The KUPO KCP-828B Slim Handcuff Coupler is a black 25 mm wide handcuff coupler for 48 to 51 mm tube. It uses a triggering close mechanism, captive wing nut, M10 x 38 mm bolt, and double-level countersunk seat, giving crews a compact 100 kg coupler for tight truss bays.
Why It Matters
The slim handcuff format is built for dense rigs where full-width couplers fight for space. It gives the crew fast closure, captive hardware, and a narrow body that fits between neighboring clamps.
Key Features
25 mm slim handcuff body fits tight truss bays and close fixture spacing
Triggering close mechanism speeds placement on 48 to 51 mm tube
Captive wing nut keeps the fastener attached during overhead work
Double-level countersunk seat accepts an M10 hex head bolt on the load side
TÜV APPROVED 100 kg Working Load Limit suits compact coupler applications
Additional Technical Notes

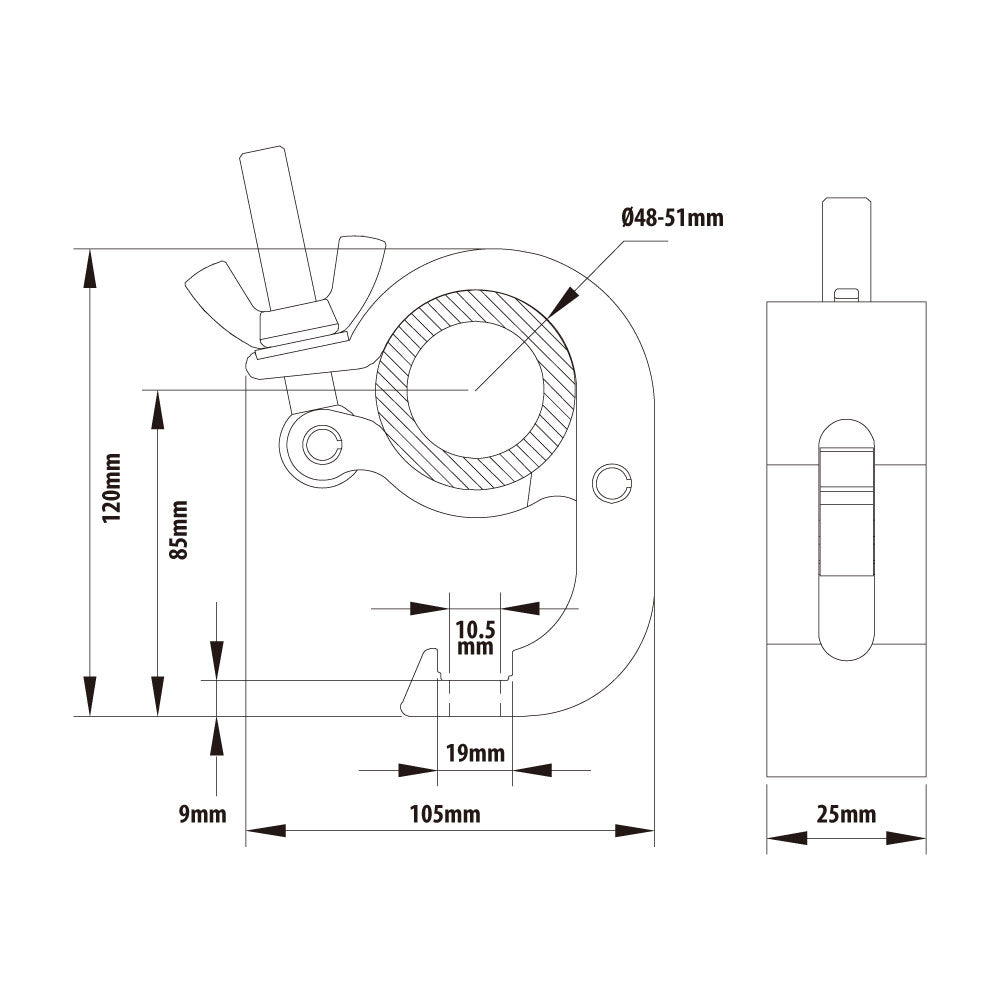

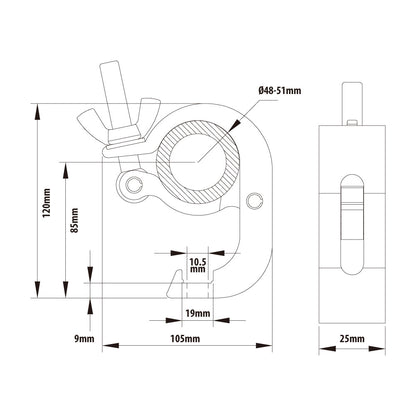

Dimensions: 105 mm x 120 mm body, 85 mm jaw, 9 mm slot, 10.5 mm thick, 19 mm wide jaw
Applications
Use it for close-packed fixture hangs, tight truss bays, slim pipe-grid work, rental rigs, and overhead hardware positions where a fast handcuff coupler is more efficient than a standard clamp.
Compatibility
Fits 48 to 51 mm tube and belongs to the Slim Handcuff Coupler family. T-handle variants are available separately.
Frequently Asked Questions
What makes the handcuff mechanism useful?
The triggering close mechanism helps the coupler close quickly around the tube, and the captive wing nut reduces the chance of dropping hardware overhead.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube.
Why choose black?
Black is best for low-visibility stage, broadcast, and camera-facing rigs.
