Overview

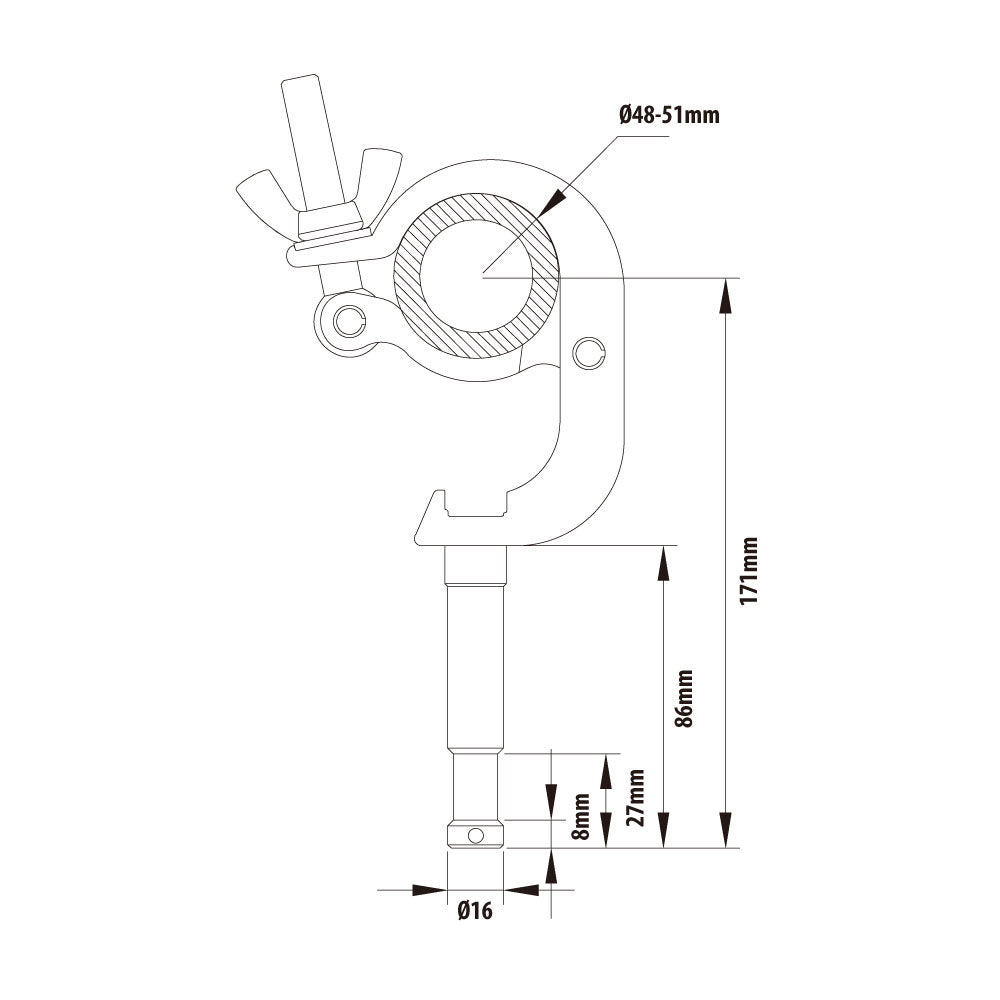

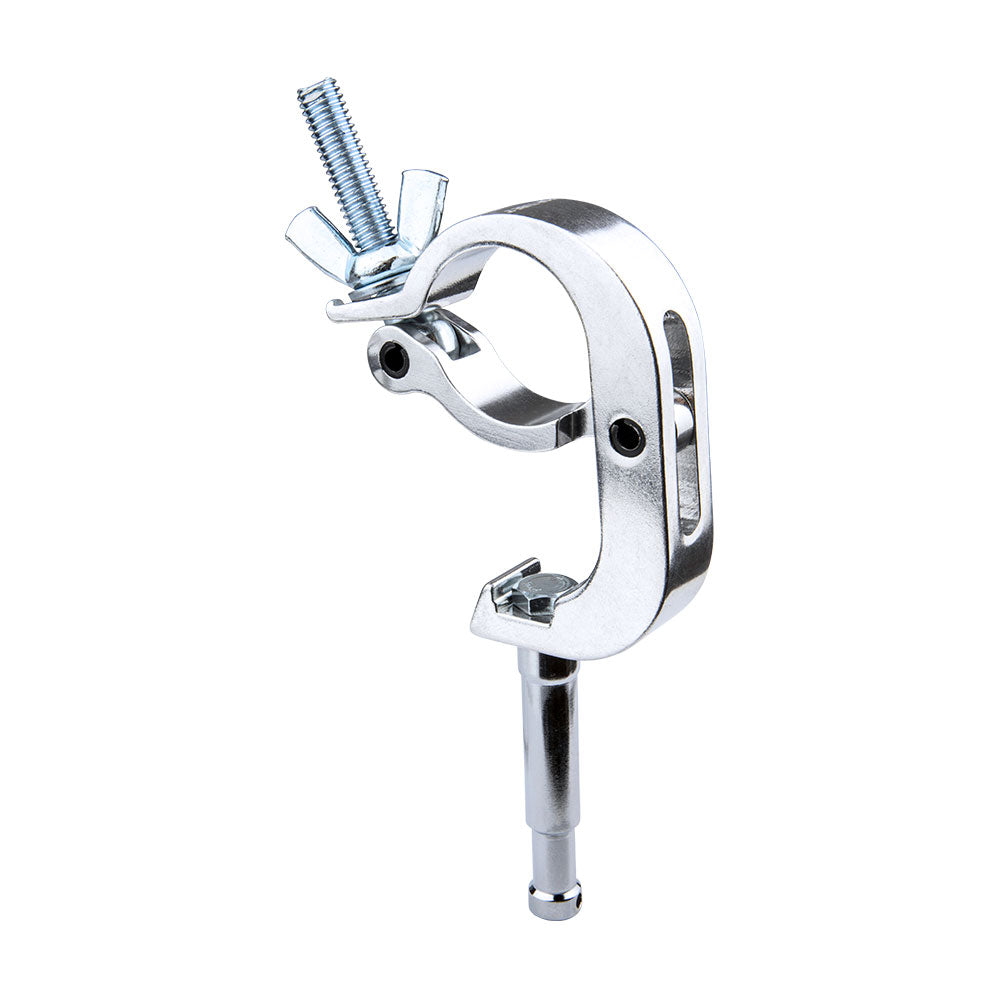

The KUPO KCP-829 Slim Handcuff 16 mm Stud Coupler is a one-hand truss coupler for 48 to 51 mm tube. It uses 6061-T6 high-strength aluminum extrusion and provides a 16 mm male head for light video accessories and fixtures with baby receivers.

Why It Matters

A baby-stud coupler is more useful when it can be placed quickly in crowded truss. KCP-829 combines the handcuff one-hand hook action with a compact 480 g body, giving crews a fast baby-interface mounting point without dragging a larger clamp into the rig.

Key Features

• One-hand handcuff design helps the coupler hook quickly onto 48 to 51 mm tube
• 16 mm male head supports accessories and fixtures with baby receivers
• Curved inner wall helps protect the truss surface from clamp damage
• 480 g body weight keeps the coupler light for accessory-heavy kits
• 100 kg WLL keeps the baby-stud mounting point within a clear rated limit

Applications

Use it for light video accessories, compact luminaires, and baby receiver hardware that need fast one-hand attachment to 48 to 51 mm truss or pipe.

Compatibility

KCP-827 is the 28 mm male head sister model. Use KCP-829 when the mounted accessory uses a 16 mm baby receiver.
