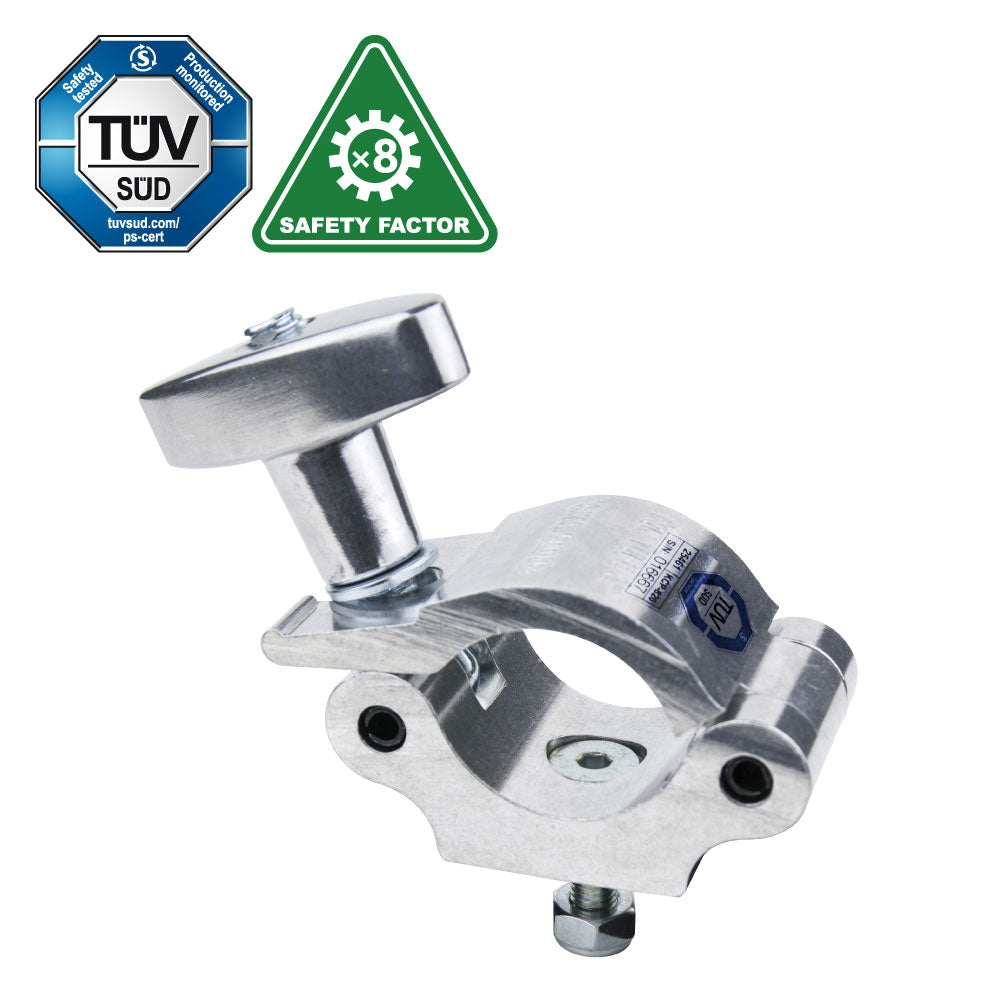

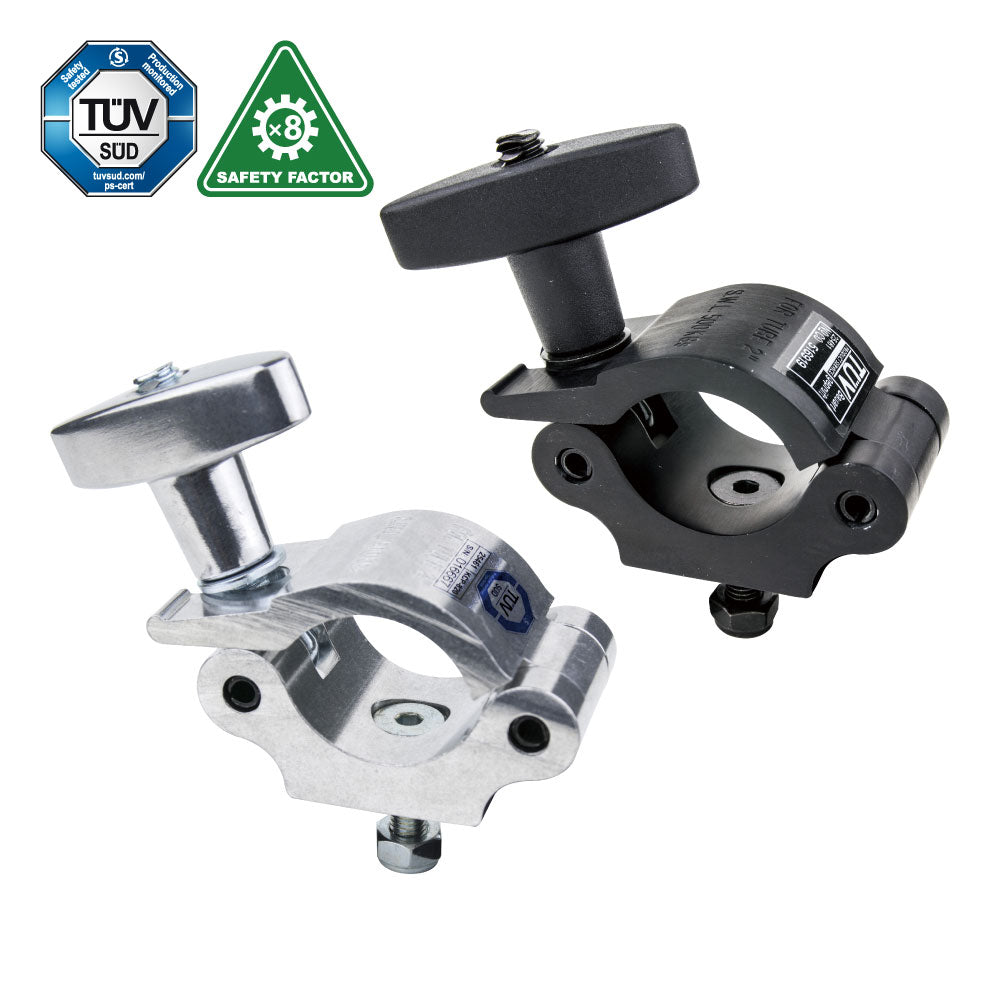

The KUPO KCP-831-T T-Handle Half Coupler is a polished coupler for 48 to 51 mm tube. It uses a 50 mm standard body, high tensile 6061 aluminum extrusion, tool-free T-handle tightening, and a 500 kg Working Load Limit for professional truss and pipe rigging. TÜV APPROVED certification supports the listed 500 kg safe working load.
Why It Matters
The T-handle version trades the normal wing-nut workflow for faster bare-hand tightening. It suits fast turnarounds where the same high-load coupler may be opened and closed repeatedly.
Key Features
500 kg Working Load Limit supports professional fixture, truss, and pipe-mounted hardware within spec
50 mm standard depth balances tube space and load requirement
Integrated T-handle allows tool-free hand tightening during fast rig-up
48 to 51 mm tube fit matches common 2" stage pipe and truss tube
TÜV APPROVED certified for the listed 500 kg safe working load
Polished finish suits general rental and exposed rigging stock
Additional Technical Notes

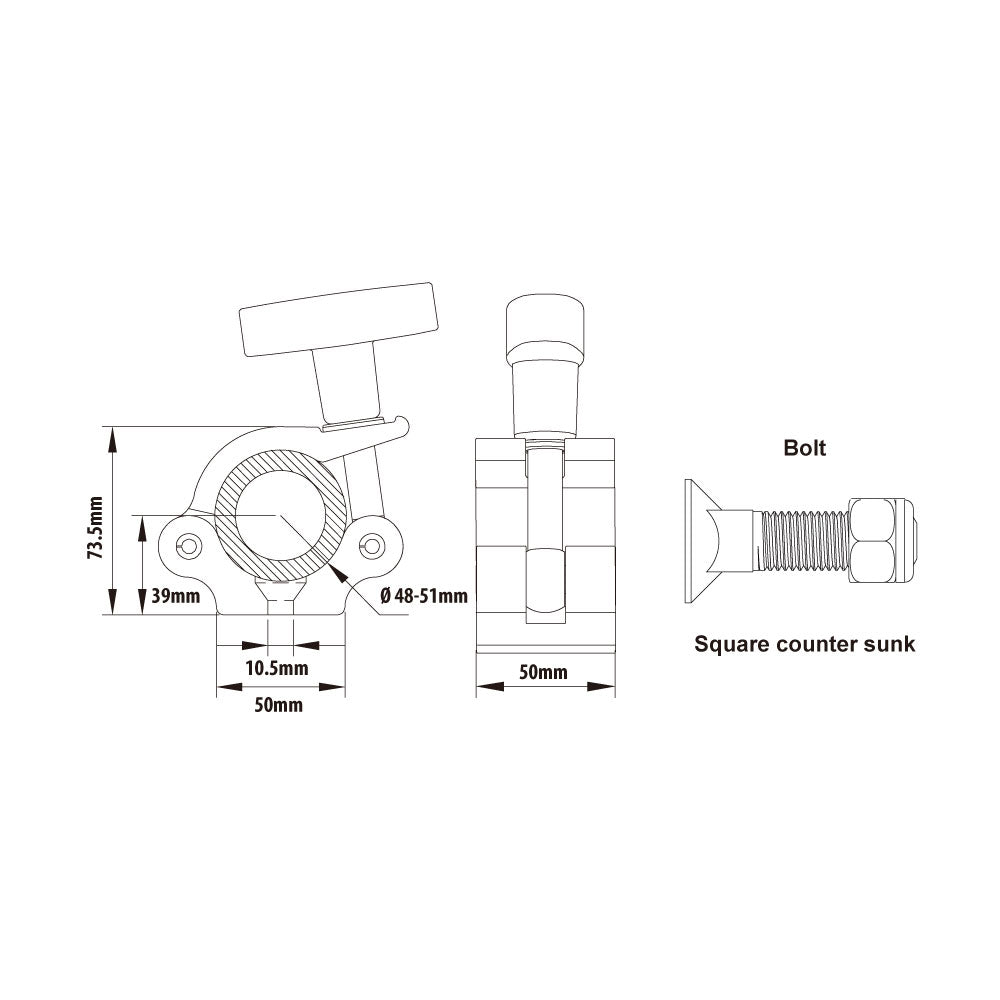

Dimensions: 39 mm x 73.5 mm x 50 mm, slot 10.5 mm, length 50 mm
Applications
Use it for truss-mounted fixtures, pipe-grid hardware, rental inventories, touring rigs, studios, theaters, and any 48 to 51 mm tube position that needs a rated half coupler.
Compatibility
Fits 48 to 51 mm tube. Slim versions save tube width; standard KCP-831 versions provide the 500 kg half coupler body; T-handle versions support tool-free tightening.
Frequently Asked Questions
Does the T-handle change the load rating?
No. The T-handle version keeps the 500 kg rating listed for the clamp while changing the tightening method for faster hand operation.
What tube size does it fit?
It is specified for 48 to 51 mm tube, which covers common 2" stage pipe and truss tube.
Should I choose slim or standard width?
Choose slim for crowded tube space. Choose the standard KCP-831 family when the job calls for the 500 kg rating and the wider body is acceptable.
