Overview

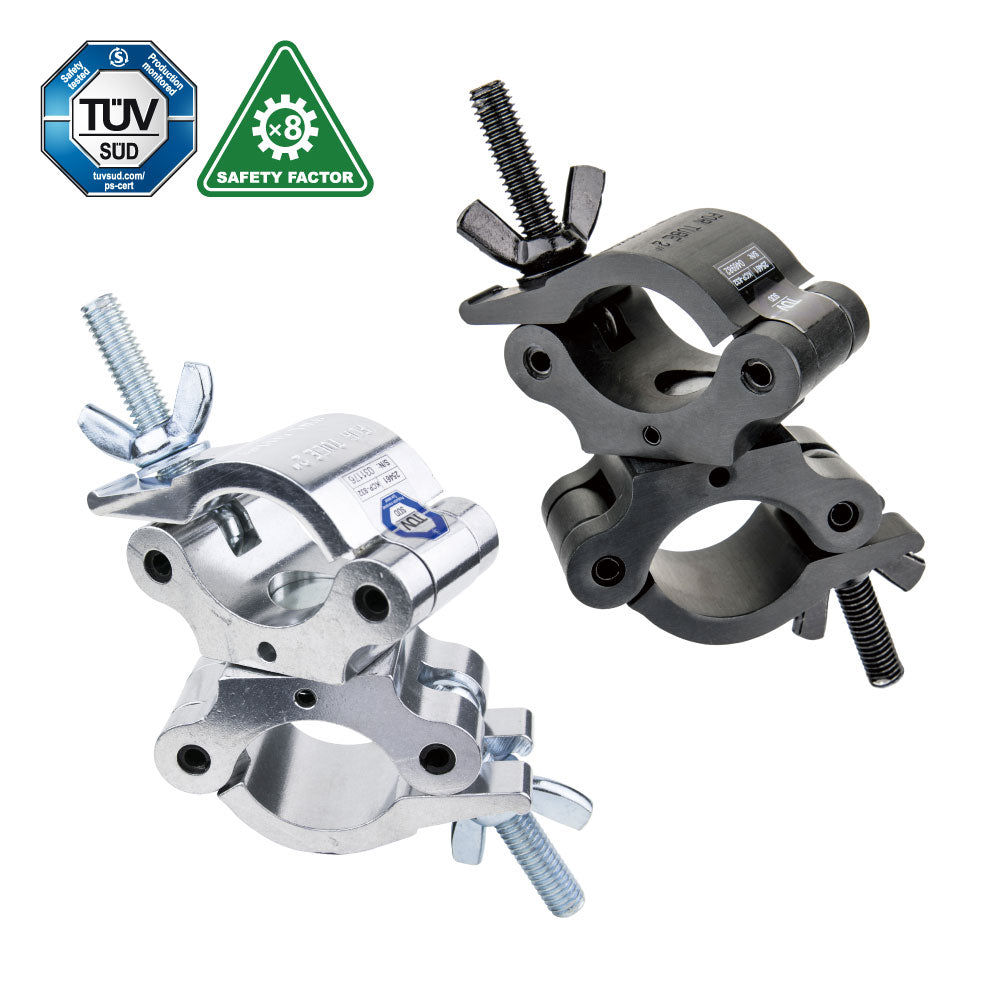

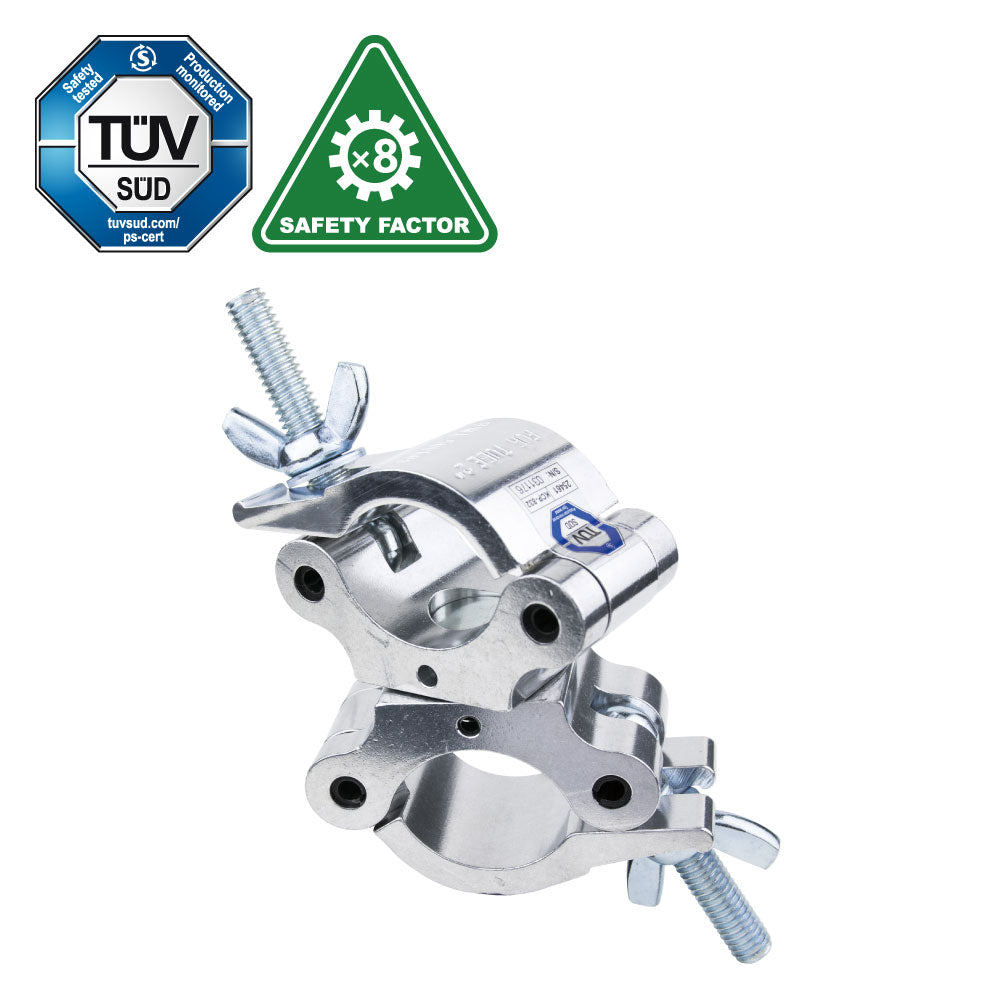

The KUPO KCP-832 Swivel Coupler joins two 48 to 51 mm tubes at any angle through a 360° pivot. Built from 6061 aluminum extrusion, it carries a 300 kg Working Load Limit and gives riggers a controlled way to build diagonal bracing, asymmetric truss layouts, and off-perpendicular pipe connections.
Why It Matters
A swivel coupler is the correct answer when two tubes do not meet square. It lets the rig geometry set the angle instead of forcing a fixed coupler into a bad connection.
Key Features
- 360° swivel pivot connects two tubes at off-angle or diagonal positions
- 300 kg Working Load Limit gives the connection a defined rating envelope
- 48 to 51 mm fit on both heads matches common 2" stage pipe and truss tube
- High tensile 6061 aluminum extrusion keeps the body strong without unnecessary mass
- Polished finish suits general polished rigging inventory
Additional Technical Notes

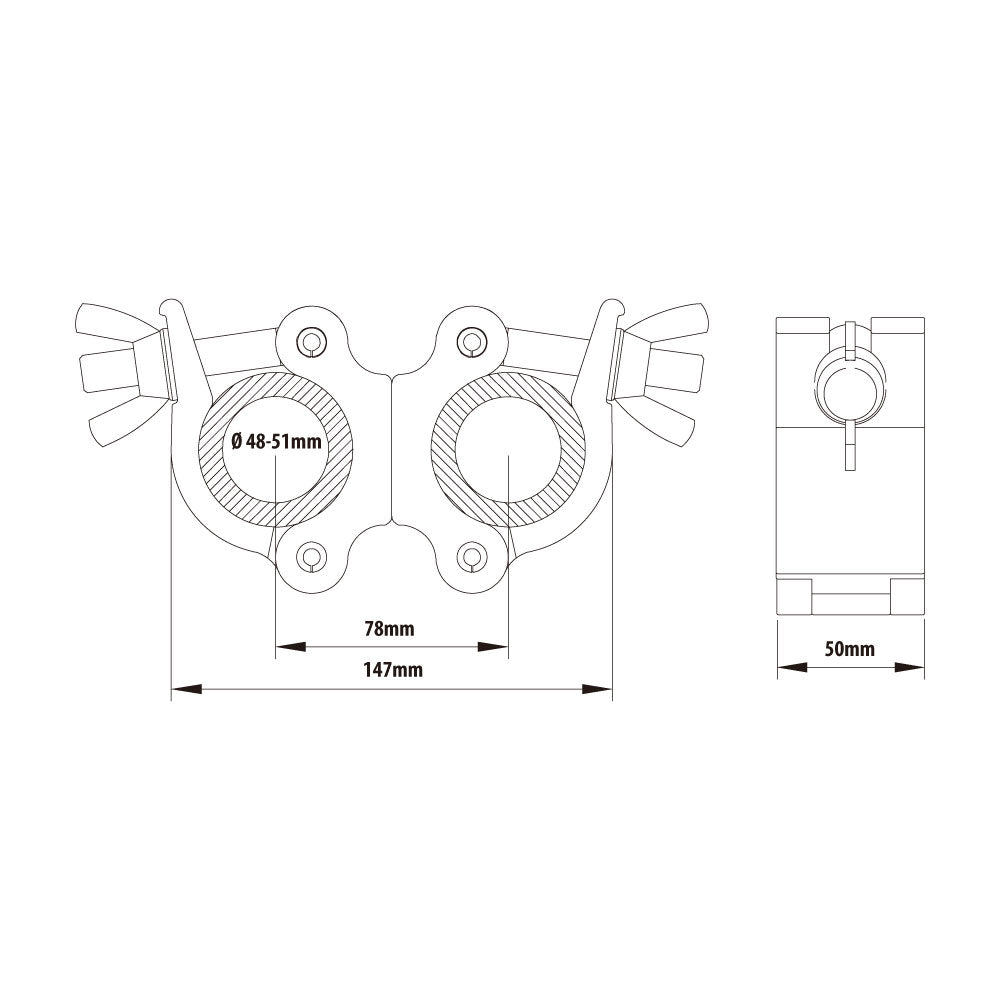

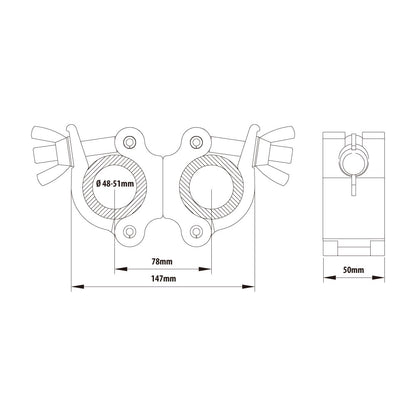

- Dimensions: 78 mm x 147 mm x 50 mm
Applications
Use it for diagonal bracing, angled truss sections, asymmetric pipe grids, temporary structures, exhibition frames, and stage rigs where two 48 to 51 mm tubes meet away from a fixed 90° relationship.
Compatibility
Fits 48 to 51 mm tube at both heads. T-handle variants support tool-free tightening; stainless variant is intended for outdoor and rust-prone environments.
