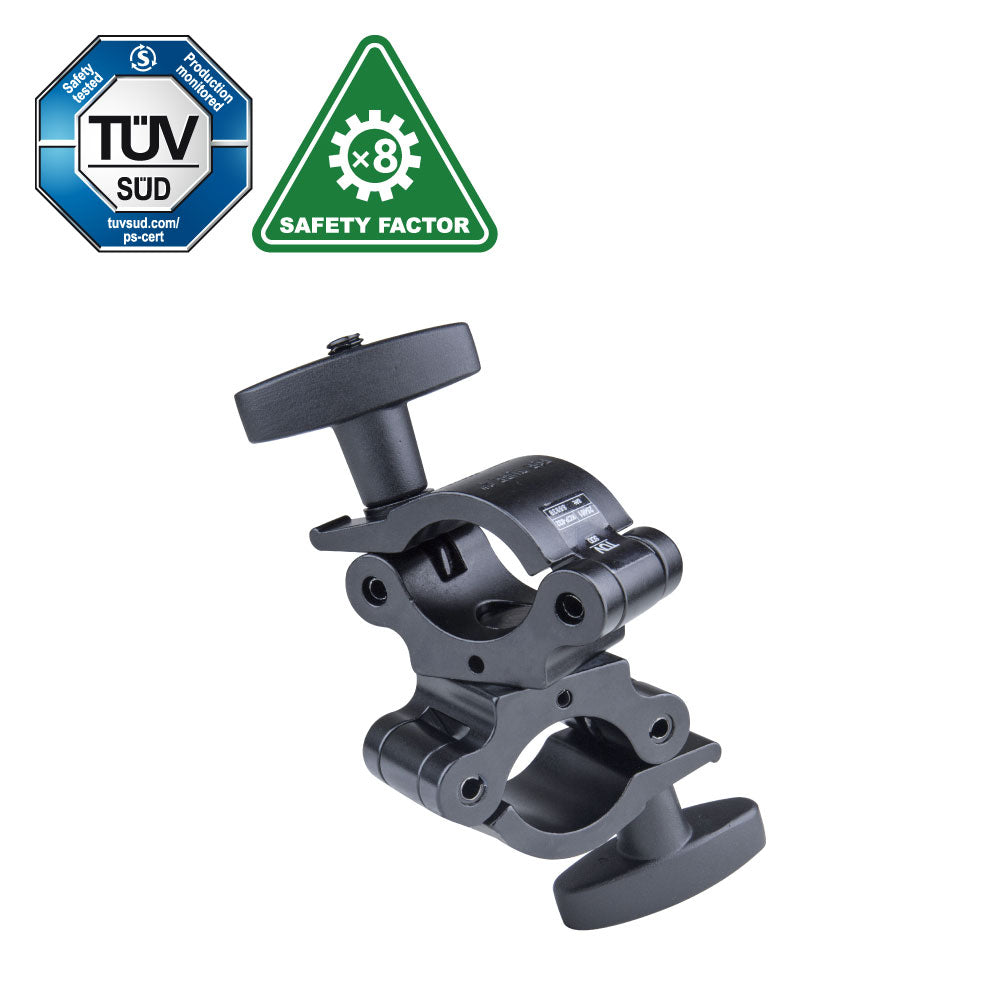

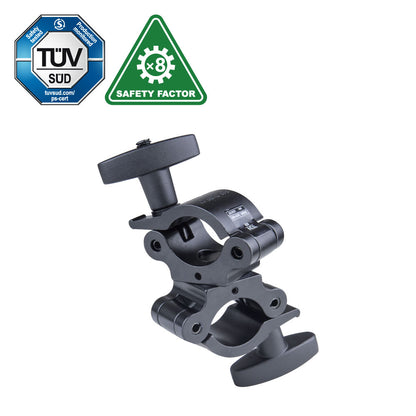

The KUPO KCP-832B-L Swivel Coupler with T-Handle joins two 48 to 51 mm tubes at any angle through a 360° pivot. Built from 6061 aluminum extrusion, it carries a 300 kg Working Load Limit and gives riggers a controlled way to build diagonal bracing, asymmetric truss layouts, and off-perpendicular pipe connections.
Why It Matters
The T-handle version is for load-ins where speed matters and tools slow the crew down. It keeps the swivel geometry and rating, while making repeated tightening easier by hand.
Key Features
360° swivel pivot connects two tubes at off-angle or diagonal positions
300 kg Working Load Limit gives the connection a defined rating envelope
48 to 51 mm fit on both heads matches common 2" stage pipe and truss tube
Integrated T-handles provide tool-free tightening on fast load-ins
Black finish suits low-visibility rigs
Additional Technical Notes

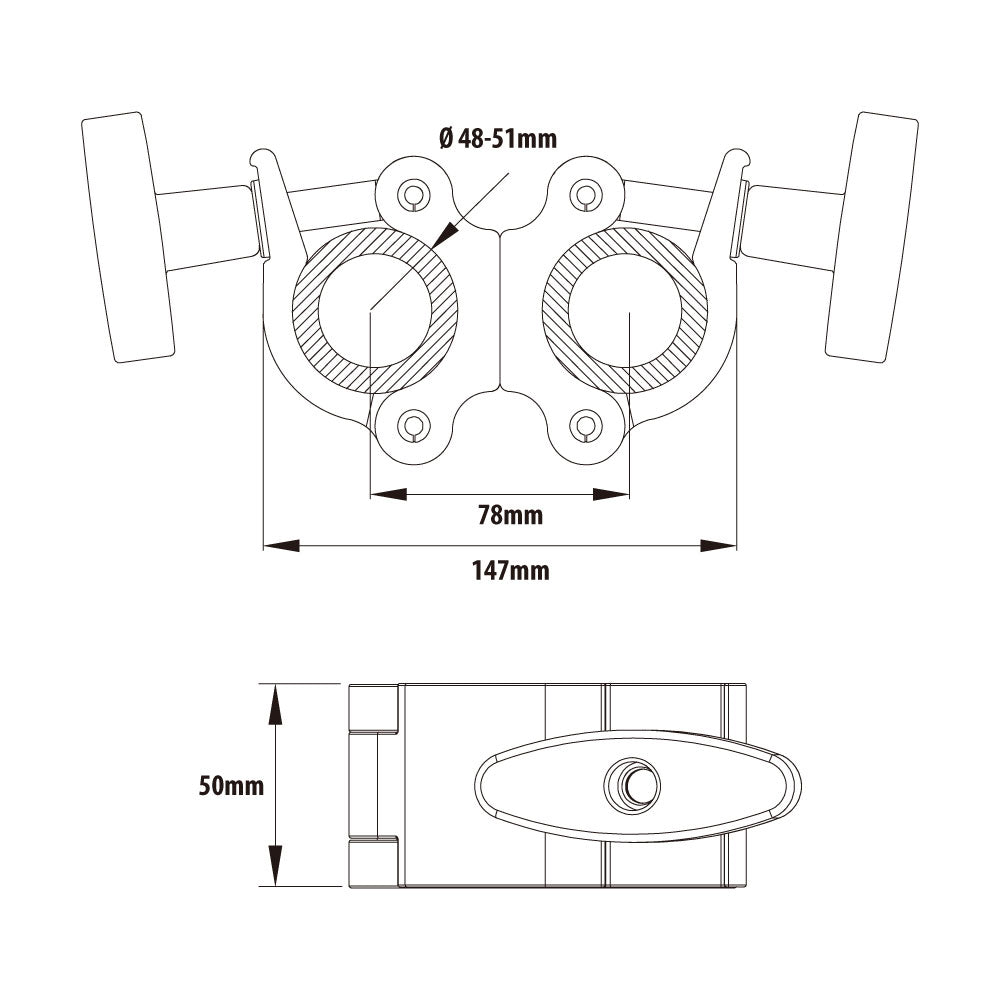

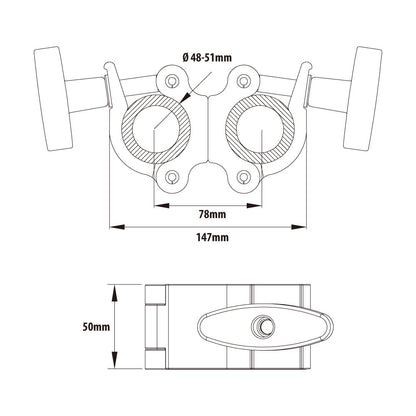

Dimensions: 78 mm x 147 mm x 50 mm
Applications
Use it for diagonal bracing, angled truss sections, asymmetric pipe grids, temporary structures, exhibition frames, and stage rigs where two 48 to 51 mm tubes meet away from a fixed 90° relationship.
Compatibility
Fits 48 to 51 mm tube at both heads. T-handle variants support tool-free tightening; stainless variant is intended for outdoor and rust-prone environments.
Frequently Asked Questions
When do I need a swivel coupler?
Use it when the two tubes meet at an angle, such as diagonal bracing or asymmetric truss work. A half coupler is for one tube; a fixed coupler is for predictable geometry.
Why use T-handles?
T-handles let the crew tighten by hand without tools, which speeds repetitive rig-up and strike.
What tube size does it fit?
It is specified for 48 to 51 mm tube at both ends.
