Overview

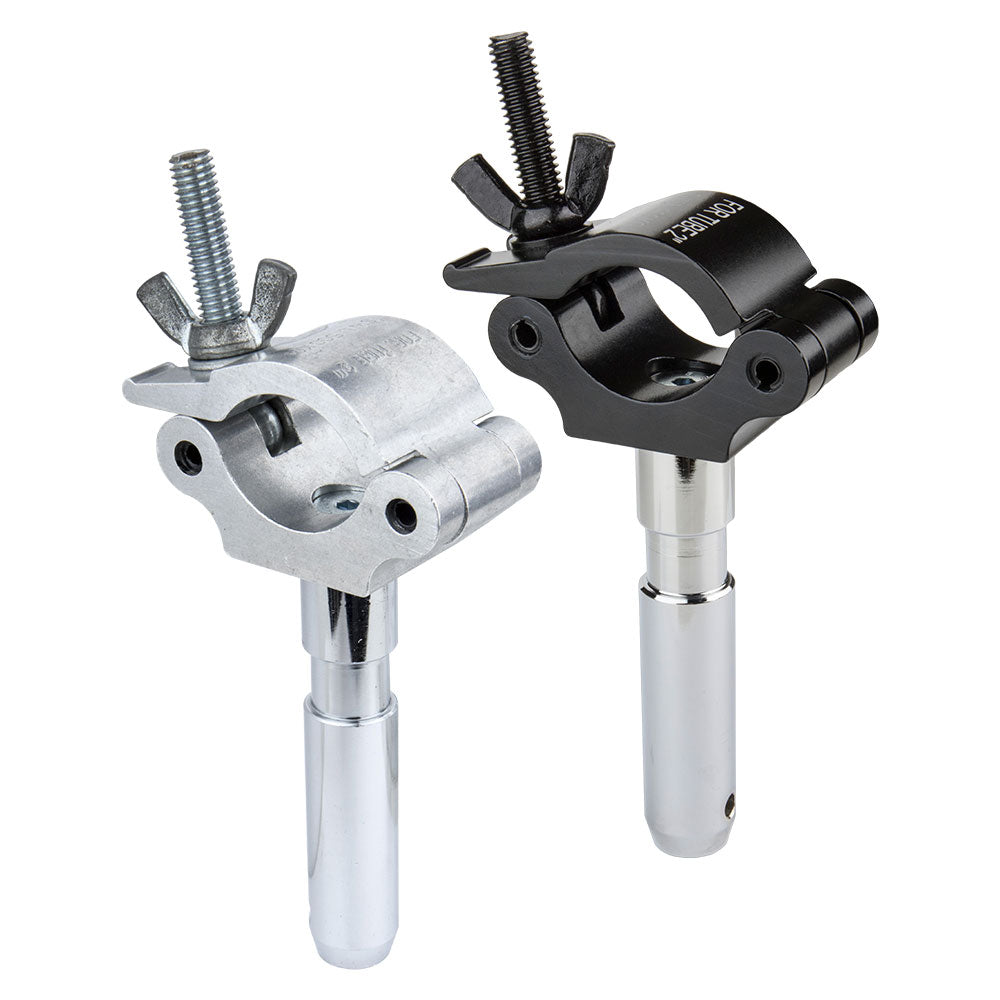

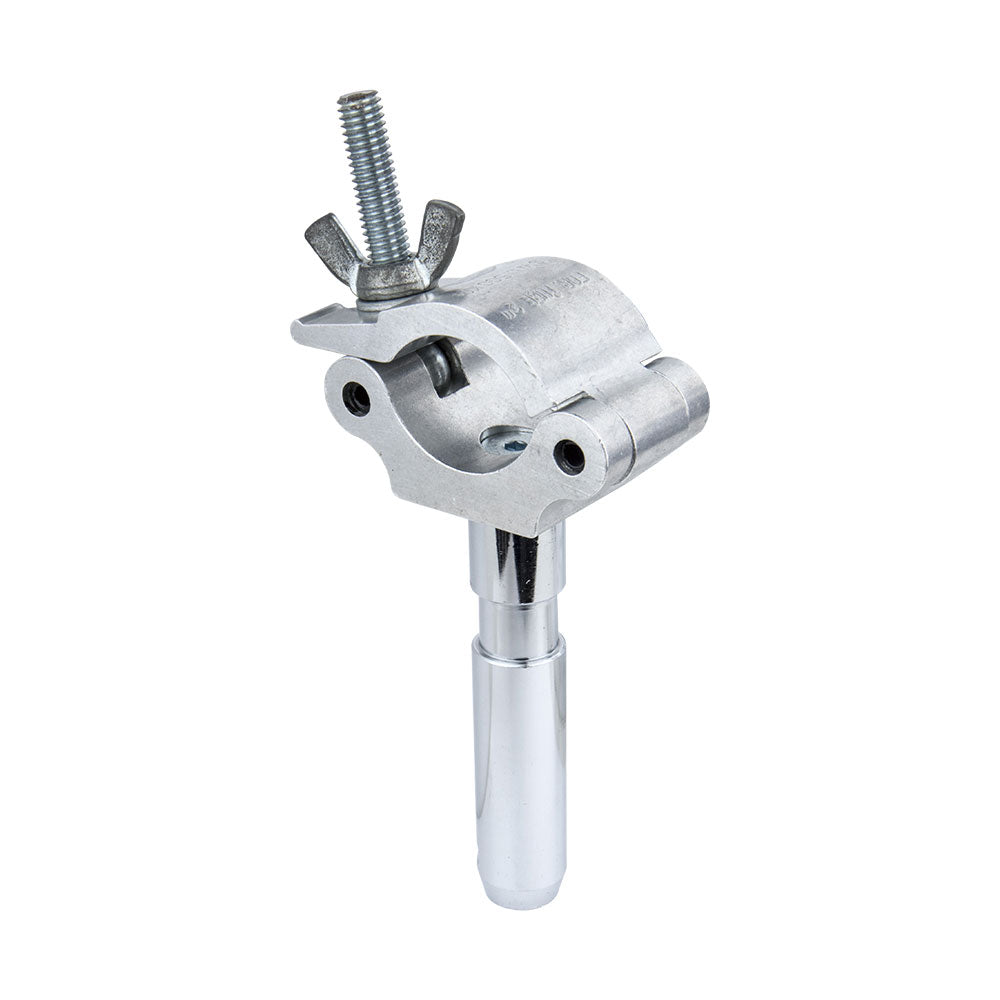

The KUPO KCP-834 28 mm Spigot Coupler turns 48 to 51 mm tube into a TV and film standard mounting point. A 28 mm TV spigot is integrated with the half coupler body, giving crews a 200 kg Working Load Limit connection for yokes, accessories, monitor mounts, and other compatible TV-spigot hardware.
Why It Matters
When the fixture wants a TV spigot, re-clamping with adapters costs time and adds clutter. The KCP-834 family puts the 28 mm spigot directly on the tube, so the mounted accessory can drop on quickly and stay in the expected film and television format.
Key Features
- Integrated 28 mm TV-standard spigot creates a direct mounting point on tube
- 200 kg Working Load Limit supports properly specified TV and film accessory loads
- 48 to 51 mm tube fit matches common 2" stage pipe and truss tube
- 6061 aluminum extrusion body keeps the coupler strong and lightweight
- Polished finish suits general polished grip inventory
Additional Technical Notes

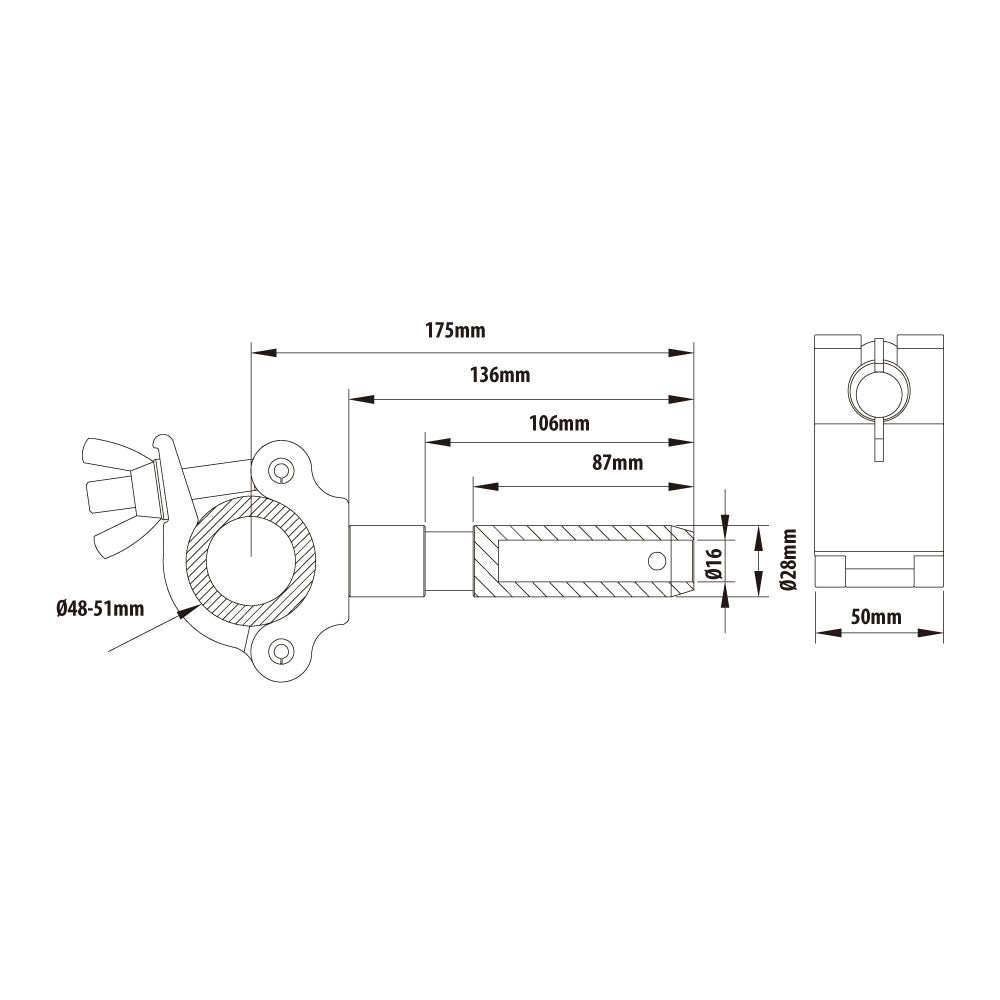

- Dimensions: 87 / 106 / 136 / 175 mm; spigot 16 / 28 mm
Applications
Use it for TV-spigot fixtures, yokes, monitor mounts, grip accessories, film lighting positions, studio pipes, and truss runs where a 28 mm receiver interface is needed at the tube.
Compatibility
Fits 48 to 51 mm tube and provides a 28 mm TV-standard spigot. Check the mounted accessory, yoke, or receiver for correct 28 mm compatibility.
