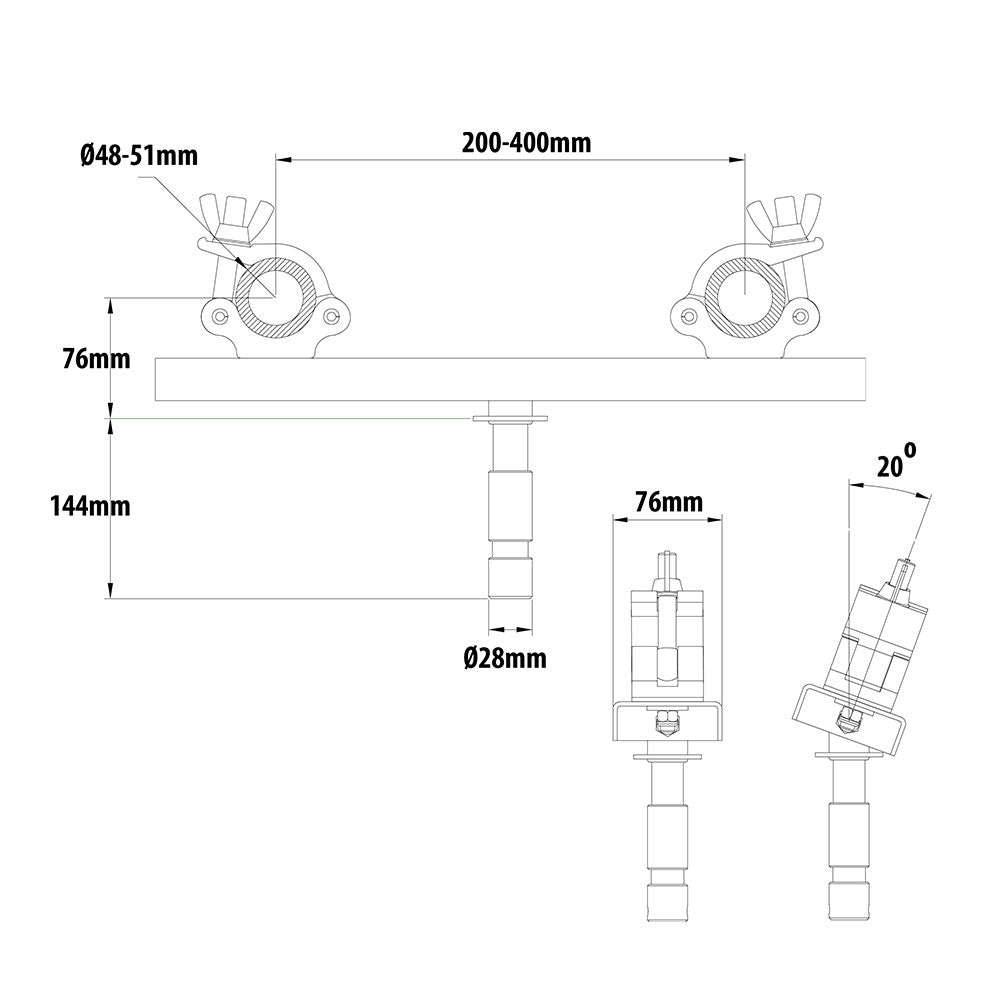

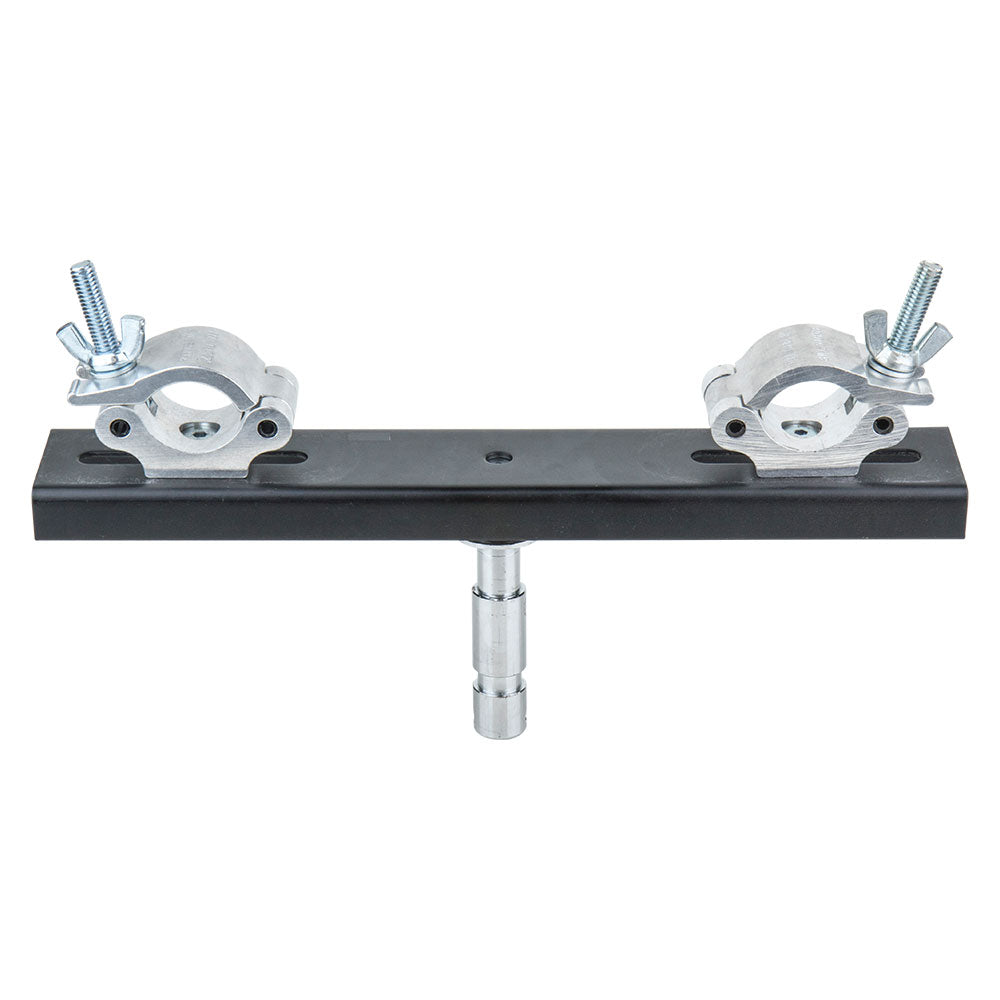

The KUPO KCP-835 Truss Coupler is an adjustable stand-mount adapter for placing truss onto a 28 mm male pin interface. It uses 6061-T6 aluminum couplers on a 450 mm long U-shaped iron plate and adjusts from 205 to 405 mm tube centers.
Why It Matters
Truss tube spacing changes from one profile to another, so a fixed-width adapter can become a nuisance. KCP-835 lets the coupler spacing be matched on site, while the 28 mm spigot connection can tilt and swivel to help align the truss during setup.
Key Features
Adjustable 205 to 405 mm tube centers cover common truss spacing requirements
28 mm male pin / spigot connection works with compatible lighting stands and support hardware
Tilt and swivel stand pin helps alignment before final securing
450 mm long U-shaped iron plate gives the adapter a controlled support structure
200 kg maximum safe load keeps this stand-mount model distinct from the 500 kg lifting version
Applications

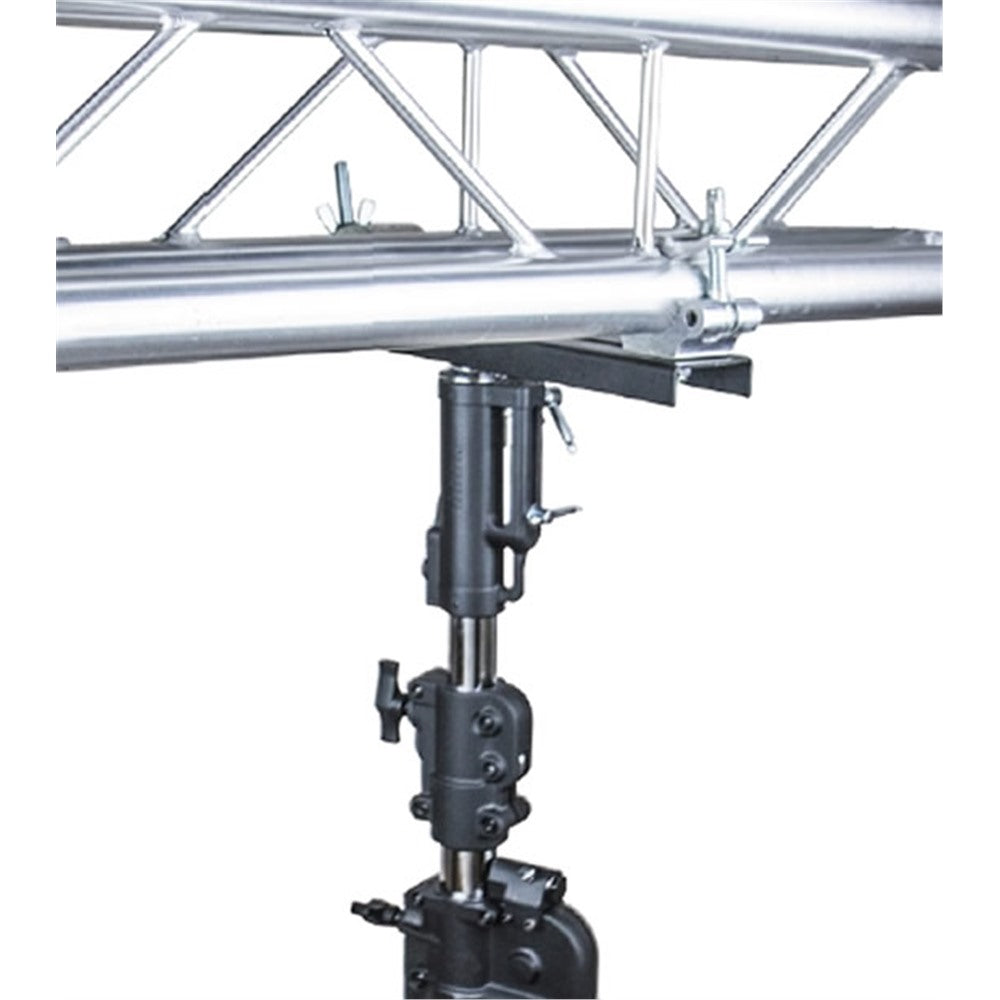

Use it for temporary truss support where a compatible stand or support point with a 28 mm interface is used and truss spacing must be adjusted on site.
Compatibility
Fits 48 to 51 mm truss main tubes. Do not upgrade its safe load from related models; KCP-835 is listed at 200 kg maximum safe load.
Frequently Asked Questions
Is KCP-835 for lifting?
KCP-835 is best described as a stand-mount truss support adapter. The lifting-duty member is KCP-835L.
What adjustment range does it have?
The coupler centers adjust from 205 to 405 mm.
What is the safe load?
The specification lists a 200 kg maximum safe load for KCP-835.
