Overview

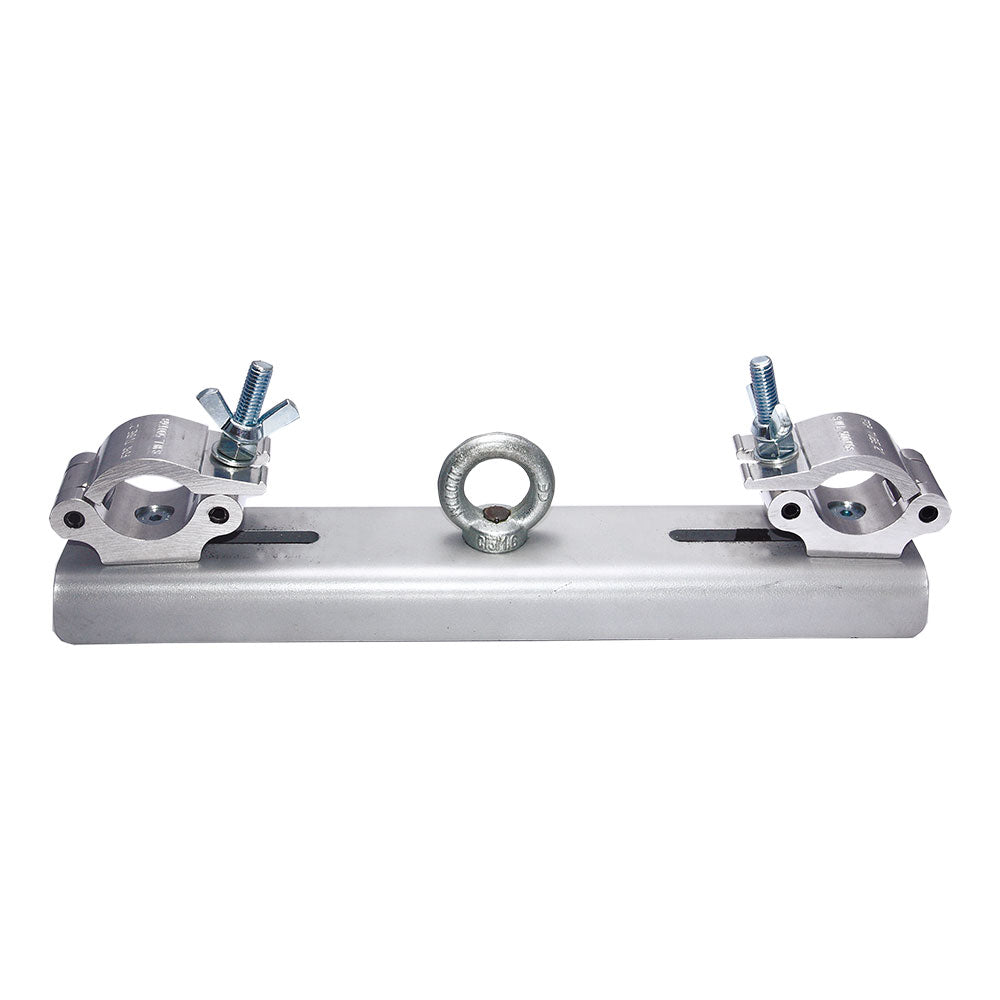

The KUPO KCP-835L Lifting Truss Coupler is the higher-capacity lifting member of the adjustable truss coupler family. It is made for lifting or suspending 2-point, 3-point, or 4-point truss with 48 to 51 mm main tubes and 205 to 405 mm tube centers.

Why It Matters

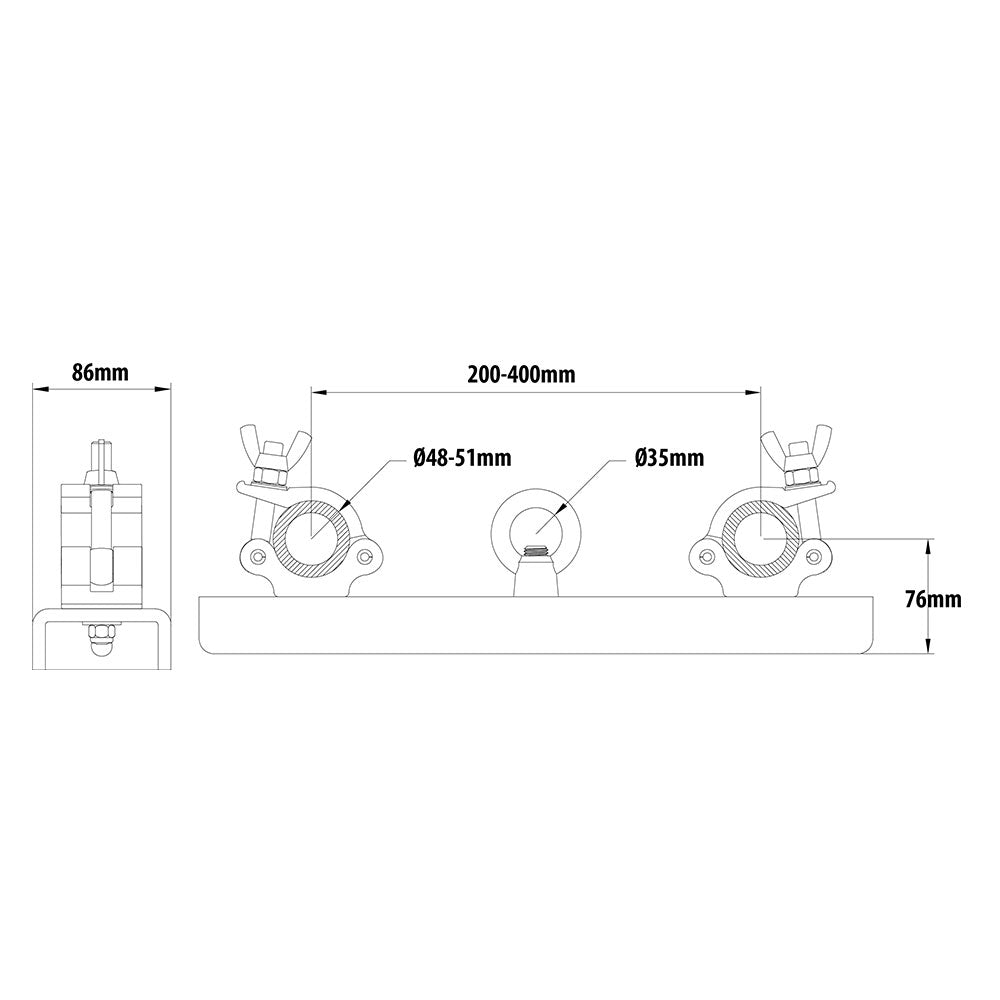

This model needs to stay distinct from the stand-mount and speaker-stand adapters. KCP-835L uses high-tensile 6061-T6 aluminum couplers on a heavy 450 mm long, 8 mm thick plate, with a 35 mm eye ring and a 500 kg WLL for lifting-duty use.

Key Features

• 500 kg WLL positions KCP-835L as the lifting-duty model in the KCP-835 series
• Adjustable 205 to 405 mm tube-center range covers many 2-point, 3-point, and 4-point truss profiles
• 35 mm diameter eye ring provides the lifting interface
• 450 mm long, 8 mm thick plate gives the adapter a heavier lifting structure
• 6061-T6 aluminum couplers fit 48 to 51 mm truss main tubes

Applications

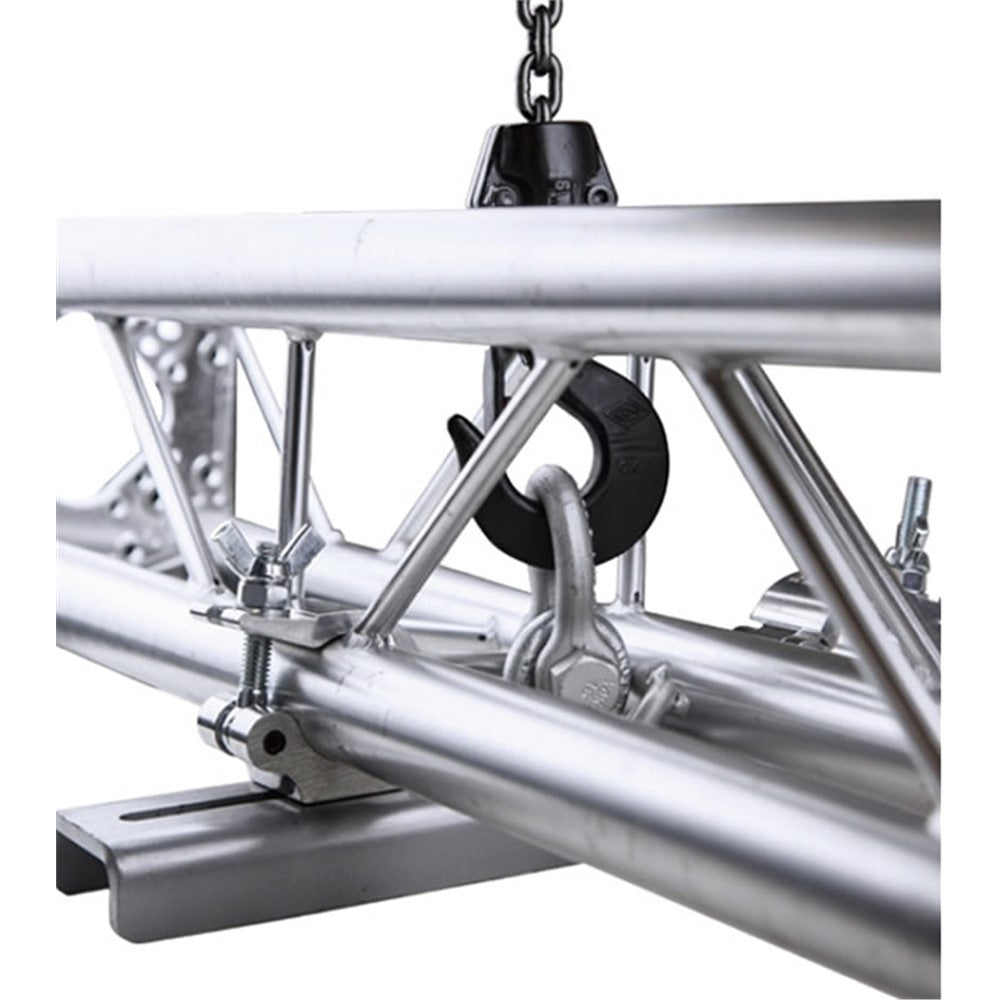

Use it for rated lifting or suspension of compatible truss sections where the truss profile and tube spacing fall within the listed range.

Compatibility

Do not substitute ratings from KCP-835 or KCP-835 F. Use the 500 kg WLL only with appropriate lifting practice, compatible truss, and properly rated hardware throughout the system.
