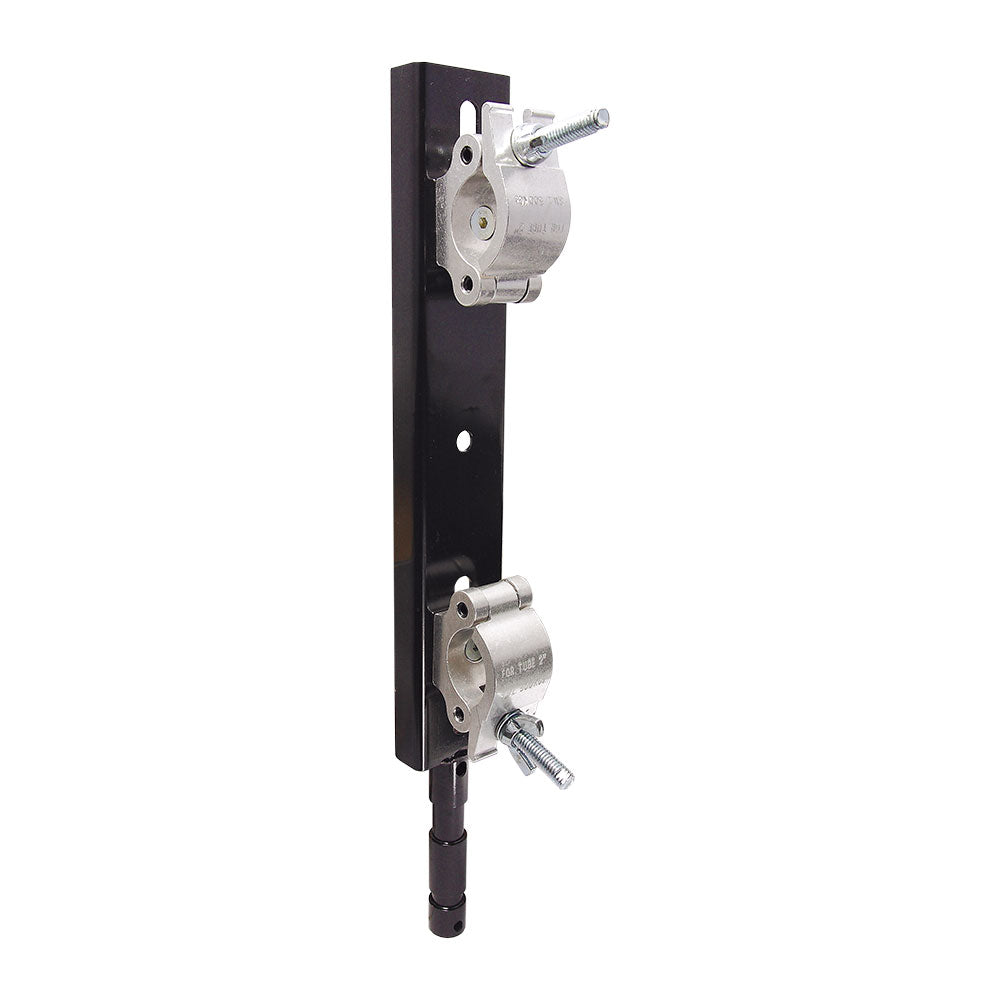

The KUPO KCP-835V Ladder Truss Coupler is an adjustable adapter for supporting 2-point ladder truss on lighting stands fitted with a 28 mm spigot. It fits 48 to 51 mm main tubes and adjusts from 195 to 395 mm tube centers.
Why It Matters
Ladder truss has its own spacing needs, and using the wrong adapter can make the support point feel improvised. KCP-835V keeps the listing focused on 2-point ladder truss, with a 200 kg WLL and a stand interface built around the 28 mm spigot.
Key Features
Designed specifically for 2-point ladder truss support applications

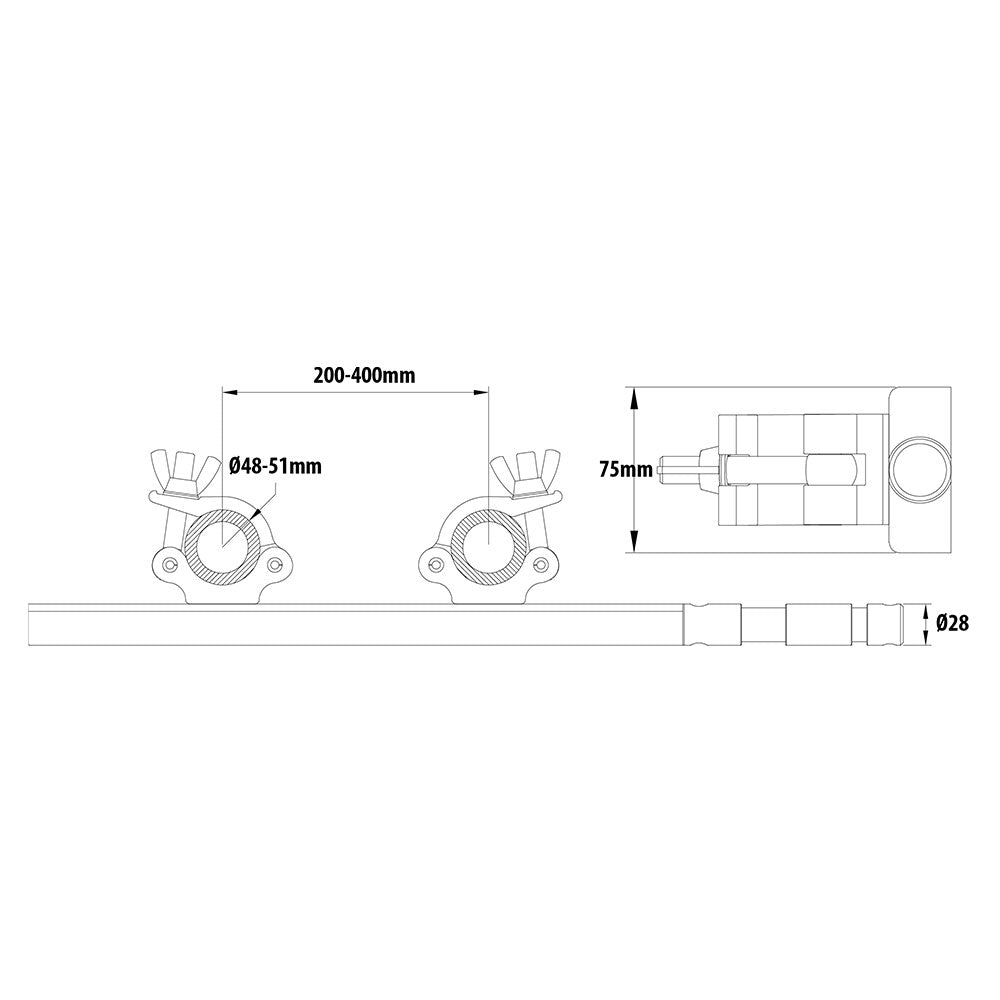

195 to 395 mm adjustable tube centers cover many ladder-truss layouts
48 to 51 mm tube compatibility matches standard 2" truss main tubes
28 mm spigot stand interface suits compatible lighting stands
200 kg WLL keeps this model distinct from the 500 kg lifting truss coupler
Applications

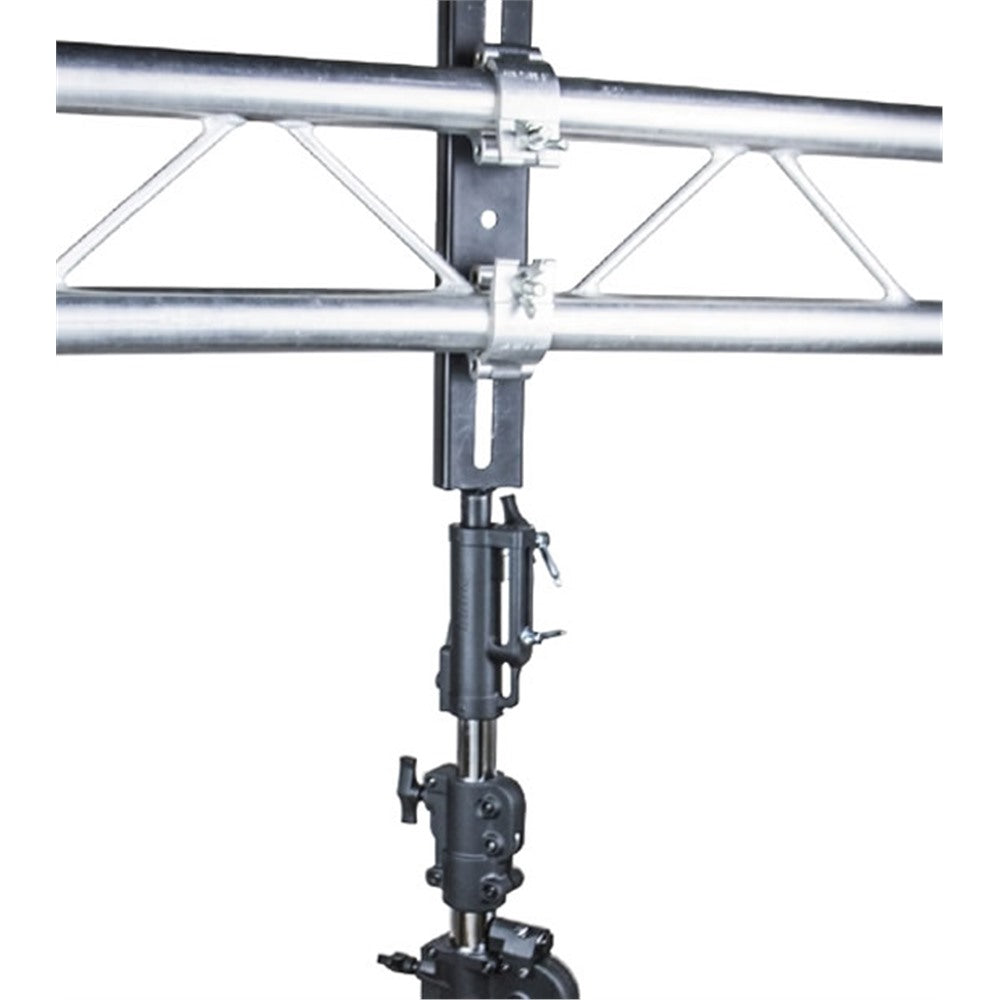

Use it for controlled ladder-truss support on compatible lighting stands where the truss tube spacing must be matched by the adapter.
Compatibility
Do not substitute the KCP-835L lifting rating. KCP-835V is listed at 200 kg WLL and is focused on 2-point ladder truss support.
Frequently Asked Questions
What truss type is KCP-835V for?
It is for 2-point ladder truss, not the full 2-point / 3-point / 4-point lifting range of KCP-835L.
What is the adjustment range?
The tube centers adjust from 195 to 395 mm.
What rating should be used?
Use the 200 kg WLL listed for KCP-835V. Do not substitute the 500 kg KCP-835L rating.
