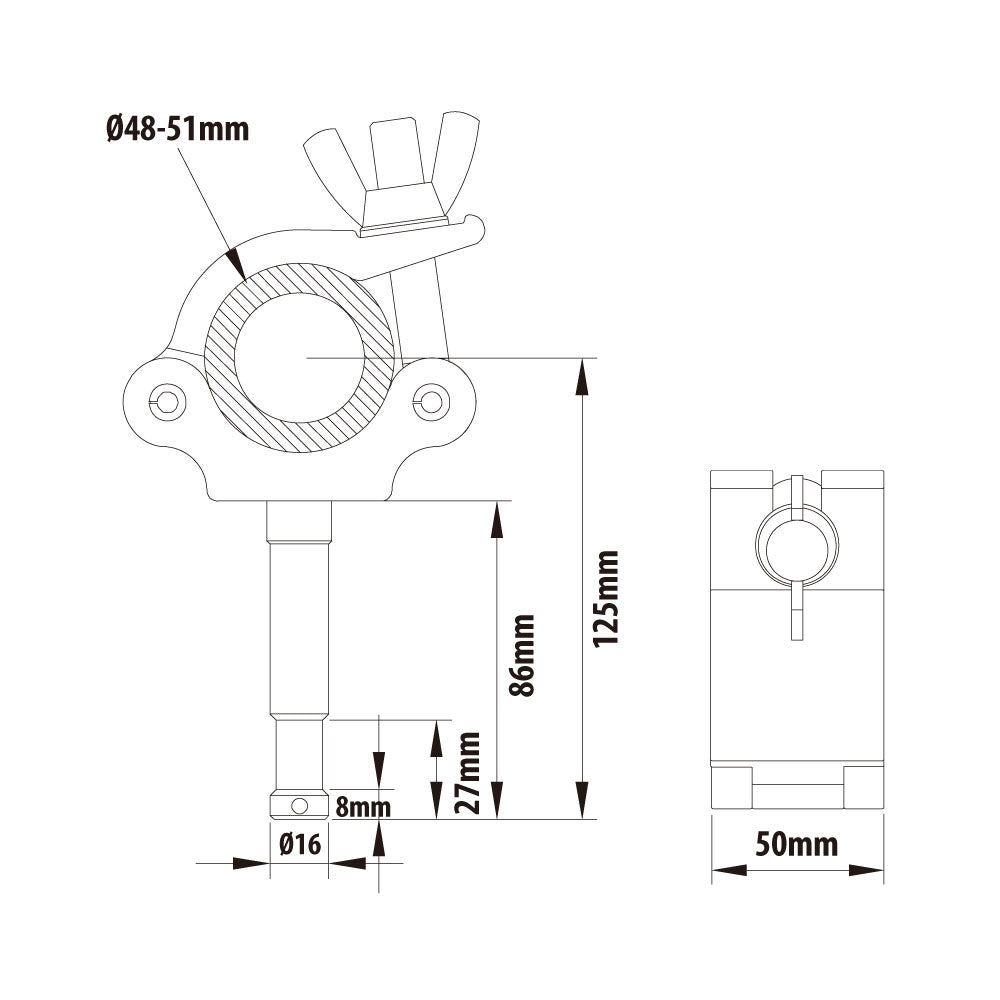

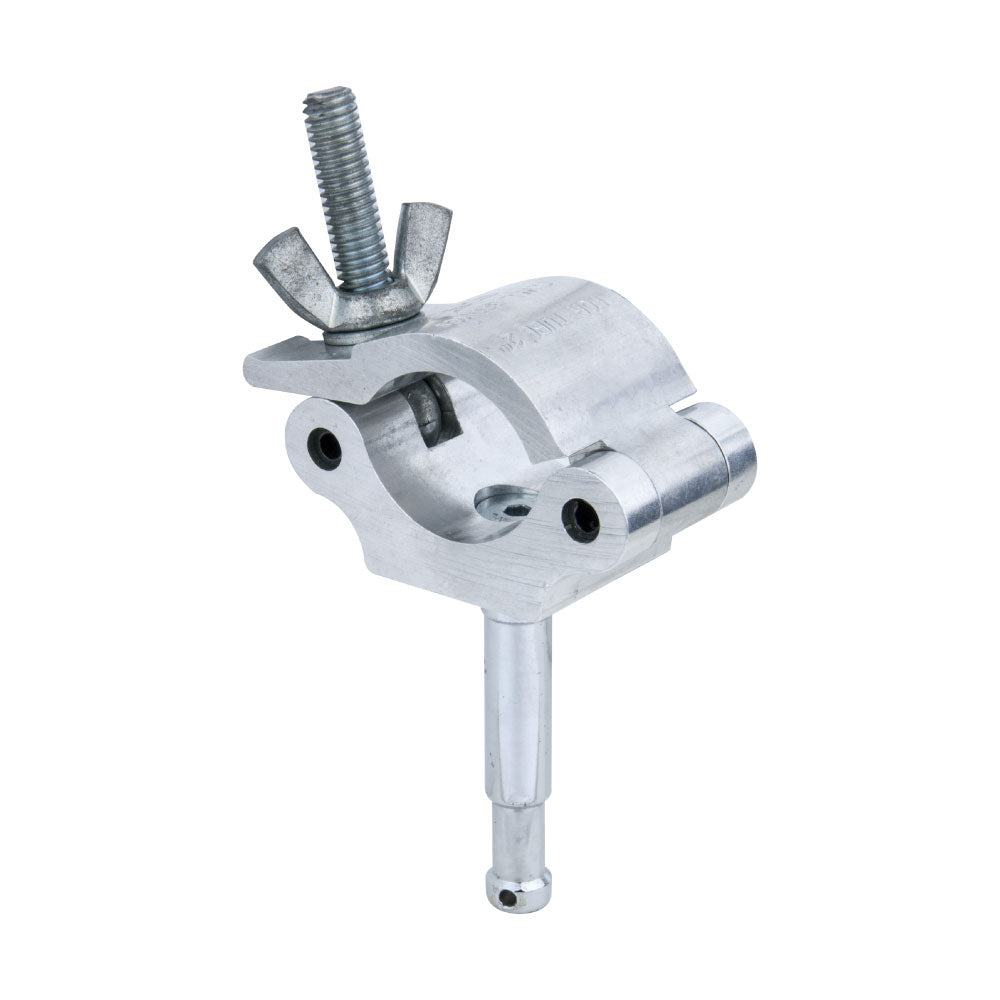

The KUPO KCP-836 is a 2" half coupler with an integrated 16 mm baby stud for mounting lights and grip accessories with a 16 mm receiver. It fits 48 to 51 mm truss tube or pipe and carries a 100 kg working load limit.
Why It Matters
Sometimes the cleanest way to add a fixture is a direct baby-stud output on the truss itself. KCP-836 gives crews that compact mounting point, with a captive top on the threaded bolt to help prevent the wing nut from dropping off during installation.
Key Features
Integrated 16 mm baby stud supports fixtures and accessories with matching receivers
48 to 51 mm tube compatibility fits standard 2" truss tube or pipe
6061-T6 aluminum body keeps the coupler strong and compact
Captive top on the threaded bolt helps retain the wing nut during overhead handling
100 kg WLL keeps the rating clear for baby-stud class equipment
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt to help retain the wing nut
Applications
Use it for adding a direct 16 mm baby-stud mounting point to truss or pipe in studio, stage, event, and installation setups.
Compatibility
Use KCP-836 for equipment with a 16 mm receiver. Keep its 100 kg WLL separate from other parent half-coupler family ratings.
Frequently Asked Questions
What interface does KCP-836 provide?
It provides an integrated 16 mm baby stud for equipment with a matching receiver.
What does the captive top help with?
It helps keep the wing nut from dropping off the threaded bolt during installation and handling.
What WLL should be used?
The specification for this item lists a 100 kg WLL.
