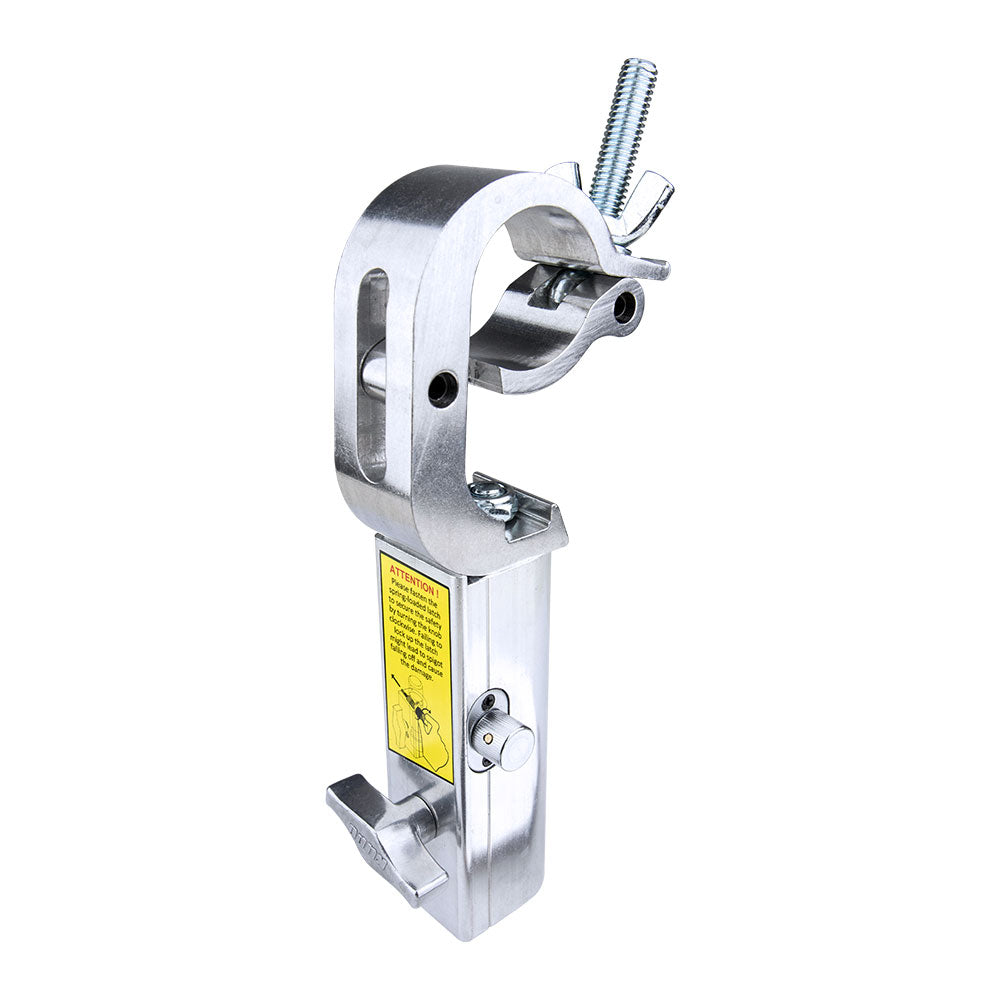

The KUPO KCP-840 Handcuff Quick TV Coupler adds a quick TV receiver point to 48 to 51 mm truss or pipe. Built from 6061-T6 aluminum extrusion, it uses KUPO handcuff-style one-hand triggering so receiver positions can be placed and removed faster than with conventional couplers.
Why It Matters
Rental and production crews often move receiver points repeatedly in the same day. KCP-840 is made for that rhythm, giving the operator a purpose-built quick TV receiver with a 100 kg working load limit instead of stacking adapters onto a slower clamp.
Key Features
One-hand triggering clamp action speeds placement on 48 to 51 mm tube
Quick TV receiver interface gives compatible equipment a direct receiving point
6061-T6 aluminum extrusion keeps the handcuff body strong for repeated professional use
100 kg WLL keeps the rating distinct from higher-rated spigot handcuff models
Applications
Use it for quick receiver mounting on standard 2" truss or pipe in rental, broadcast, theatre, and production environments where positions change often.
Compatibility

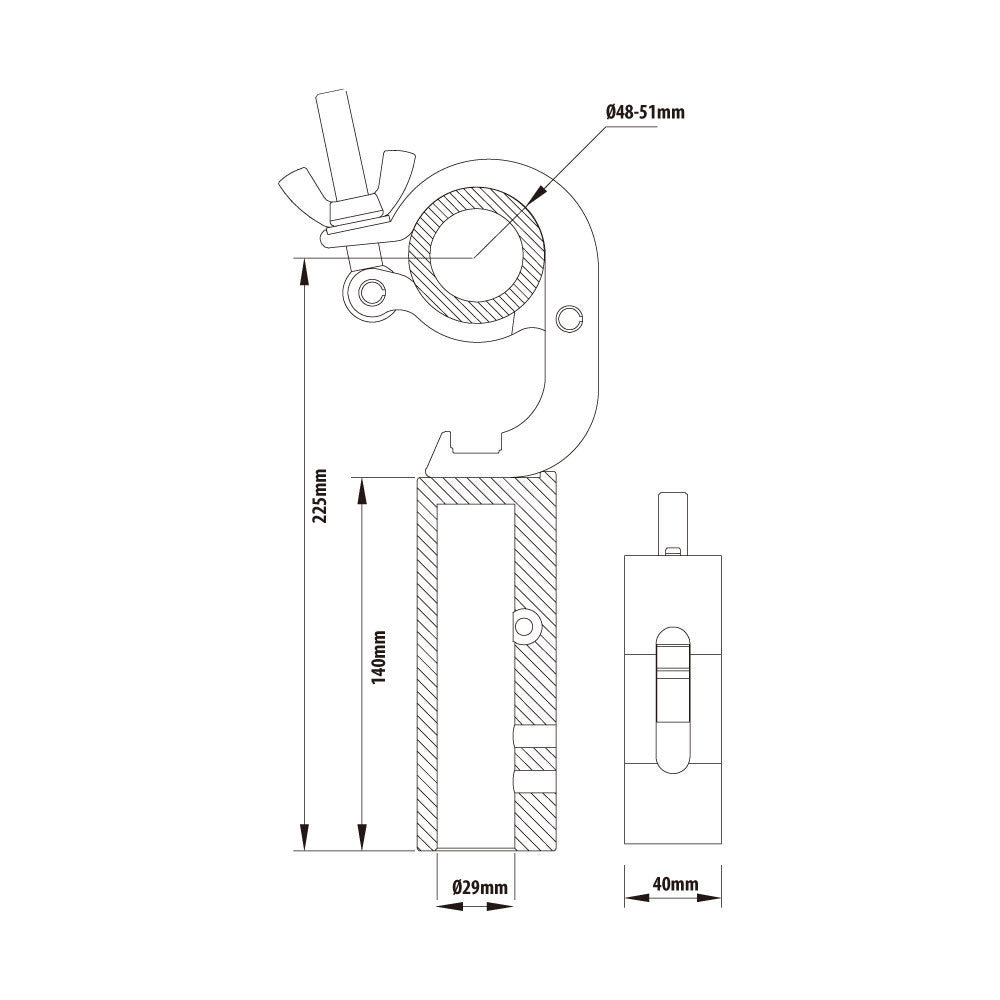

Fits 48 to 51 mm . Keep its 100 kg WLL separate from KCP-839 and other handcuff couplers with different outputs and ratings.
Frequently Asked Questions
How is KCP-840 different from KCP-839?
KCP-840 is a quick TV receiver coupler rated at 100 kg. KCP-839 has a TVMP-style spigot output and a different 200 kg rating.
What tube size does it fit?
It fits 48 to 51 mm diameter truss or pipe.
Why use the handcuff mechanism?
The one-hand trigger helps crews place and remove the receiver faster when positions change during production.
