Overview

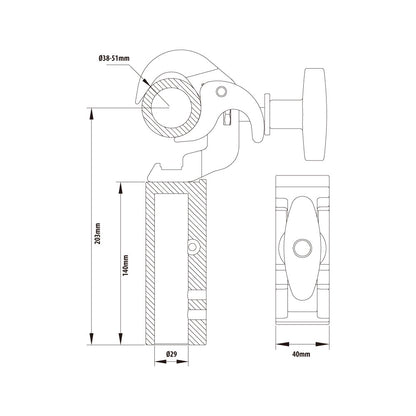

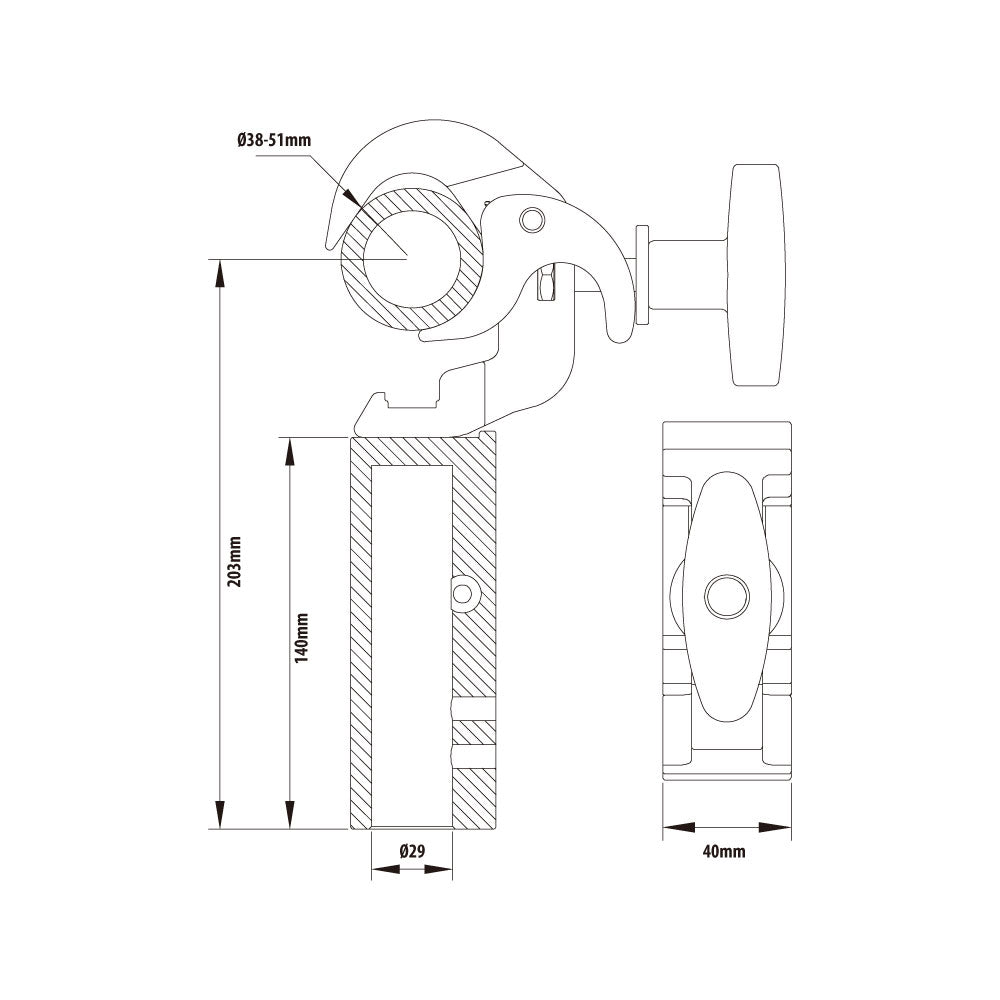

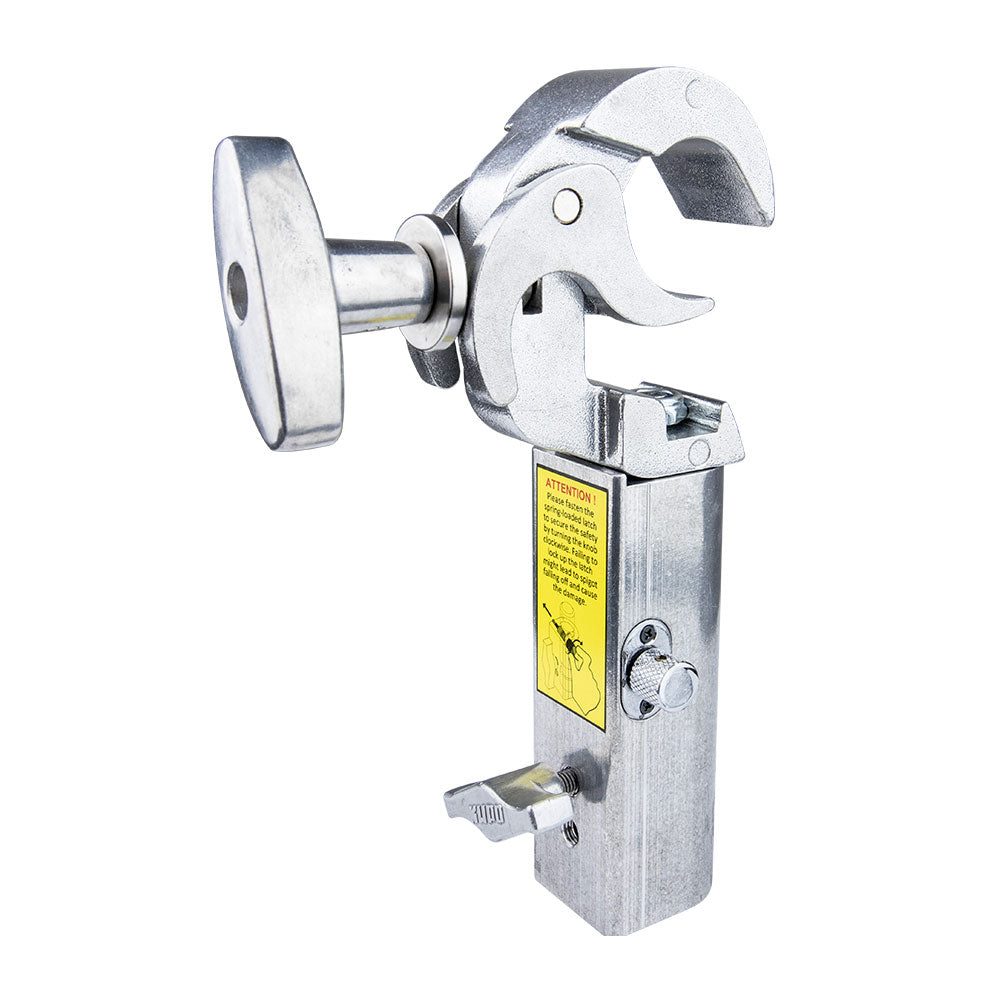

The KUPO KCP-841 Arch Quick TV Coupler mounts a 28 mm receiver point onto 38 to 51 mm pipes and truss. Its arch-style aluminum gravity die-cast body gives it a wider tube range than the 48 to 51 mm handcuff models, while the socket includes a safety lock.

Why It Matters

A quick receiver is only reassuring if the seated spigot is controlled. KCP-841 pairs the convenience of a quick TV coupler with a 28 mm socket and safety lock, making it useful when the same adapter may move between different support tube sizes.

Key Features

• 38 to 51 mm tube range covers more pipe sizes than 48 to 51 mm-only couplers
• 28 mm socket provides a receiver point for compatible TV and fixture mounting tasks
• Safety lock helps control the seated spigot after insertion
• Aluminum gravity die-cast arch body keeps the coupler compact and professional
• 100 kg WLL suits receiver mounting within the specified load range

Applications

Use it in studios, theatres, broadcast spaces, and installations where a quick 28 mm receiver needs to clamp onto tubes from 38 to 51 mm.

Compatibility

Use with compatible 28 mm spigots and observe the 100 kg WLL. This model is the arch-style wider tube-range quick TV coupler.
