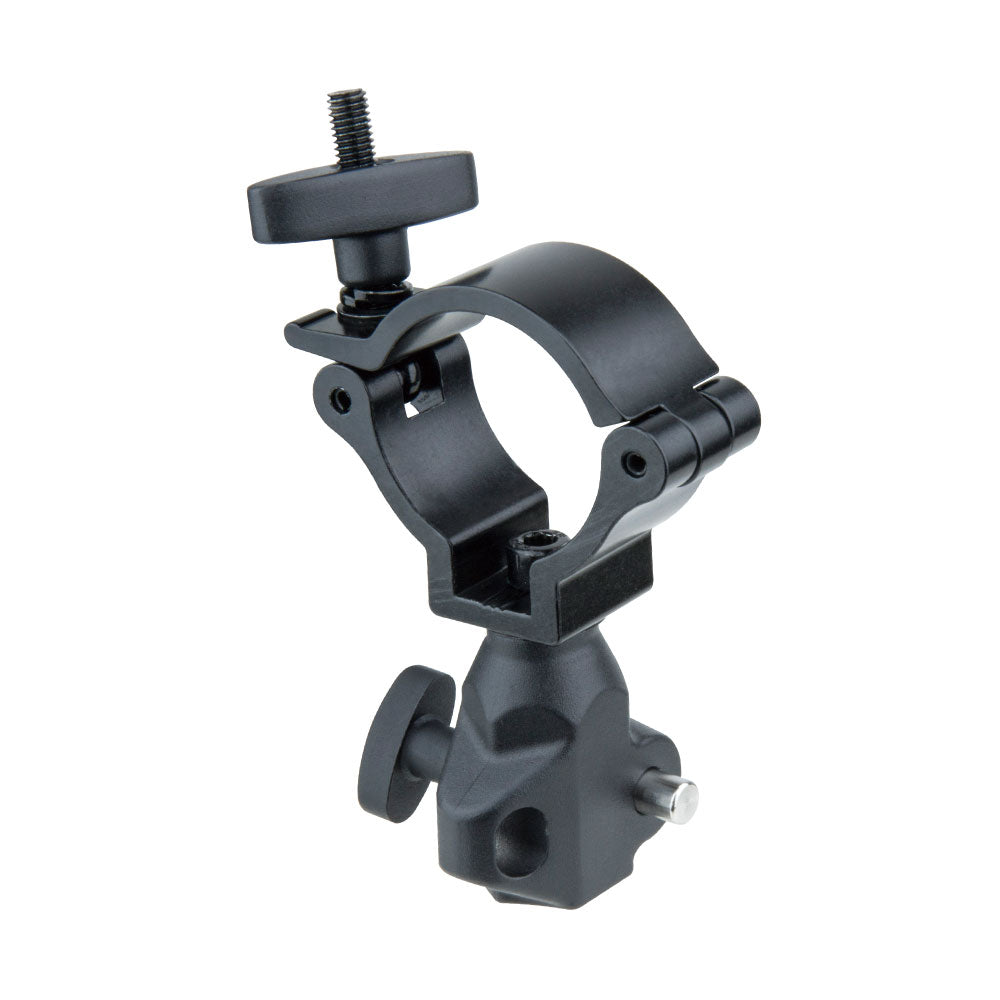

The KUPO KCP-842B Burger Coupler is a slim 30 mm profile coupler with a 16 mm socket for attaching baby-pin accessories to 48 to 51 mm truss or pipe. It gives compact lighting and grip hardware a low-profile receiver point on standard 2" tube.
Why It Matters
Sometimes the best coupler is the one that does not crowd the rig. KCP-842B keeps the body narrow and the interface familiar, making it useful where the visual profile matters or where nearby hardware leaves very little room around the tube.
Key Features

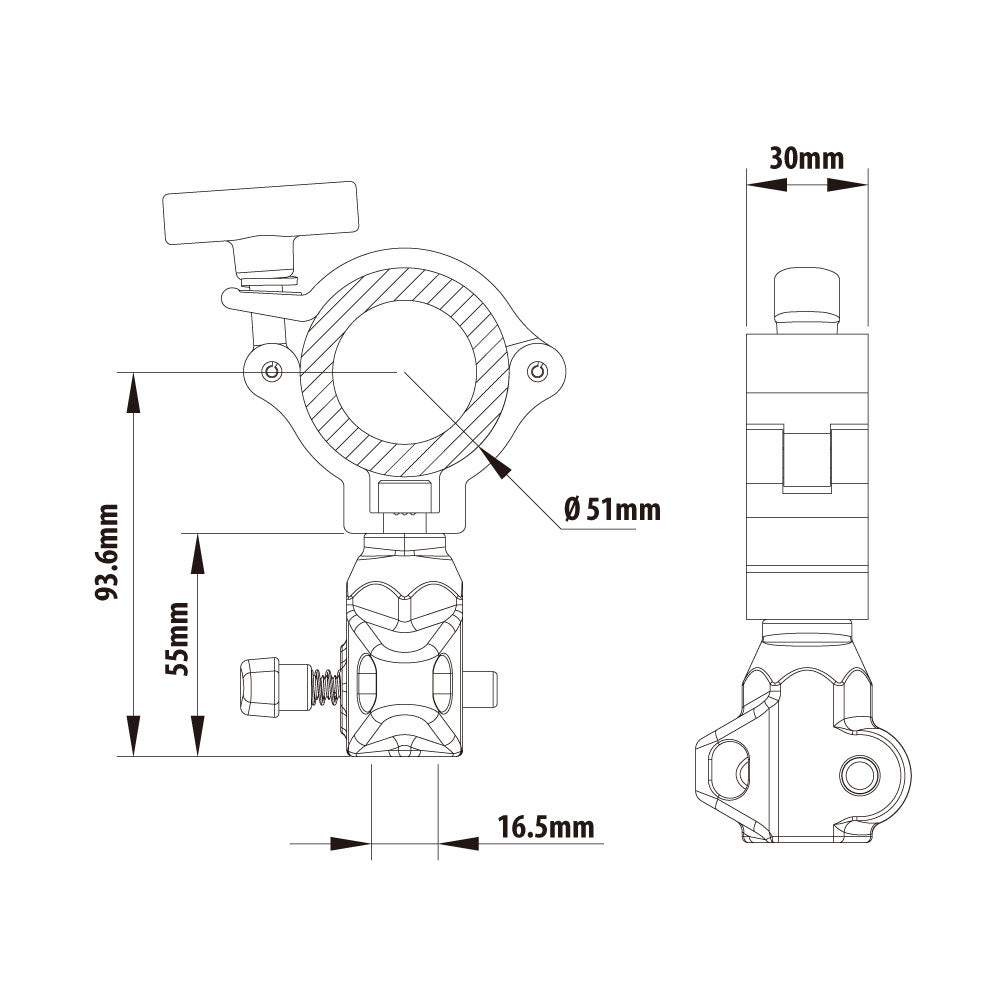

30 mm slim body profile helps the coupler fit into crowded tube positions
16 mm socket creates a baby receiver point for compact fixtures and accessories
High-tensile aluminum extrusion provides a strong, low-profile body
50 kg WLL keeps the product clearly positioned for smaller receiver-based setups
Applications
Use it for compact lighting, grip, and accessory mounting where a 16 mm receiver needs to be added neatly to 48 to 51 mm truss or pipe.
Compatibility
Fits 48 to 51 mm . Keep the 50 kg WLL visible, since it is lower than many larger couplers in the range.
Frequently Asked Questions
Is KCP-842B a baby receiver or baby stud coupler?
It is a 16 mm socket coupler, so it provides the receiver side for compatible baby-pin accessories.
Why is the slim profile useful?
The 30 mm body helps in crowded rigs where a larger clamp might interfere with neighboring hardware.
What WLL should be used?
Use the 50 kg WLL listed for this coupler.
