Overview

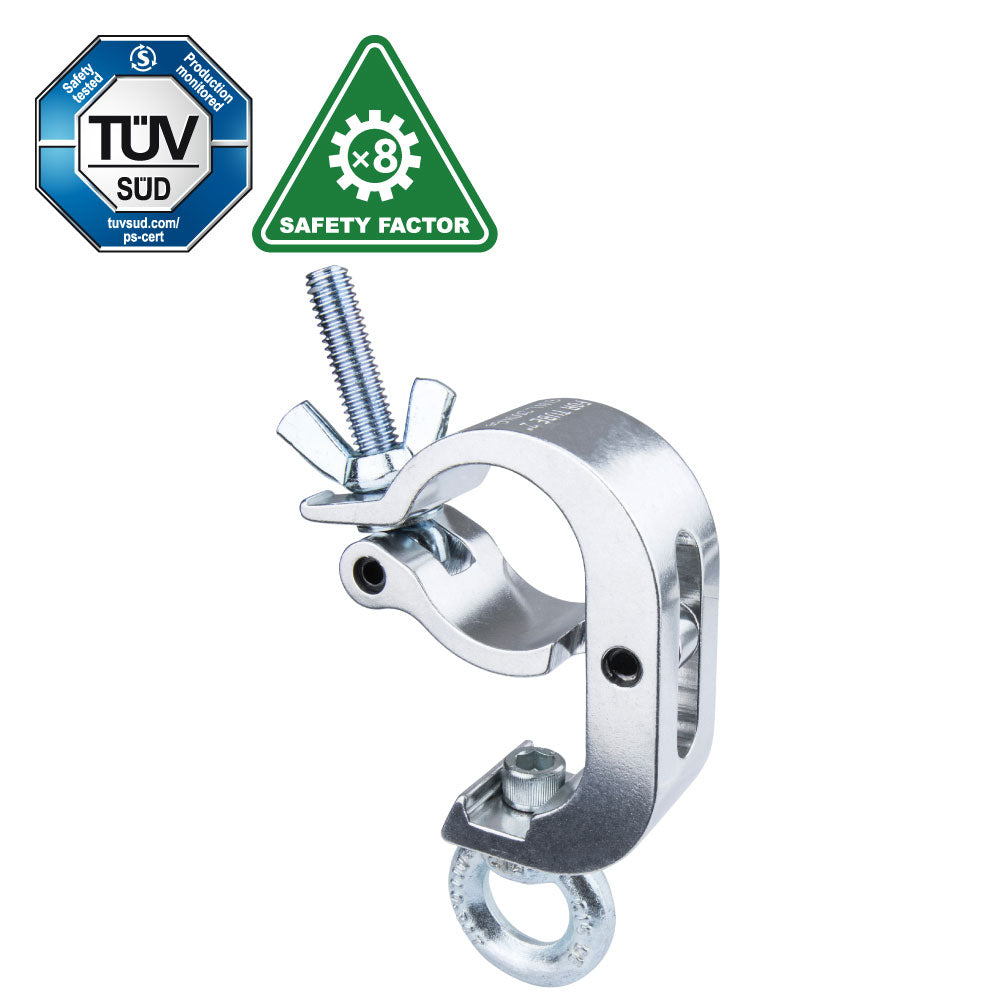

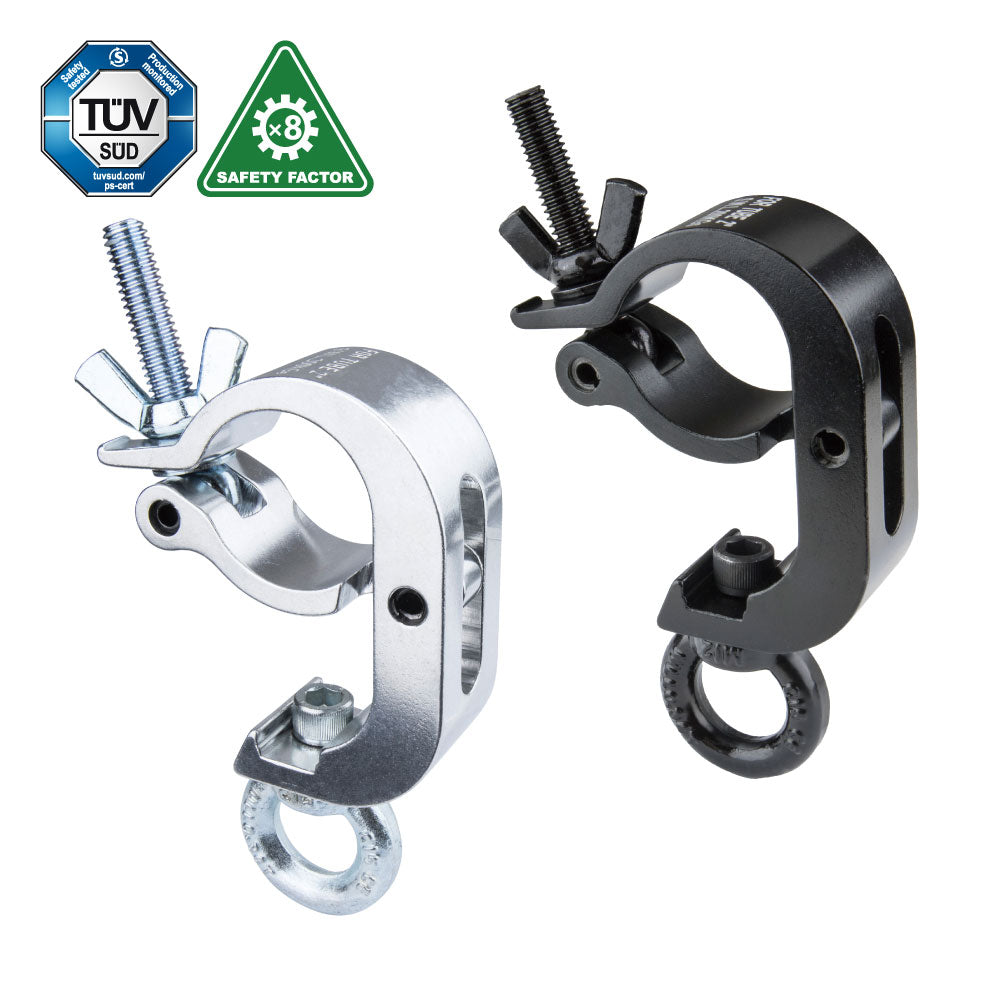

The KUPO KCP-843 Handcuff Eye Ring Opening Coupler combines the fast triggering close mechanism of the Handcuff range with an integrated 30 mm eye ring. Built from 6061 high tensile aluminum extrusion for 48 to 51 mm tube, it gives riggers a TÜV APPROVED certified 200 kg attachment point for bonds, shackles, and secondary suspension lines.

Why It Matters

The eye ring version is for crews who need the speed of a handcuff clamp and a defined tie-off point in the same part. It keeps secondary suspension hardware organized on the tube instead of adding extra straps or improvised anchor points.

Key Features

• Triggering close mechanism lets the coupler snap around 48 to 51 mm tube quickly
• 200 kg Working Load Limit gives the clamp a clear rating for professional fixture hangs
• Integrated 30 mm eye ring creates a built-in point for bonds, shackles, or secondary lines
• Double-level countersunk seat accepts M10 or M12 hex head bolts on the load side
• Polished finish suits general polished rental and venue inventory

Additional Technical Notes

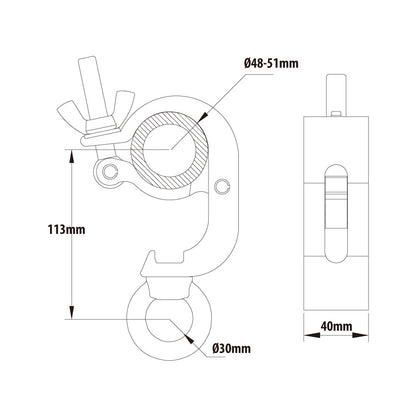

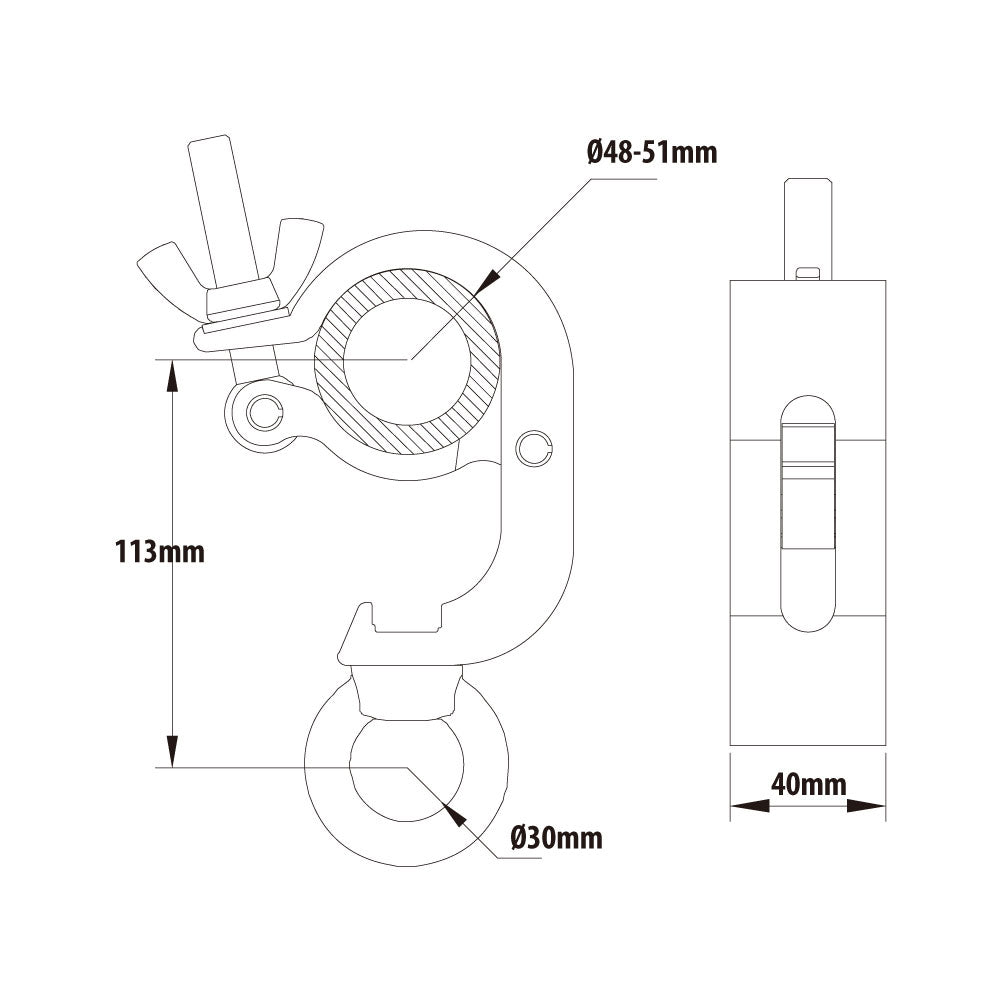

• Dimensions: Body length 113 mm
• Mounting Detail: Captive wing nut + trigger close with integrated eye ring

Applications

Use it for safety bonds, shackles, secondary suspension lines, overhead fixture support, stage truss, studio grids, and temporary rigging where a tube-mounted eye point is useful.

Compatibility

Fits 48 to 51 mm tube. Standard versions use captive wing-nut hardware; T-handle versions support tool-free tightening; eye ring versions add a 30 mm attachment point.
