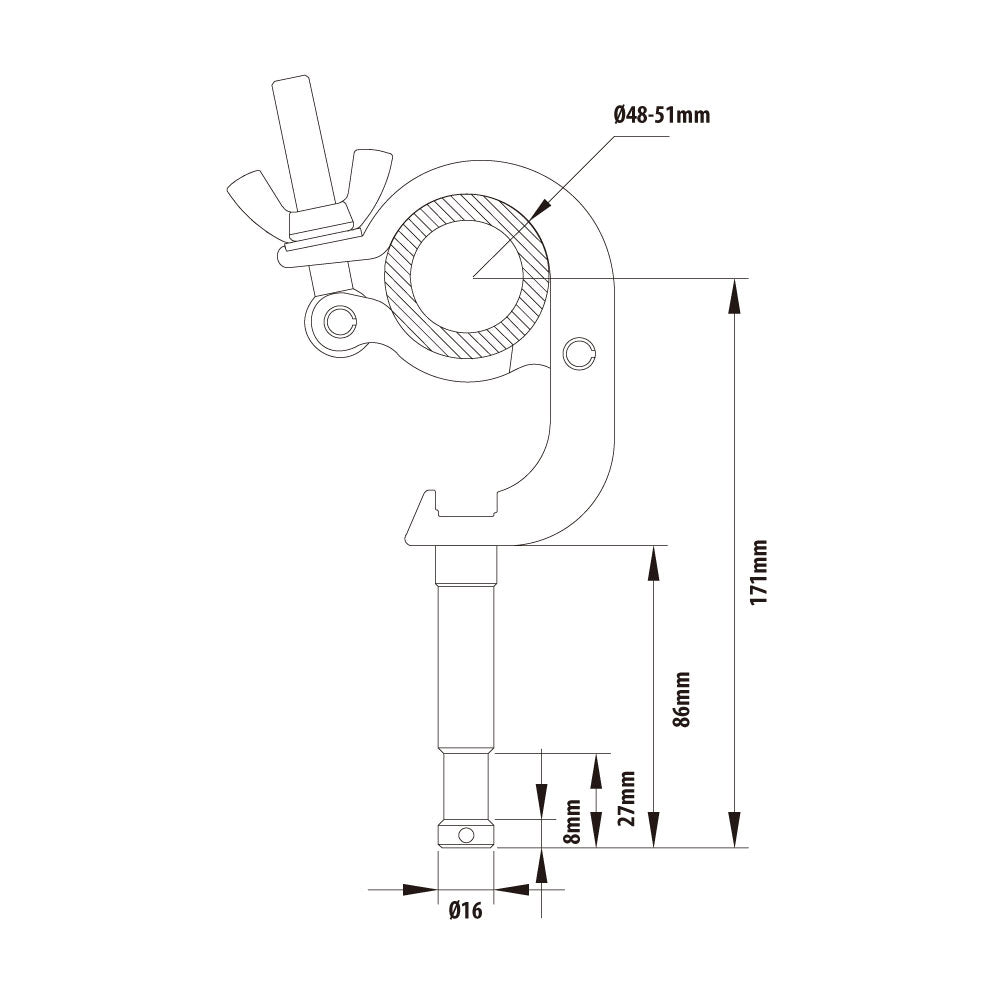

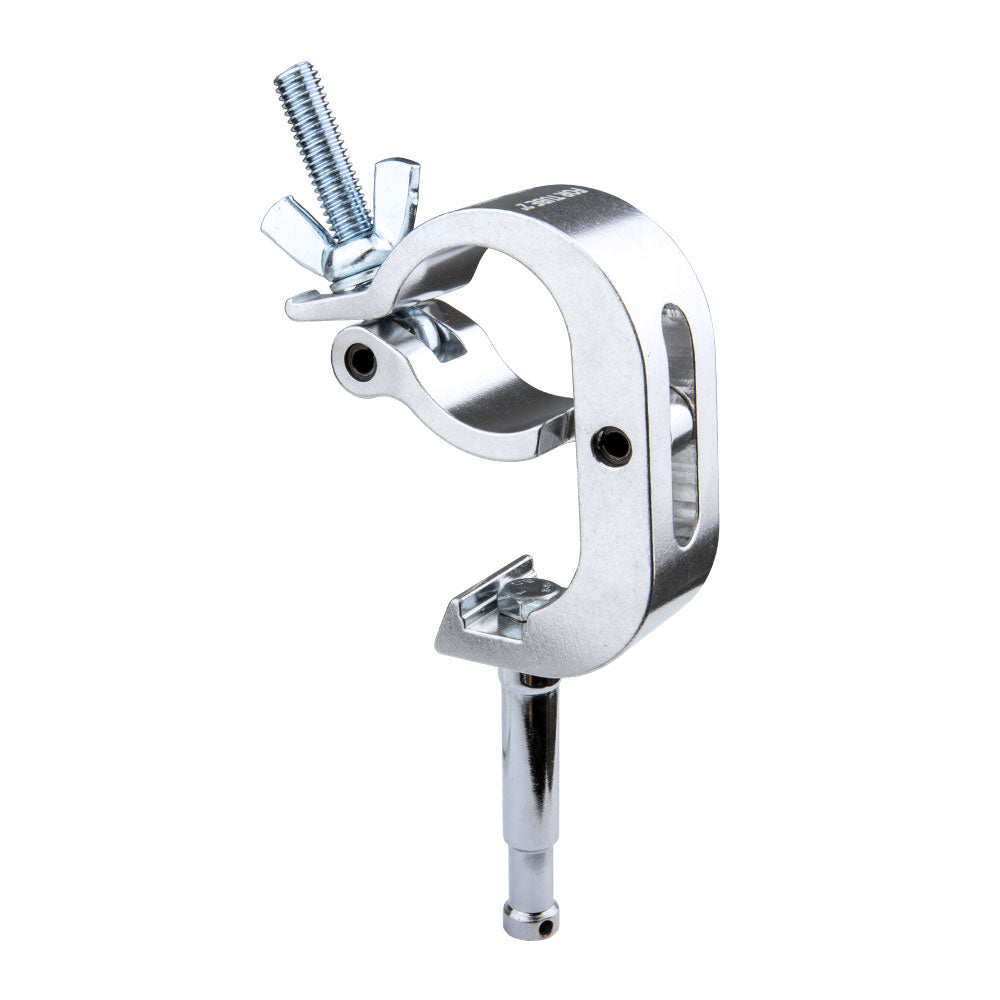

The KUPO KCP-849 Handcuff 16 mm Stud Coupler adds a 16 mm / 5/8" baby stud to 48 to 51 mm truss or pipe. Its one-hand triggering mechanical design gives crews a faster way to create a standard baby-pin mounting point.
Why It Matters
A baby-stud coupler is often used for smaller lights, grip heads, and accessories that move constantly during a build. KCP-849 keeps that workflow quick, with a 100 kg WLL that stays appropriate to the 16 mm stud format rather than borrowing the larger 28 mm rating.
Key Features
16 mm / 5/8" baby stud supports lightweight luminaires, grip heads, and accessories
One-hand triggering design speeds setup compared with slower conventional clamps
High-tensile 6061-T6 aluminum extrusion provides a strong handcuff-style body
100 kg WLL keeps the rating clear for baby-stud class equipment
Additional Technical Notes
Application: Lightweight luminaires, grip heads, and baby-stud accessories
Applications
Use it in studio, stage, broadcast, and rental rigs where a baby-pin mounting point needs to be added quickly to 48 to 51 mm truss or pipe.
Compatibility
KCP-848 is the 28 mm spigot version and carries a different 200 kg WLL. Use KCP-849 when the mounted item requires a 16 mm baby stud.
Frequently Asked Questions
What does KCP-849 mount?
It mounts lightweight luminaires, grip heads, and accessories that use a 16 mm baby receiver.
What is the tube range?
It fits 48 to 51 mm .
Why not use the KCP-848 rating?
KCP-849 is the 16 mm baby stud version and is listed at 100 kg. KCP-848 is the 28 mm version with a different rating.
