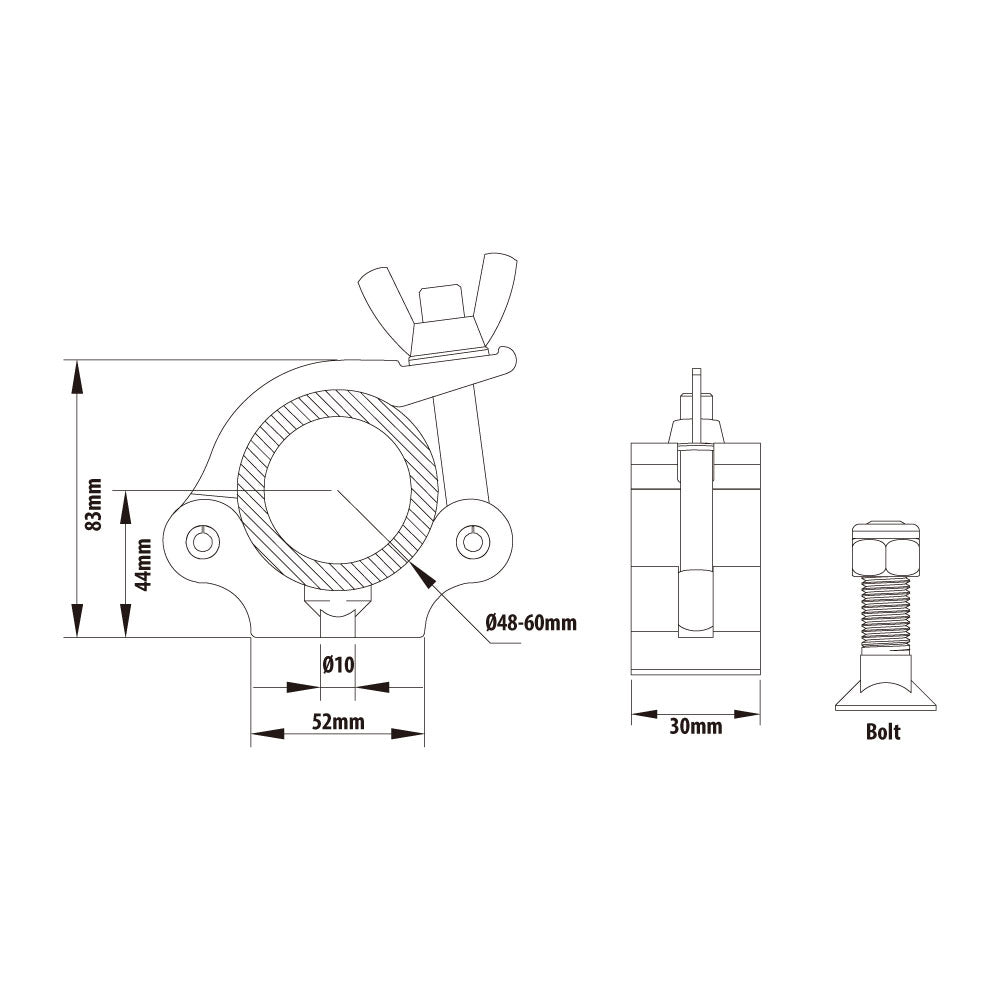

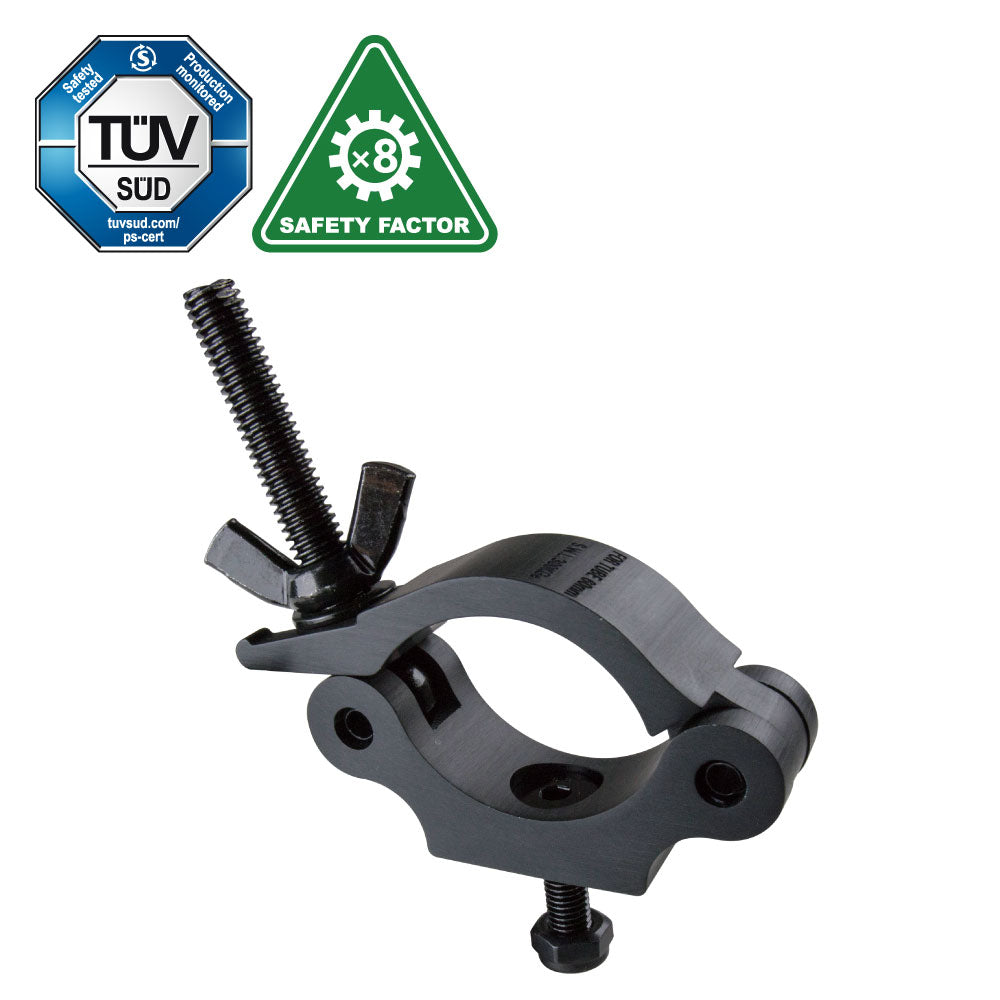

The KUPO KCP-850B Slim Type Mighty Coupler is a black coupler for the larger 48 to 60 mm tube range used on 2" and metric stage truss. Built from 6061-T6 high tensile aluminum extrusion with captive M10 square countersunk hardware, it gives riggers a 280 kg Working Load Limit in a 30 mm slim body.
Why It Matters
The slim mighty format is for crowded chord points where tube diameter is large but available width is tight. It gives crews the 48 to 60 mm mighty range in a body narrow enough to place multiple couplers close together.
Key Features
280 kg Working Load Limit supports parallel tube coupling within the mighty family
48 to 60 mm tube range covers larger 2" and metric stage truss
30 mm slim body allows higher rigging density on crowded chord points
TÜV APPROVED Black anodized finish supports low-visibility rigs
Applications
Use it for parallel tube coupling, main truss runs, large metric tube structures, crowded chord points, and high-density fixture or pickup layouts.
Compatibility
Fits 48 to 60 mm tube. KCP-851 / 850 are parallel versions, KCP-852 / 858 are swivel versions, and KCP-853 / 859 are eye ring pickup versions.
Frequently Asked Questions
When should I choose slim mighty instead of standard mighty?
Choose slim mighty when the tube is still 48 to 60 mm but the rigging envelope is crowded. Choose standard mighty when the higher load rating matters more than body width.
What does the parallel version do?
It couples two 48 to 60 mm tubes in a parallel relationship for larger truss and pipe structures.
What tube size does it fit?
The mighty family is specified for 48 to 60 mm tube, covering larger 2" and metric stage truss.
