Overview

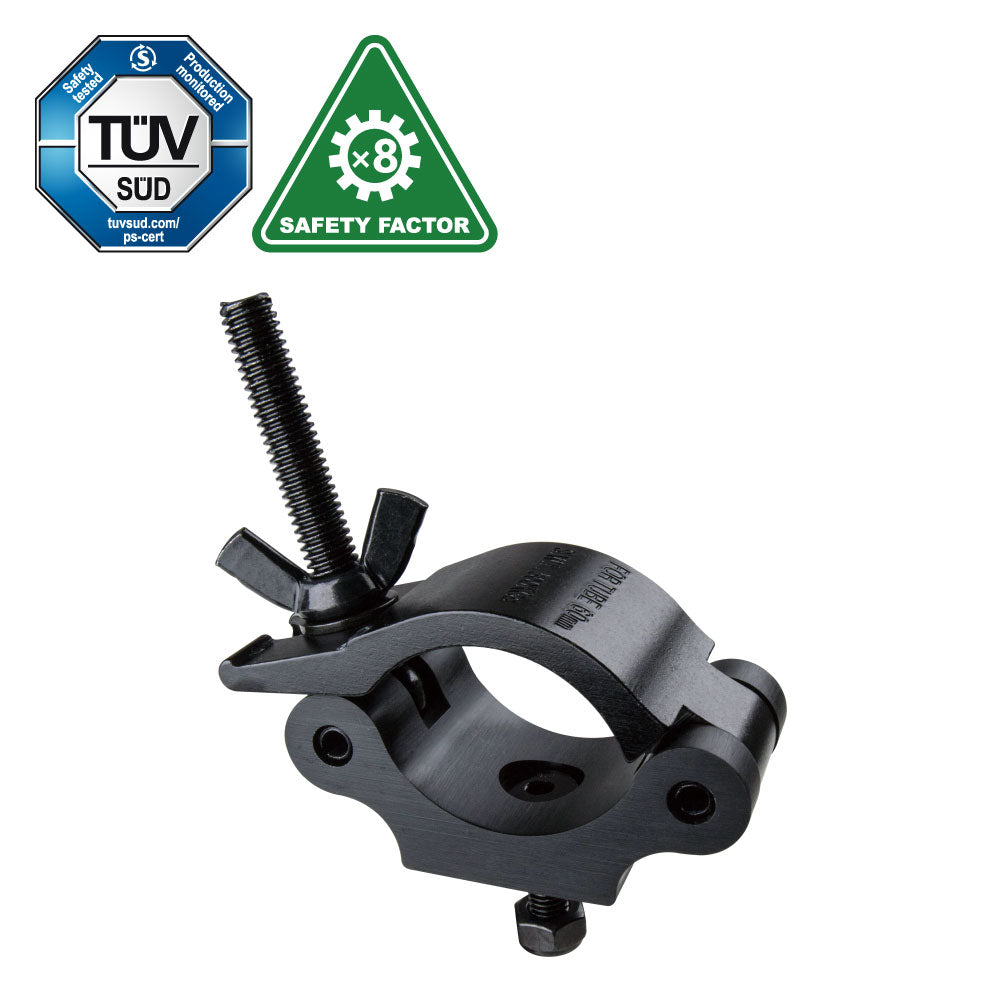

The KUPO KCP-851B Mighty Coupler is a black coupler for the larger 48 to 60 mm tube range used on 2" and metric stage truss. Built from 6061-T6 high tensile aluminum extrusion with captive M10 square countersunk hardware, it gives riggers a 500 kg Working Load Limit in a standard mighty body.

Why It Matters

The mighty range is for larger truss and heavier rigging where standard 48 to 51 mm couplers do not cover the tube or the load. It gives the crew a consistent 48 to 60 mm family for parallel joins, swivels, and pickup points.

Key Features

• 500 kg Working Load Limit supports parallel tube coupling within the mighty family
• 48 to 60 mm tube range covers larger 2" and metric stage truss
• High tensile 6061-T6 body keeps load capacity high while limiting hardware weight
• Captive wing nut and M10 square countersunk bolt simplify overhead installation
• TÜV APPROVED Black anodized finish supports low-visibility rigs

Applications

Use it for parallel tube coupling, main truss runs, large metric tube structures, crowded chord points, and high-density fixture or pickup layouts.

Compatibility

Fits 48 to 60 mm tube. KCP-851 / 850 are parallel versions, KCP-852 / 858 are swivel versions, and KCP-853 / 859 are eye ring pickup versions.
