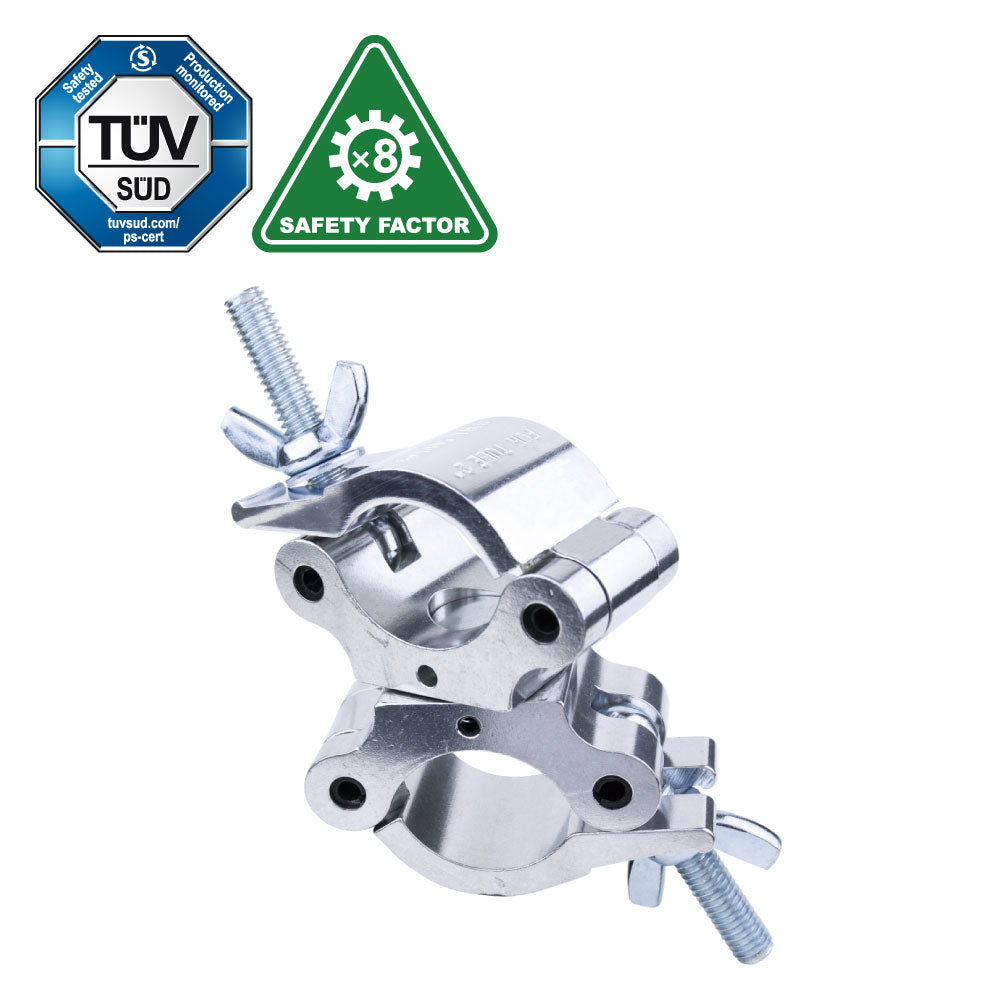

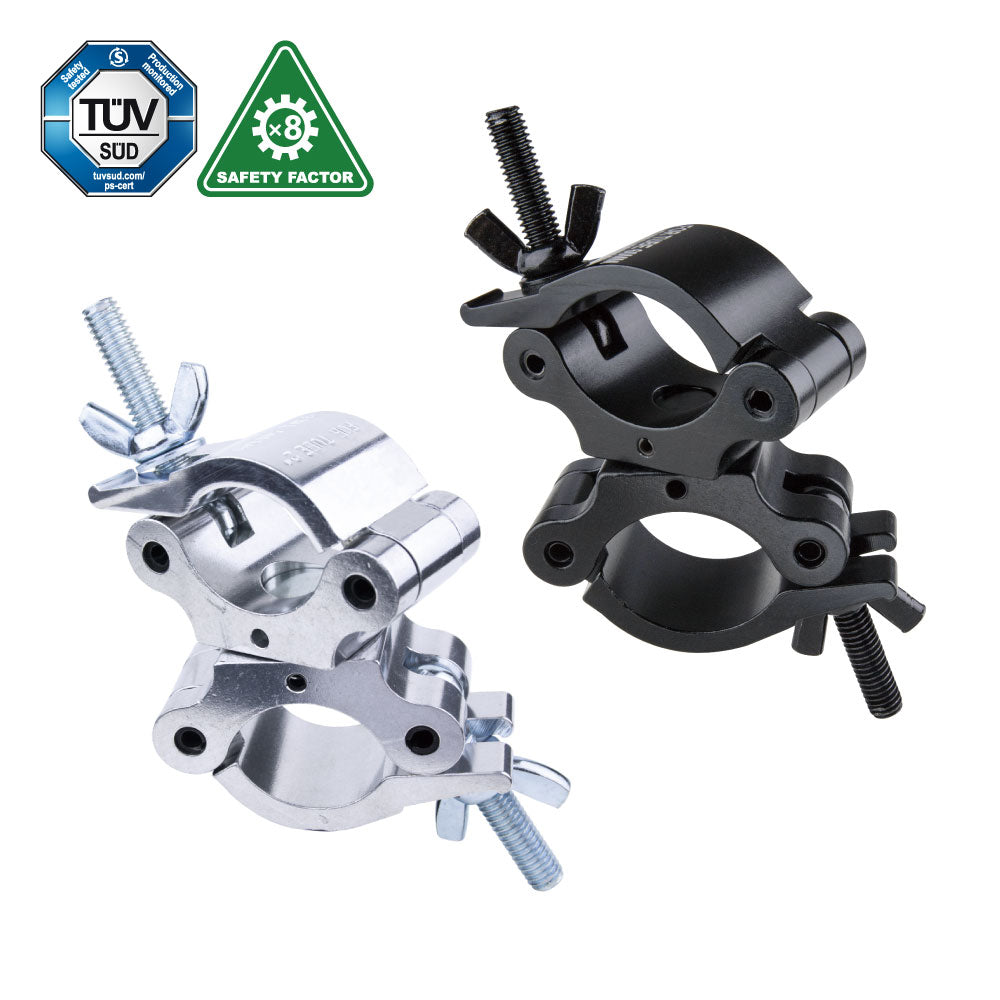

The KUPO KCP-852 Mighty Swivel Coupler is a polished coupler for the larger 48 to 60 mm tube range used on 2" and metric stage truss. Built from 6061-T6 high tensile aluminum extrusion with captive M10 square countersunk hardware, it gives riggers a 250 kg Working Load Limit in a standard mighty body.
Why It Matters
The mighty range is for larger truss and heavier rigging where standard 48 to 51 mm couplers do not cover the tube or the load. It gives the crew a consistent 48 to 60 mm family for parallel joins, swivels, and pickup points.
Key Features
250 kg Working Load Limit supports angled tube joins and bracing within the mighty family
48 to 60 mm tube range covers larger 2" and metric stage truss
High tensile 6061-T6 body keeps load capacity high while limiting hardware weight
Central swivel joins two tubes at any angle for diagonal and non-parallel bracing
Use it for diagonal bracing, knee braces, asymmetric truss configurations, non-parallel joins, compact pickup structures, and larger 48 to 60 mm tube systems.
Compatibility
Fits 48 to 60 mm tube. KCP-851 / 850 are parallel versions, KCP-852 / 858 are swivel versions, and KCP-853 / 859 are eye ring pickup versions.
Frequently Asked Questions
When should I choose mighty instead of a normal coupler?
Choose mighty when the tube is in the 48 to 60 mm range or when the load requirement is beyond the smaller coupler families.
When do I need the swivel version?
Use it when two large tubes need to meet at an angle, such as diagonal bracing or asymmetric truss structures.

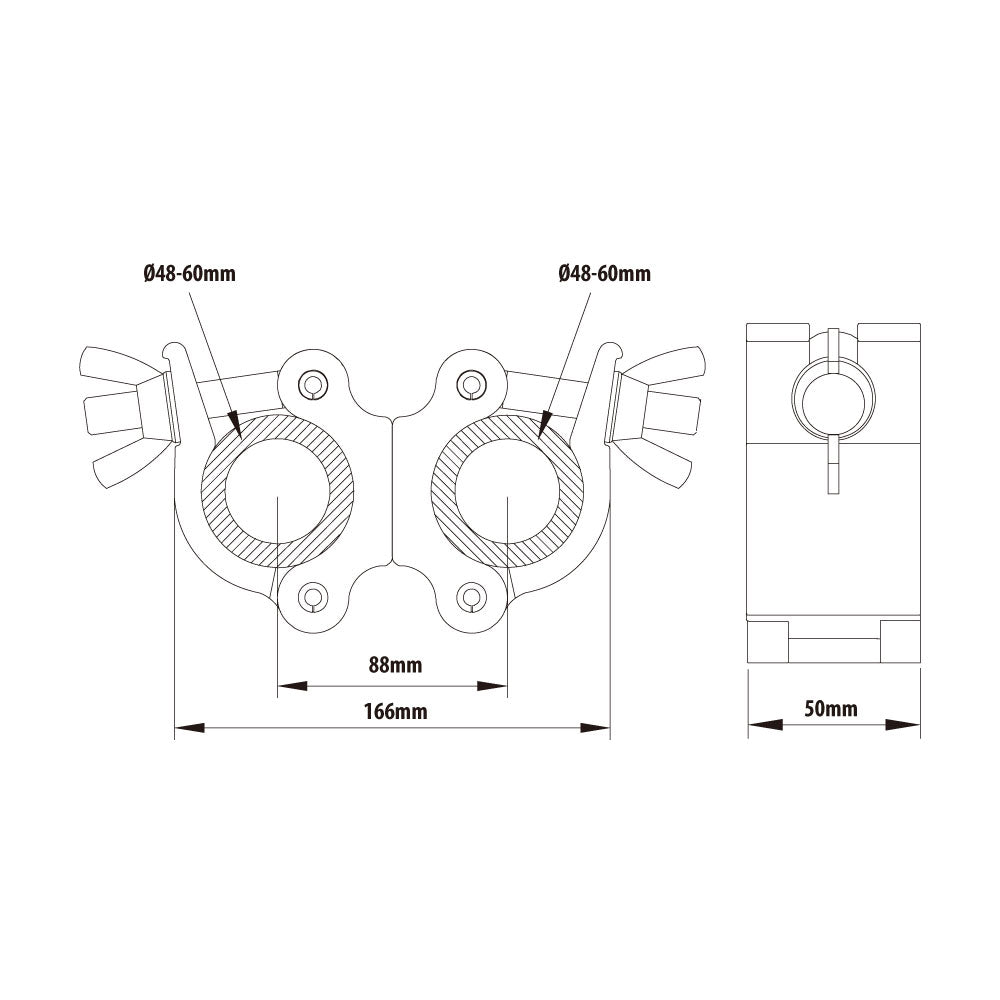

What tube size does it fit?
The mighty family is specified for 48 to 60 mm tube, covering larger 2" and metric stage truss.
