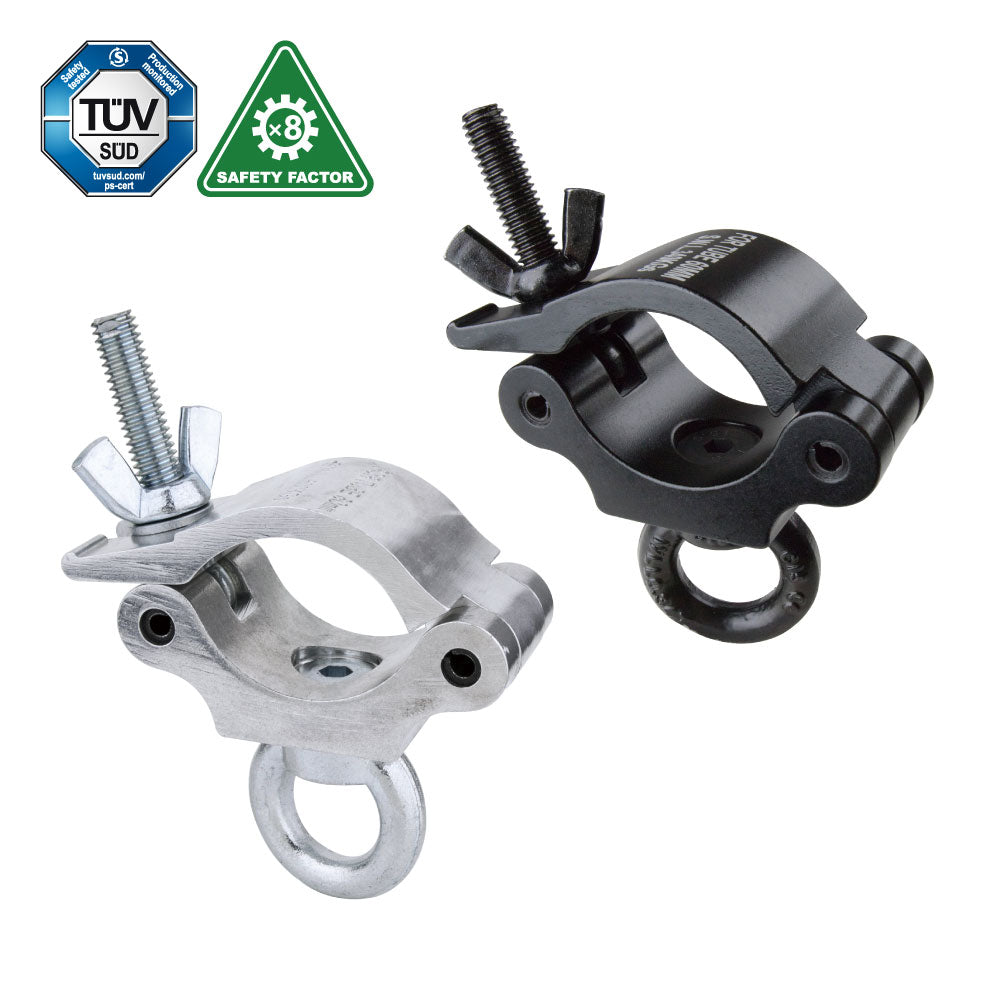

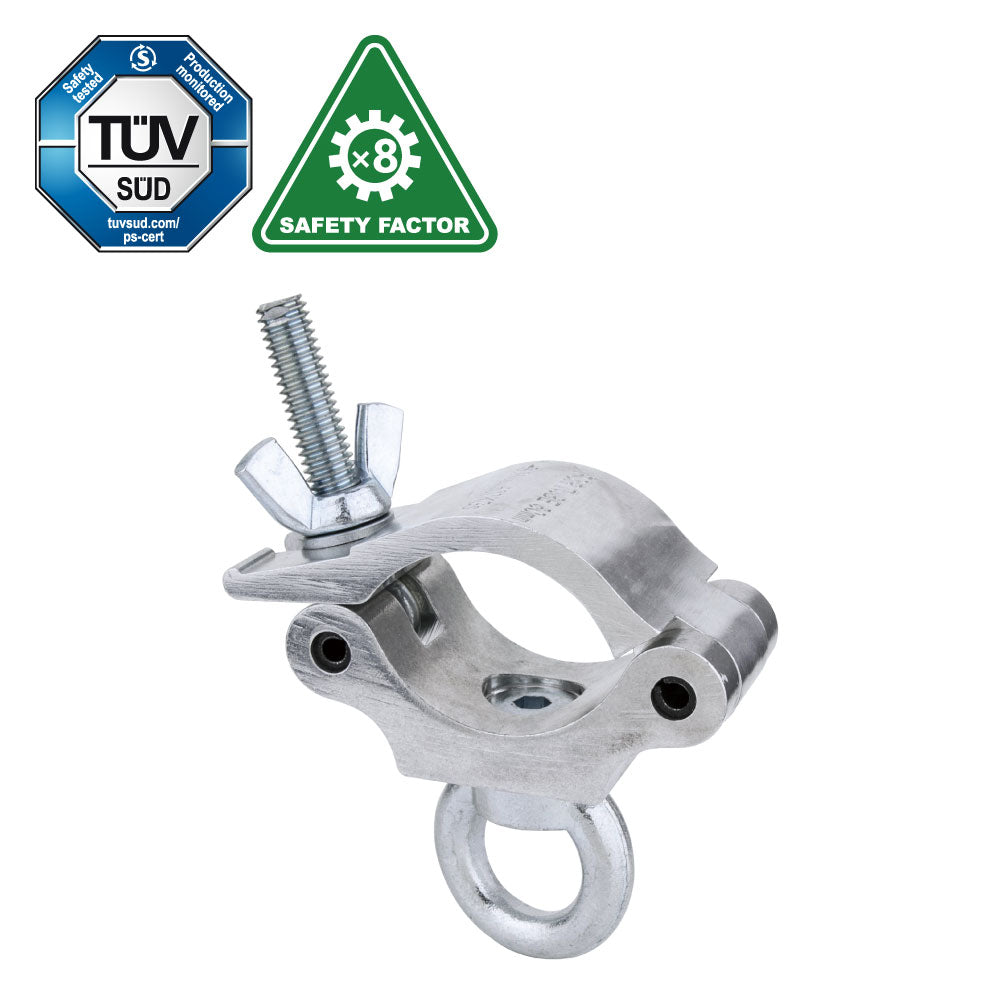

The KUPO KCP-853 Mighty Eye Ring Opening Coupler is a polished coupler for the larger 48 to 60 mm tube range used on 2" and metric stage truss. Built from 6061-T6 high tensile aluminum extrusion with captive M10 square countersunk hardware, it gives riggers a 340 kg Working Load Limit in a standard mighty body.
Why It Matters
The mighty range is for larger truss and heavier rigging where standard 48 to 51 mm couplers do not cover the tube or the load. It gives the crew a consistent 48 to 60 mm family for parallel joins, swivels, and pickup points.
Key Features
340 kg Working Load Limit supports pickup and safety-line applications within the mighty family

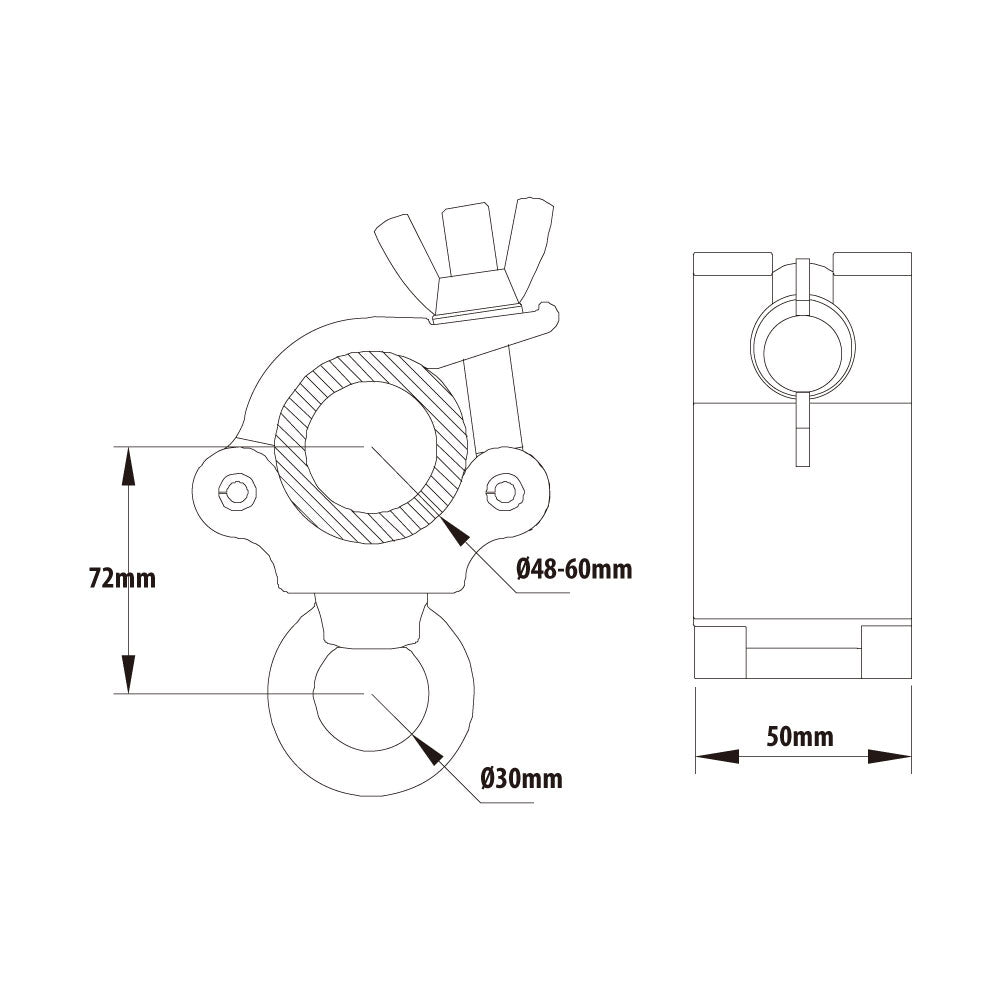

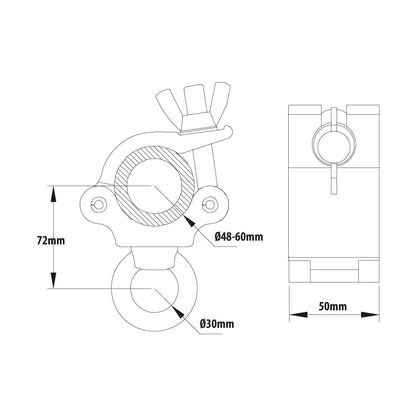

48 to 60 mm tube range covers larger 2" and metric stage truss
High tensile 6061-T6 body keeps load capacity high while limiting hardware weight
30 mm eye ring creates a direct pickup point on the main truss run
Use it for moving light pickups, motor pickups, line array pickups, heavy safety cable terminations, compact pickup clusters, and main truss rigging points.
Compatibility
Fits 48 to 60 mm tube. KCP-851 / 850 are parallel versions, KCP-852 / 858 are swivel versions, and KCP-853 / 859 are eye ring pickup versions.
Frequently Asked Questions
When should I choose mighty instead of a normal coupler?
Choose mighty when the tube is in the 48 to 60 mm range or when the load requirement is beyond the smaller coupler families.
What is the eye ring used for?
It creates a defined pickup point for moving lights, motor pickups, line array points, or heavy safety cable terminations within the listed rating.
What tube size does it fit?
The mighty family is specified for 48 to 60 mm tube, covering larger 2" and metric stage truss.
