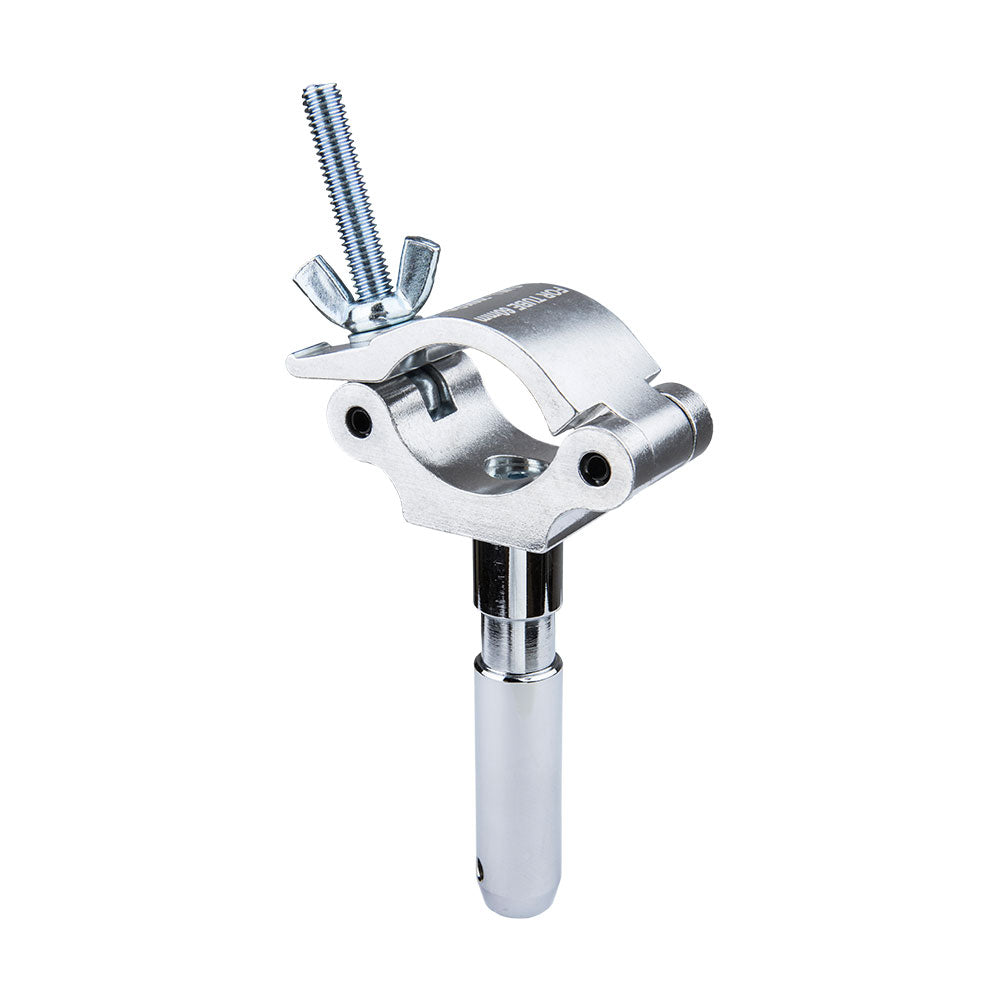

The KUPO KCP-854 Mighty 28 mm Spigot Coupler is built for larger 51 to 60 mm tubes and provides a 28 mm TV spigot output. It gives bigger pipe structures a familiar receiver-compatible interface for combo stands, support hardware, and goalpost-style rigging applications.
Why It Matters
The Mighty detail matters because this is not a standard 48 to 51 mm coupler. KCP-854 is made for larger pipe, with a 200 kg WLL and a captive top on the threaded bolt to keep the wing nut with the clamp during repeated setup.
Key Features
51 to 60 mm tube range fits larger pipe than standard 2" couplers
28 mm TV spigot supports combo-stand receiver and larger grip hardware workflows
High-tensile aluminum extrusion provides a strong Mighty-series body
Captive-top bolt during handling
200 kg WLL supports rated larger-tube applications
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt to help retain wing nut
Applications
Use it for larger pipe structures, goalpost-style examples, and receiver-based support setups where a 28 mm spigot needs to be added to 51 to 60 mm tube.
Compatibility
This model is for 51 to 60 mm tube, not standard 48 to 51 mm truss. KCP-856 is the 16 mm baby stud Mighty version.
Frequently Asked Questions
What tube size is KCP-854 for?
It is for larger 51 to 60 mm tube, not standard 48 to 51 mm tube.
What output does it provide?
It provides a 28 mm TV spigot for compatible receivers and support hardware.
How is it different from KCP-856?
KCP-854 has a 28 mm spigot and 200 kg WLL. KCP-856 has a 16 mm baby stud and 100 kg WLL.
