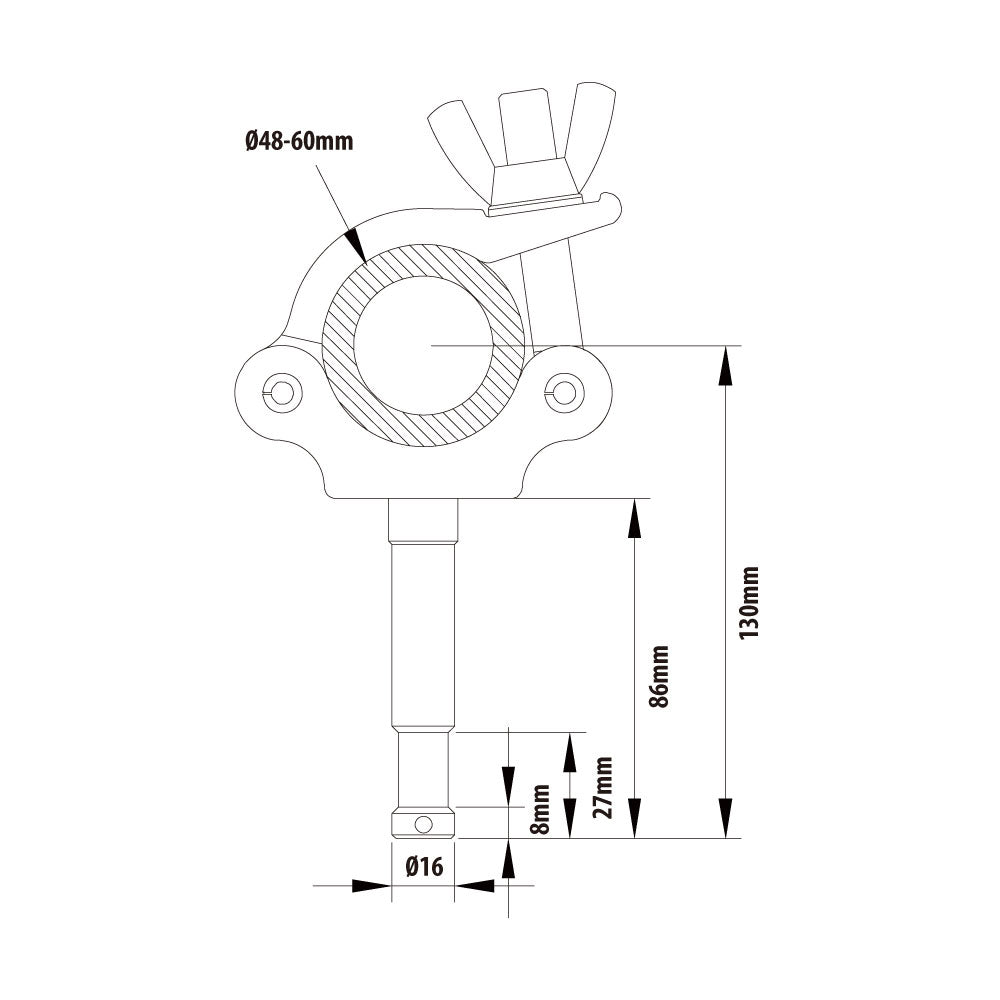

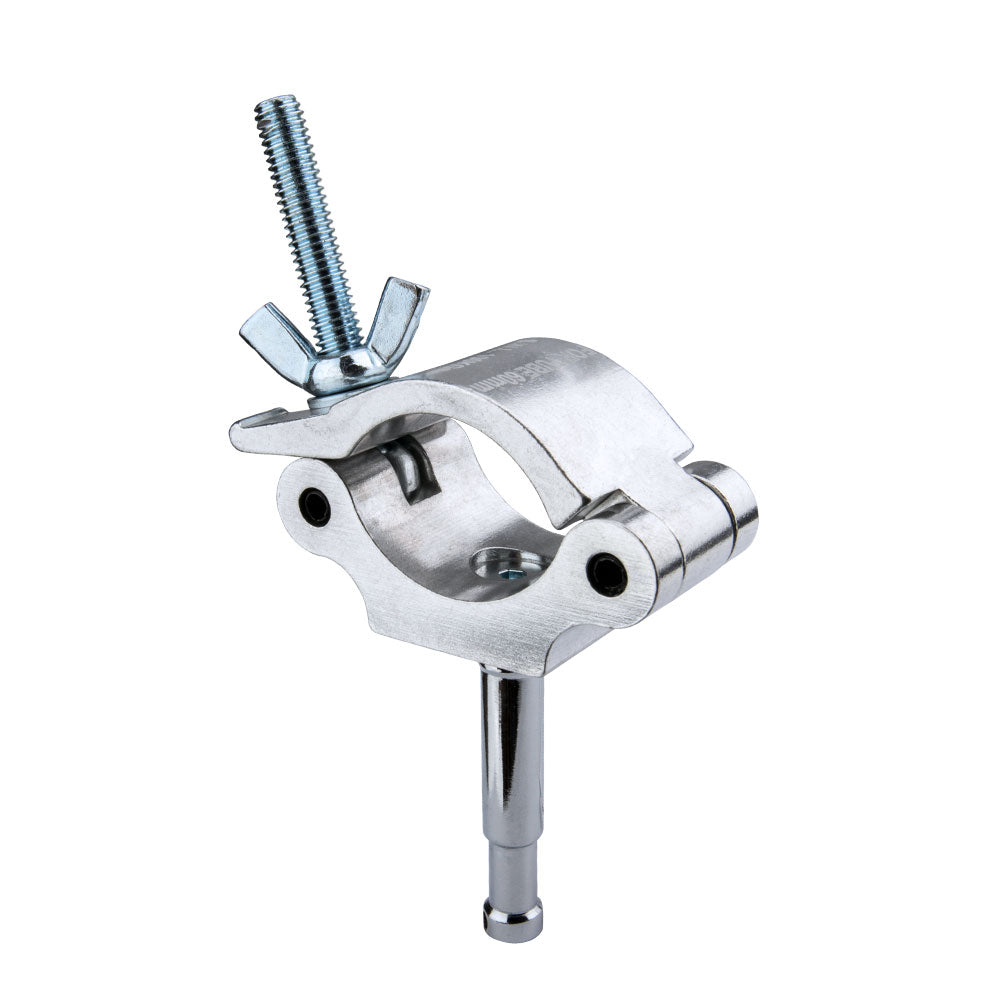

The KUPO KCP-856 Mighty 16 mm Stud Coupler adds a 16 mm baby stud to larger 51 to 60 mm tubes. It is the baby-pin Mighty option for lightweight fixtures and grip accessories used on pipe structures where standard 2" couplers are not the right fit.
Why It Matters
The buying reason is simple: larger tube range, baby-pin output. KCP-856 lets crews mount 16 mm receiver accessories on 51 to 60 mm pipe, while the captive top on the threaded bolt helps keep the wing nut from falling away during handling.
Key Features
51 to 60 mm tube range fits larger pipe structures beyond standard 2" tube
16 mm baby stud supports lightweight luminaires and grip accessories
High-tensile aluminum extrusion provides a strong Mighty-series coupler body
Captive-top bolt during setup
100 kg WLL keeps the rating appropriate for the baby-stud output
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt to help retain wing nut
Applications
Use it for lightweight fixtures, grip heads, and baby receiver accessories that need to mount to 51 to 60 mm tube.
Compatibility
KCP-854 is the 28 mm spigot Mighty model. Use KCP-856 when the mounted item needs a 16 mm baby stud.
Frequently Asked Questions
What is the defining detail of KCP-856?
It combines a 51 to 60 mm Mighty coupler body with a 16 mm baby stud output.
Can it replace a 48 to 51 mm coupler?
No. It is intended for larger 51 to 60 mm tube, so check the pipe diameter before ordering.
What WLL applies?
The specification lists a 100 kg WLL for this 16 mm stud version.
