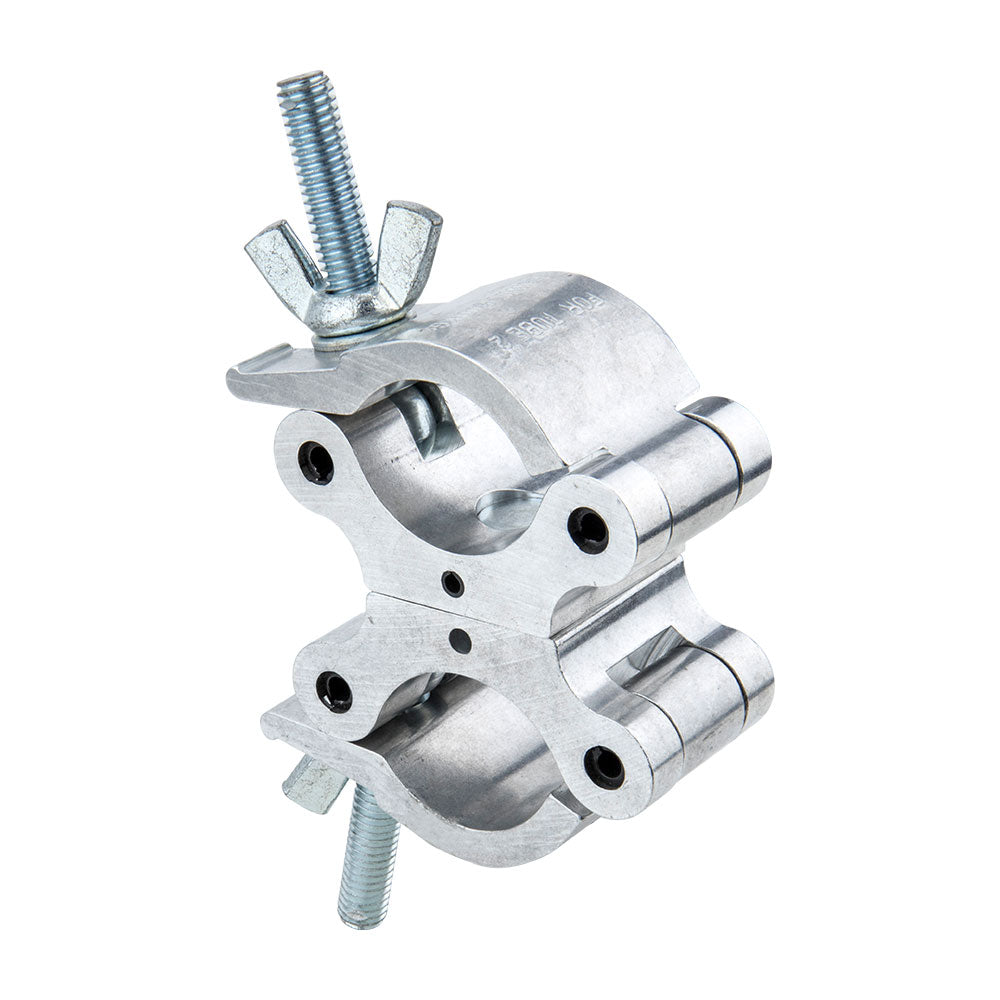

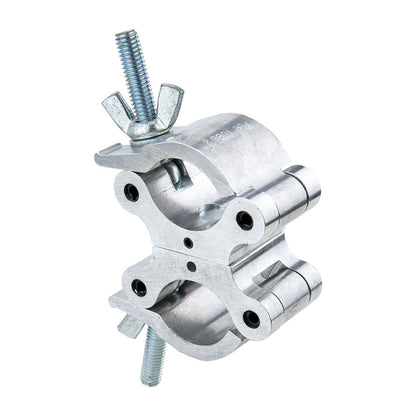

The KUPO KCP-857 Mighty Swivel Coupler connects one 48 to 51 mm tube to one 51 to 60 mm tube with full 360° swivel movement. Its high-tensile aluminum extrusion body carries a 500 kg WLL for heavy-duty mixed- connections.
Why It Matters
Mixed-diameter structures are common, but fixed couplers can force the geometry before the rig is ready. KCP-857 gives crews angle control between two tube sizes, and the supplied drift pin can lock the assembly into a fixed 90° configuration when that is the correct setup.
Key Features
Connects one 48 to 51 mm tube to one 51 to 60 mm tube for mixed-diameter structures
360° swivel action supports non-standard angles and installation adjustment
Supplied drift pin allows a fixed 90° configuration when required
Captive top on threaded bolt helps retain wing nut during handling
500 kg WLL makes it a heavy-duty cross-tube connection solution
Additional Technical Notes
Mounting Detail: Captive top on threaded bolt to help retain wing nut
Applications
Use it for larger mixed-diameter stage, event, theatre, and studio structures where two tube sizes need to meet at an adjustable angle.
Compatibility

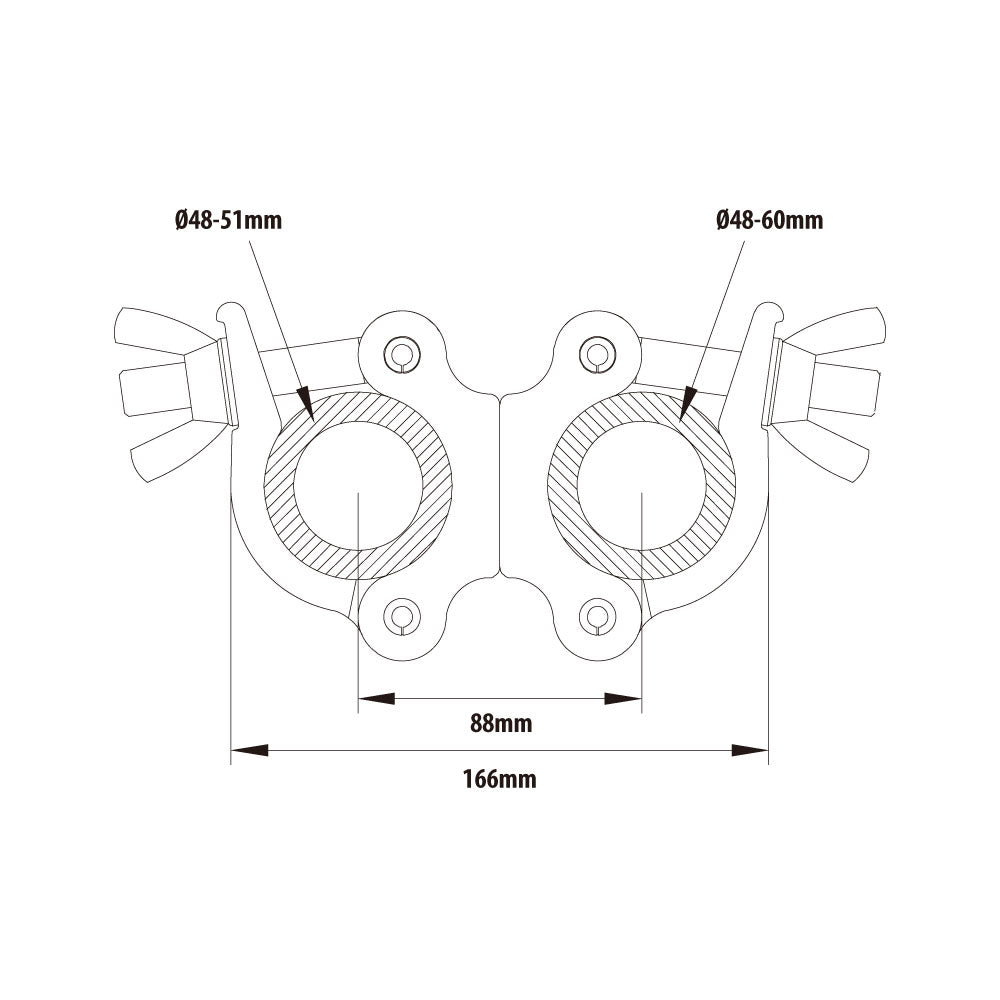

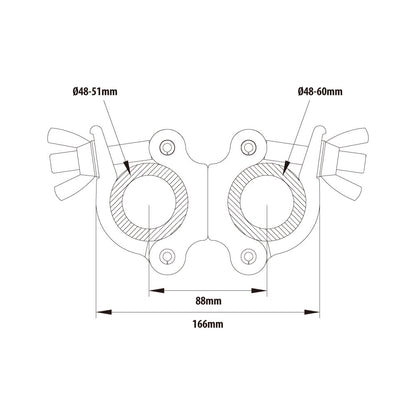

One side is for 48 to 51 mm tube and the other is for 51 to 60 mm tube. Keep the 500 kg WLL tied to correct usage and properly rated connected hardware.
Frequently Asked Questions
Does KCP-857 connect the same tube size on both sides?
No. It connects one 48 to 51 mm tube to one 51 to 60 mm tube.
Can it be locked at 90°?
Yes. A drift pin is supplied for a fixed 90° configuration.
What is the WLL?
The specification lists a 500 kg WLL, tied to correct mixed-diameter use and properly rated connected hardware.
