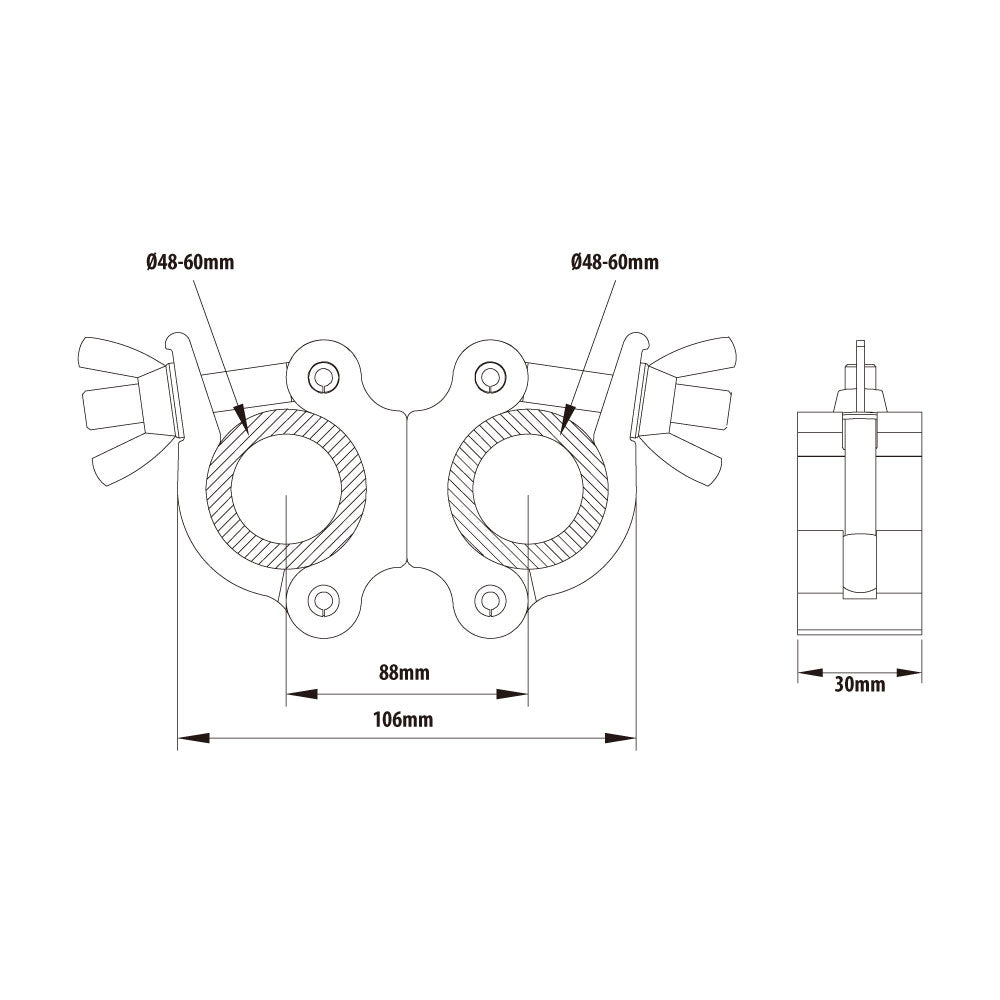

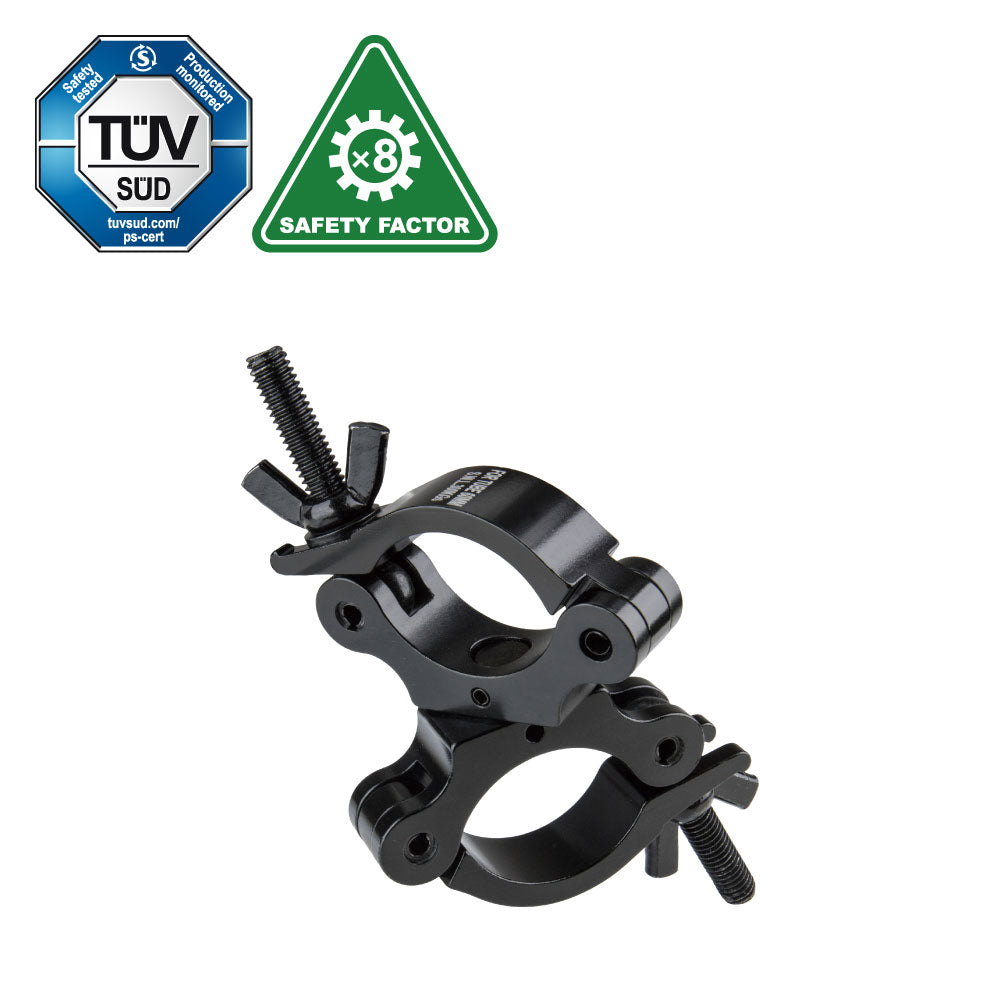

The KUPO KCP-858B Slim Type Mighty Swivel Coupler is a black coupler for the larger 48 to 60 mm tube range used on 2" and metric stage truss. Built from 6061-T6 high tensile aluminum extrusion with captive M10 square countersunk hardware, it gives riggers a 140 kg Working Load Limit in a 30 mm slim body.
Why It Matters
The slim mighty format is for crowded chord points where tube diameter is large but available width is tight. It gives crews the 48 to 60 mm mighty range in a body narrow enough to place multiple couplers close together.
Key Features
140 kg Working Load Limit supports angled tube joins and bracing within the mighty family
48 to 60 mm tube range covers larger 2" and metric stage truss
30 mm slim body allows higher rigging density on crowded chord points
Central swivel joins two tubes at any angle for diagonal and non-parallel bracing
TÜV APPROVED Black anodized finish supports low-visibility rigs
Applications
Use it for diagonal bracing, knee braces, asymmetric truss configurations, non-parallel joins, compact pickup structures, and larger 48 to 60 mm tube systems.
Compatibility
Fits 48 to 60 mm tube. KCP-851 / 850 are parallel versions, KCP-852 / 858 are swivel versions, and KCP-853 / 859 are eye ring pickup versions.
Frequently Asked Questions
When should I choose slim mighty instead of standard mighty?
Choose slim mighty when the tube is still 48 to 60 mm but the rigging envelope is crowded. Choose standard mighty when the higher load rating matters more than body width.
When do I need the swivel version?
Use it when two large tubes need to meet at an angle, such as diagonal bracing or asymmetric truss structures.
What tube size does it fit?
The mighty family is specified for 48 to 60 mm tube, covering larger 2" and metric stage truss.
