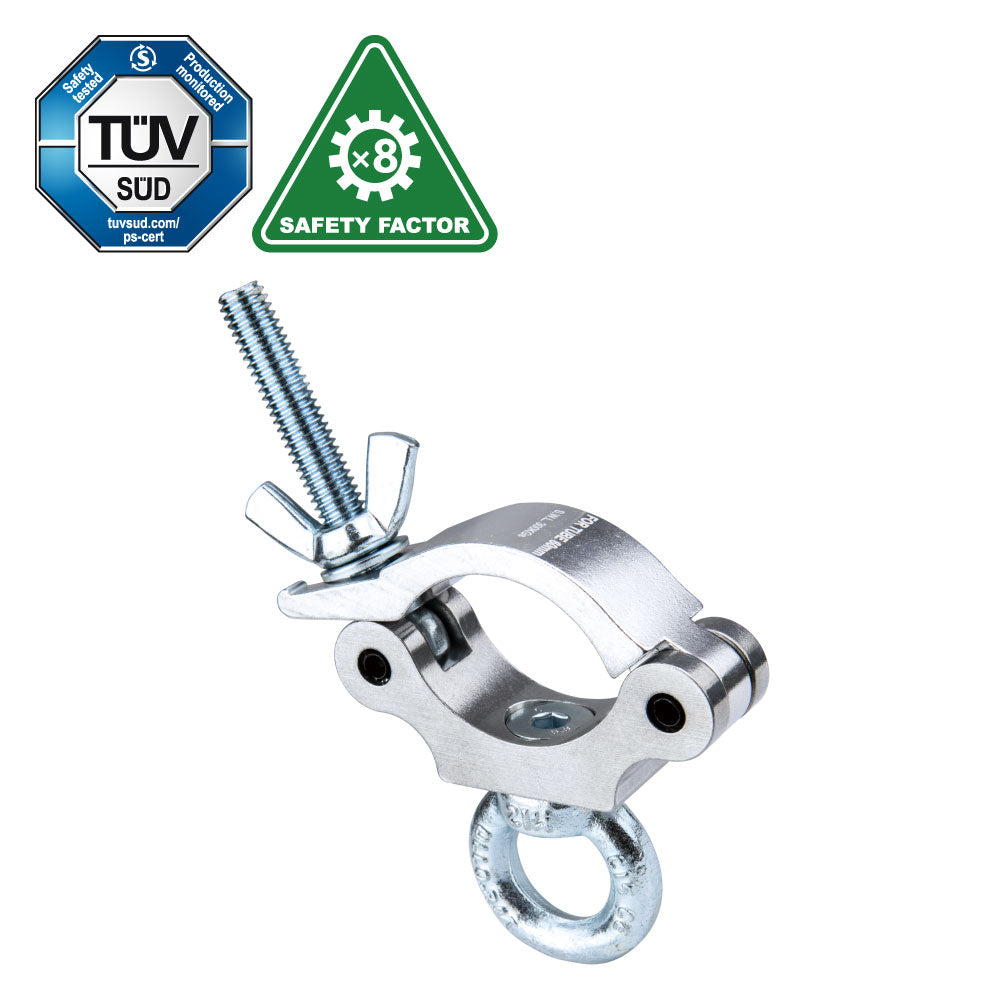

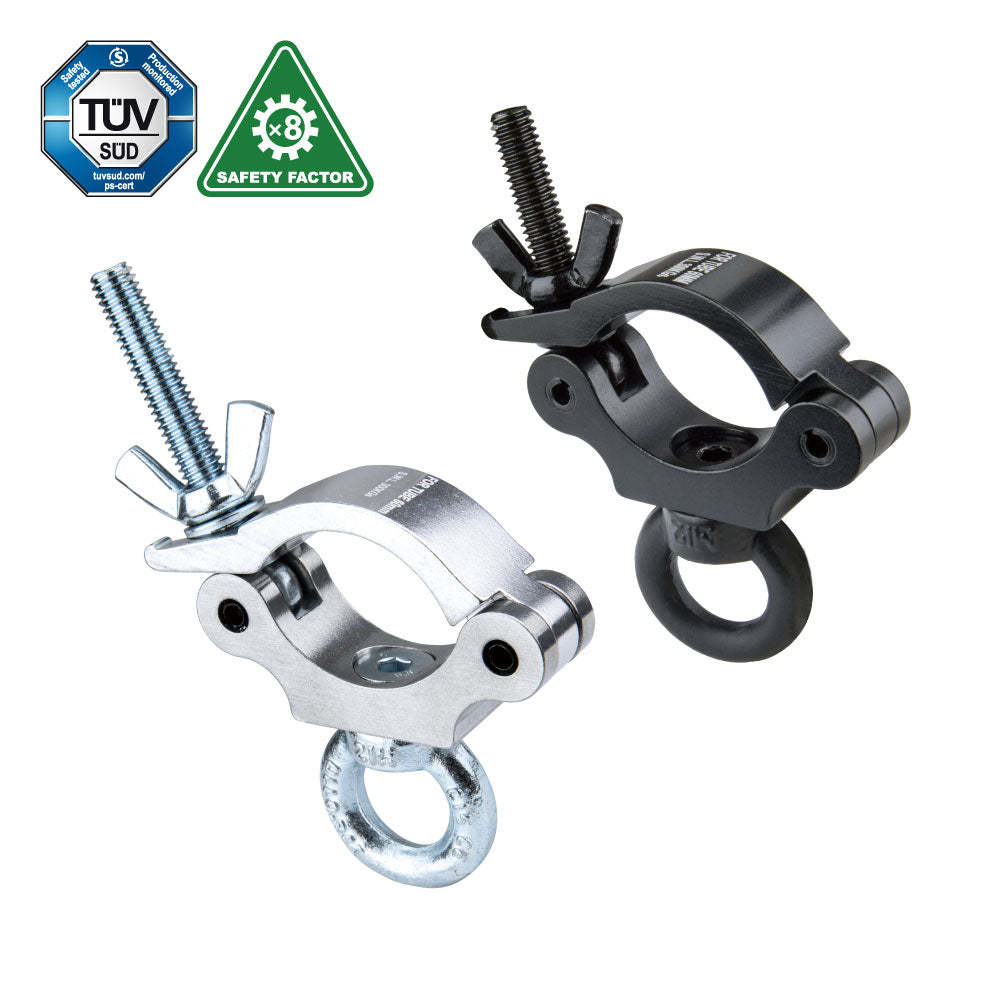

The KUPO KCP-859 Slim Type Mighty Eye Ring Opening Coupler is a polished coupler for the larger 48 to 60 mm tube range used on 2" and metric stage truss. Built from 6061-T6 high tensile aluminum extrusion with captive M10 square countersunk hardware, it gives riggers a 200 kg Working Load Limit in a 30 mm slim body.
Why It Matters
The slim mighty format is for crowded chord points where tube diameter is large but available width is tight. It gives crews the 48 to 60 mm mighty range in a body narrow enough to place multiple couplers close together.
Key Features
200 kg Working Load Limit supports pickup and safety-line applications within the mighty family

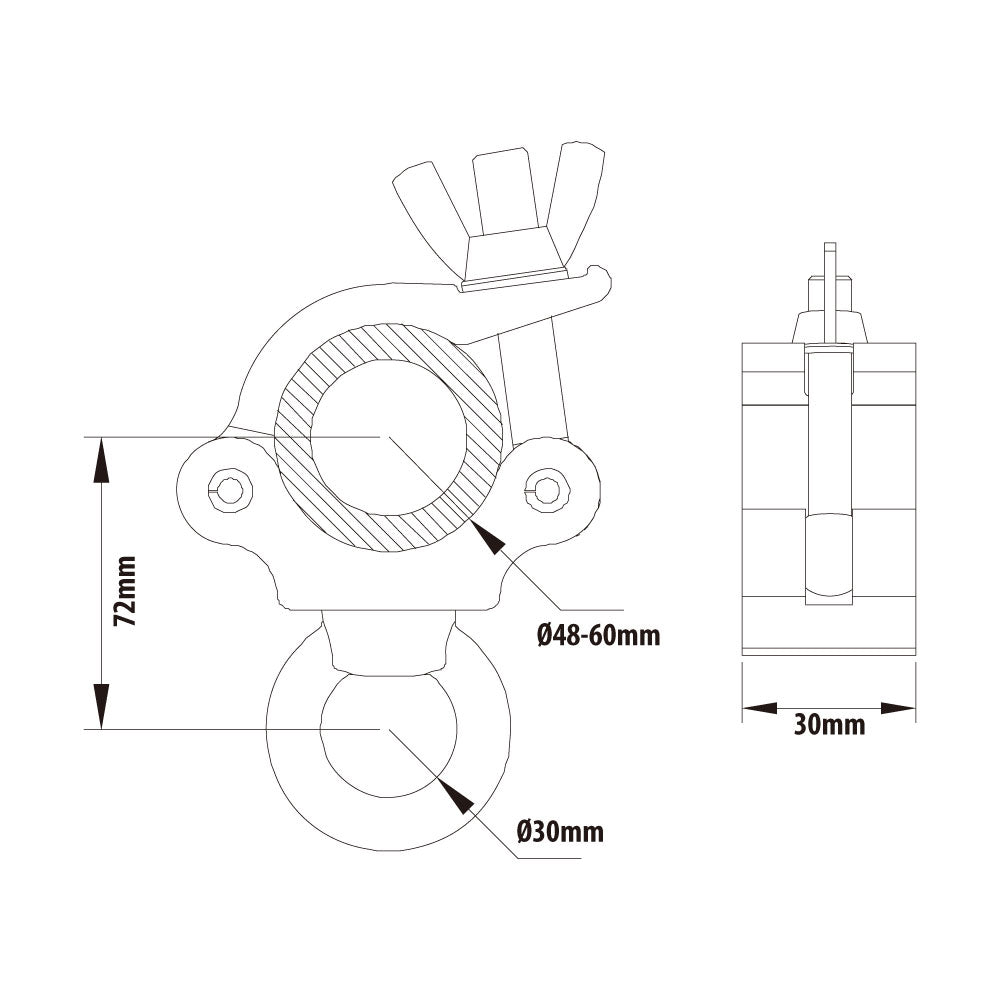

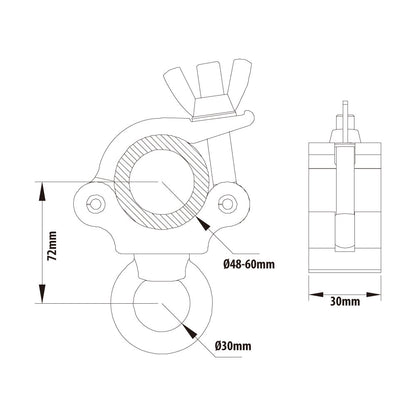

48 to 60 mm tube range covers larger 2" and metric stage truss
30 mm slim body allows higher rigging density on crowded chord points
30 mm eye ring creates a direct pickup point on the main truss run
Use it for moving light pickups, motor pickups, line array pickups, heavy safety cable terminations, compact pickup clusters, and main truss rigging points.
Compatibility
Fits 48 to 60 mm tube. KCP-851 / 850 are parallel versions, KCP-852 / 858 are swivel versions, and KCP-853 / 859 are eye ring pickup versions.
Frequently Asked Questions
When should I choose slim mighty instead of standard mighty?
Choose slim mighty when the tube is still 48 to 60 mm but the rigging envelope is crowded. Choose standard mighty when the higher load rating matters more than body width.
What is the eye ring used for?
It creates a defined pickup point for moving lights, motor pickups, line array points, or heavy safety cable terminations within the listed rating.
What tube size does it fit?
The mighty family is specified for 48 to 60 mm tube, covering larger 2" and metric stage truss.
