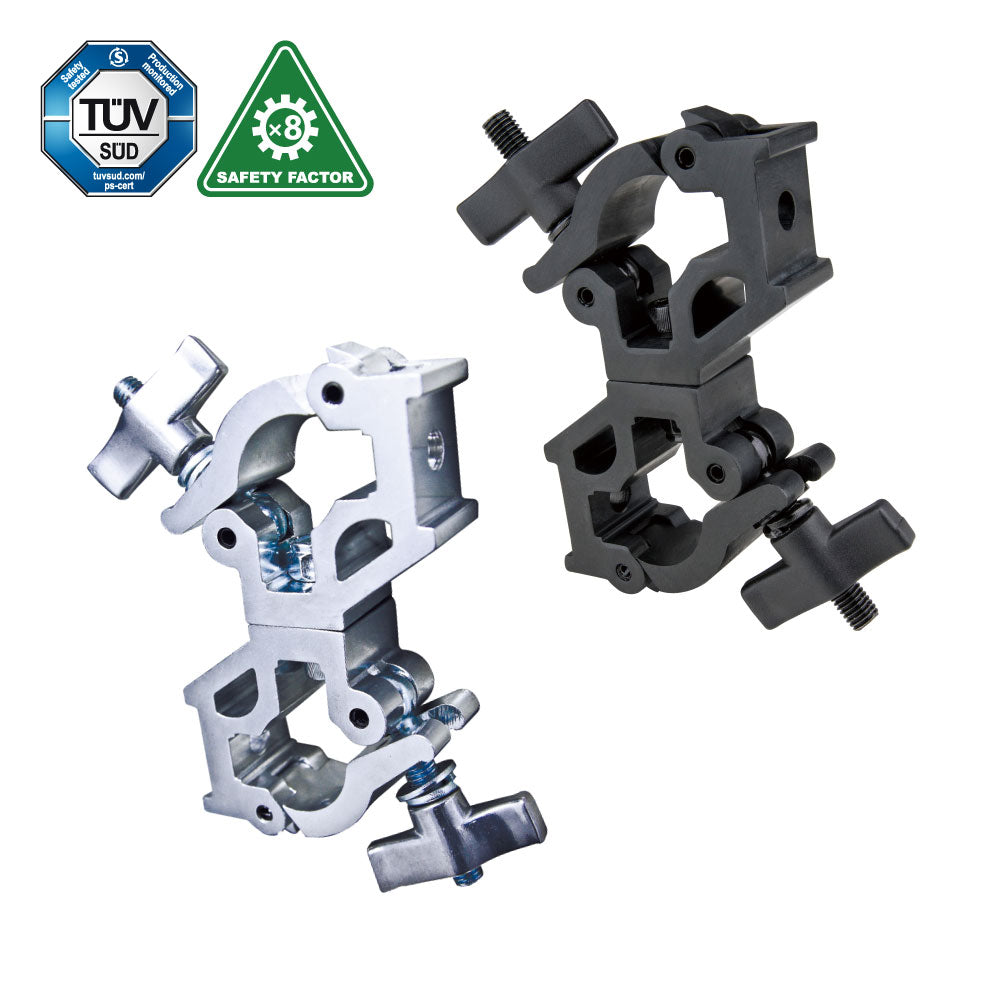

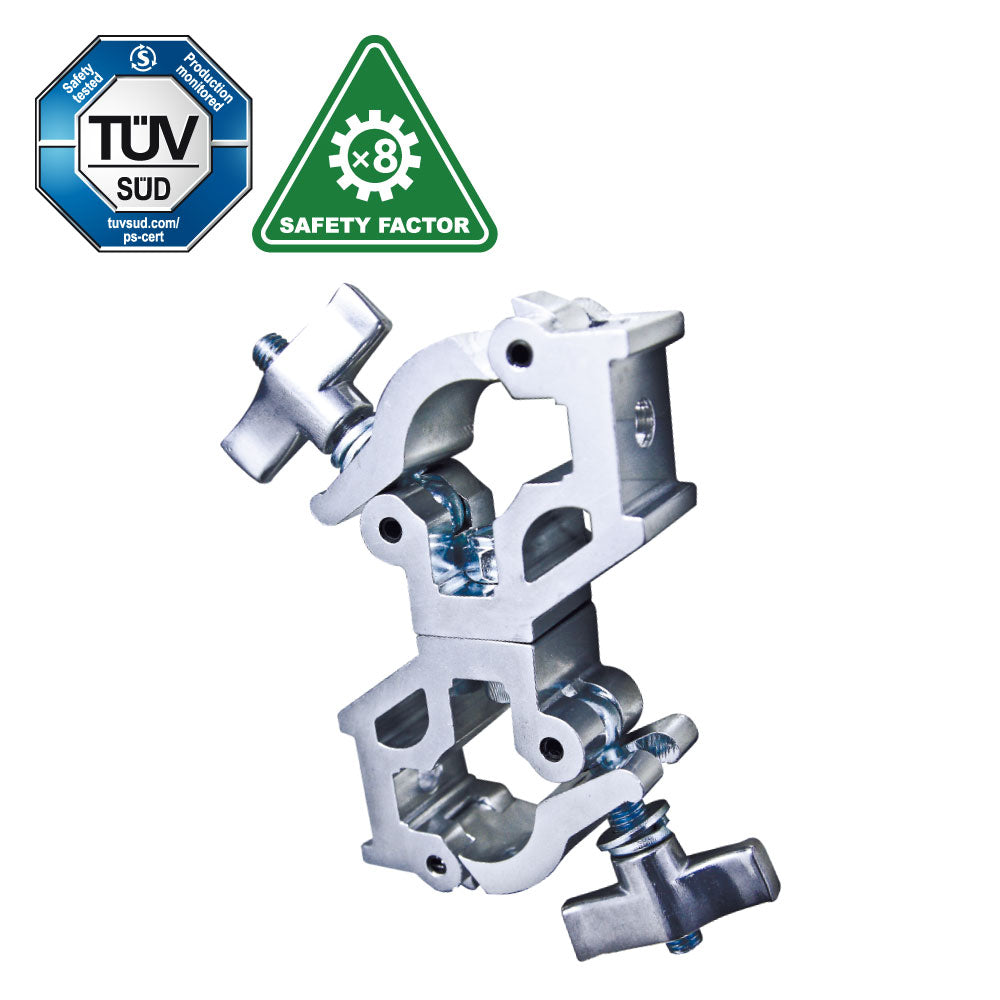

The KCP-862 Nugget Swivel Coupler joins two 32-38 mm tubes with a compact pivoting body and a 350 kg Working Load Limit (WLL). It brings the adjustability of a swivel coupler into smaller tube structures, using 6061-T6 aluminum extrusion heads and solid T-style tightening hardware for repeatable setup on angled frames.
Why It Matters
Not every angled connection happens on full-size truss. For compact displays, pipe grids, and custom scenic builds, this swivel gives the crew angle freedom without moving into bulky 48-51 mm hardware.
Key Features
Dual 32-38 mm clamp heads make adjustable tube-to-tube connections on small pipe without adapters.
350 kg Working Load Limit (WLL) gives the fitting useful strength for compact but load-bearing structures.
Swivel pivot between the clamp heads lets installers dial in non-parallel angles before tightening.
Applications
Useful for angled lighting bars, temporary display frames, scenic pipe structures, compact truss details, and shop-built supports where the tube geometry is not square.
Compatibility

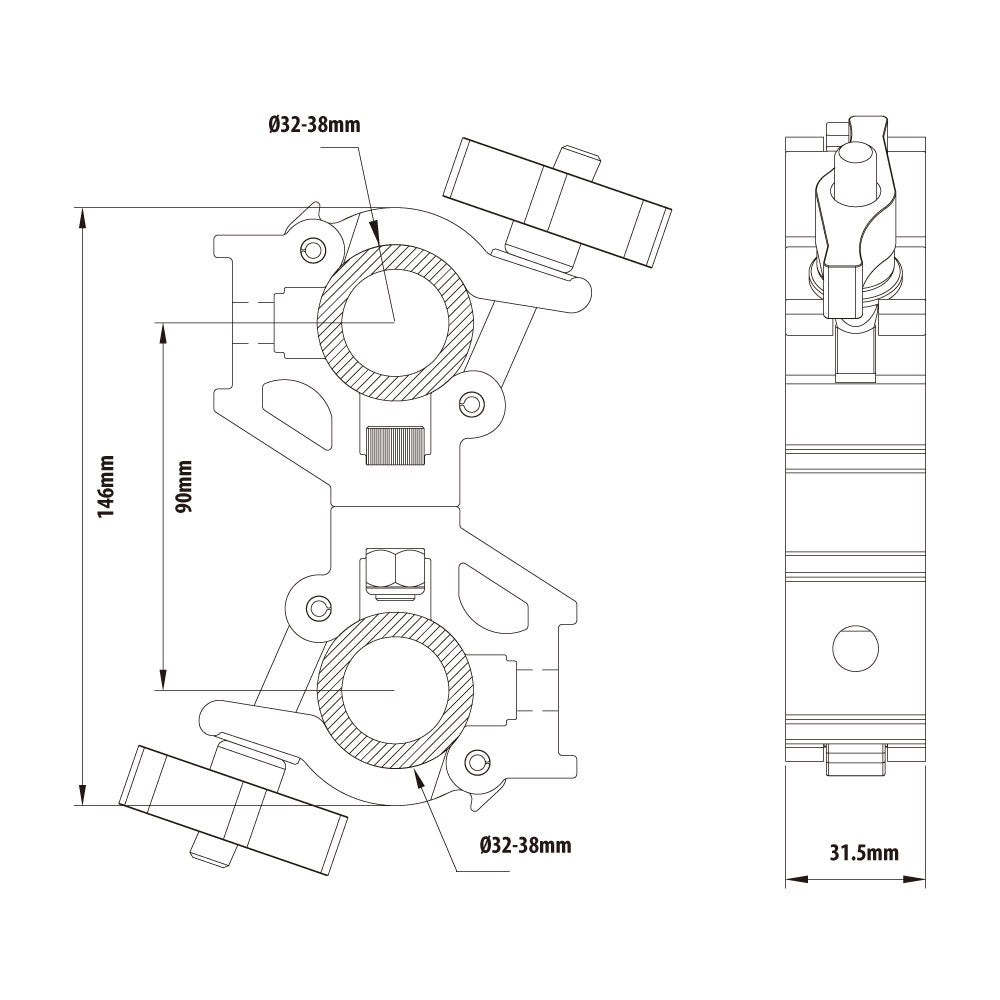

Designed to connect two 32-38 mm tubes; each head uses the Nugget-style compact clamp body.
Frequently Asked Questions
Will this replace a regular 48-51 mm swivel coupler?
Only when the structure is built from 32-38 mm tube. It is the compact-tube option, not a replacement for full-size truss chord hardware.
How much angle adjustment do I get?
The swivel pivot lets the two clamp heads rotate relative to each other, so it is meant for angled bracing and non-parallel pipe runs rather than fixed 90° joints.
Does the smaller size mean it is only for light decorative use?
No. It carries a 350 kg Working Load Limit (WLL), but the tube, structure, and attachment method still need to be rated as a complete system.
