Overview

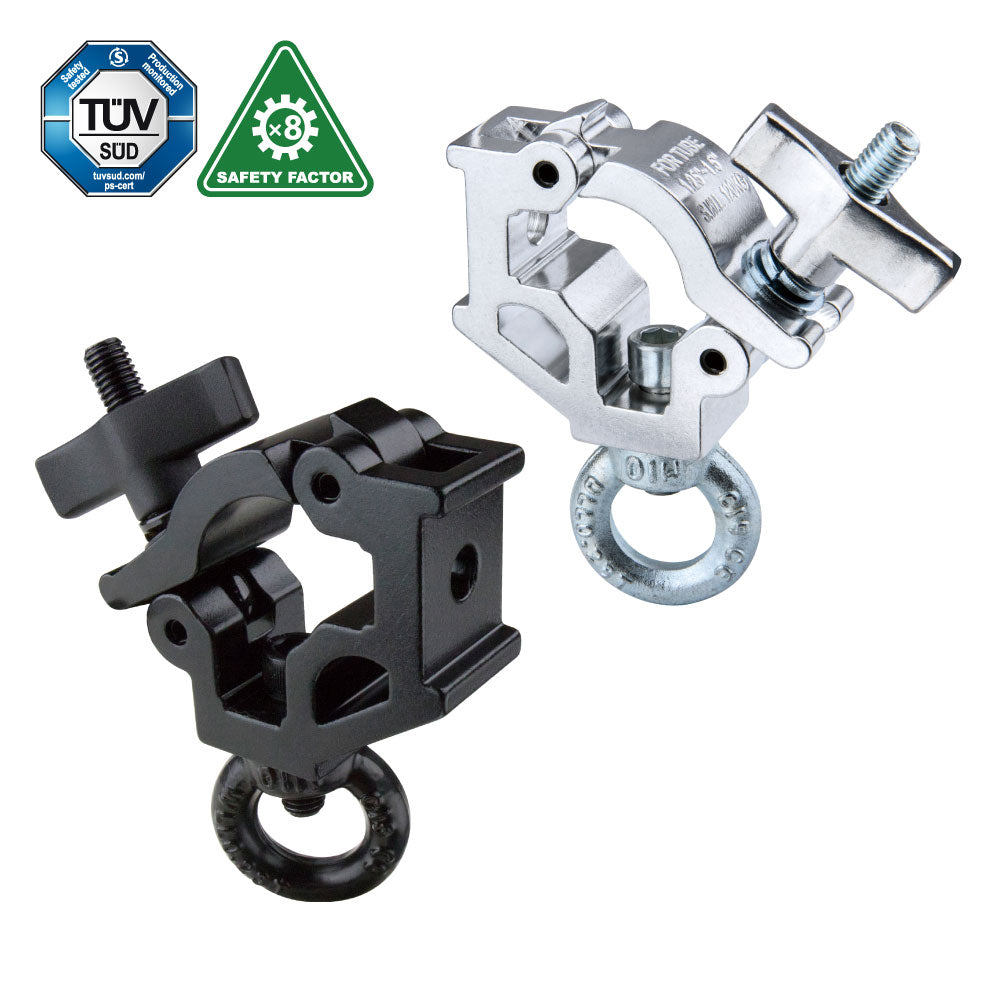

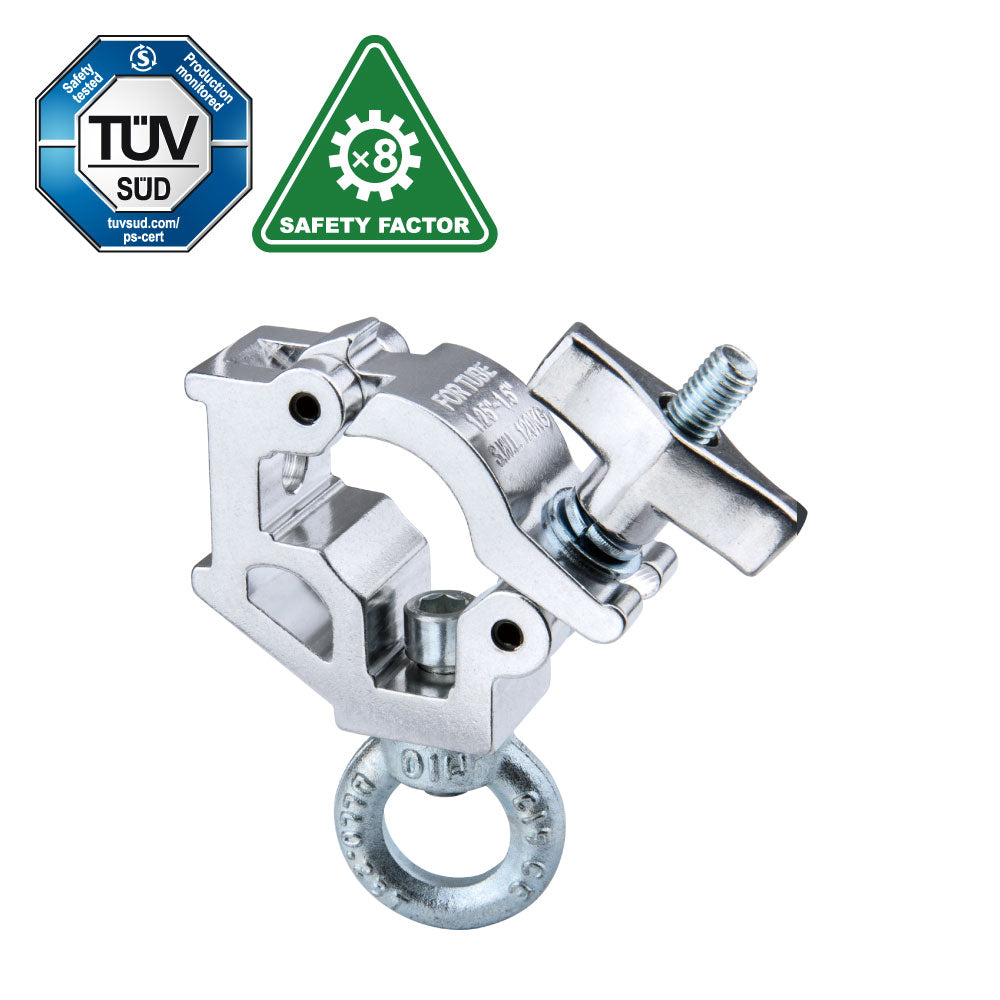

The KCP-863 Nugget Eye Ring Opening Coupler adds a 30 mm integrated pickup eye to a compact 32-38 mm tube clamp. With a 230 kg Working Load Limit (WLL), an 8 mm bolt, and a gravity die-cast aluminum body, it gives riggers a clean attachment point for shackles, hooks, and safety cables on smaller pipe systems.
Why It Matters
A loose eye nut can solve the problem, but it adds parts and decisions in the air. This coupler builds the pickup point into the clamp, which makes small-tube rigging faster to plan and easier to inspect.
Key Features
- Integrated 30 mm eye ring provides a direct pickup point for shackles, hooks, steel safety cables, or light-duty motor details.
- 230 kg Working Load Limit (WLL) matches practical small-tube rigging where compact hardware is part of the design.
- Gravity die-cast aluminum body keeps the fitting tidy around 32-38 mm pipe without crowding adjacent clamps.
Applications
A practical choice for compact lighting grids, display frames, safety cable points, scenic pickups, and specialty pipe rigs where a built-in eye is cleaner than stacking extra hardware.
Compatibility
Fits 32-38 mm tube and provides a 30 mm inside-diameter eye ring for compatible shackles, hooks, and cables.
